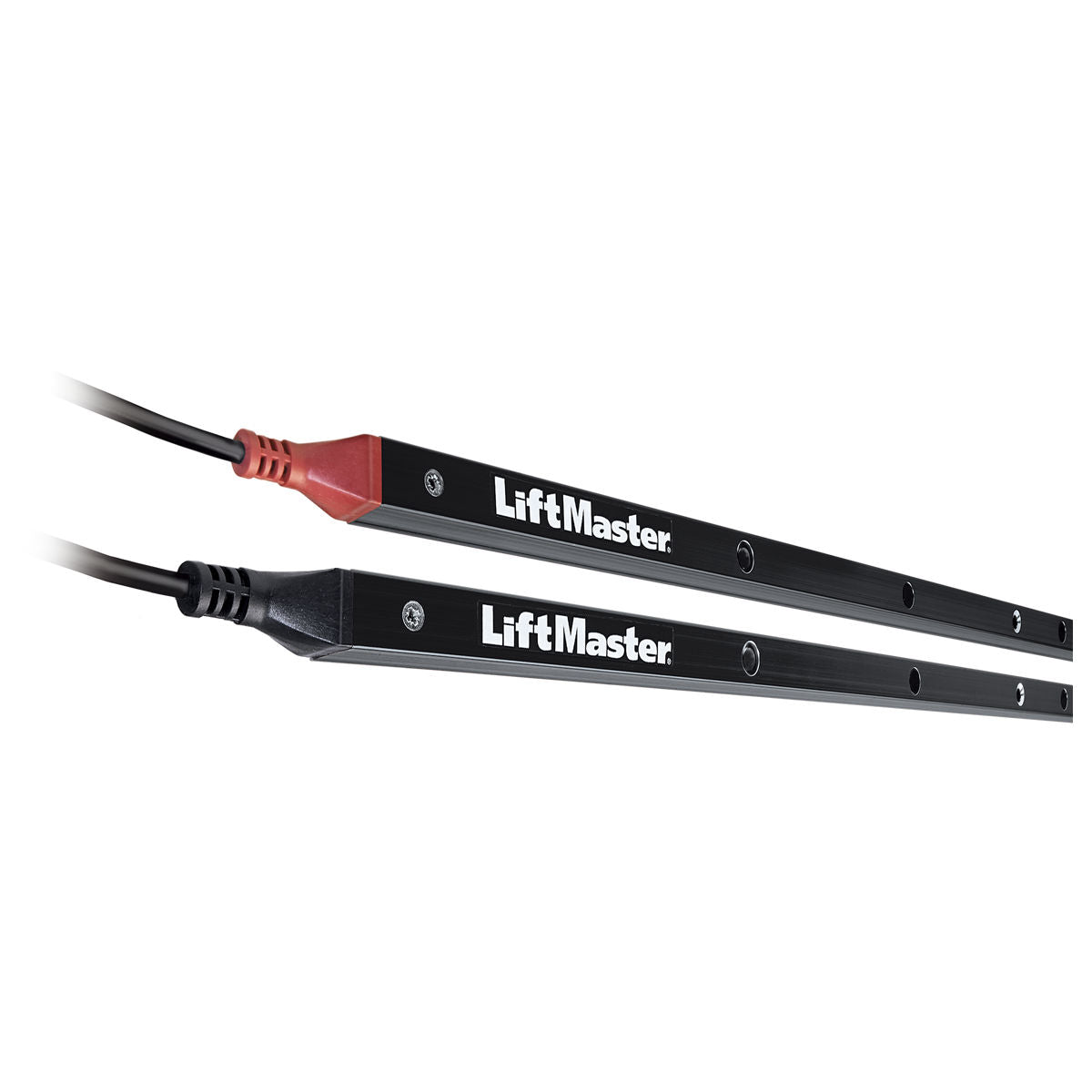

Liftmaster LC36M Monitored Safety Light Curtain (36 Inch)

Liftmaster LC36M Monitored Safety Light Curtain (36")

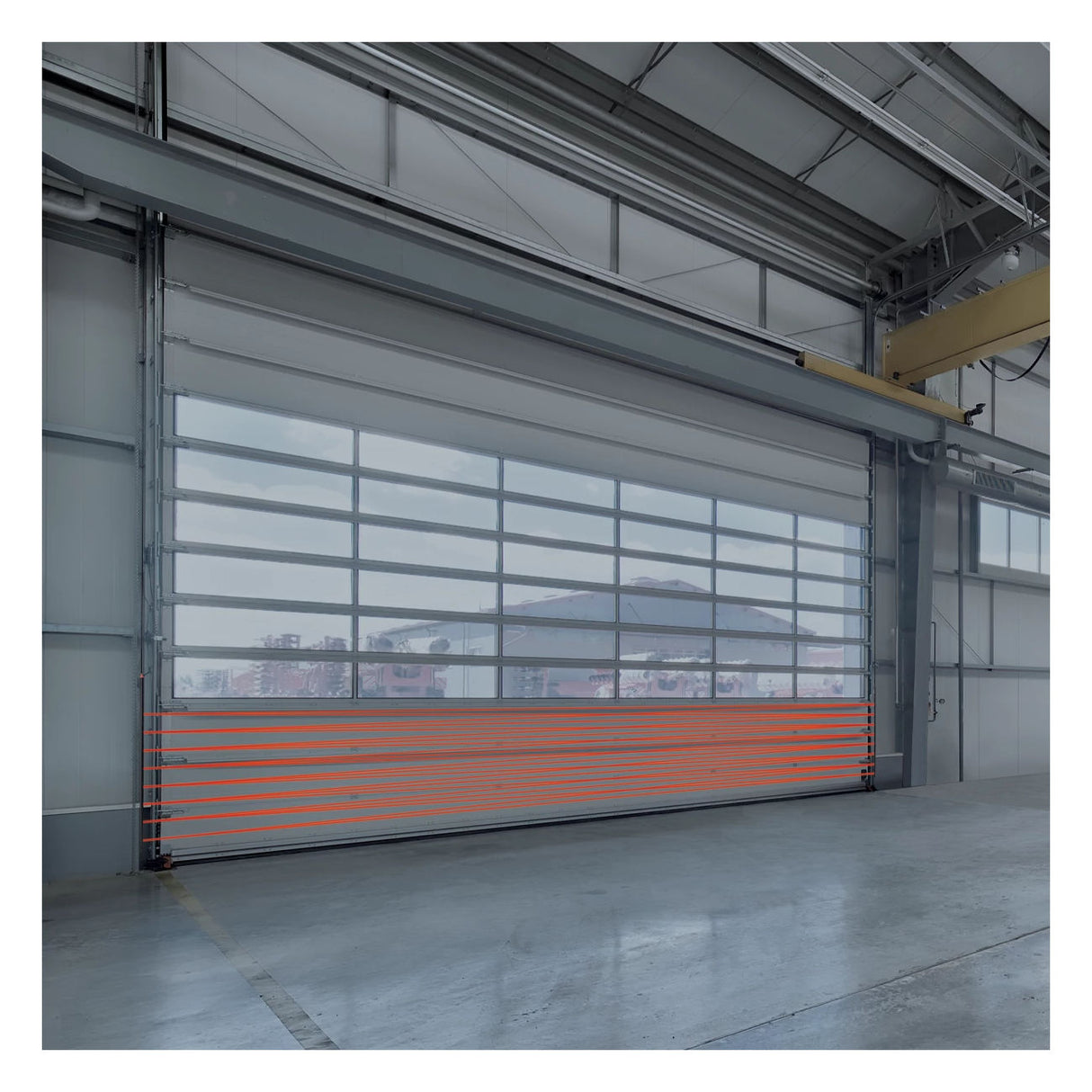

LiftMaster® LC36M Monitored Light Curtains provide up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees and equipment safe. The LC36M is a primary entrapment protection device and is installed along the vertical plane of the door. The light curtains are IP67 rated, which provides protection against direct water spray and makes the LC36M ideal for use in auto dealerships, fire stations, municipal garages and commercial storage facilities. NOTE: This product is not recommended for use in corrosive environments such as car washes or coastal areas with salt spray.

Monitored Light Curtains may also be used as a 2nd Monitored device in tandem with a photo eye on LOGIC 5.0 and HCT Operators. The lowest beam of the Primary monitoring device must be mounted no higher than 6" above the ground. The vertical distance between the photo eye and the bottom of the Monitored Light Curtain must be at least 12". Applicable with HCT, LOGIC 5.0, and HPH1 Operators.

Features:

• Heavier Control and Power Wire – increased to #22 AWG to ease wiring connections. Sturdier and Longer Mounting Brackets - to resist impact while maintaining alignment and simplifying use with wider door tracks.

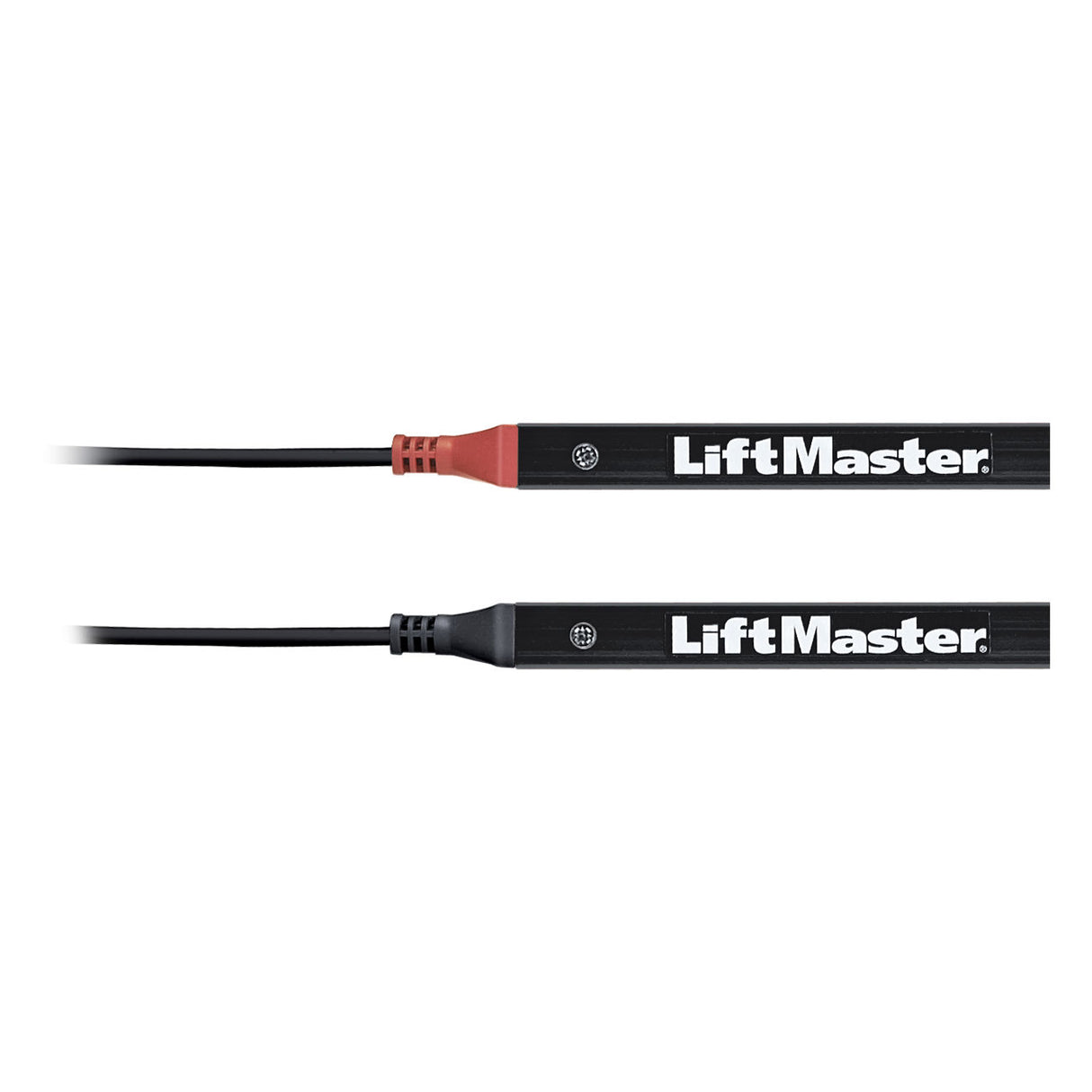

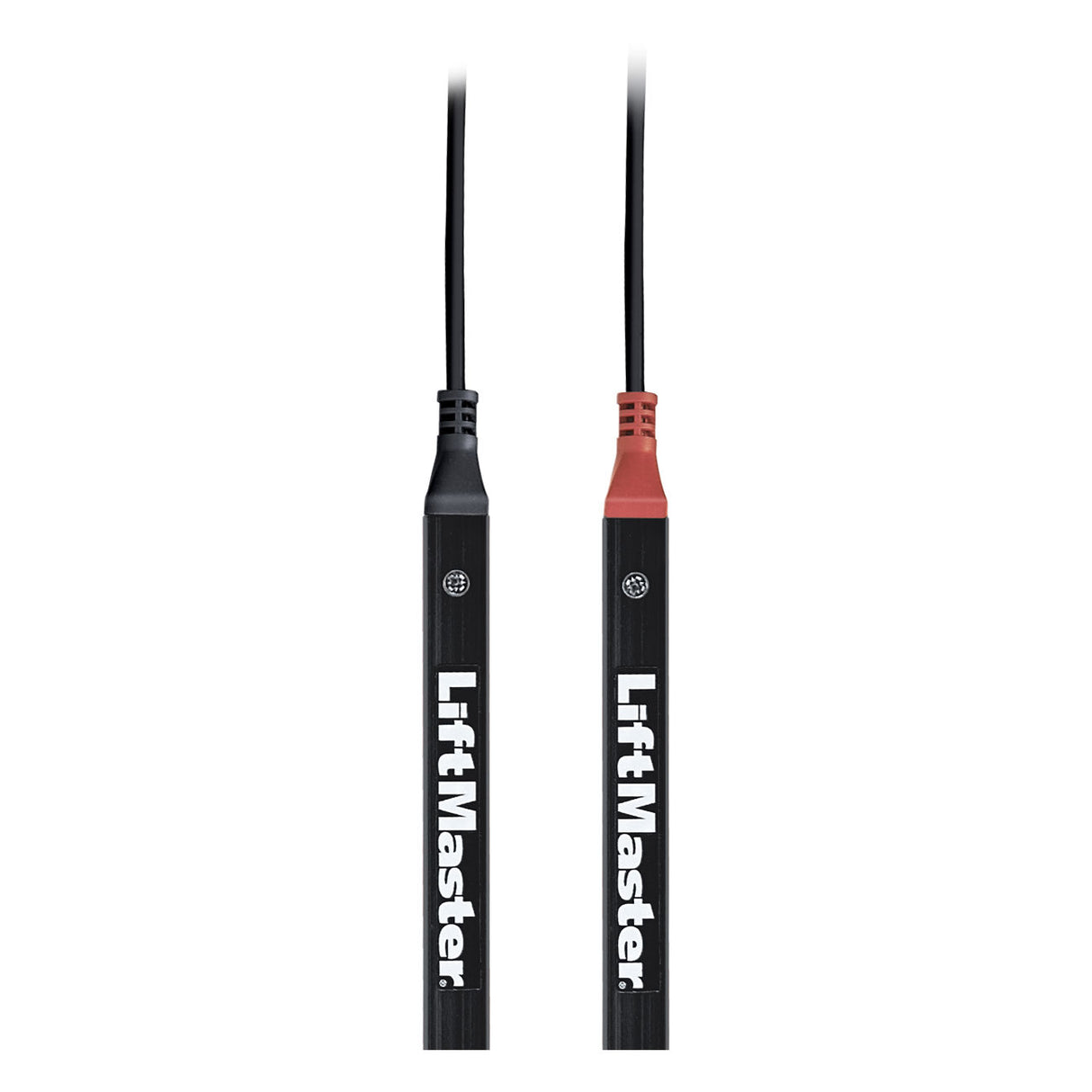

• Color-coded transmitter and receiver for easy identification.
• Each light curtain provides 36 in. of effective height coverage to increase the area of protection.
• Versatile installation options – standalone, double stacked or pair with photo eyes for added protection.
• Maximum door width of 33 ft. ensures coverage for most commercial doors.
• Multiple sets of LC36M curtains can be mounted on a door providing coverage flexibility, use 041K0811 or the CPICARD.
• Eight LEDs per side and 22 cross-beams produce an invisible curtain of infrared light for maximum detection capability.
• Easy alignment with visible LEDs to indicate correct sensor alignment and interrupt detection.

Specifications:

• Maximum operating range: 33 feet / 10.1m
• Minimum alignment distance: 3 feet / .91m
• Number of optical elements/sensors: 8
• Number of cross-beams: 22
• Operating voltage: 22VAC-24VA / DC
• Operating temperature range: -40° F to +140° F (-40° C to +60° C)

Notes

The LiftMaster LC36M is a primary monitored safety entrapment device that is compliant with UL 325. The LiftMaster CPS-UN4, CPS-RPEN4, CPS-OPEN4, CPS-U and OES System also meet this requirement. Failure to use the appropriate sensor or failure to install the sensors properly, may expose the installer and customer to liability, should an accident occur.
