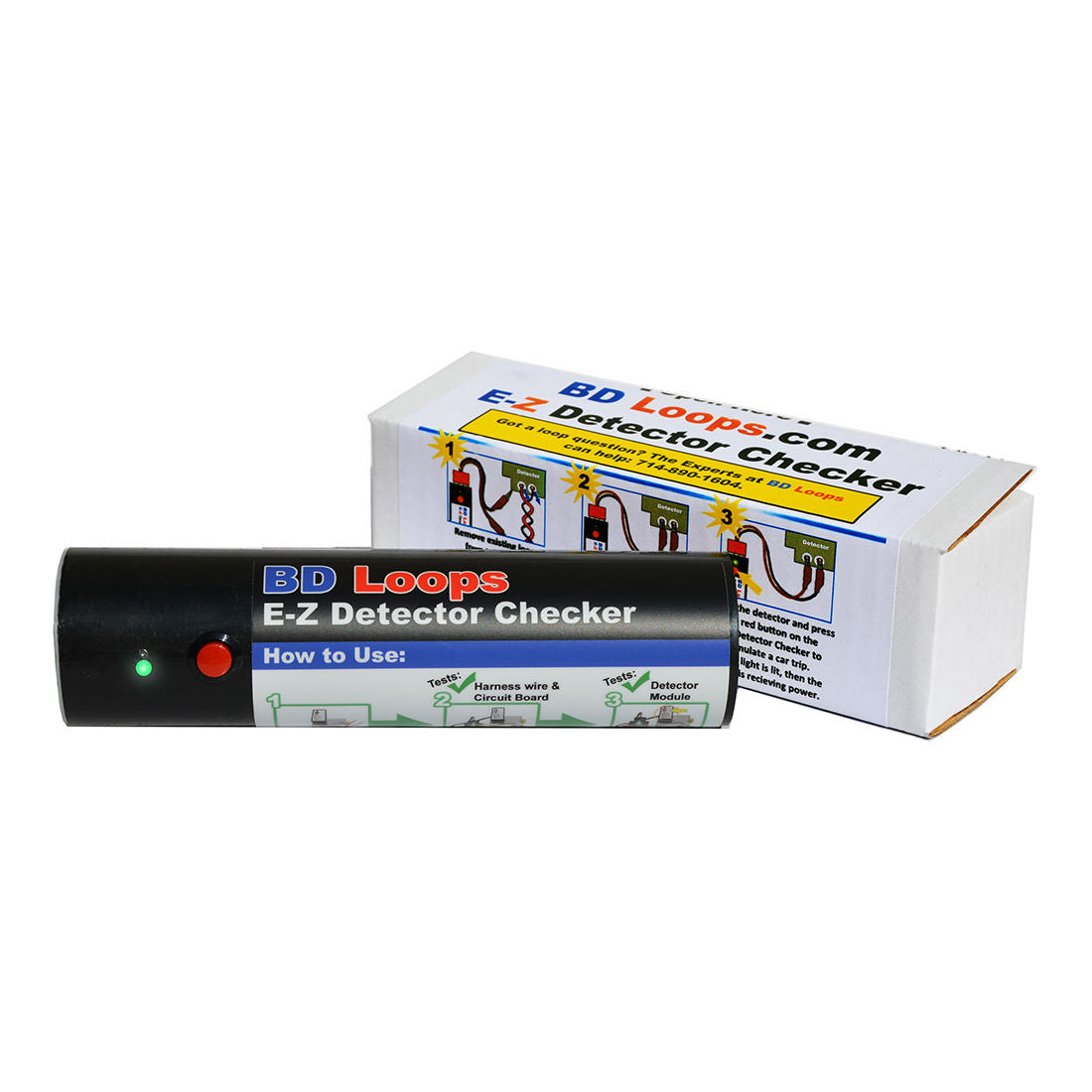

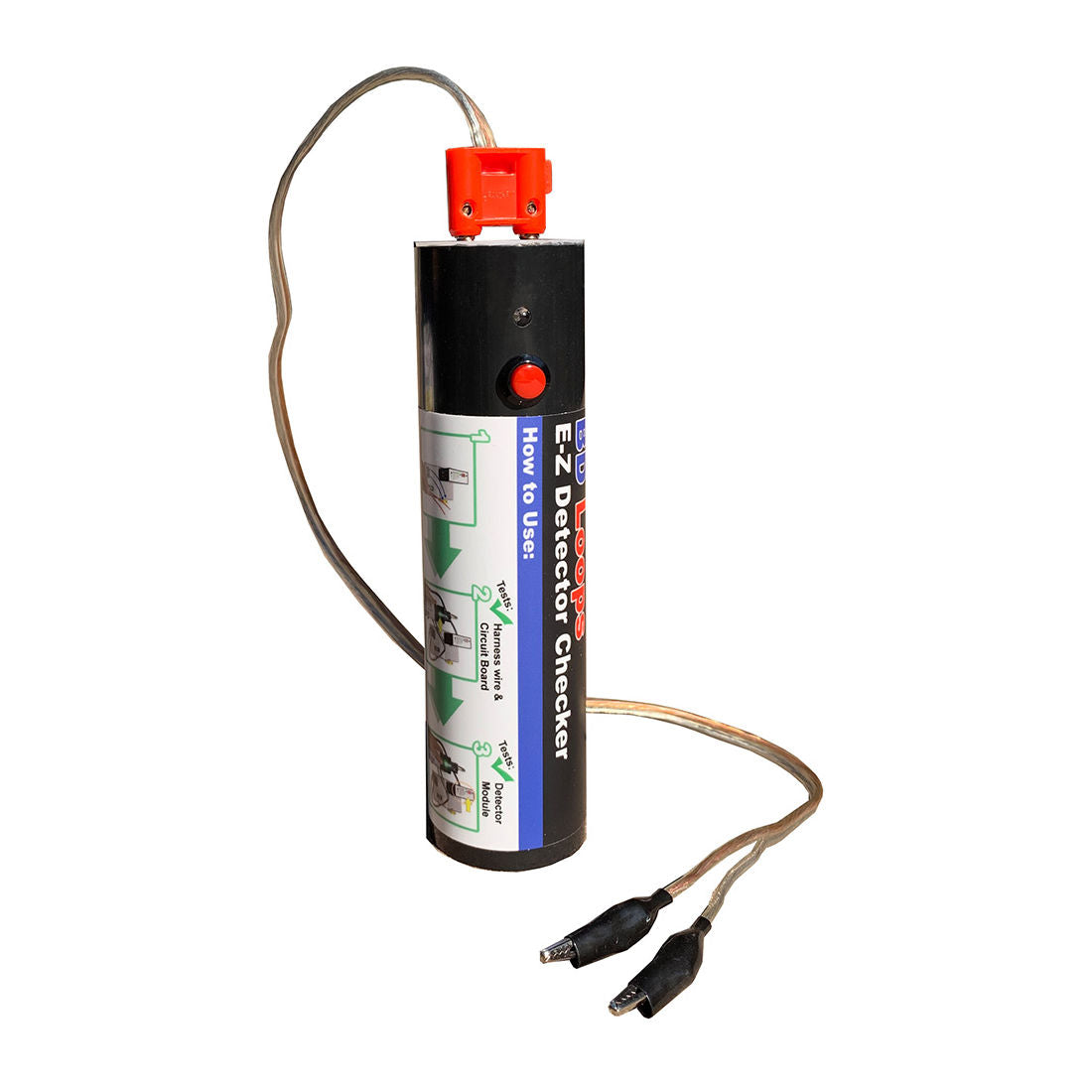

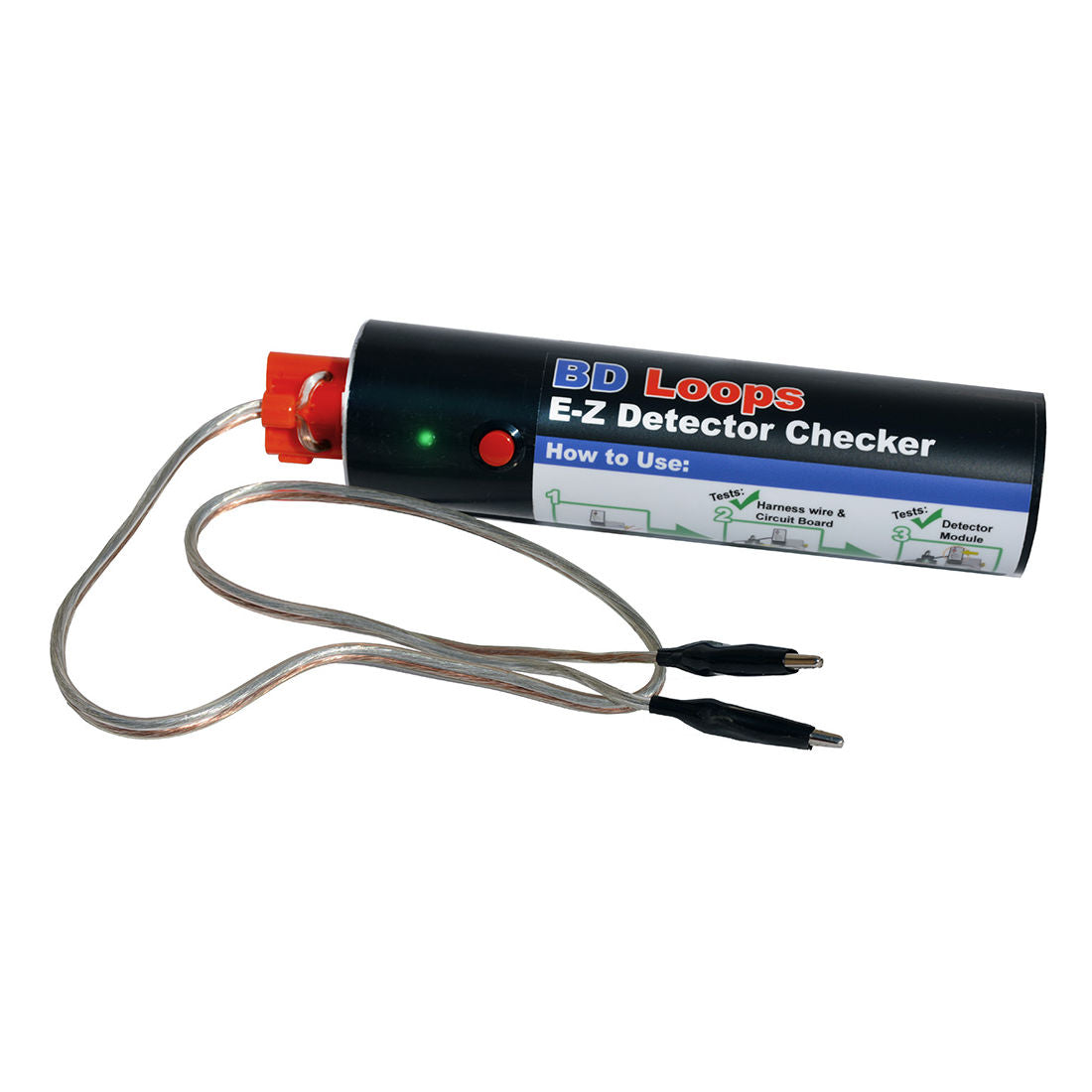

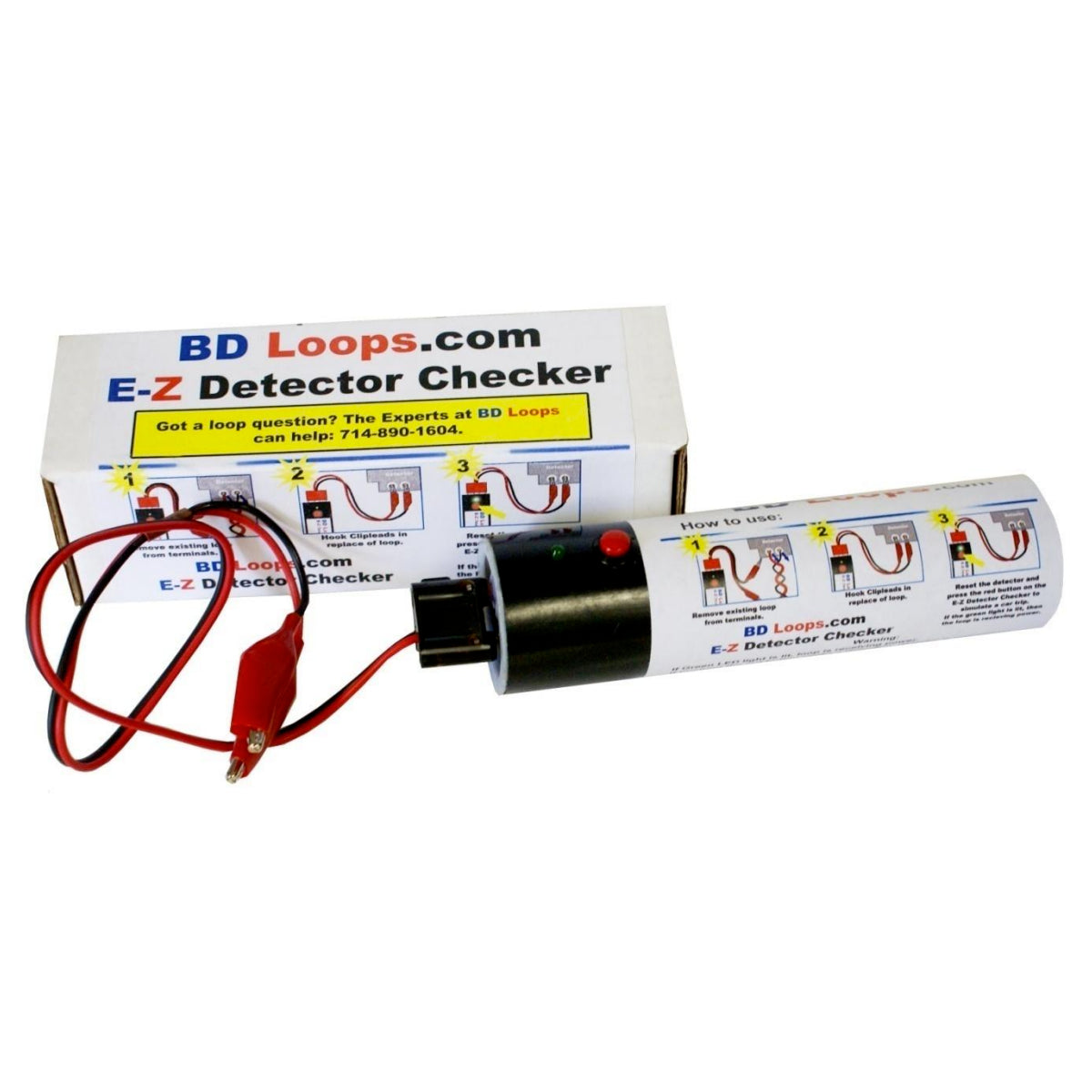

BD Loops E-Z Detector Checker Loop Tester

Handheld Loop Troubleshooting Tool for Detector and Wiring Diagnosis

The BD Loops E-Z Detector Checker is a compact, handheld diagnostic tool designed to test loop detector modules, harness wiring, and circuit board connections without cutting into or replacing the loop itself. Ideal for installers and service professionals, it helps isolate issues in vehicle detection systems by eliminating upstream causes before assuming the loop is faulty. The unit is powered directly by the detector system - no batteries or maintenance required.

Key Features

• Simulates a functioning loop for detector and wiring tests
• Quickly identifies whether the issue lies with the detector, harness, or board
• Prevents unnecessary cutting or replacement of intact loop wire
• Encased in durable PVC housing for field use

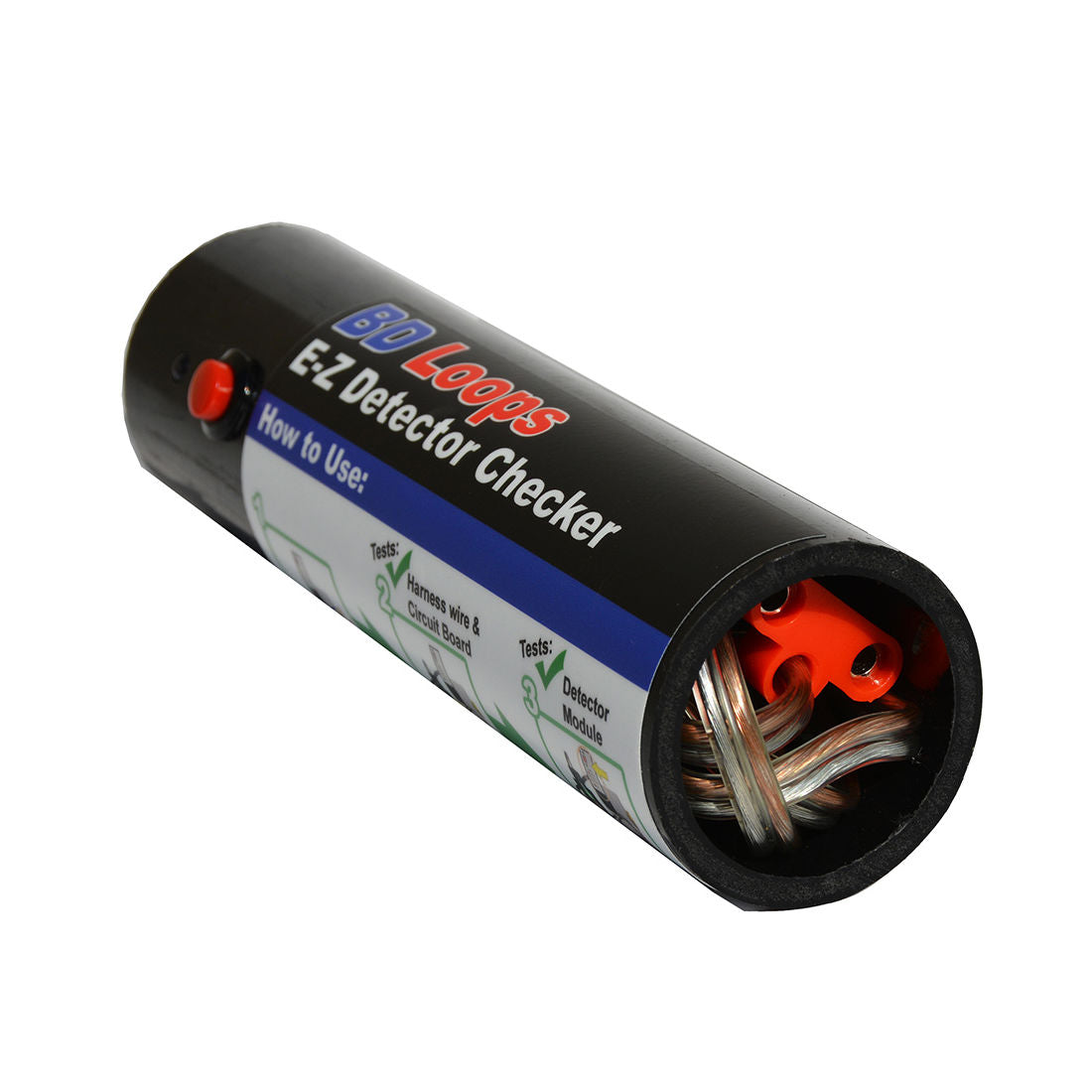

• Clip leads store securely in the back of the unit
• Requires no external power - runs off the detector

Technical Specifications

• Model: E-Z Detector Checker
• Power Source: Powered by the connected loop detector
• Application: Diagnoses loop detector modules and wiring circuits
• Dimensions: 8 in x 2 in x 2 in
• Weight: 0.7 lb
• Use Case: Gate loops, barrier arms, safety loops, vehicle detection circuits
• Maintenance: None required

Conclusion

The BD Loops E-Z Detector Checker is an essential tool for troubleshooting loop-based vehicle detection systems. It saves time and prevents costly misdiagnosis by identifying issues with detectors and wiring before replacing the loop.
