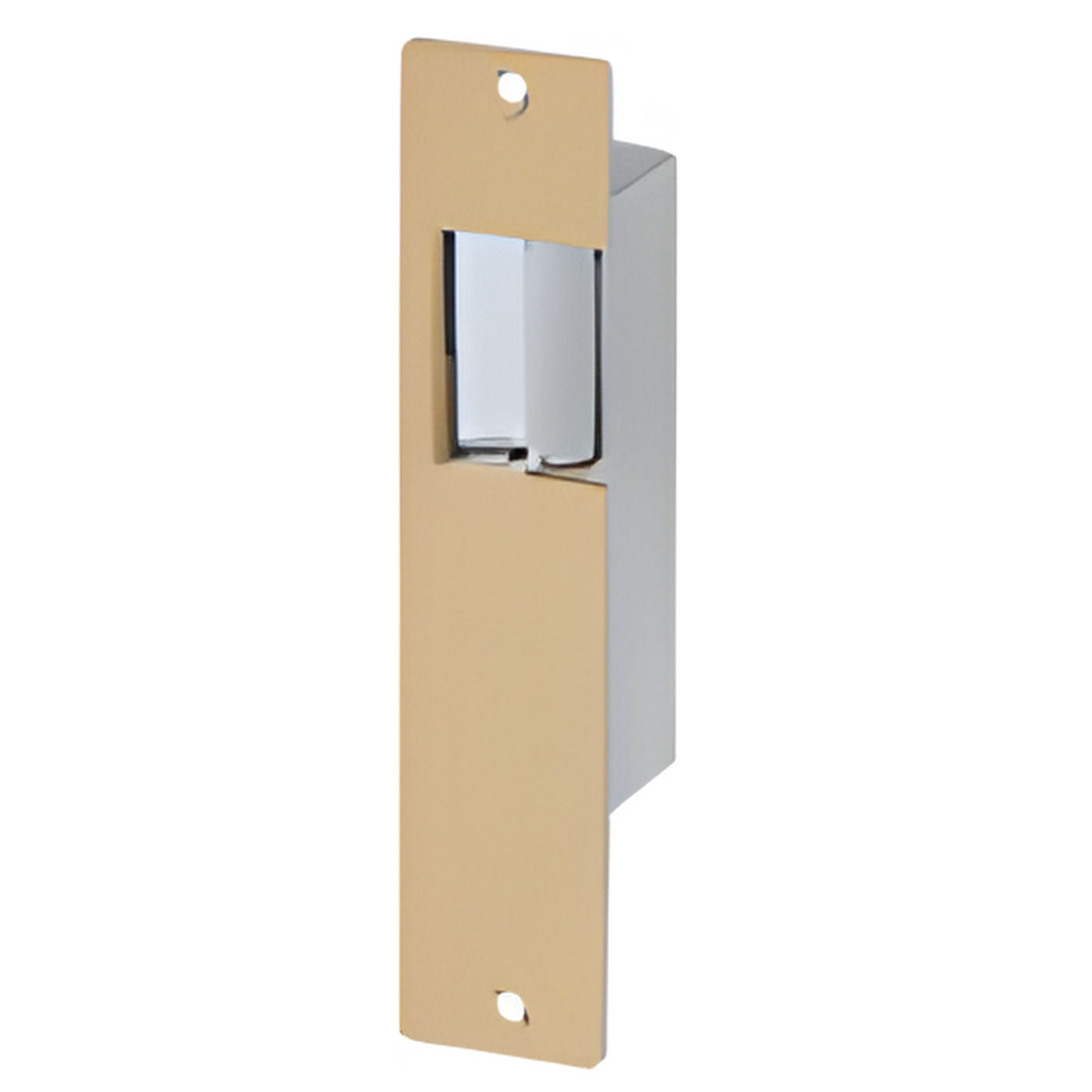

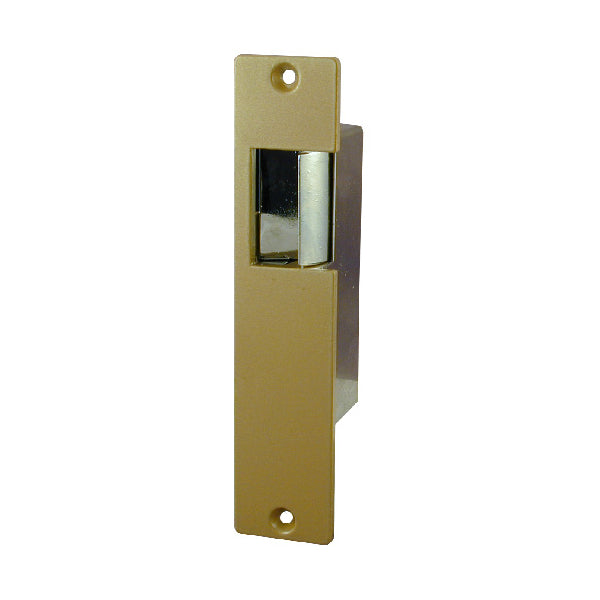

Trine 001 Electric Strike for Pedestrian Gates and Doors

Reliable Electric Strike for Light Commercial Security

The Trine 001 is a compact electric strike built for light commercial access points including pedestrian gates, interior doors, and low-traffic exterior entries. Designed for new or retrofit installations, it works seamlessly with cylindrical locksets having up to 5/8" latch throw and a 1/8" door gap. Its brass powder-coated finish offers durability in both wood and metal frames. With fail-secure standard action, this electric strike unlocks only when power is applied, supporting secure perimeter control across entry points.

Key Features

• High Durability: Rated for 500,000 life cycles for long-term reliability
• Strong Holding Force: Resists up to 1,000 lbs of force
• Minimal Moving Parts: Only one moving part in the locking mechanism reduces failure points
• Fail-Secure by Default: Unlocks with power, securing the door during power loss
• Flexible Mounting: Compatible with both wood and metal jambs
• Non-Handed Design: Installs on left- or right-swinging doors without modification
• Heavy Duty Latch Spring: Withstands daily use in commercial environments

Technical Specifications

• Voltage Options: 8-16VAC / 4-6VDC
• Current Draw: 1.3–2.7A (AC), 0.4A (12VDC), 0.19A (24VDC)
• Duty Cycle: Intermittent (AC), Continuous (DC)

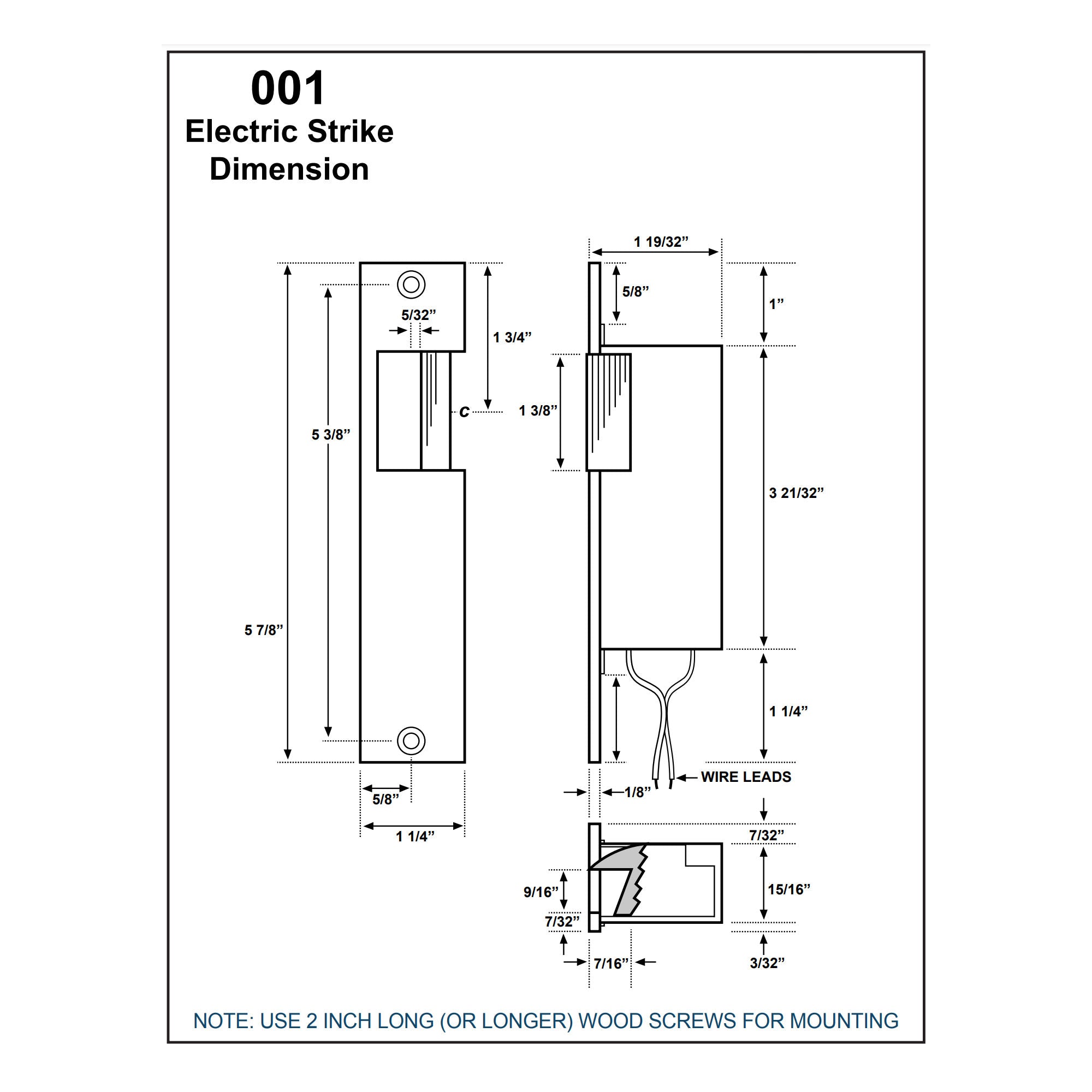

• Face Plate: 5-7/8" x 1-1/4"
• Mortise Backset: 1-9/16"
• Cavity Dimensions: 1/2" depth, 9/16" width, 1-1/2" height
• Finish: Brass powder coated (001 model)
• Lockset Compatibility: Up to 5/8" latch throw

Conclusion

The Trine 001 electric strike offers dependable performance for light commercial pedestrian access points. Its compact build, fail-secure operation, and wide voltage compatibility make it a practical choice for securing interior and perimeter doors alike. Trusted by installers for its simplicity and strength, the Trine 001 remains a top choice for selective entry systems where reliability matters.
