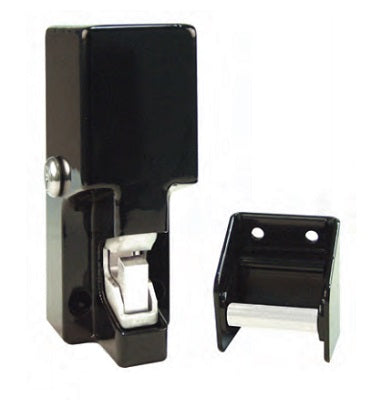

Securitron GL1-FL Electric Gate Lock (Fail Locked)

Securitron GL1 Mechanical Gate Lock

Fail Lock Model (if power fails gate lock stays locked)

A 1-ton holding power electromechanical lock. 12-24VDC. The heavy duty GL-1 FL Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications.

The GL1 provides 2000lbs of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding vehicle, pedestrian, or stock gate access control.

Specifications

• 2000lbs holding force
• Operates under preload up to 100lbs
• Automatic dual voltage - no field adjustment required
• Field-selectable fail secure/fail safe
• Manual key override optional
• Self-aligning receiver (+/- 1/2” horizontally) helps compensate for gate misalignment and sag
• Tamper resistant cast aluminum housing
• Heavy wall 1/2” inside diameter
• Hardened steel latch and pin
• Surface mount
• 2-3/4”L x 7-1/4” W x 3-1/4” D

Notes

• Power supply not included
• Mortise ock not included
