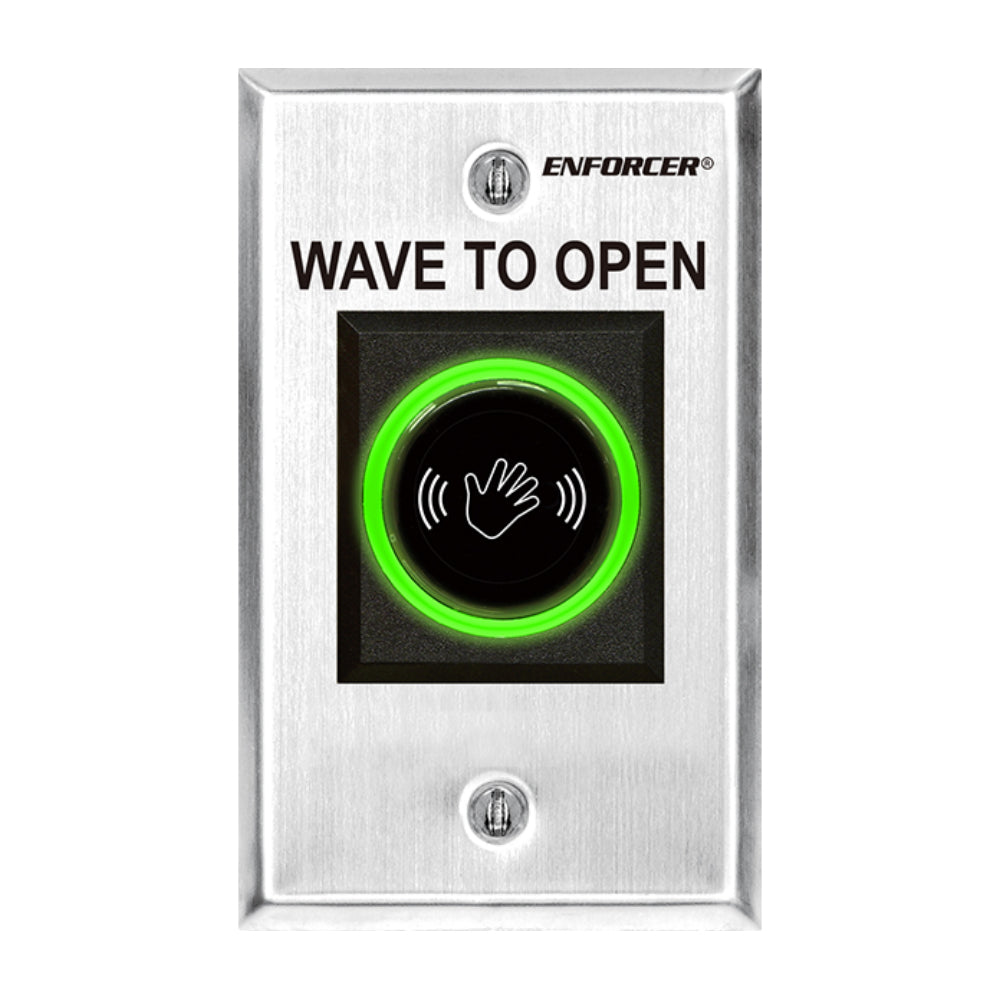

Seco-Larm SD-927PKC-NEQ Wave-to-Open Exit Button

Touchless Wave-To-Exit Button for Secure and Hygienic Access

The ENFORCER SD-9263-KSQ Wave-To-Exit Button is a cutting-edge, touchless solution designed to streamline exit access in secure environments. Using infrared (IR) technology, this device activates with a simple wave of the hand, eliminating the need for physical contact and reducing the risk of contamination. Ideal for use in hospitals, laboratories, offices, schools, and cleanrooms, the SD-9263-KSQ ensures safe and hygienic egress in high-traffic areas.

Built with a durable stainless steel faceplate, this wave-to-exit sensor blends seamlessly with modern interiors while withstanding frequent use. Its adjustable sensing range and programmable relay allow for flexible configurations, ensuring compatibility with various access control systems. The device features dual-color LED indicators for clear status identification, further enhancing user convenience.

Key Features

• Touch-Free Operation: Wave activation eliminates touchpoints, promoting hygienic access in sensitive environments.
• Dual Voltage Compatibility: Operates on 12~24 VAC/VDC, offering flexibility for different installation needs.
• Adjustable Activation Range: Sensing range can be customized between 2⅜″ to 8″ (6 to 20 cm) for precise detection.
• LED Status Indicators: Programmable LEDs shift from red to green or green to red upon activation for clear visual feedback.
• Rugged Stainless Steel Design: The single-gang faceplate provides a sleek, durable finish that resists wear and corrosion.
• Adjustable Timer: Relay output duration is programmable from 0.5 to 30 seconds or toggled for continuous activation while the hand is detected.
• Quick and Simple Installation: Equipped with a screw-less terminal block for fast wiring and minimal downtime.
• ETL UL294 Certified: Meets industry standards for reliable performance and safety in access control systems.

Technical Specifications

• Model: SD-9263-KSQ
• Voltage: 12~24 VAC/VDC
• Current Draw: 120mA at 12VDC
• Relay Output: 3A at 24VDC, Form C (NO/NC)
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)
• Dimensions: 2½" (H) x 1½" (D) x ¾" (W)
• Mounting: Single-gang plate
• Certifications: ETL Listed, UL294 Compliant

Conclusion

The ENFORCER SD-9263-KSQ Wave-To-Exit Button is a top-tier solution for enhancing hygiene and simplifying access control in commercial and institutional settings. Its hands-free functionality, durable construction, and customizable settings make it a reliable and essential addition to any modern security system. Invest in touchless technology to promote safer, smarter access with this trusted ENFORCER device.
