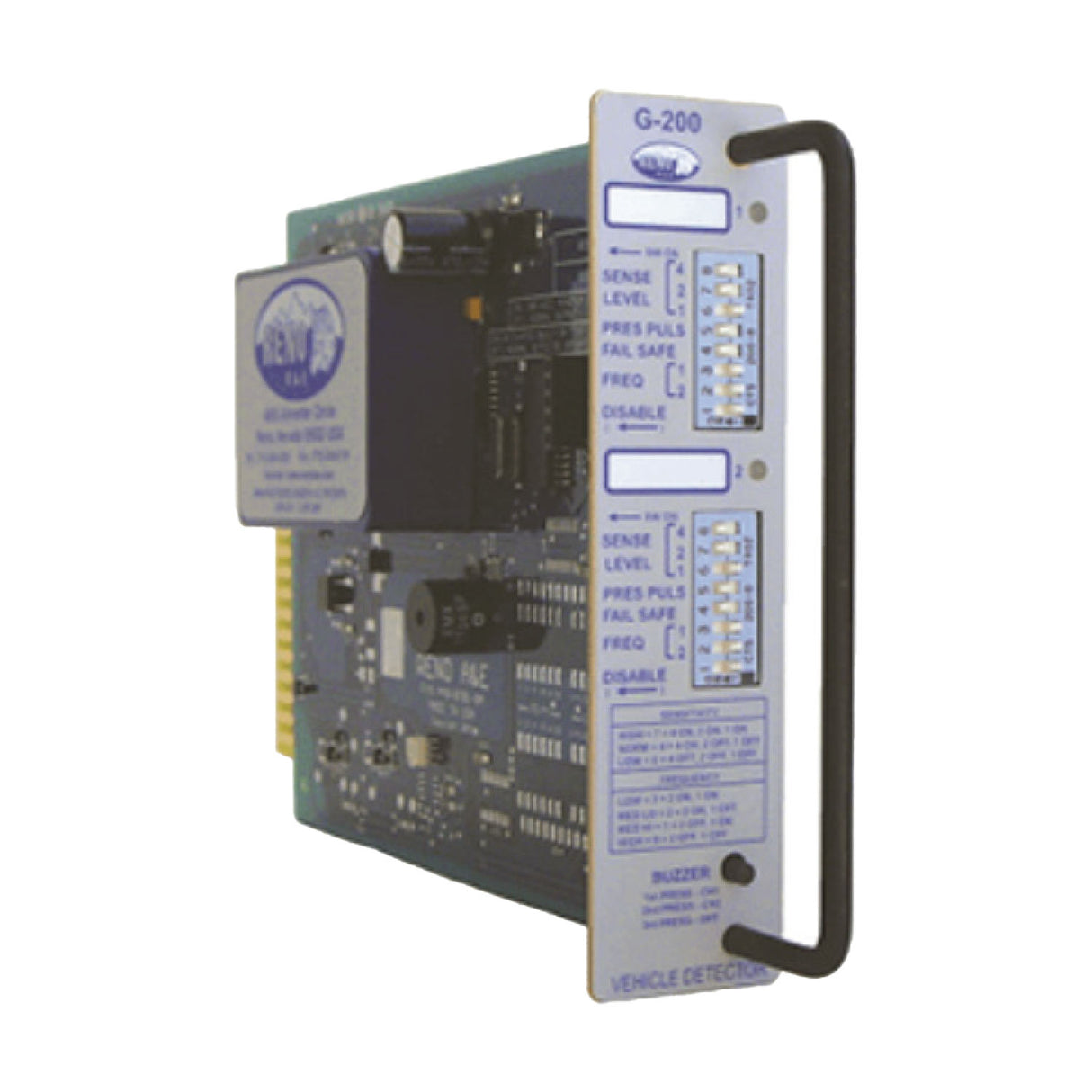

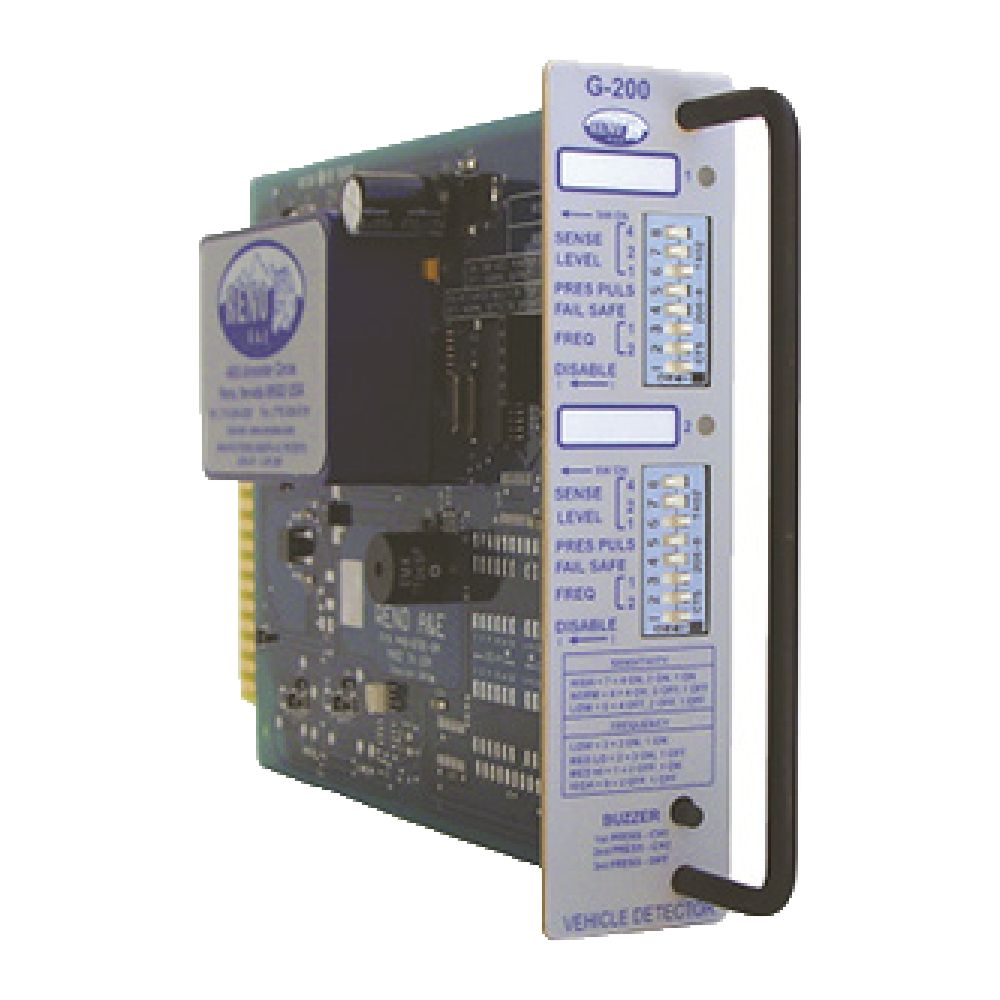

EDI Reno G-200 Dual-Channel Loop Detector

Dual-Channel Loop Detector for NEMA Traffic and Access Systems

The EDI Reno G-200 Vehicle Detector is a dual-channel inductive loop detector built for precision vehicle sensing in NEMA TS1-1989 and TS2-1998 Type A applications. Designed for access control, parking systems, and traffic management, it offers advanced self-tuning, selectable fail modes, and reliable solid-state outputs. The G-200 ensures consistent detection accuracy and stability even under extreme environmental conditions.

Key Features

• Dual-channel vehicle detection with individual frequency and sensitivity control
• Solid-state outputs for long-term reliability (replaces relay-output versions)
• Selectable fail-safe or fail-secure operation modes
• Eight adjustable sensitivity levels (0.01%–1.28%)
• Presence or pulse detection mode
• Audible detect signal for field verification
• High-intensity dual-color LEDs for detect and fault indication
• Automatic environmental compensation for loop drift
• Loop fail memory retains prior fault events until reset
• Sequential channel scanning prevents crosstalk interference
• Compact NEMA rack-mount design for quick installation

Technical Specifications

• Detection Channels: 2 independent
• Loop Frequency Range: 20–100 kHz adjustable
• Sensitivity Levels: 8 selectable
• Power Requirement: 10.8–30 VDC
• Output Type: Solid-state, optically isolated, 30 VDC max, 100 mA
• Fail Mode: Selectable fail-safe or fail-secure
• Response Time: 65 ±25 ms (fail-safe), 3.5–21.5 ms (fail-secure)
• Operating Temperature: -40°F to +180°F (-40°C to +82°C)
• Loop Inductance Range: 20–2000 µH
• Lightning Protection: 2000V surge protection on loop inputs
• Size: 4.5 in H × 1.12 in W × 6.875 in D
• Weight: 6 oz (170 g)
• Compliance: NEMA TS1-1989 / TS2-1998 Type A
• Mounting Type: Standard card-rack

Available Variants

• G-200: Type A dual-channel loop detector, standard configuration for NEMA systems
• GT-200: Type C dual-channel loop detector with adjustable call delay and call extension functions

Conclusion

The EDI Reno G-200 Series provides precise, dependable detection for vehicle loops in NEMA-based control systems. With selectable modes, environmental compensation, and rugged solid-state reliability, it’s a proven choice for secure access control, traffic detection, and parking management applications.
