MultiCode 109206 Wire Harness for 3-Terminal Receivers

3-Wire Adapter Harness for Gate and Garage Operator Receivers

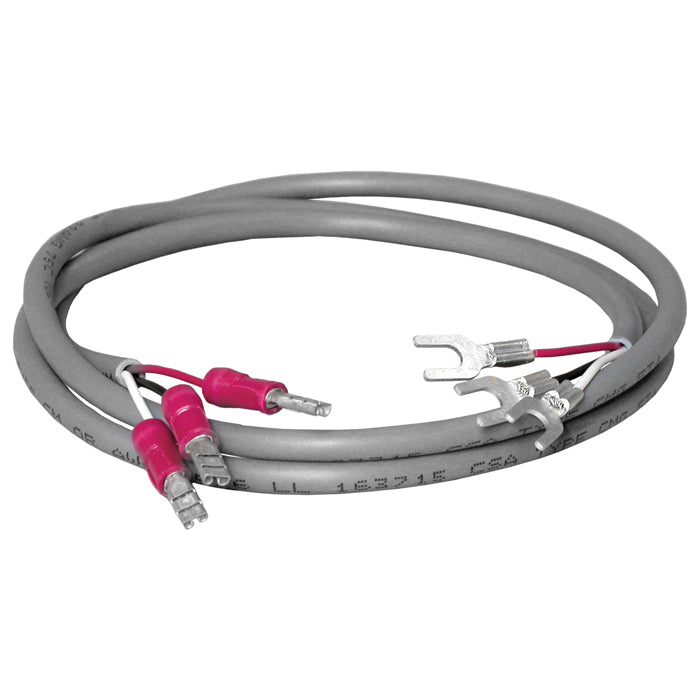

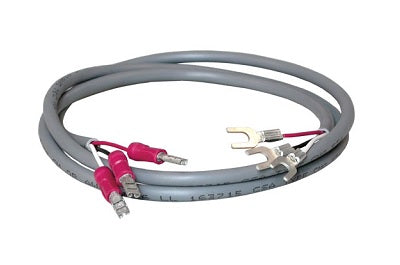

The MultiCode 109206 is a 3-wire adapter harness designed for connecting 3-terminal receivers to compatible gate or garage door operators. With spade lugs on one end and push-on lugs on the other, this 3-foot cable provides a convenient, plug-and-play interface between Multi-Code 1090/3090 series receivers and screw-terminal operators. Ideal for quick installations and replacements, the 109206 ensures secure connectivity without splicing or soldering.

Key Features

• Length: 3-foot cable with pre-terminated ends
• Receiver Compatibility: For Multi-Code 1090 and 3090 3-terminal receivers
• Terminal Type: Push-on lugs for receivers; spade lugs for operator terminals
• Purpose: Bridges push-on receivers to screw-type operator terminals
• Installation: Plug-and-play harness for clean, solder-free setup

Technical Specifications

• Model: 109206
• Length: 3 ft
• Conductors: 3
• Receiver Side: Push-on lugs
• Operator Side: Spade lugs
• Use Case: Multi-Code receiver to screw-terminal operator connection

Conclusion

The MultiCode 109206 wire harness is a reliable, installer-friendly solution for adapting Multi-Code receivers to 3-terminal operators. With its pre-crimped ends and 3-foot length, it simplifies connections and minimizes installation time while ensuring dependable performance in access control systems.
