Liftmaster LA500XL20W Dual Solar Swing Gate Opener (New Version)
Liftmaster LA500XL20W Dual Solar Swing Gate Opener (New Version) is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Swing Gate Operator |
| Application Type | Gate |
| Installation Type | Residential | Commercial |
| Voltage | 115V | 230V |
| Power Type | Solar |
| Mounting Type | Post Mounted |
| Mechanism Type | Screw Drive |
| Motor Type | DC Motor |
| Horsepower (HP) | < 0.5 HP |
| Battery Backup | Included |
| UL/ETL Certification | Yes |
| Smart Features | MyQ Compatible |
| Frequency | 310/315/390 MHz |
| Max Gate Weight | 1,600 lbs |
| Max Gate Length | 18 ft |
| Phase | Single-Phase |
| Solar Ready | Solar Ready |
| Included Accessories | Receiver | Photoeye | Battery | Solar Panel | Harness | Cable |
| Weatherproof Rating | Rated for Outdoor Usage |
| Operating Temperature | -4°F to 140°F |
Liftmaster LA500XL20W Dual Solar Swing Gate Opener (New Version)
Description
Description
Dual Solar Swing Gate Automation with MyQ® Technology
The LiftMaster LA500XL20W is a complete dual swing gate opener system designed for secure, solar-powered operation in residential and light commercial environments. Engineered for double-leaf gates up to 18 feet or 1,600 lbs per leaf, this dual actuator kit provides robust performance, built-in MyQ® smart control, and extended battery backup.
Key Features
- Dual Actuator Configuration - Includes primary (LA500DC) and secondary (LA500DCS) arms for bi-parting swing gates
- High Capacity Solar System - Two 10-watt solar panels with dual 33Ah batteries support up to 2,781 cycles or 180 days standby
- MyQ® Smart Technology - Enables smartphone-based control and monitoring with the LiftMaster 828LM (sold separately)
- Soft Start/Stop 24V DC Motor - Ensures smooth, quiet gate movement
- UL 325 Certified - Integrated obstruction sensing, monitored photo eye, and anti-tailgate function
Technical Specifications
- Motor: 24V DC motor with soft start/stop functionality
- Max Gate Length: 18 ft per leaf
- Max Gate Weight: 1,600 lbs per leaf
- Backup Power: Supports up to 2,781 cycles or 180 days of standby operation (depending on environment)
- Control Panel: XL control box optimized for solar setups
- Safety Compliance: UL 325 and UL 991 compliant

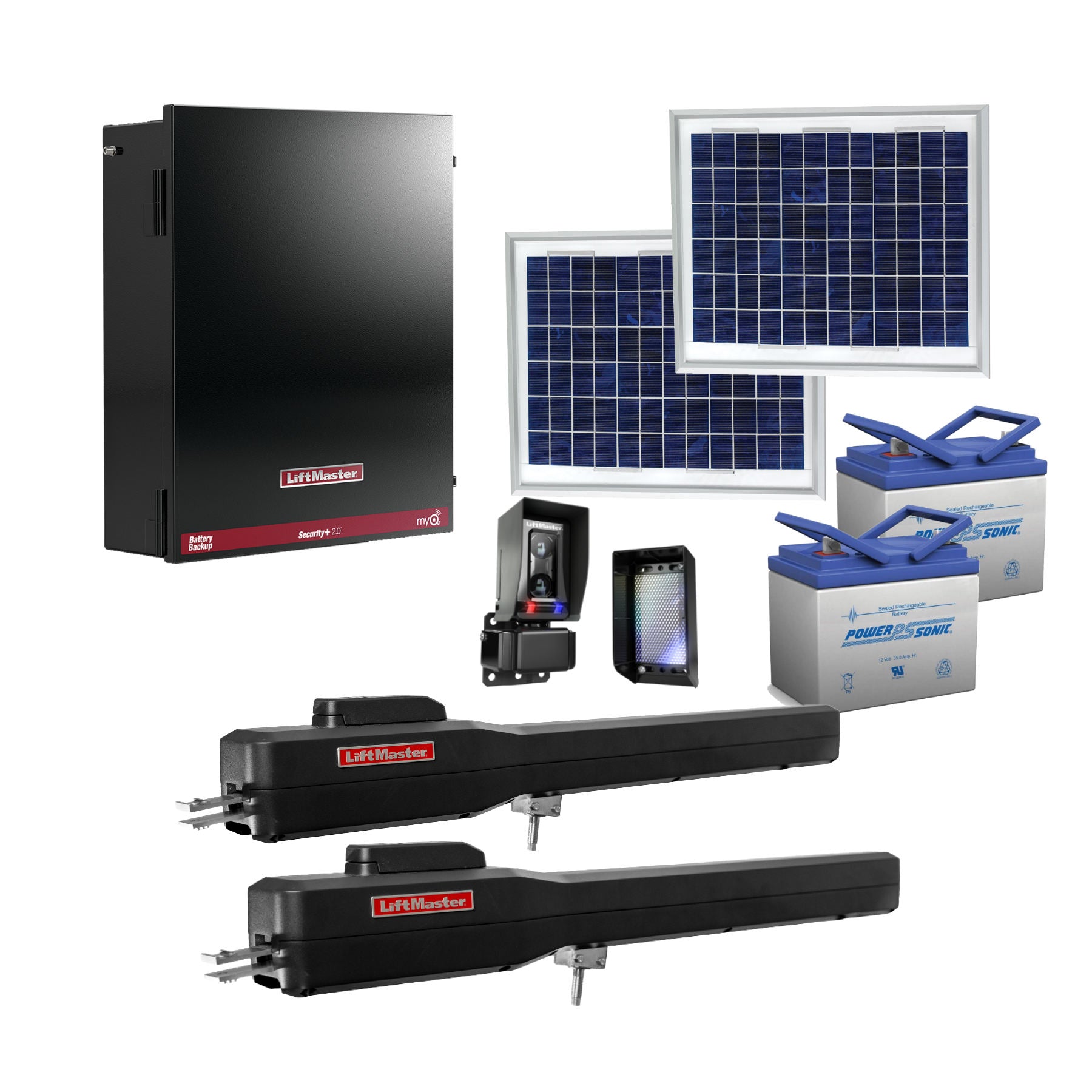

What Is Included with This Package?
- One LA500DC actuator arms (primary)
- One LA500DCS actuator arm with connecting wire (secondary arms)
- Control box: XL control box with circuit board for solar support
- Solar panels: Two 10-watt solar panels for energy-efficient power generation
- Batteries: Two 33Ah batteries for extended backup
- Safety photo eyes: Monitored retro-reflective photo eye for UL 325 compliance
- Solar harness: For easy connection between the panels and control box
- User manual: Complete installation and setup guide
Conclusion
Built for long-term reliability and off-grid power efficiency, the LiftMaster LA500XL20W delivers heavy-duty gate automation backed by solar power and MyQ® smart connectivity. Ideal for remote estates, farms, and secure residential sites, this dual gate kit balances sustainability, security, and performance.
