Hysecurity STRONGARMPARK DC14 Barrier Gate Opener

HySecurity StrongArmPark DC 14 Parking Arm Operator
Hysecurity STRONGARMPARK DC14 Barrier Gate Opener

Hysecurity STRONGARMPARK DC14 Barrier Gate Opener

SKU: StrongArmPark DC14
Regular price
MSRP: $6,000.00
Sale price
Your Price: $3,358.88
Quantity must be 1 or more

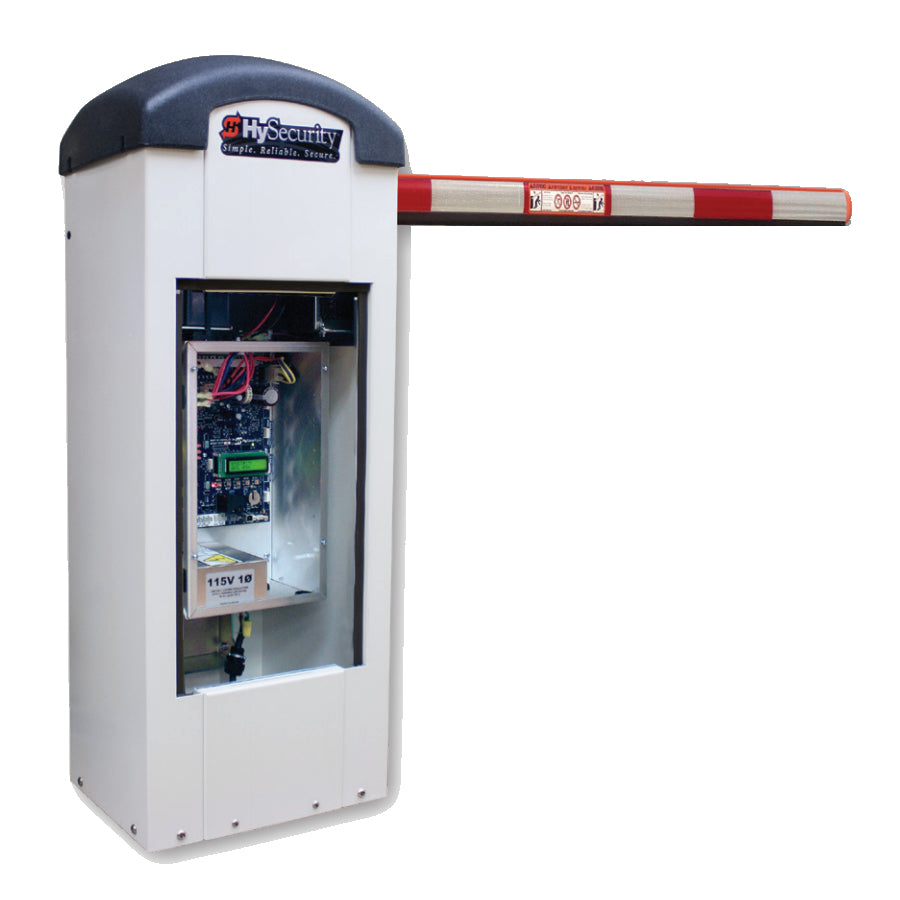

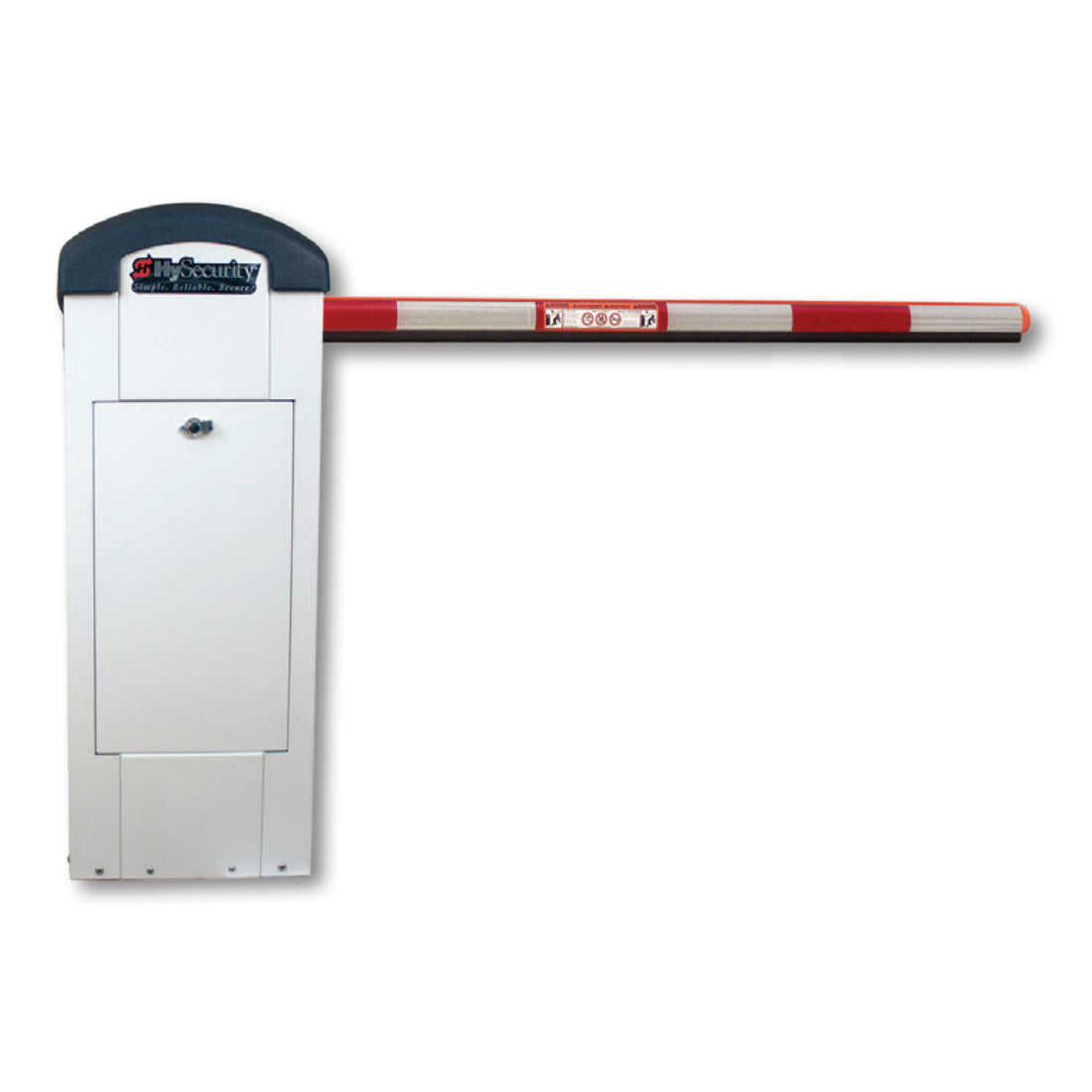

HySecurity StrongArmPark DC14 Parking Arm Operator

Arms sold separately!

Download Specs Download Manual

Counterbalance spring allows for cycling arms greater than 10 ft up to 14 ft (3 to 4.3 m). Arms start and stop gracefully with three field-adjustable Open/Close speeds: 2.5/3/3.5 seconds. Use HySecurity articulating arms for site clearance issues such as underground parking garages.


Duty Cycle Continuous*
Arm Speed 3 speeds: 2.5/3/3.5 seconds. Field adjustable
Arm Length 10, 12, and 14 ft (3, 3.7 and 4.3 m) standard lengths
Arm Designs

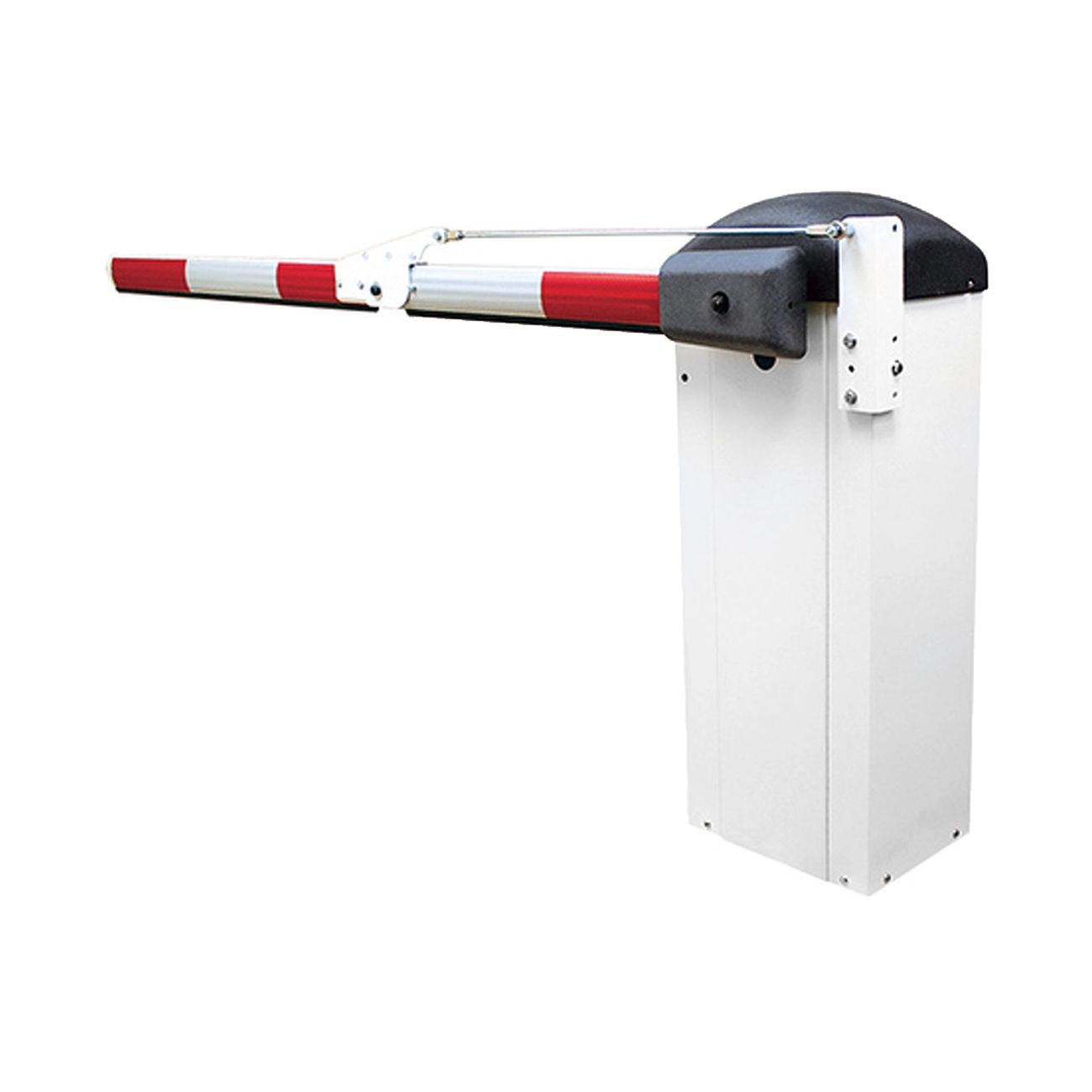

Aluminum oval arm with bumper, lights, HyProtect™ breakaway arm bracket & kill switch (standard). Optional articulating aluminum arm with HyProtect™ breakaway arm bracket & kill switch; 7 ft clear/8 ft extended (2.1 m/2.4 m); 8 ft clear/10 ft extended (2.4 m/3 m); 9 ft clear/10 ft extended (2.7 m/3 m). Lights optional.
Full Open Angle Arm full open angle: Adjustable 90º ± 10º
Handing Left handing standard. Right handing available.
Operator HP 1/2 hp
Drive Type Electromechanical
Two 8Ah batteries. Operates for thousand plus cycles after AC power loss.* Field configurable to fail open or secure when batteries deplete.
Voltage Input
115VAC, 3A, 60/50 Hz or 208-230VAC, 1.5A, 60/50 Hz Solar: 24VDC solar panels**
Accessory Power 12VDC and 24VDC 1A each
Temperature Rating -13º to 158º F (-25º to 70º C)
USB, RS-232, RS-485; Ethernet/fiber using optional HyNet™ Gateway accessory
User Controls
Smart DC Controller with 70+ configurable settings. 32 character LCD display and 5 tact buttons or a PC using S.T.A.R.T. software.
One configurable user relay: 250VAC, 10A electromechanical. Optional Hy8Relay™ for 8 additional relay outputs
App Class Usage Class I, II, III, IV
Finish Type Zinc plated with powder coating
Cycle Tested 2 million cycles
