FAAC S450H Hydraulic Swing Gate Operator Kit
FAAC S450H Hydraulic Swing Gate Operator Kit is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Swing Gate Operator |
| Application Type | Gate |
| Installation Type | Residential | Commercial |
| Voltage | 24V |
| Power Type | DC |
| Mounting Type | Post Mounted |
| Mechanism Type | Hydraulic |
| Motor Type | Hydraulic |
| Horsepower (HP) | < 0.5 HP |
| Battery Backup | Included |
| UL/ETL Certification | Yes |
| Max Gate Weight | 1,100 lb |
| Max Gate Length | 14 ft |
| Weatherproof Rating | IP55 – Dust-protected, resists low-pressure water jets |
| Operating Temperature | -4°F to 131°F |
FAAC S450H Hydraulic Swing Gate Operator Kit
Description
Description
Hydraulic Swing Gate Operator Kit for Residential and Commercial Applications

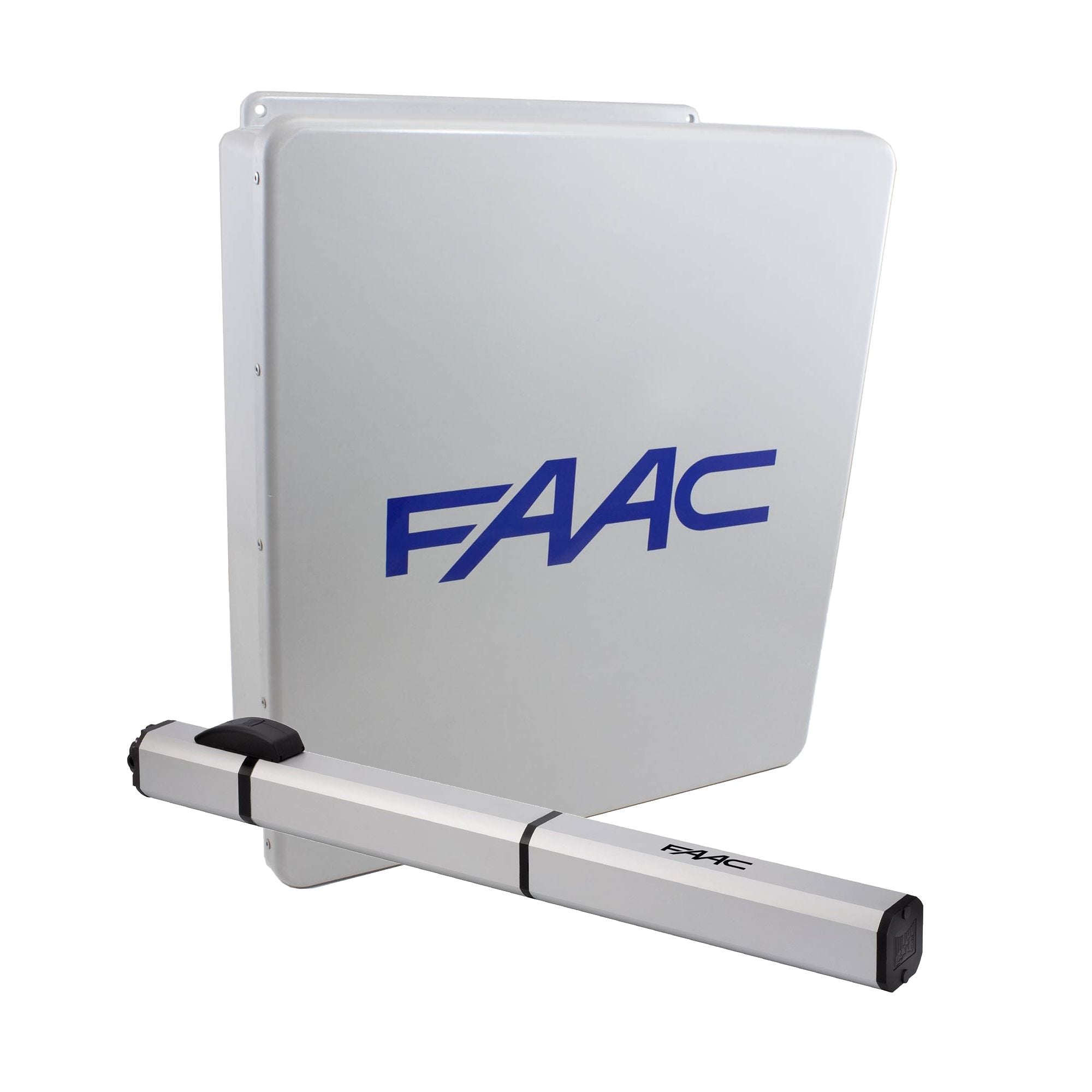

The FAAC S450H Hydraulic Swing Gate Operator Kit is a low-voltage, electro-hydraulic swing gate solution designed to automate residential and access-controlled vehicular entrances with smooth, consistent movement and strong holding force. Built around the S450H operator and the E024U control platform, this kit supports monitored safety devices, obstacle detection with reverse-on-contact behavior, and battery backup capability for continuity during outages.
Key Features

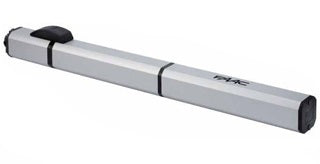

- Electro-hydraulic operator design with integrated pump, valve assembly, and hydraulic cylinder in an anodized aluminum housing
- Integrated encoder for position control and diagnostics on the E024U “2easy” bus
- Monitored entrapment protection support using FAIL SAFE testing for photocells before each movement (when enabled per input)
- Reverse-on-contact obstacle detection using current sensing and/or encoder feedback, with audible alarm output behavior described by FAAC
- Built-in battery backup architecture (E024U) supporting two 12V batteries for operation during power loss
- CBAC vs SB hydraulic locking options: CBAC includes hydraulic locks; SB does not and may require an electric or magnetic lock depending on gate size and site conditions
- Included safety and access components (Single Kit): E024U enclosure kit, batteries, plug-in receiver, transmitters, and XP30 photocells (per FAAC kit contents list)
Technical Specifications
- Input Voltage: 24 Vdc
- Power Consumption: 60 W
- Max Thrust: 1124 lbf (500 daN)
- Rod Stroke: 12.2 in (311 mm)
- Minimum Time to Open 90°: 12 sec
- Maximum Leaf Length: 14 ft (CBAC) or 17 ft (SB)
- Maximum Leaf Weight: 1100 lb (500 kg)
- Duty Cycle / Use Frequency: Continuous
- Protection Rating: IP55
- Operating Temperature: -4°F to +131°F (-20°C to +55°C)
- Operator Dimensions: 43.8 x 3.3 x 4.7 in (1113 x 85 x 119 mm)
- Operator Weight: 14.3 lb (6.5 kg)
- Single Kit Shipping Weight (approx.): 58 lb (26.4 kg)
- E024U Enclosure Protection Class: NEMA type 3, 3R, 4, 4X, 12, and 13

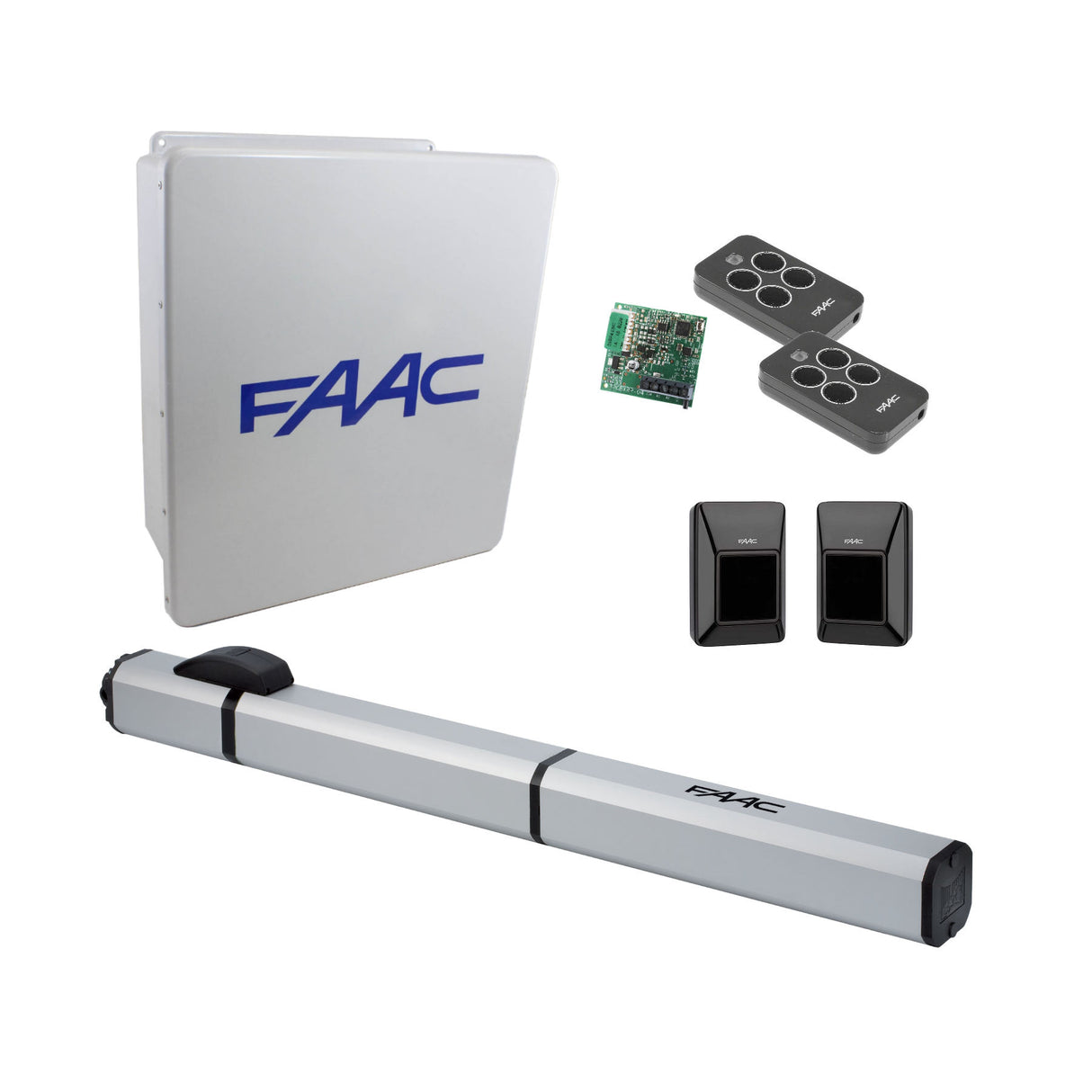

Kit Contents
- (1) S450H operator
- (1) E024U enclosure kit (3350.1)
- (2) 12V 8Ah batteries (3540)
- (1) plug-in receiver (787741)
- (2) XT4 4-channel transmitters (787453)
- (1) pair XP30 photocells (785105)
- (2) XP30 conduit adapters (401064)
Conclusion
For perimeter entries that demand reliable hydraulic performance and modern safety logic, the FAAC S450H kit delivers a low-voltage swing gate platform built around encoder control, monitored safety capability, and battery-backed operation when configured on the E024U system. Elite recommends confirming gate geometry, mounting dimensions, and locking requirements (CBAC vs SB and site-specific needs) before ordering to ensure correct performance and compliance.
