FAAC 422 Dual Swing Gate Kit 115 Volts
Faac 422 Dual Swing Gate Kit 115V

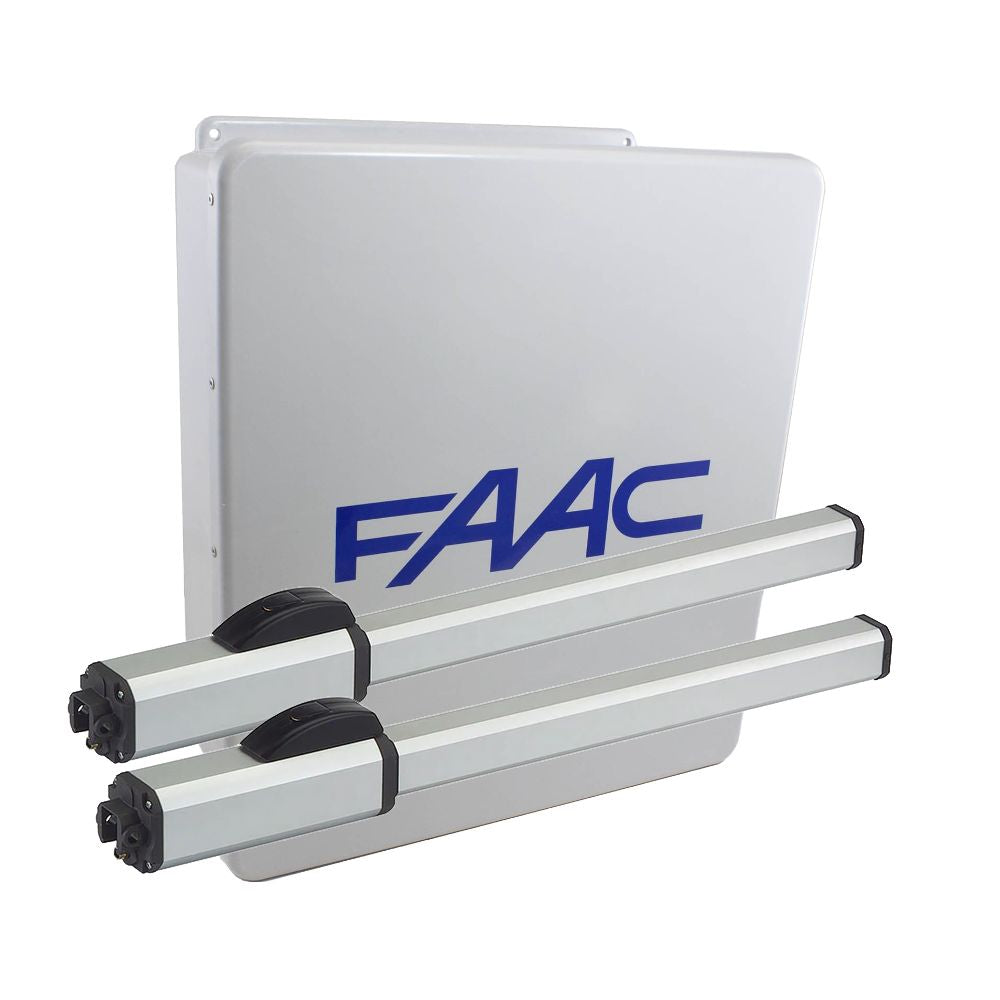

The package 402 - Basic Dual Kit 115V contains:

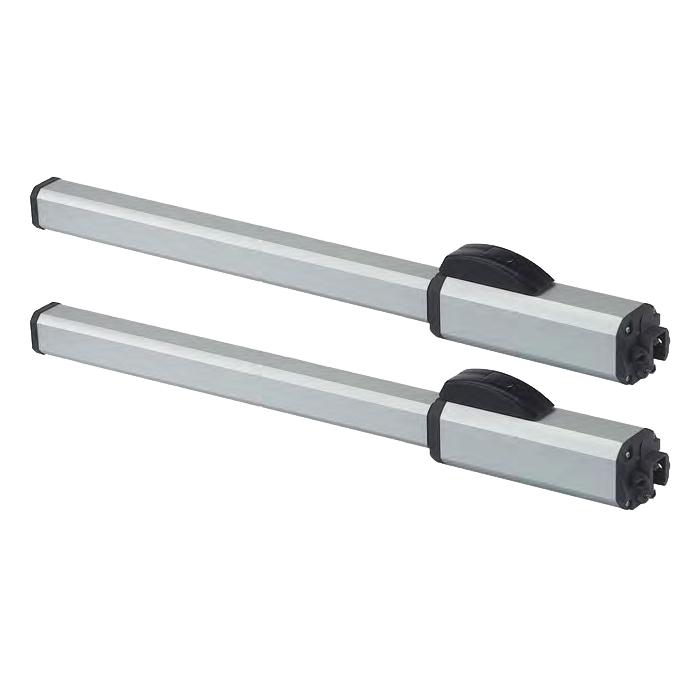

- 1 Operator 422 CBAC + Secondary arm 10420012
- 1 Prewired fiberglass enclosure 14x16 in
- 1 455D control panel 115V
- 1 Receiver 433 RC Plug In
- 2 4-channel transmitter XT4 433 RC
- 1 Pair of XP 30 photobeam photocells
- 2 XP 30 adapters for conduit connection
DESCRIPTION

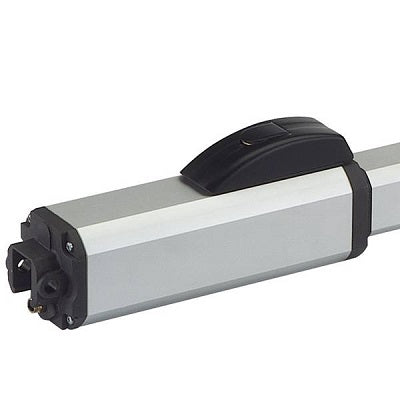

- Versatile hydraulic operator for residential and light commercial application
- Hydraulic lock of the gate in opened and closed positions
- Key protected manual release
- Quite operation
- Self lubricating for long life
- UL 325 Compliant
TECHNICAL SPECIFICATIONS
- Input voltage 115 VAC
- Power 220 W
- Current 2A (115V)
- Motor Asynchronous single phase
- Rod stroke 9.8 in (250 mm)
- 90° opening time approx. 12 sec
- Pump flow rate 1 l/min
- Thrust force 1124 lbf (500 daN)
- Leaf minimum width 7.5ft (2.3m)
- Leaf maximum width 10 ft (3 m)
- Leaf maximum weight 900 lb (410 Kg)
- Usage frequency (cycles per hour) 55
- Operating ambient temperature 4°F - 131°F (-20 °C to +55 °C)
- Thermal protection on motor winding 248 °F (120 °C)
- Weight 15.4 lb (7 kg)
- Protection class IP 55
- Dimensions (L x D x H) in mm 38.8 x 4.7 x 3.3 in (987x120x85mm)
