FAAC 402 Dual Swing Gate Openers

FAAC 402 Dual Swing Gate Openers
FAAC 402 Dual
FAAC 402 Dual Swing Gate Openers

FAAC 402 Dual Swing Gate Openers

Regular price
MSRP: $3,992.00
Sale price
Your Price: $2,860.88
Quantity must be 1 or more

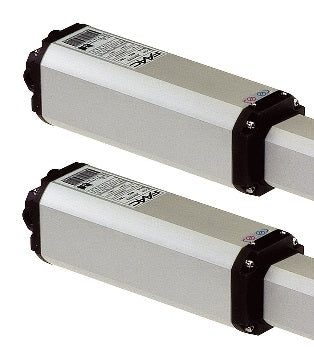

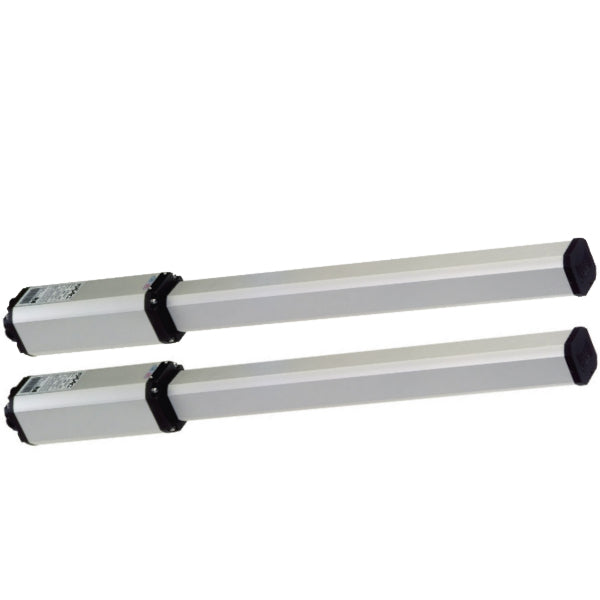

FAAC 402 Dual Swing Operator

Download Spec Sheet Download Manual

Photocell included

In our technology driven age, we demand products that simply do more than one function. With gate motors there are levels of safety, security, strength, speed and solar technology that help the myriad products stand apart and present themselves so you can choose well. The 402 hydraulic swing gate operator is one such multi-faceted product. Designed for private residences, this motor offers many of the benefits of a large gate opener in a compact form. This Hydraulic swing gate operators is inherently safer than other designs.

The 402 presents less "pinch points." In addition, FAAC 402 gate motors are equipped with a hydraulic bypass valve for extra entrapment protection and a manual release for operation during a power failure. The 402 gate system can hydraulically lock the gate in an open or closed position. A simple control panel allows for six operating modes including a garage-door-style operation (hold-open function).

Possibly one of the truly unique features of the 402 is that it can be mounted inside the gate and still allow the gate to open to the inside or to the outside. And this model is so inconspicuous its cover can be refinished to blend with the gate. All swing gates require gate stops that limit the travel of each gate leaf and thus protect the operator. It’s speedy! In just 12 seconds a 900 pound gate leaf up to 10 feet wide will swing a full 90 degrees. It will function up to 55 cycles per hour. And the motor itself is a compact 37.75 x 2.38 x 3.2

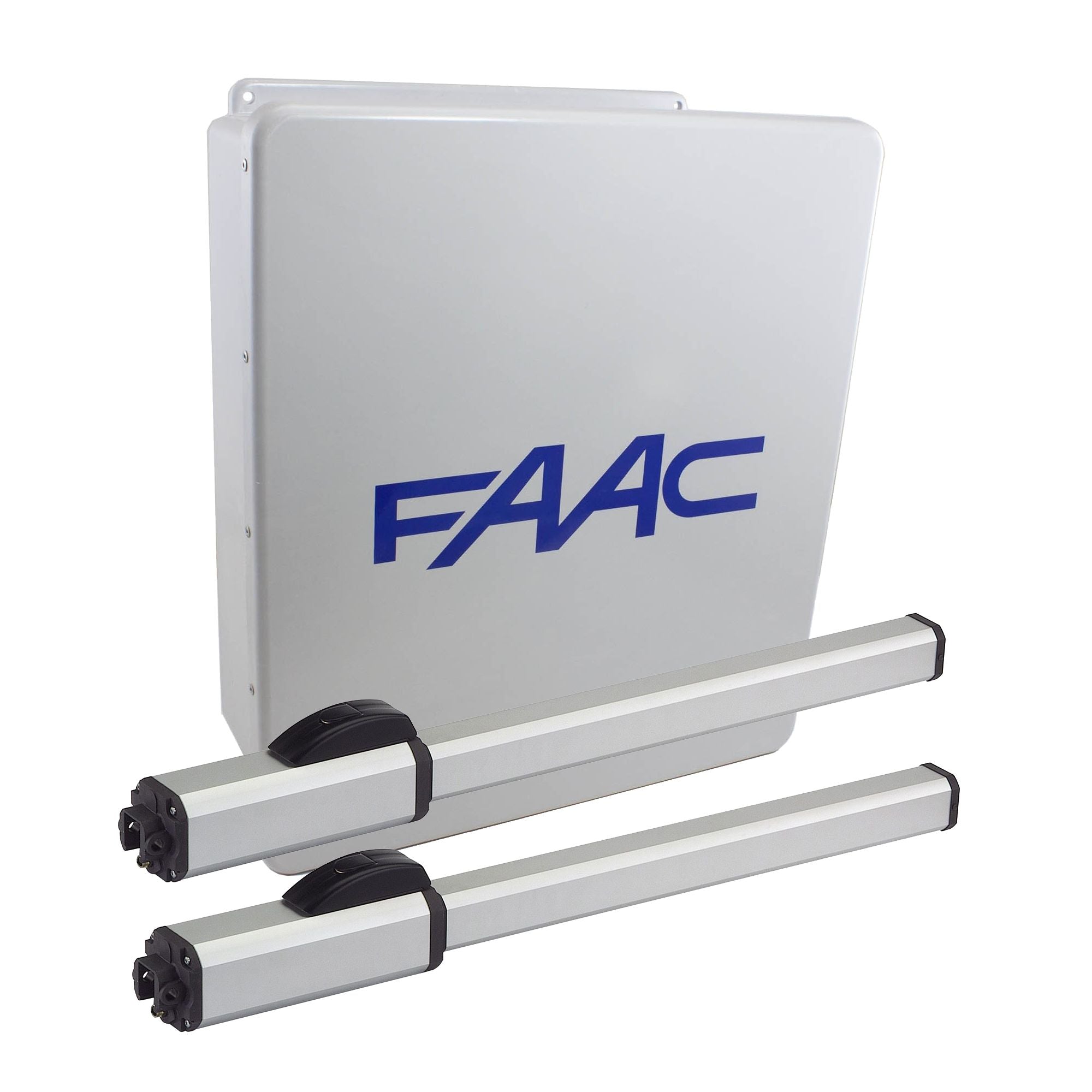

With this set you get two hydraulic gate operators with mounting hardware, one 455 D control panel, one 14 x 16 in. weather resistant UL Listed fiberglass enclosure, one or two manual release keys, a plug-in radio receiver with 2 transmitters There is easy connectivity with large pre-wired terminals for easy wiring to control panel, easy interconnection of loop detectors (not provided) and photo beams to reverse a gate if an obstacle is sensed. You can make simple interconnection of actuating devices like remote control radios, key pads and telephone entry systems.

Contact us at Elite Gates right away to explore the prospects of owning the FAAC 402.


  • Included: Two hydraulic gate operators with mounting hardware, One 455 D control panel, Two remotes, Photocell
  • Maximum Weight: 900 lbs.
  • Maximum length: 10 feet
  • Limited parts warranty by FAAC: 2 years
