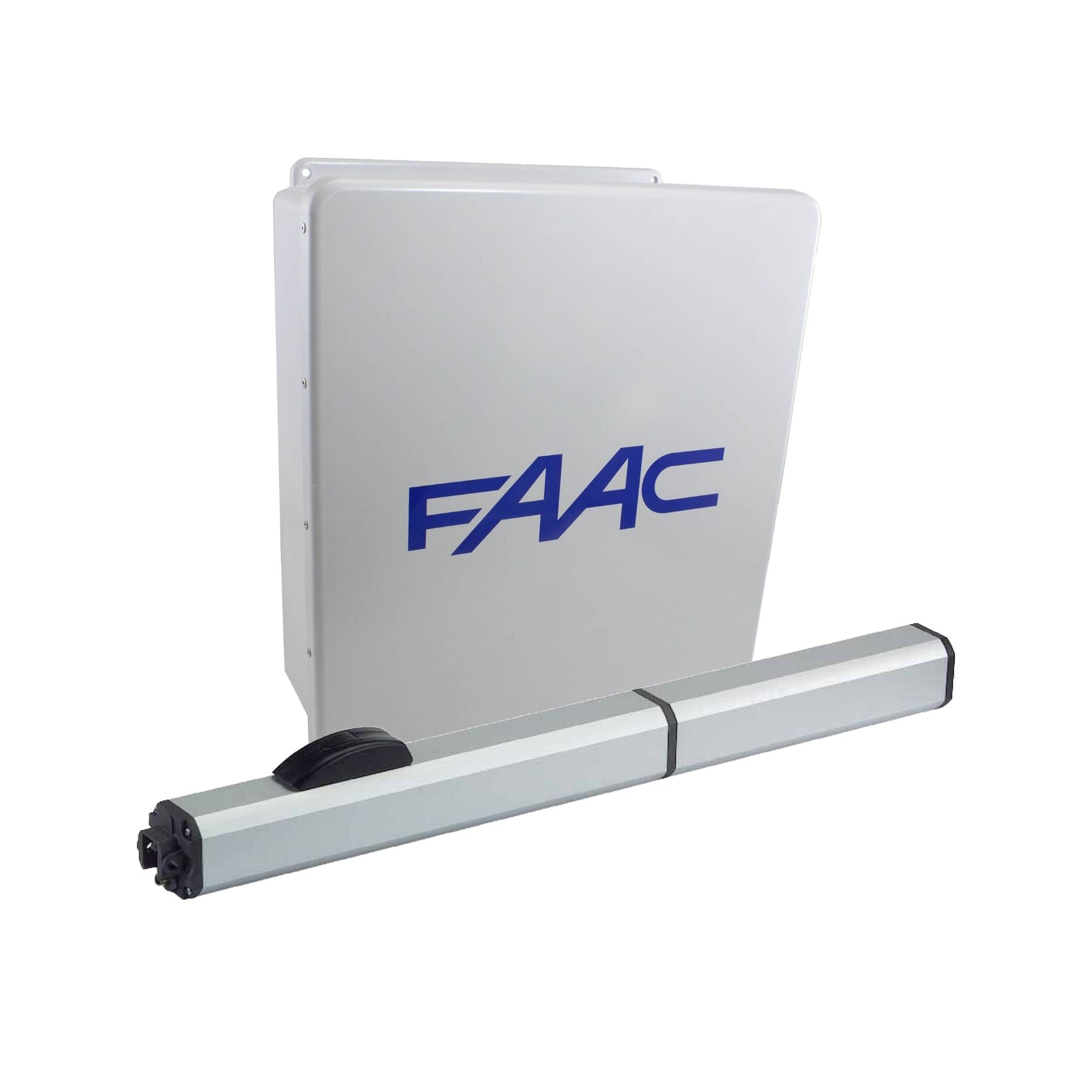

FAAC 400 EG Swing Gate Opener (Long Arm Kit)

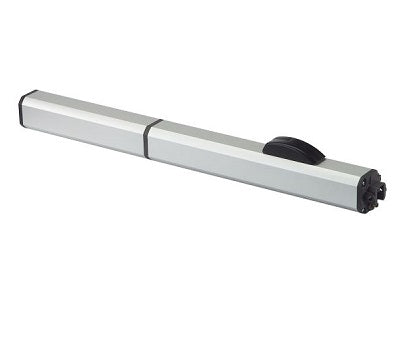

FAAC 400-EG Hydraulic Gate Operator
*price includes a monitored photoeye infrared beam*
The 400 model is a powerful hydraulic operator ideal for large ornate gates and perfect for situations needing up to 125 degrees of swing. Operator is mounted inside the gate but still allows gate to open to the inside or outside. A convenient manual release is standard. The versatile FAAC control panel allows for six operating modes, including garage-door-like operation and a hold open function
Features
- One hydraulic gate operators
- Mounting hardware
- One 455 D control panel
- One 14 x 16 in. weather resistant UL Listed fiberglass enclosure
- One or two manual release keys
- 115 VAC receptacle for accessories (5 amp max.)
- ON/OFF switch controlling power to control panel, accessories and plug outlet
- Large pre-wired terminals for easy wiring to control panel
- Test button
- Two warning signs
- UL325 compliant
- Application: Apartment, Subdivision, Commercial, Industrial, Residential
- Maximum Gate Swing: 115 degrees
- Opening Time: 17 seconds
- Maximum weight 1300 pounds per gate
- Maximum length: 18 feet per gate
- Cycles: 80 per hour
- Dimensions: 40.5 x 3.35 x 3.35
