Elite 65W Solar Panel Kit for Gate Operators - 12V

Off-Grid 12V Solar Power for Reliable Gate Operator Charging

The Elite 65W Solar Panel Kit for Gate Operators - 12V is built for secure, off-grid entrances that need dependable charging performance. This high-efficiency monocrystalline module is designed to hold up in harsh perimeter environments while maintaining strong output in low-light conditions, making it a solid choice for remote gates, long driveways, and access points where utility power is limited or unavailable.

Key Features

• Nominal 12V DC output for standard 12V solar charging applications
• High-efficiency monocrystalline construction with 33-cell design
• Low-light performance to support more consistent daily charging
• High PID resistance for long-term power stability
• Outdoor-ready build with heavy-duty anodized frame and low-iron tempered glass
• Wind and snow load rated for demanding site conditions
• Salt mist resistance tested to IEC 61701 for coastal or corrosive environments

Technical Specifications

• Power Output: 65W
• Nominal Output: 12V DC
• Module Efficiency: 20.00%
• Cell Type / Count: Monocrystalline silicon, 33 cells (3 x 11)
• Voltage at Pmax (Vmp): 19.11V
• Current at Pmax (Imp): 3.41A
• Open-Circuit Voltage (Voc): 22.04V
• Short-Circuit Current (Isc): 3.59A
• Positive Power Tolerance: 0 to +5W
• Operating Temperature: -40°C to 85°C
• NOCT: 47°C ± 2°C
• Max System Voltage: 1000V DC
• Wind Load / Snow Load: 2400 Pa / 5400 Pa

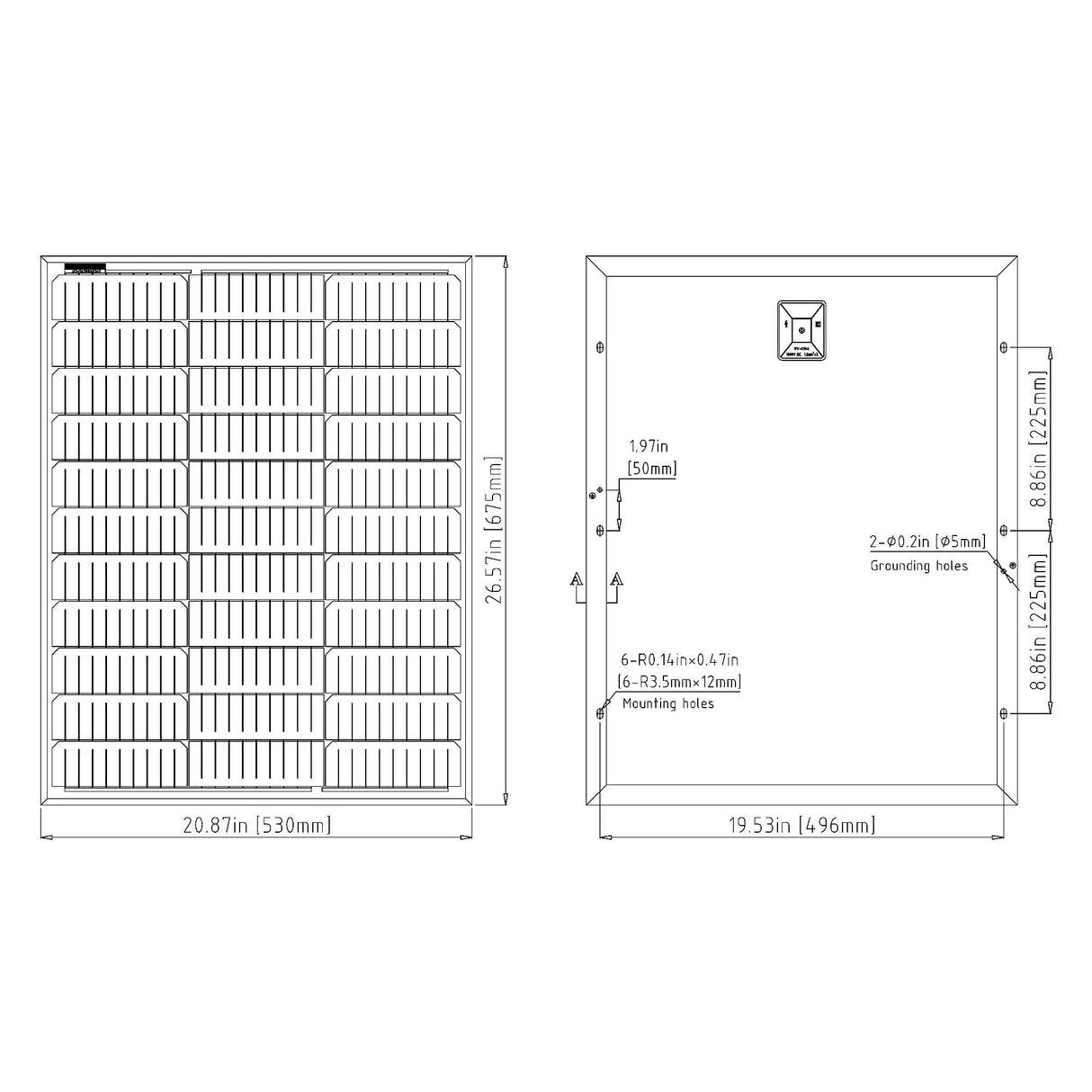

• Dimensions: 26.57 in x 20.87 in x 1.18 in
• Weight: 9.43 lb
• Warranty: 5-year product workmanship; 25-year power performance warranty

Conclusion

For 12V solar gate systems where consistent charging directly impacts perimeter reliability, the Elite 65W panel provides efficient output, rugged construction, and load-rated durability suited to real-world access control sites.
