DoorKing 9000-385 Sliding Gate Opener (1 Horsepower)

Cut Sheet Installation / User Manual

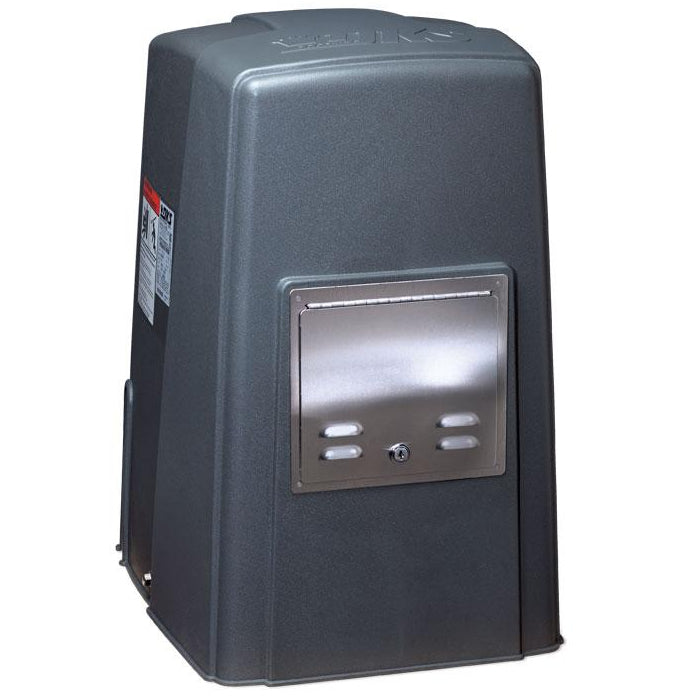

The DoorKing 9000-385 Sliding Gate Operator is designed for demanding applications, providing powerful and reliable performance for larger gates. With a robust 1 horsepower motor, it handles gates weighing up to 1,500 lbs and spanning up to 35 feet in length. This operator is ideal for residential, commercial, and industrial environments requiring enhanced strength and durability to secure and automate heavier gates with precision and safety.

Key Features

• Powerful Performance: Equipped with a 1 HP continuous-duty motor, enabling smooth operation for gates up to 1,500 lbs at approximately 1 ft/sec.
• Advanced Safety: Incorporates entrapment protection that reverses the gate upon detecting obstacles, meeting ANSI/CAN/UL 325 safety standards. Requires monitored photo eyes (Type B1) or contact sensors (Type B2).
• Durable Design: Built with a corrosion-resistant 3/16-inch steel frame and a 1/4-inch polypropylene cover for maximum longevity.
• User-Friendly Features: Includes a manual T-handle release for easy operation, built-in power and alarm reset switches, and two 115 VAC convenience outlets for accessories.
• Customizable Automation: Adjustable auto-close timer (1–30 seconds) and direct-driven limit nuts for precise gate positioning.
• Cold Climate Ready: Optional heater kits ensure reliable operation in low-temperature environments.

Technical Specifications

• Motor Power: 1 HP continuous-duty AC motor.
• Gate Compatibility: Suitable for gates weighing up to 1,500 lbs and measuring 35 feet in length.
• Speed: Operates at approximately 1 ft/sec.
• Material: 3/16-inch corrosion-protected steel frame with a 1/4-inch polypropylene cover.
• Power Input: 115 VAC, 60 Hz, 9.7A; optional high-voltage kits available for enhanced flexibility.
• Safety Compliance: Requires monitored photo eyes (Type B1) or contact sensors (Type B2) in each direction of gate travel to operate. Fully compliant with ANSI/CAN/UL 325:2017 standards.
• Environmental Range: Performs effectively in temperatures from 10°F to 140°F (-12°C to 62°C).
• Shipping Weight: Approximately 145–170 lbs, depending on selected options.

Conclusion

The DoorKing 9000-385 Sliding Gate Operator is a powerful solution for large gates in residential, commercial, and industrial settings. Its 1 HP motor, rugged construction, and advanced safety features ensure reliable and secure automation for even the heaviest gates. With user-friendly functionality and customizable options, this operator is built to handle demanding applications while maintaining precision and safety.
