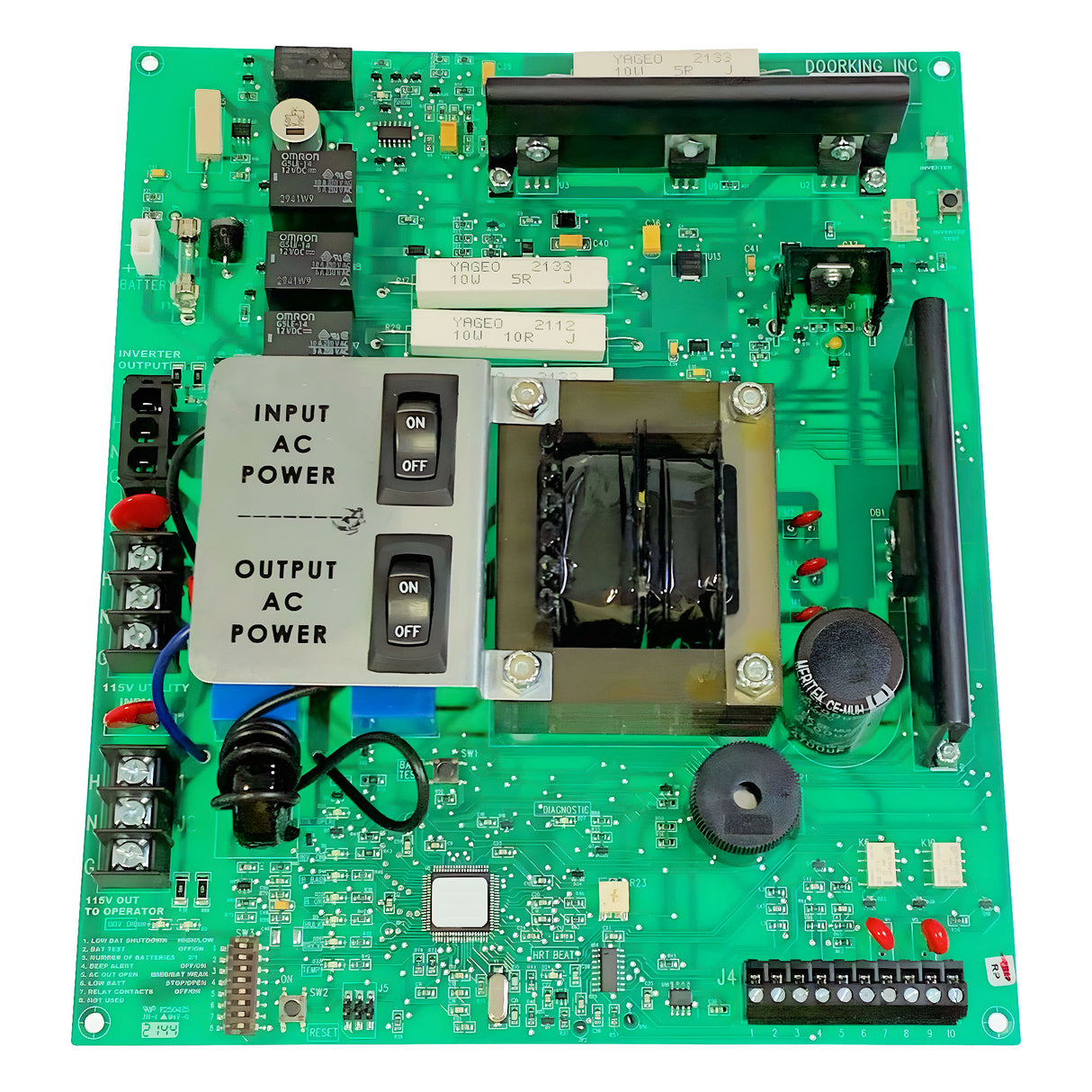

DoorKing 2355-010 Control Board

Control Board for Model 1000 Inverter Systems

The DoorKing 2355-010 Control Board is a factory replacement circuit board designed for DoorKing’s Model 1000-083 inverter and battery backup systems. Engineered for precision performance, this board manages AC input, output, and battery switching functions during power outages. Built to maintain safe and uninterrupted gate operator functionality, it ensures reliable backup power operation across compatible DoorKing systems.

Key Features

• Genuine DoorKing replacement control board for Model 1000 inverter systems
• Controls AC input and output for seamless power transition
• Manages battery charging and backup operation during outages
• Supports both single and dual gate operator configurations
• Ready for installation within inverter cabinet


Technical Specifications

• Model: 2355-010
• Application: DoorKing 1000-083 inverter and power backup systems
• Function: Power conversion and switching control board
• Power Input: 115 VAC
• Output: Controlled 115 VAC to gate operators
• Battery Compatibility: 12 VDC deep-cycle lead-acid (connected in parallel)
• System Integration: Interfaces with Model 1000 inverter housing and battery terminals
• Installation Type: Internal replacement board
• Manufacturer: DoorKing, Inc. (USA)

Conclusion

The DoorKing 2355-010 Control Board restores full functionality to Model 1000 inverter and battery backup systems, providing dependable control of AC and DC power transitions for critical gate operation. As an original DKS replacement part, it ensures safety, performance, and long-term reliability trusted by Elite.
