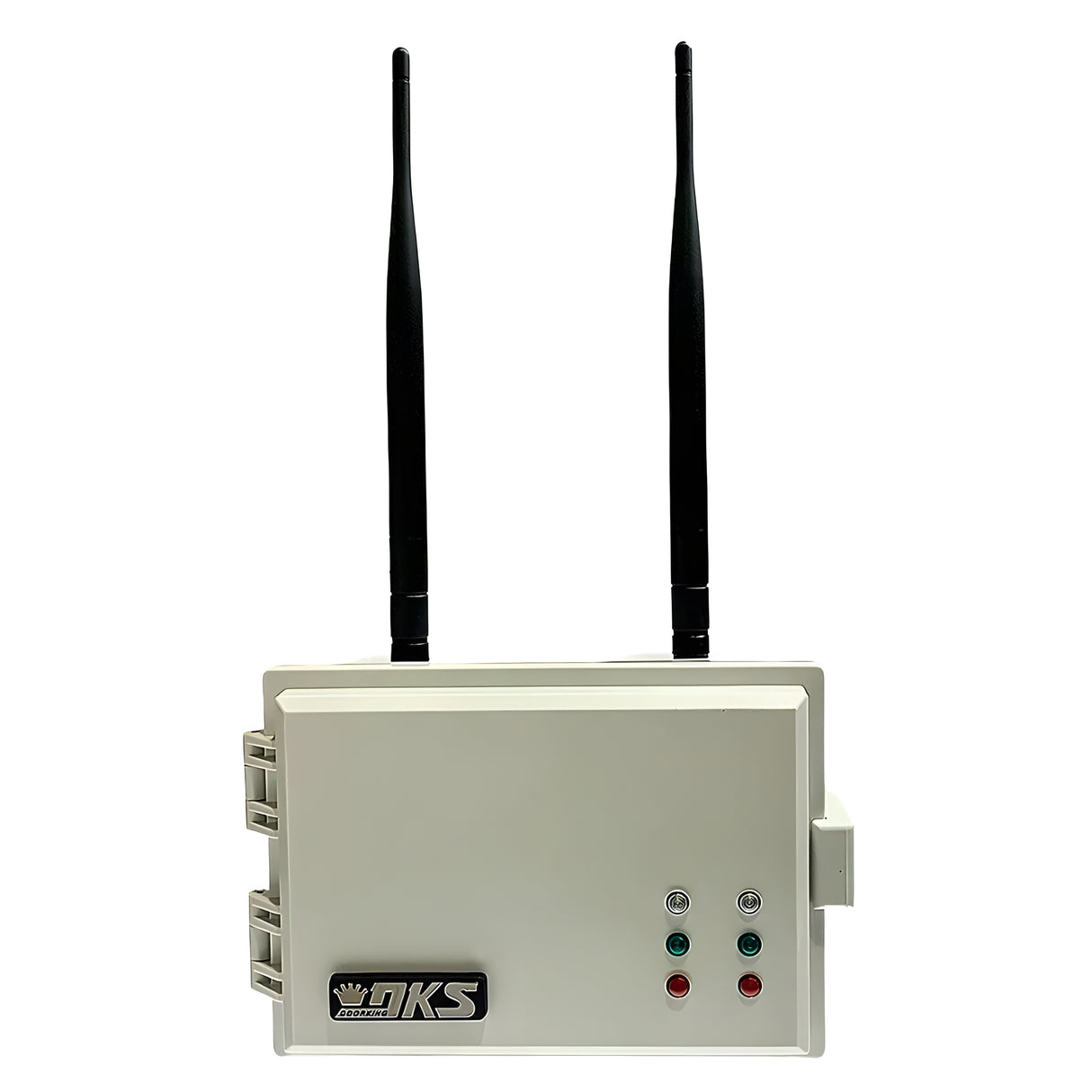

Doorking 2332-080 Dual Channel Wireless Repeater - 900 Mhz

Dual Channel Repeater for 900 MHz Wireless Access Systems

The DoorKing 2332-080 Dual Channel Repeater is a 900 MHz wireless signal extender designed to expand communication range within DoorKing’s wireless access control systems. Installed between the 900 MHz Wireless Baseboard and Wireless Tracker Expansion Board, it retransmits encrypted data signals across greater distances or through obstructed areas. This dual-band repeater enhances reliability and flexibility in large or complex installations, ensuring stable connectivity between access points and controllers.

Key Features

• Extends 900 MHz wireless communication range up to 1500 ft (direct line-of-sight)
• Designed for use with DoorKing 1833, 1835, 1837 (80 and 90 Series), and 1838 systems
• Not compatible with 1838 Access Plus models
• Supports 900 MHz LoRa® encrypted RF transmission for secure communication
• Enables connection between controllers and Wiegand devices without trenching or wiring
• Supports card readers, keypads, and other 26, 30, or 31-bit Wiegand devices
• Allows one repeater per communication line for signal integrity
• Simple setup and channel configuration using DoorKing’s wireless network system
• Reverse-compatible with DoorKing wireless access kits
• Ideal for extending wireless access coverage in gated communities, multi-door facilities, and remote installations

Technical Specifications

• Model: 2332-080
• Frequency: 900 MHz Dual Band
• Communication Type: Wireless LoRa® RF link
• Range: Up to 1500 ft direct line-of-sight (up to 2000 ft with optimal conditions)
• Compatibility: DoorKing 1833, 1835, 1837 (80/90 Series), and 1838 (non-Access Plus)
• Supported Devices: 26-bit, 30-bit, and 31-bit Wiegand readers, keypads, and controllers
• Encryption: Encrypted RF data transmission for secure access communication
• Configuration: One repeater per tracker communication line
• Installation: Inline mounting between baseboard and wireless tracker
• Test Equipment: Compatible with DKS 900 MHz Wireless Test Range Kit (P/N 1514-140)

Conclusion

The DoorKing 2332-080 Dual Channel Repeater extends the performance and reach of 900 MHz wireless access systems, ensuring secure, long-range data communication between controllers and remote access points. Built for durability and stability, this DKS repeater delivers dependable performance across Elite’s professional-grade perimeter access and gate automation solutions.
