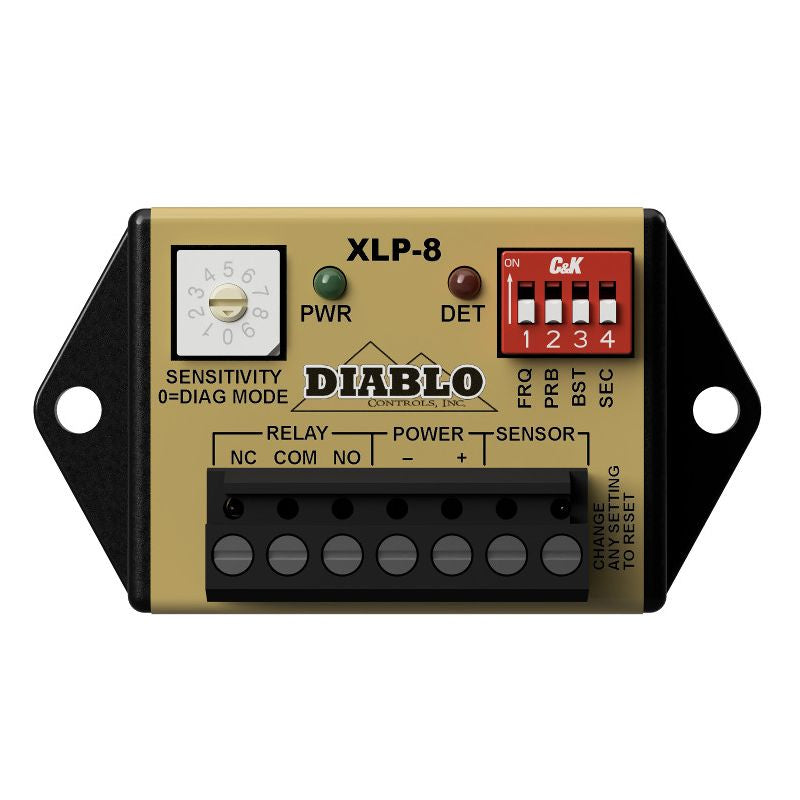

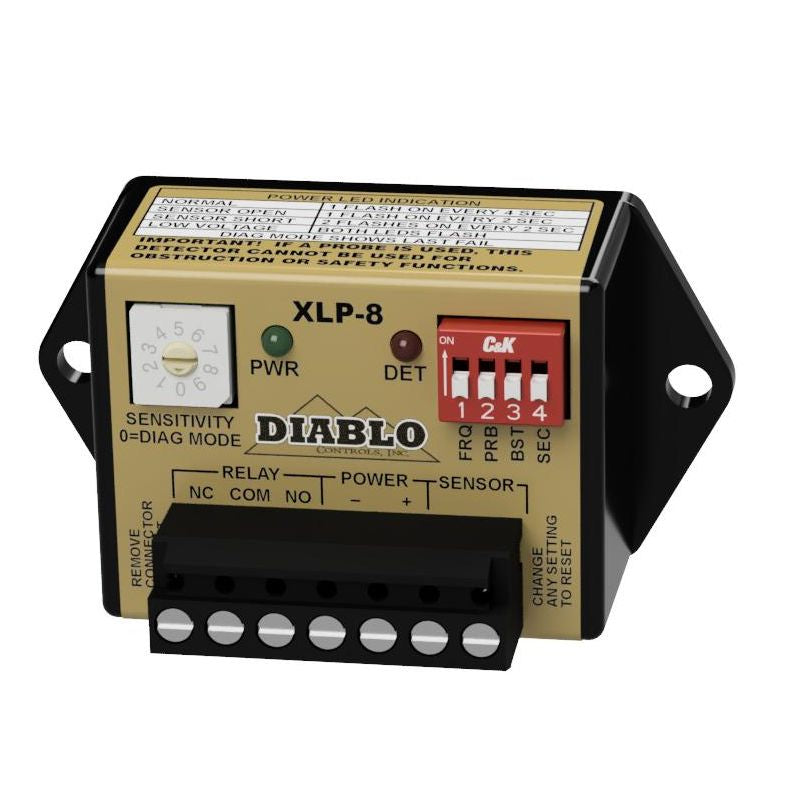

Diablo XLP-8 Extreme Low Power Vehicle Loop Detector

Efficient, Low-Power Vehicle Detection for Modern Access Control

The Diablo Controls XLP-8 Vehicle Detector is designed for applications requiring reliable vehicle detection with minimal power consumption. Its ultra-low current draw makes it ideal for solar-powered and battery-backed systems, ensuring efficient operation without sacrificing performance. Compatible with both standard inductive loops and magnetometer-based probes, the XLP-8 offers exceptional versatility and ease of installation for access control and traffic management systems.

Key Features

• Ultra-low power consumption with less than 1 mA draw in non-detect mode, perfect for solar-powered systems.
• Dual compatibility with standard inductive loops and Diablo Controls' magnetometer-based probes for versatile installation.
• Adjustable sensitivity with 9 user-selectable settings to suit various detection needs.
• Compact size measuring 2.36” (H) x 2.01” (W) x 0.87” (D), ideal for installations with limited space.

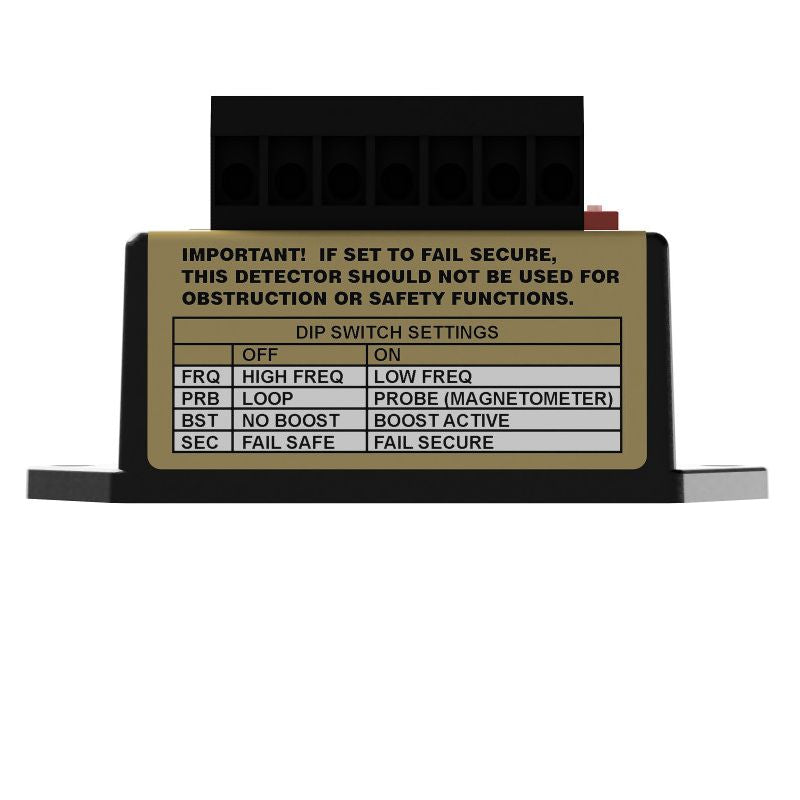

• Configurable fail-safe and fail-secure modes to ensure safety and security in different applications.

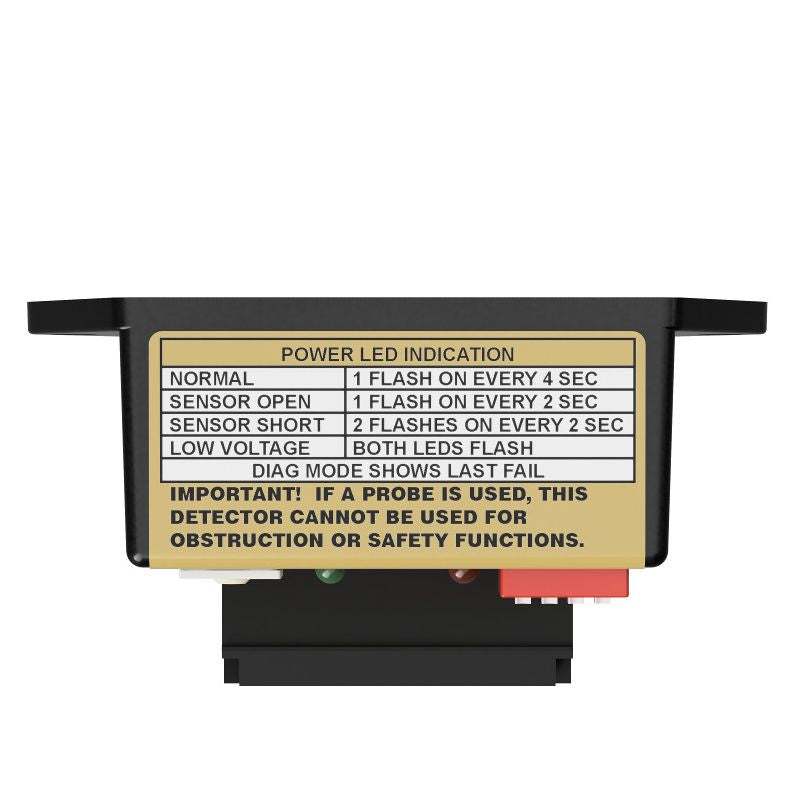

• Diagnostic mode for quick troubleshooting and maintenance insights.

Technical Specifications

• Operating Voltage: 8 to 40 VDC or 8 to 28 VAC.
• Relay Output Rating: 1A at 125V AC or 60V DC.
• Operating Current: Sensitivities 1-6 draw 0.85 mA in non-detect mode and 30 mA in detect mode. Sensitivities 7-9 draw 1.60 mA in non-detect mode and 30 mA in detect mode.
• Loop Inductance Range: 20 µH to 1500 µH (including lead-in).
• Operating Temperature: -35°F to 165°F (-37°C to 74°C).
• Dimensions: 2.36” (H) x 2.01” (W) x 0.87” (D) (60 mm x 51 mm x 22 mm).
• Enclosure: Impact-resistant plastic housing for durability.

Conclusion

The XLP-8 Vehicle Detector stands out for its exceptional energy efficiency and versatility. Its ultra-low power consumption makes it ideal for solar-powered installations, reducing operational costs and environmental impact. The dual compatibility with inductive loops and magnetometer probes ensures adaptability across various applications, from residential gate access to commercial parking systems. Backed by Diablo Controls' reputation for quality and reliability, the XLP-8 is a dependable choice for modern vehicle detection needs.
