All-O-Matic SW350 DC With 1/2 Hp Motor
All-O-Matic SW-350 DC Swing Gate Operator
Download Spec Sheet Download Manual
All-O-Matic SW350 DC Swing Gate Operator. The largest of Allomatic's swing gate operators. This DC swing gate operator is capable of moving gates up to 2,000 pounds or 22 feet in length.

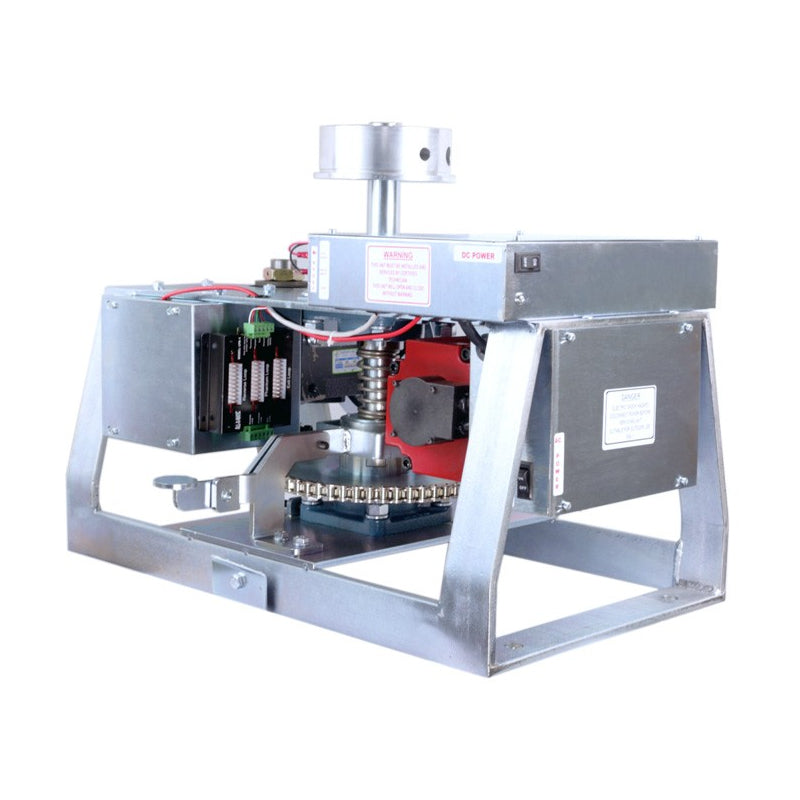

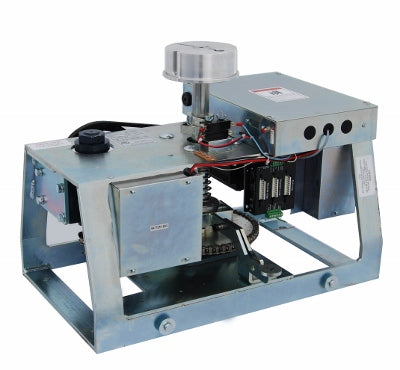

The SW-350DC was designed to meet the demands of gate installers who want a gate operator that can handle heavy traffic, commercial/industrial heavy gates and/or extreme weather conditions. The combination of its heavy duty, low profile frame, reliable gearbox and powerful brushless DC motor make even the most challenging installations simple and easy. The SW-350-DC has the option of ½ HP and 1HP motors capable of moving up to 2,000 lb. and 2,500 lb. gates, respectively.
DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.
Specifications
- Max Gate Weight Up to 2,000 Lbs
- Max Gate Length 22 Feet
- Power Options 120/220 VAC Single Phase
- Duty Cycle Continuous
- Gear Box Ratio 60:1 with Internal Clutch

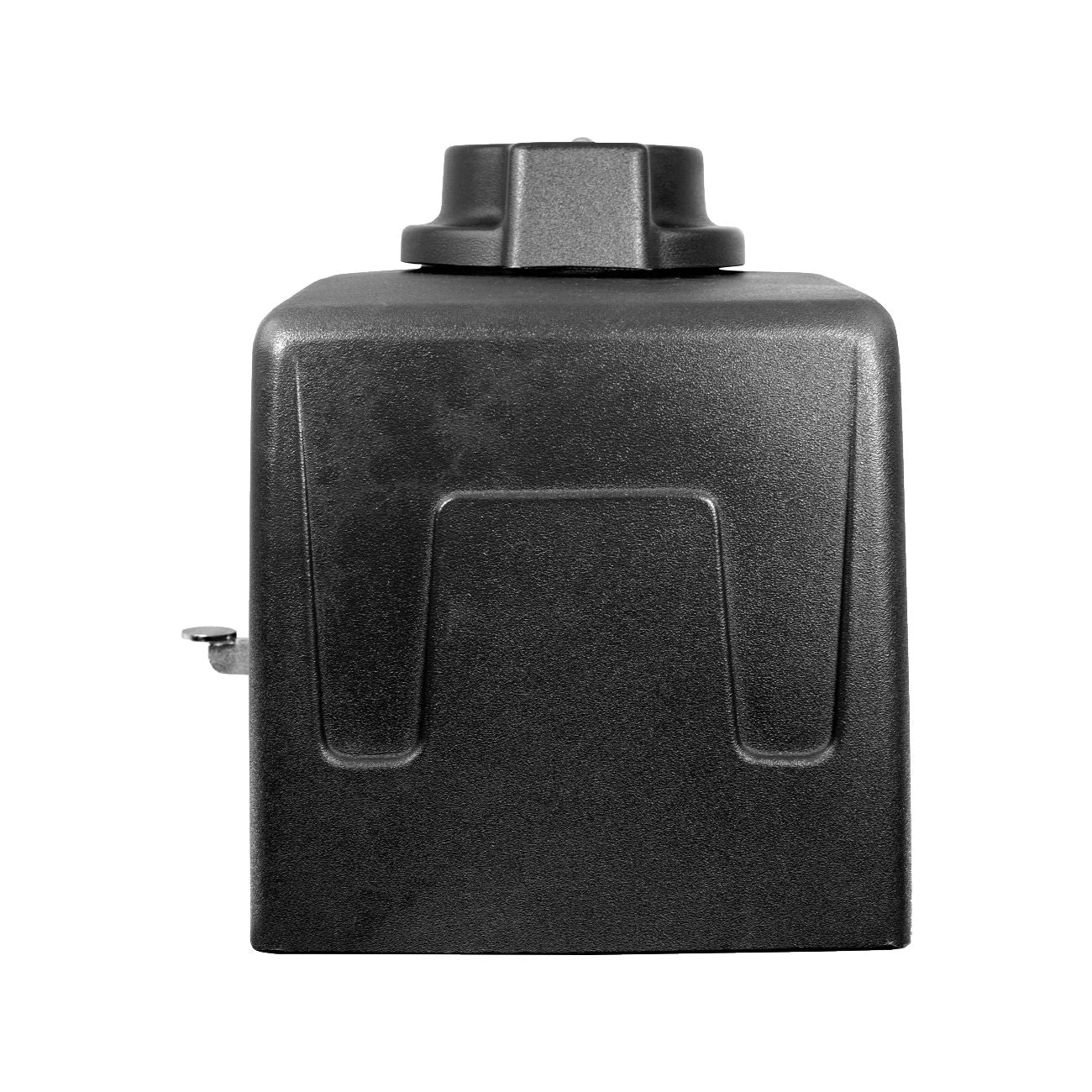

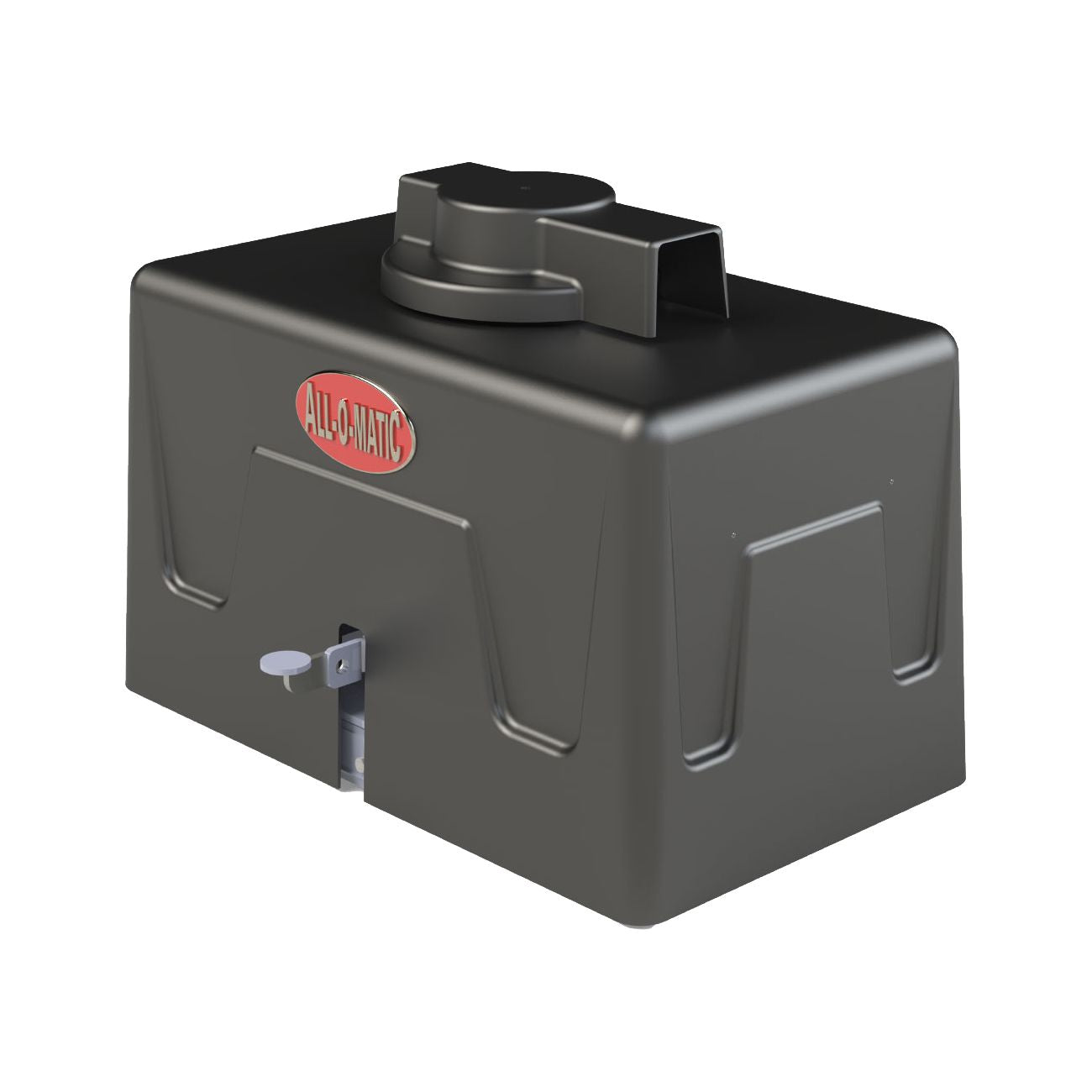

- Cover Rotationally Molded – Indestructible
- Dimensions W: 14" – L: 17" – H 18"
- Gate Speed Aprox. 90 degrees travel in 17 sec
- Emergency Release Foot Pedal
- Battery Backup Integrated-Capable of up to 250 Cycles Battery: Two 8 Ah Batteries 12VDC
- Solar Capabilities Onboard 12VDC or 24VDC Solar Panel Input
- Warranty Full 7 Year Residential, 5 Year Commercial
- Motor 24 VDC Brushless Motor ½ HP - Continuous Duty Cycle
- Standard arm assembly included
