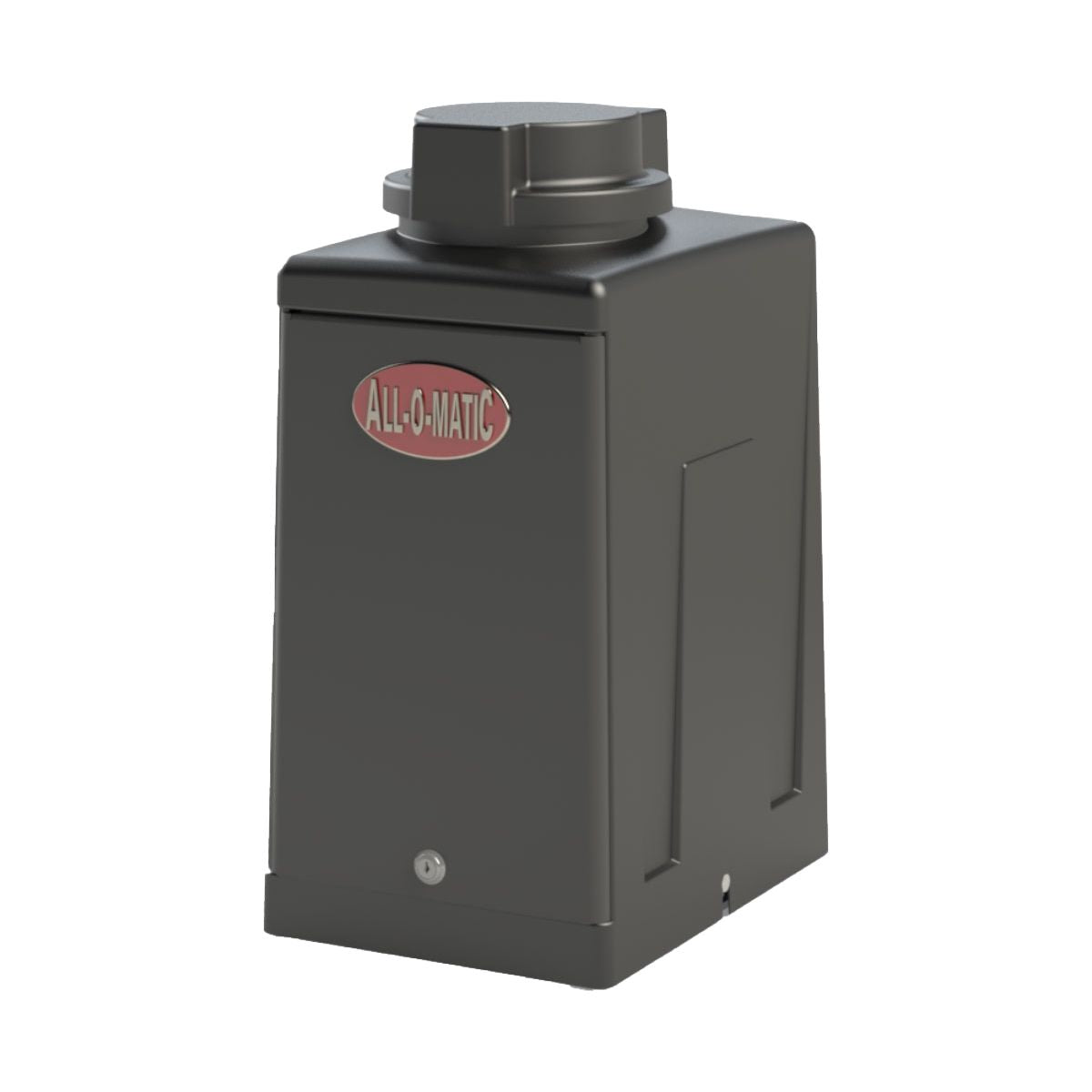

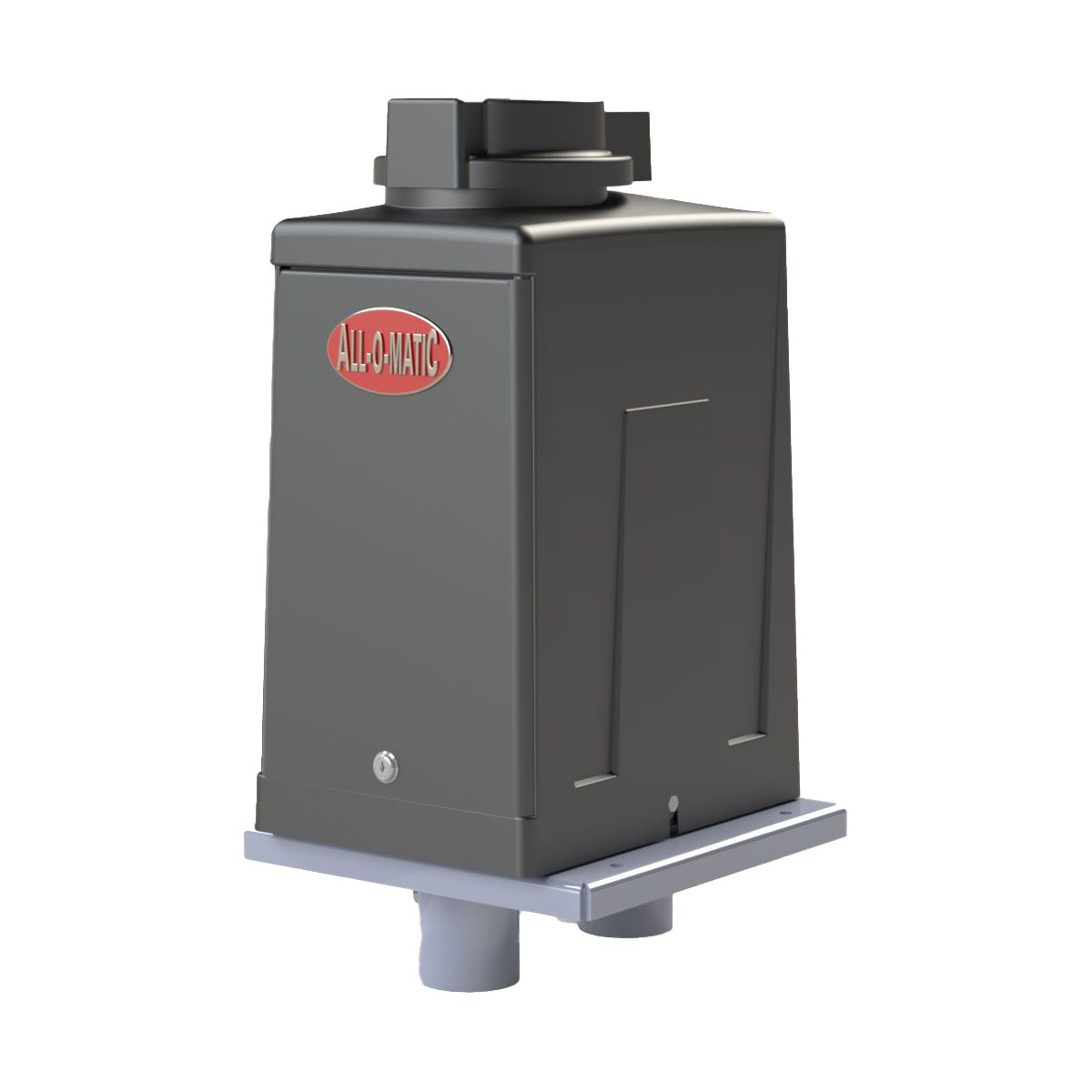

All-O-Matic SW 300 DC Swing Gate Operator (1/2Hp)

All-O-Matic SW300 DC Swing Gate Operator (1/2HP)

Download Spec Sheet Download Manual

Requires a monitored photoeye to active

Arm included

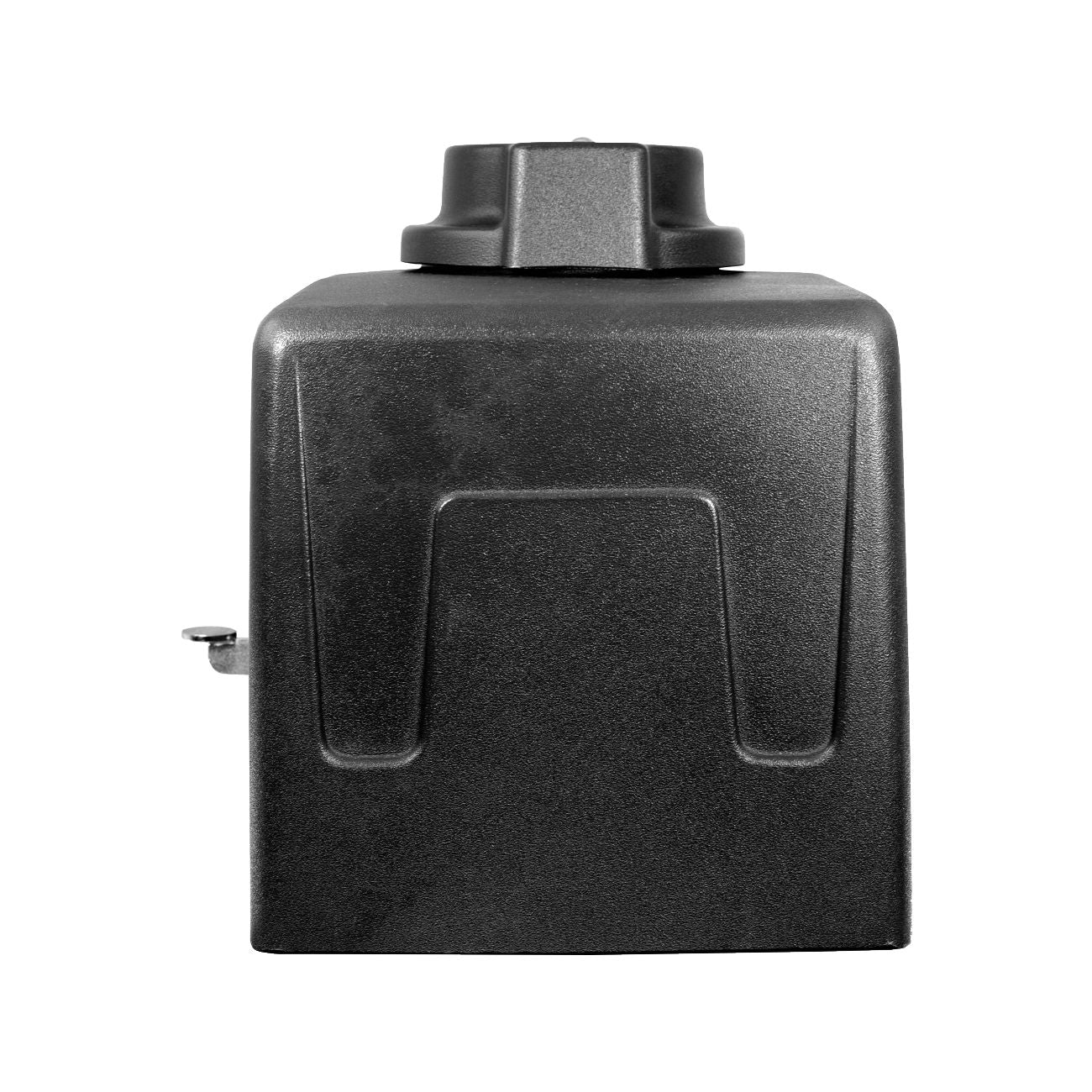

The SW300DC is one of the very firsts in the industry with a brushless motor technology. If technical details flummox you, have no fear. This advancement can be explained quickly and in concepts easy to grasp. Brushless DC motors require low voltage power source, its parts and last longer and normally run quieter than its AC counterpart, thus saving you money in electricity, parts and repairs. Most DC motors can also incorporate a solar installation and a battery back up since they work on low voltage power. Beneath a rotationally molded cover that is virtually indestructible lurks the 24 Volt brushless half horsepower equivalent motor rated for continuous duty.

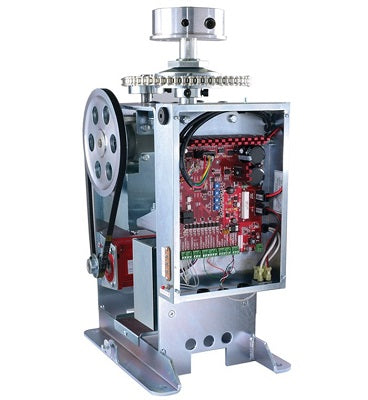

Designed specifically to be the strongest, most durable DC gate operator in its class, the design, programming and construction are unequaled. This unit is fully equipped with enough power to operate all its accessories on battery power. Mounted on a heavy duty frame, the All-O-Matic SW300 dc is manufactured with quality parts made to last a lifetime.

Such a small unit, only 21” wide, 17” long and just 25.5” high, it swings a 1,200 pound gate that stretches out to 20 feet, to a full 90 degree arc in just 17 seconds.

For safety, there is an emergency release, band release arm, two 8 Ah batteries are 12 VDC and capable of a backup that runs for up to 250 Cycles. The Solar Capabilities can align with both the 12VDC or 24VDC solar panel input. This motor is fully UL 325 & UL 991 Compliant and offers a full 7 year residential, 5 year commercial warranty.

Seriously, this is a workhorse motor that will save you money by using solar, by battery backup, by its brushless technology or simply because it is a quality item that will last many, many years.

Come and talk with us at Elite Gates. We can help you find the right motor for any application, simple or grand. Call us today.

Specifications

• Maximum gate length: 20 Feet
• Maximum gate weight: 1,200 lbs.
• Limited parts warranty provided by Allomatic: 7 years residential / 5 years commercial
• Standard arm assembly included
