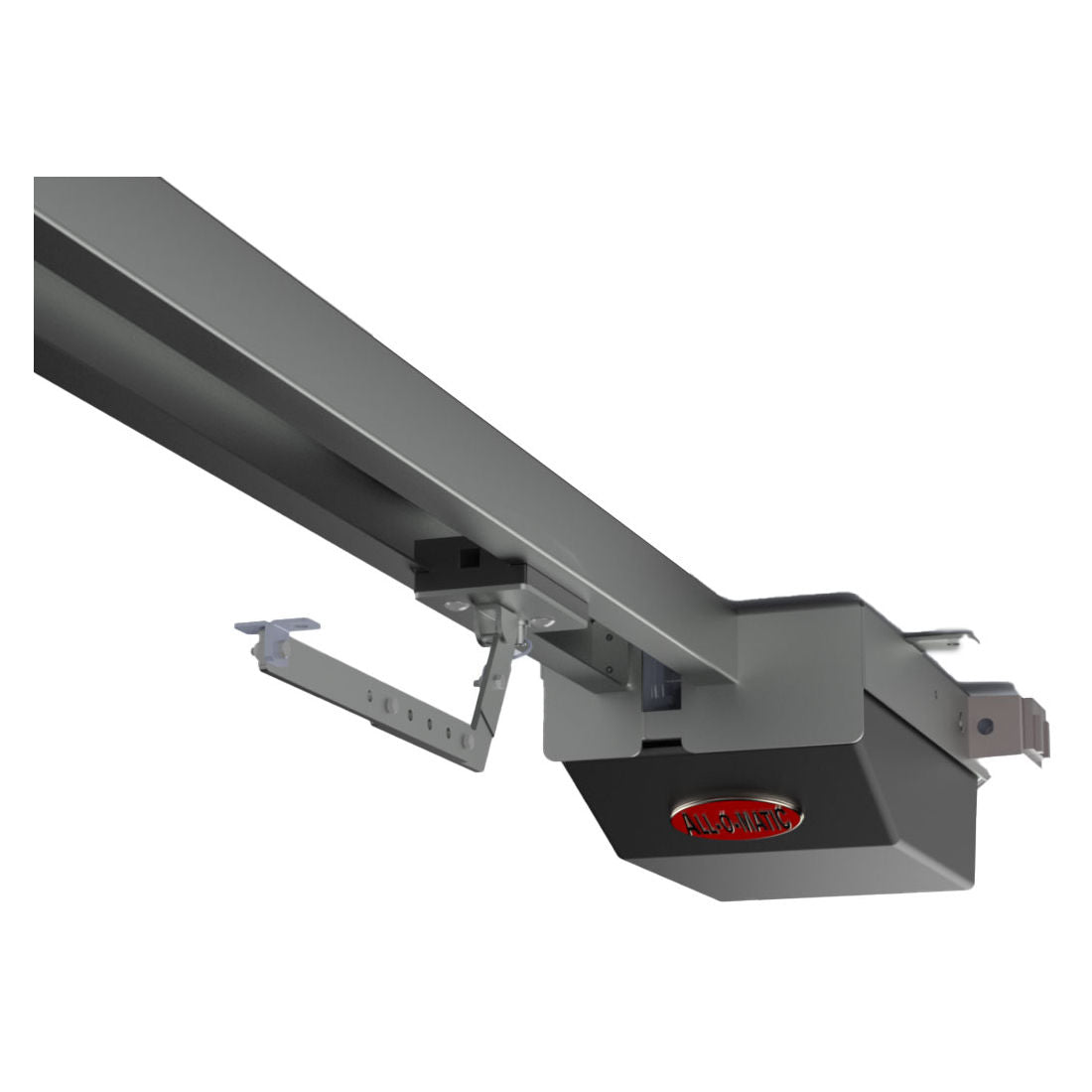

All-O-Matic OH200-AC Overhead Gate Operator

All-O-Matic OH-200 AC Overhead Gate Opener

Download Spec Sheet Download Manual

A commercial gate operator for overhead tilt up gates. You will see this operator quietly operating gates for underground parking facilities and apartment/condo buildings. Like All-O-Matic gate operators the OH200 is rated for continuous duty.

Features

• 10ft rail
• Max Gate Weight 800 lbs.
• Max Gate Length 20’
• Warranty 5 year commercial
• Motor 1/2 HP
• Gate Speed Approximately 15 seconds per opening
• 6.5’ to 8’ high gate
• Power 115 VAC single phase
• 4.7 amps
• Duty Cycle Continuous
• Temperature Range -40º to 160º
• Gear Box Ratio 40:1
• Dimesions 13” W X 144” L X 8” H (Custom rail lengths available)
• Shipping Weight 100 lbs.
• Emergency Release Lockable quick release drive arm and carriage
• Belt Size 4L-200
• Main Sprocket 41B15 x 5/8” bore
• Chain Size 41NP
• Gear Box Sprocket N/A
• Limit Shaft Sprocket N/A
• Breaker Requirement 20 amp dedicated
• Gearbox Pulley 2.5” with 1/2” bore
• Motor Pulley 2” with 5/8” bore
• UL Classes I & II
