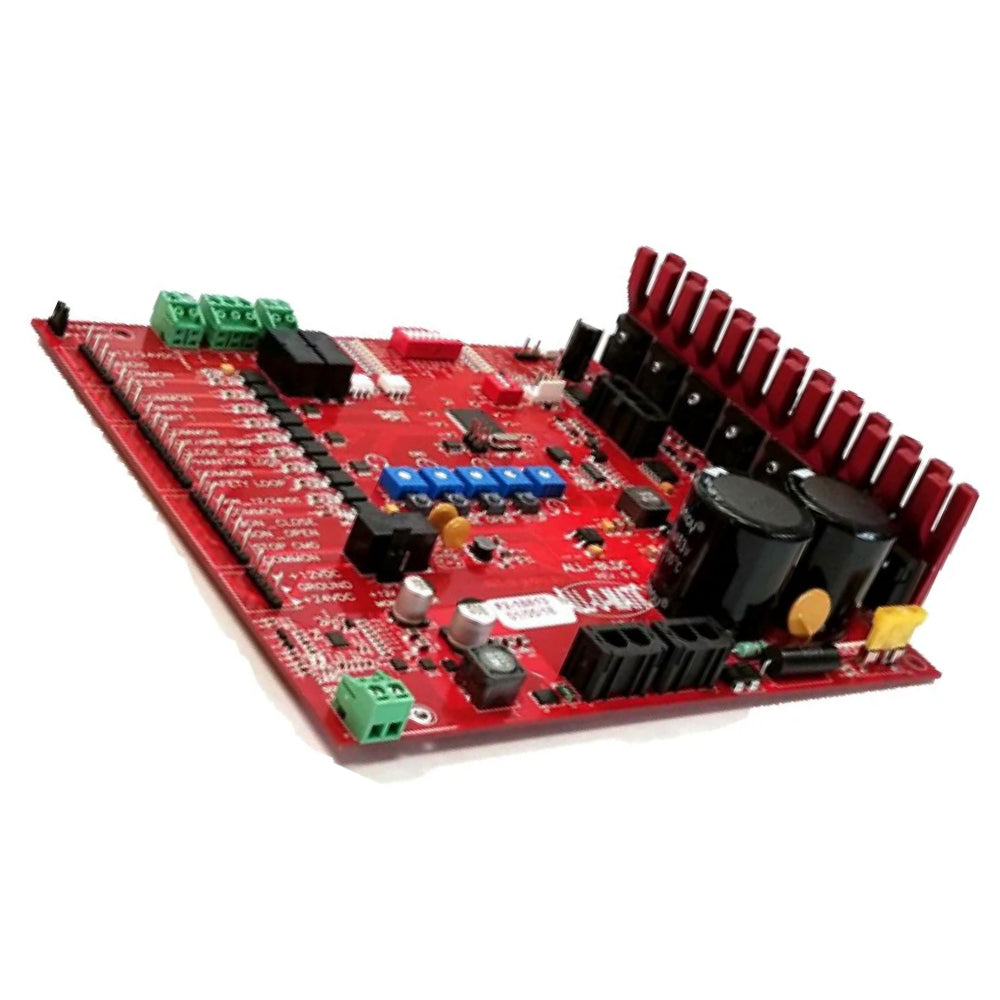

All-O-Matic BLDC-ULPCB1 Circuit Board DC Motors (1 HP)

Powerful and Reliable Control Board for 1-HP Allomatic DC Gate Motors

The BLDC-ULPCB1 Control Board is a powerful and reliable replacement solution for 1 HP DC gate openers, engineered to deliver smooth motor control and enhance safety. This 1 HP-compatible board is ideal for high-capacity gate operators, with features like an Electronic Reversing Device (ERD) to detect obstructions, programmable relay functions, and a customizable leaf delay. Designed to work with monitored photoeyes, it ensures compliance with stringent safety standards, making it perfect for demanding residential and commercial applications.

Key Features

• Optimized for 1 HP DC Motors: Specifically designed for 1 HP brushless DC gate openers, providing reliable power and control.
• Requires Monitored Photoeyes: Integrates seamlessly with monitored photoeye systems for enhanced safety and functionality.
• Electronic Reversing Device (ERD): Automatically detects obstructions and reverses gate movement to prevent damage or injury.
• Programmable Relays: Customize relay outputs for alarms, indicators, or other features tailored to your security needs.
• Adjustable Leaf Delay: Fine-tune delay settings between gate leaves to enhance control and smooth operation.

Technical Specifications

• Compatibility: For 1 HP DC gate motors, requires monitored photoeyes
• Output: Programmable relays, ERD functionality
• Operating Temperature: -40°F to 160°F (-40°C to 71°C)
• MFG Line of Circuit Boards: ALL-BLDC

Conclusion

For systems needing a 1 HP-compatible control board, the BLDC-ULPCB1 offers unmatched reliability and safety. It’s designed with durability and operational flexibility in mind, making it a robust choice for gate systems that demand more power and adherence to safety standards.
