Maximum Controls - MAX 40 FT CABLE for Dual Gate Operation

40 ft. Underground Cable for Dual ActuatorSwing Gate Installations

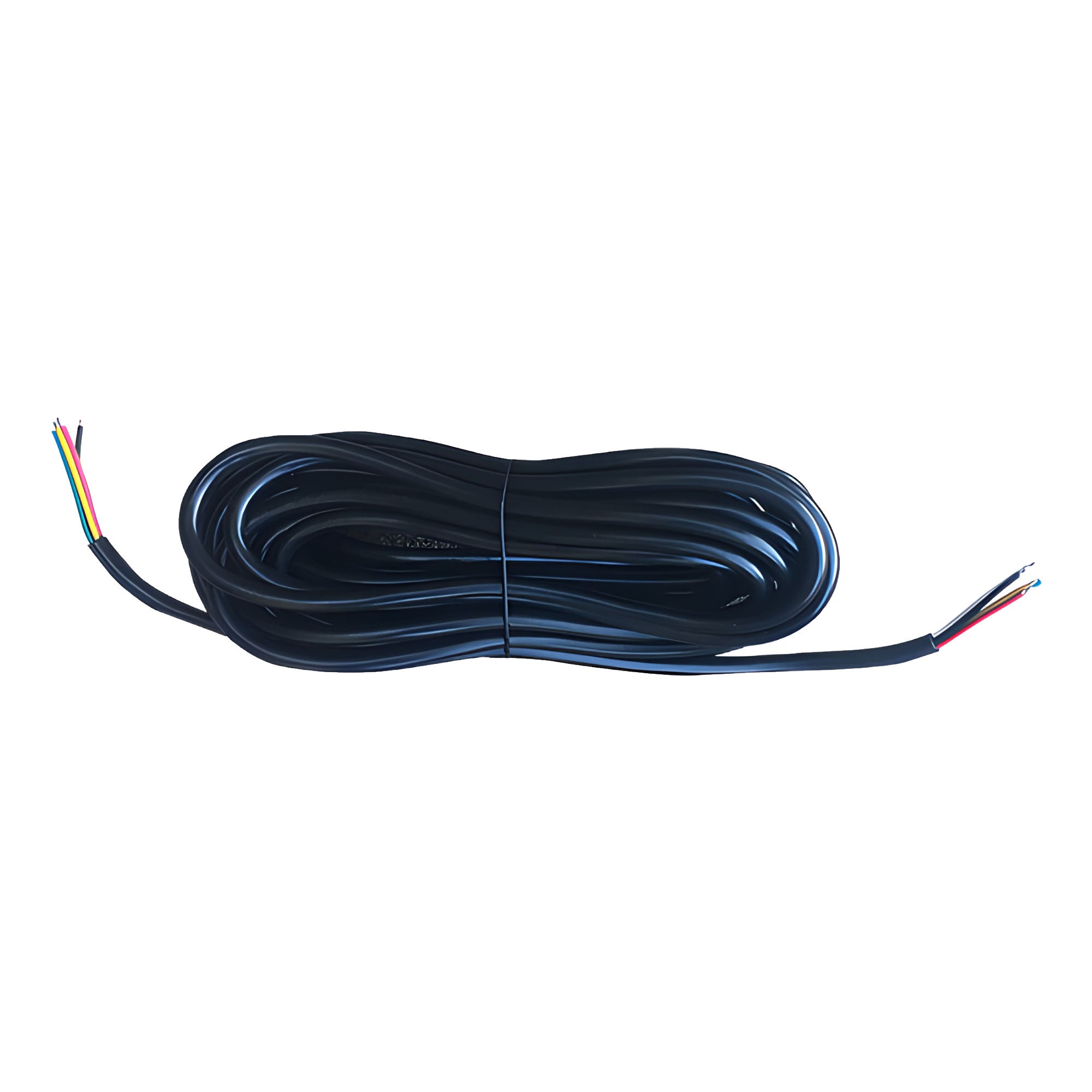

The Maximum Controls MAX 40 ft. Cable is a 5-conductor 16 AWG stranded underground cable designed for primary/secondary communication between the MAX AC Control Box and a secondary actuator in dual Maximum Controls swing gate operator installations. When a bi-parting gate uses two actuators controlled by a single DSP Arm Controller, this cable carries the communication signal from the control box to the secondary motor. It is rated for underground installation, making it suitable for direct burial runs between the control box enclosure and the secondary actuator mounting point.

Key Features

• 5-conductor 16 AWG stranded wire for primary/secondary actuator communication in dual Maximum Controls swing gate installations.
• Rated for underground installation; suitable for burial runs between control box and secondary actuator.
• Compatible with the MAX AC Control Box and DSP Arm Controller in single-phase dual operator configurations.

Technical Specifications

• Model: MAX 40 ft. Cable
• Manufacturer: Maximum Controls LLC
• Length: 40 ft
• Conductors: 5
• Gauge: 16 AWG
• Construction: Stranded
• Installation: Underground rated
• Application: Primary/secondary dual actuator communication
• Compatible With: MAX AC Control Box; MAX Arm, MAX Ultra Arm, MAX Super Arm 1300, MAX Super Arm 2300
• Condition: New

Conclusion

This cable is required for bi-parting installations where two Maximum Controls actuators are controlled by a single MAX AC Control Box. Confirm the distance between the control box and secondary actuator before ordering; if the run exceeds 40 ft, additional cable length will be needed. Consult the DSP Arm Controller installation manual available at max.us.com for wiring details.
