Gate Receiver Selection Made Simple

Whether you're a property manager upgrading access control, a DIY homeowner installing your gate system, or a professional installer seeking quick reference material, this guide will help you select the right receiver and compatible remotes for secure, reliable perimeter access control.

Selecting the correct gate receiver and compatible remotes is a key step in ensuring reliable perimeter access control. With numerous options available, understanding how each technology works helps you make a secure, future-ready decision for your gate automation system.

Essential Terminology Explained

• Power: Powering the receiver requires two wires. With an AC transformer, polarity does not matter; either wire can connect to either power terminal. With DC, terminals are marked (+) and (−) and must align accordingly.
• Normally Open (NO): The circuit remains open until the receiver activates, momentarily closing the circuit to trigger the gate.
• Normally Closed (NC): The circuit stays closed until the receiver activates, momentarily opening the circuit. Less common in gate control.
• Common (C): The shared connection point that completes the circuit with NO or NC.
• Relay: The NO or NC terminal paired with the Common terminal forms the relay circuit.
• Open/Close/Stop: Some commercial-grade operators include dedicated terminals for each function, allowing precise directional control.

Understanding 3-Wire vs. 4-Wire Receivers

3-Wire Receivers provide basic functionality with three terminals:

1. Power (24V -)
2. Normally Open (NO)
3. Power (24V +)

These are often used in simple, low-security systems that require a single contact closure to trigger operation. These receivers typically use set dip switches for programming.

Wiring Tip: Terminals 1 and 3 provide power (24V), while Terminals 1 and 2 connect to the "Open" command terminal on the operator. Use a 4-wire receiver if your operator lacks a dedicated 3-wire terminal.

4-Wire Receivers offer universal compatibility and more stable power isolation:

1. Power (+)
2. Power (−)
3. Common (C)
4. Normally Open (NO) or Normally Closed (NC)

Wiring Tip: Connect Power (+/−) to the transformer, then use Common and NO to wire to the "Open" command terminal on your gate operator. This setup ensures compatibility with nearly all operators and improved electrical isolation. Note that many newer gate operators have no polarity on the Open terminal, which means the NO and Common wires can connect in any order.

Understanding Code Technology

Receiver and remote code technologies must match. Using the wrong format (dip switch, rolling code, etc.) will prevent pairing. As an example, if your receiver has 8 dip switches, your remote must have 8 as well. If it's a rolling code, both must be capable of rolling code, and if it's a hybrid, the receiver can handle both types of transmitters.

Code Technology Comparison Table

Dip Switch Technology

• Physical switches define the code pattern
• Models like the Linear Multicode 109950 and 109020 use 10-position switches
• Offers 1,024 possible code combinations
• Simplicity and quick setup

Pros: If there's a security breach, you can change the dip switches on the receiver, then set the new order in the remotes, thereby deactivating any unauthorized or older remotes.

Cons: Easy to duplicate. Once someone gets hold of a remote, they can copy the dip switch settings and gain access.

Best Use Case: Access control where convenience outweighs high-level security needs.

Rolling Code Technology

• Generates a new encrypted code each time the remote is pressed
• Programming is digital - you press the program button on the receiver then the remote button to sync
• Protects against code grabbing or duplication
• Common examples include LiftMaster Security+2.0, Linear MegaCode, and DoorKing MicroPLUS
• Each transmitter provides a unique code

Pros: Remotes cannot be duplicated.

Cons: If there's a security breach, you will need to delete all the remotes and reprogram them one by one.

Best Use Case: Commercial, HOA, and high-security installations.

Block Coded Systems

• Each remote has a unique code that can be added or deleted individually or in batches
• Programming is digital - add or remove a batch of block coded remotes (e.g., codes 100-199) or individual coded remotes (e.g., code 102)

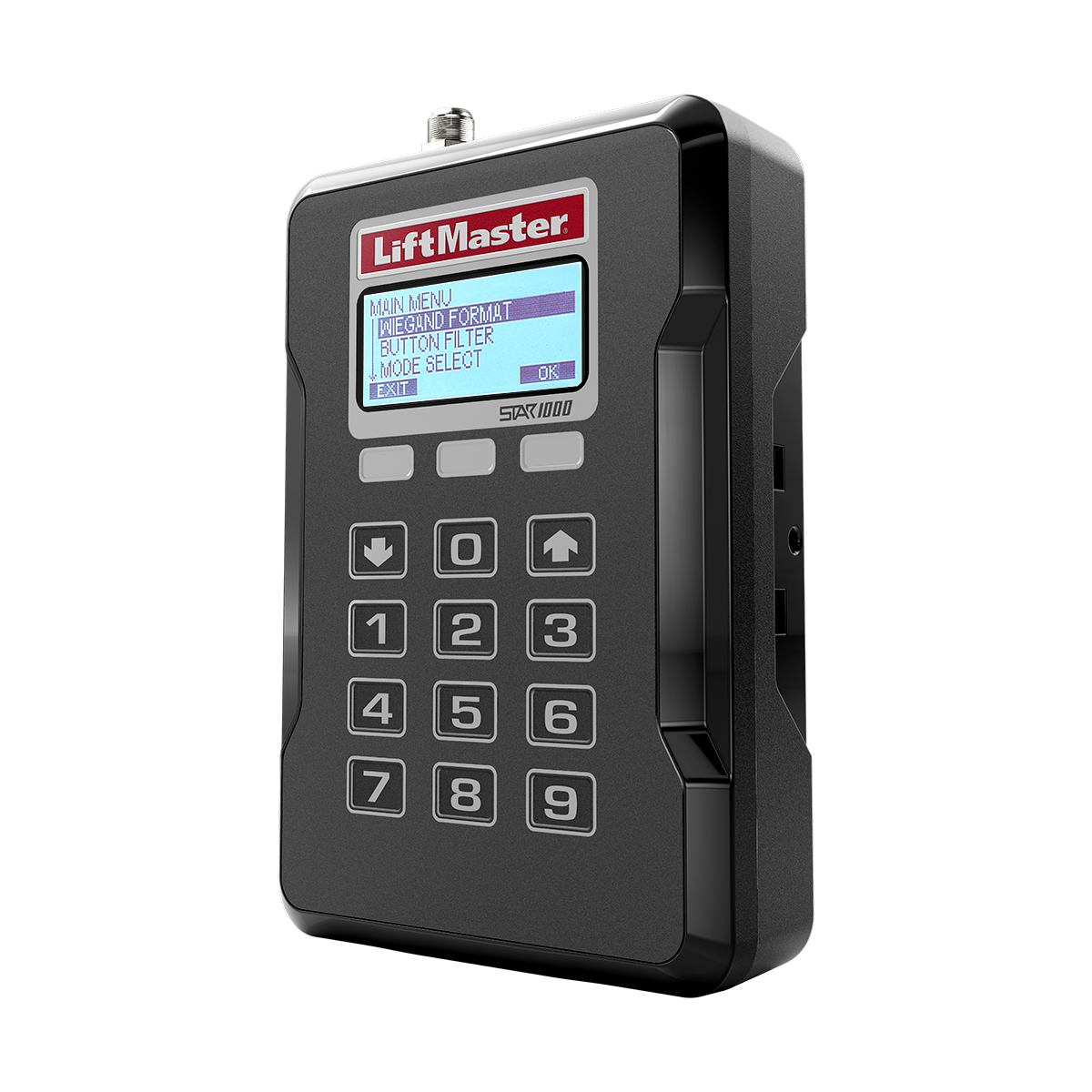

• Examples: AP5 and STAR1000
• Prevents code grabbing and unauthorized duplication
• Each transmitter provides a unique code
• Enables user tracking or access logs

Pros: Remotes cannot be duplicated. If there's a security breach, you can delete a batch or individual transmitters without affecting other users.

Cons: If someone obtains the remote's special code and is able to purchase it, they can enter the property as the receiver will not be able to differentiate between an original remote and its duplicate.

Best Use Case: Multi-user environments requiring user tracking or access logs - ideal for properties managing large user bases (e.g., apartments or gated communities).

Hybrid Receivers

• Support both fixed dip switch codes and rolling codes
• Remotes can be either dip switch or rolling code
• Useful when upgrading from legacy systems while maintaining backward compatibility

Best Use Case: Properties transitioning from older systems to newer technology without replacing all existing remotes at once.

Company-Specific Technologies

• LiftMaster Security+ / Security+2.0: Encrypted rolling code with variable transmitter memory (model dependent)
• Linear MegaCode: Over one million code combinations with variable transmitter memory (model dependent); digital programming for enhanced access integrity
• DoorKing MicroPLUS / MicroClik: Rotating encrypted codes with thousands of transmitter capacity
• Multicode: Unlimited capacity. Traditional dip switch reliability with 1,024 combinations, valued for simplicity

Always confirm that receiver and transmitter technologies match before installation.

Frequency and MHz Compatibility

Receivers and remotes must share the same MHz frequency to communicate. Common frequencies include 300, 310, 315, 390, and 433 MHz.

Critical: Mismatched frequencies will prevent operation, even if the brands are compatible. Always verify markings on both receiver and transmitter.

Frequency Considerations:

• Standard frequency in North America is 315 MHz
• Some systems offer 390 MHz or 433 MHz alternatives to avoid interference
• Changing frequency typically requires purchasing specific compatible remotes

Wiring the Receiver to Your Gate Operator

Most gate operators have clearly labeled terminals for receiver connections. Here's the typical process:

1. Confirm the receiver’s voltage requirements and supply power using a compatible transformer (typically 12–24V AC/DC).
2. Locate the Open terminal on the gate operator, often labeled Open, Radio, SBC, or Key Switch. If the terminal has two screws, connect the NO (Normally Open) and Common (C) wires to these terminals in any order.
3. If the Open terminal is a single connection point, attach the NO wire to it, then connect the Common (C) wire to the operator’s common terminal.

For operators with Open/Close/Stop functions, use a multi-channel receiver or 3-button remote system to control each action separately. Always consult your specific operator's wiring diagram for exact terminal locations.

Powering Your Receiver

While most gate operators can power receivers directly from their control boards, using a dedicated power supply is best practice.

Benefits of a Separate Power Supply:

• Prevents voltage drops that can cause receiver resets or interference
• Protects the operator's control board from overload
• Ensures consistent receiver performance
• Simplifies troubleshooting and enhances long-term stability

Recommendations:

• Use an Elite power transformer matched to your receiver voltage (12–24V AC/DC)
• Most receivers draw under 250mA, so a compact transformer is sufficient
• Ensure your power supply matches receiver voltage requirements

Finding Compatible Remotes

Matching remotes to receivers depends on the technology:

For Dip Switch Receivers:

• Match brand, frequency and number of dip switches
• Ensure the transmitter has the same number of dip switches
• Align switch positions identically between remote and receiver

For Rolling Code Receivers:

• Match brand and frequency
• Only use remotes specified by the receiver manufacturer (reference your receiver's manual for exact compatible models)

Real-World Scenarios: Which System Is Right For You?

Scenario 1: Single-Family Home with 2-5 Users

Recommended: 4-wire dip switch receiver with matching remotes

Why: Simple, cost-effective, and provides adequate security for low-traffic residential use

Capacity Needed: 5-10 remotes maximum

Budget: Most economical option

Scenario 2: HOA Community with 200+ Residents

Recommended: Block coded receiver system (AP5 or STAR1000)

Why: Individual access control, ability to deactivate specific users without reprogramming entire system, maintains access logs

Capacity Needed: 200-500+ remotes

Budget: Higher initial investment, but lower long-term management costs

Scenario 3: Commercial Property with Security Concerns

Recommended: Rolling code receiver (LiftMaster Security+2.0 or Linear MegaCode)

Why: Prevents code grabbing, remote duplication impossible, high security encryption

Capacity Needed: 50-200 remotes

Budget: Mid-range investment with excellent security ROI

Troubleshooting Common Receiver/Transmitter Issues

Remote Stops Working:

• Check battery - Most remotes use 9v or coin cell batteries (CR2032)
• Verify you're within range - Most systems work reliably within 15-30 feet. Trees, walls, and other obstructions significantly reduce range. In areas with minimal interference, range may extend further, but typical residential and commercial environments limit effective distance
• Check for interference - Cell towers, radio stations, or other wireless devices can cause issues
• Re-program the remote - Rolling code remotes occasionally need re-syncing

Multiple Remotes Stop Working:

• Check receiver power supply - Dead transformer or blown fuse
• Verify operator is receiving power - Confirm control board has power
• Check frequency interference - New nearby wireless devices may be causing issues

Remote Only Works When Very Close to Receiver:

• Reception is low - Add an antenna extension kit to improve signal strength
• Frequency jamming - Replace your receiver/transmitter system with a different frequency

I Hear the Receiver Clicking but Gate Won't Open:

• Check the wiring integrity and connections - Loose or corroded wires prevent proper signal transmission
• Check the terminals on your gate operator - Use a jumper wire to verify the operator's terminals are functioning correctly
• Check/Replace the receiver's power supply - Insufficient power can cause relay malfunction
• Replace the receiver - If all else fails, the receiver itself may be defective

Making Your Decision

When choosing a receiver, consider:

1. User capacity: Residential (under 50 users) vs. commercial (hundreds or thousands)
2. Security level: Rolling code or block coded options offer better encryption
3. Existing equipment: Matching current technology avoids replacing remotes unnecessarily
4. Scalability: Systems with higher memory capacity simplify future expansion
5. Environmental rating: For outdoor use, look for weatherproof IP44 or higher
6. Budget: Balance upfront costs against long-term management and security needs

Quick Reference Checklist

Before purchasing, verify you know:

• [ ] Required frequency (MHz)
• [ ] Code technology type (dip switch, rolling, block, hybrid)
• [ ] Number of users (current and future)
• [ ] Whether you need 3-wire or 4-wire configuration
• [ ] Indoor or outdoor mounting (weatherproof rating needed)
• [ ] Brand compatibility with existing equipment

Get Expert Guidance

The right receiver balances compatibility, scalability, and security. Choosing the wrong system can lead to:

• Frequent service calls and frustrated users
• Security vulnerabilities and unauthorized access
• Expensive equipment replacement costs
• Poor long-term scalability
