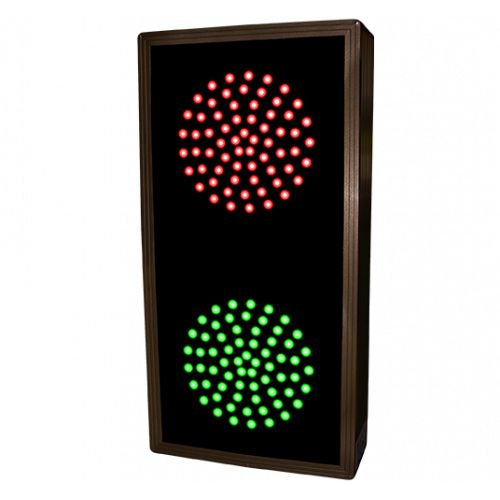

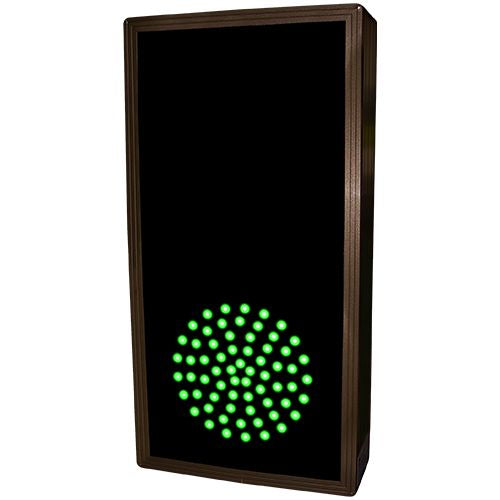

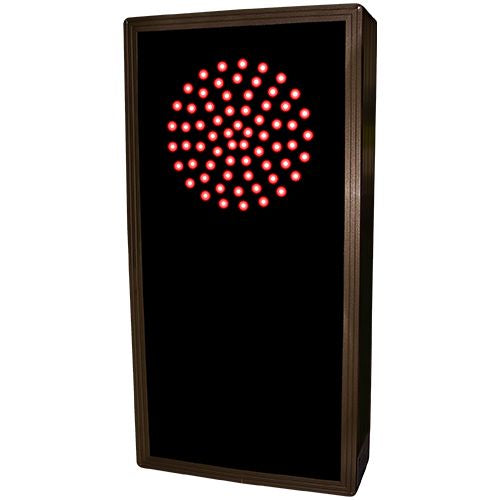

Signal Tech LED Vertical Traffic Light W/o Protective Hoods (120-277 VAC)

Download Specs Download Manual

This TCL Series Indicator Dots, Double, Vertical, 4 in dia, Red/Green outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.

Features

• Message: Red Indicator Dot / Green Indicator Dot
• Message Color: Red Wide Angle LED / Green Wide Angle LED
• Face Material: Lexan Hood with Lens
• LED Viewing Angle: Wide Angle LEDs
• Character Height: 4"
• Dimensions: 14" H x 7" W x 2.5" D
• Illumination: TCL LED
• Face Material: 1/8" Smoked Polycarbonate (5109)
• Finish: Duranodic Bronze
• UL/cUL Listed: Wet Locations
• LED Viewing Angle: Wide Angle LEDs
• Input Voltage: 120-277 VAC
• UL/cUL Listed: Wet Locations
• Finish: Duranodic Bronze
