Doorking 1834-090 Telephone Entry System

PC-Controlled Entry System for Single Gate or Door Access Points

The Doorking 1834-090 is a PC-programmable telephone entry system designed for controlling a single gate or door in secure, access-controlled environments. Ideal for apartment complexes, commercial buildings, and gated communities, the 1834-090 provides reliable voice communication and remote access control via cellular, internet (VoIP), or POTS connections. With support for up to 3,000 directory entries, this compact system offers enterprise-grade security in a space-saving format - without card reader integration, making it perfect for streamlined entry points.

Key Features

• Controls 1–2 entry points, ideal for single-gate or building entrances
• 3000 directory codes and entry codes, with up to 255 area codes
• PC programmable via DKS Cloud or Remote Account Manager software
• Illuminated LED keypad and A-Z-CALL buttons for easy use day or night
• Built-in electronic directory with 20-character LCD
• Live transaction monitoring (when using IP or RS-232 connection)
• NEMA 4X-rated enclosure for outdoor installation
• UL 294 compliant tamper-resistant design

Technical Specifications

• Model: 1834-090
• Display: 1-line 20-character super-twist LCD (½" characters)
• Memory Capacity: 3000 phone numbers, 3000 entry codes
• Relay Control: 2 relays (main + auxiliary entry point)
• Connectivity: Cellular, internet (VoIP), or POTS (non-guaranteed)
• Power: Includes (2) 16 VAC transformers
• Mounting Options: Surface, flush, post, or kiosk
• Operating Temp: -12°C to 62°C (10°F to 145°F)
• Certifications: UL 294, ULC-S319
• Dimensions: 12.75" W × 14.75" H × 3.75" D

Mounting Kits (Optional Accessories)

• Flush Mount Kit – Stainless Steel (1814-200): Recesses system into a wall or kiosk

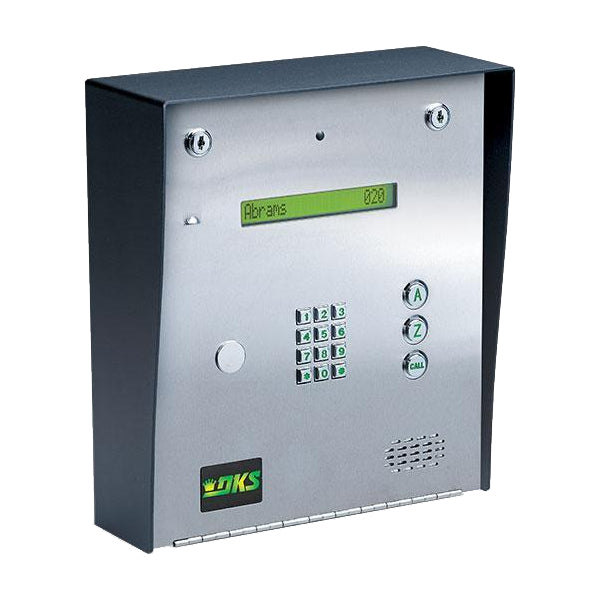

• 10 Gauge Protective Hood – Black (1814-185): Adds vandal protection, surface-mount only

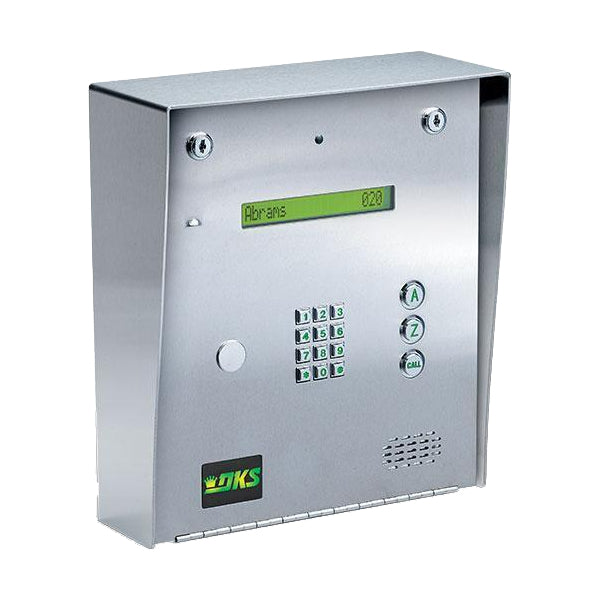

• 10 Gauge Protective Hood – Stainless Steel (1814-180): Weather-resistant and tamper-resistant
  Note: Protective trim kits are shown in some images and are sold separately.

Conclusion

The Doorking 1834-090 delivers essential access control features in a compact, hardened form for secure single-door or gate applications. Its compatibility with PC-based programming, robust construction, and upgradeable connectivity options make it a powerful solution for properties seeking reliable entry point management.
