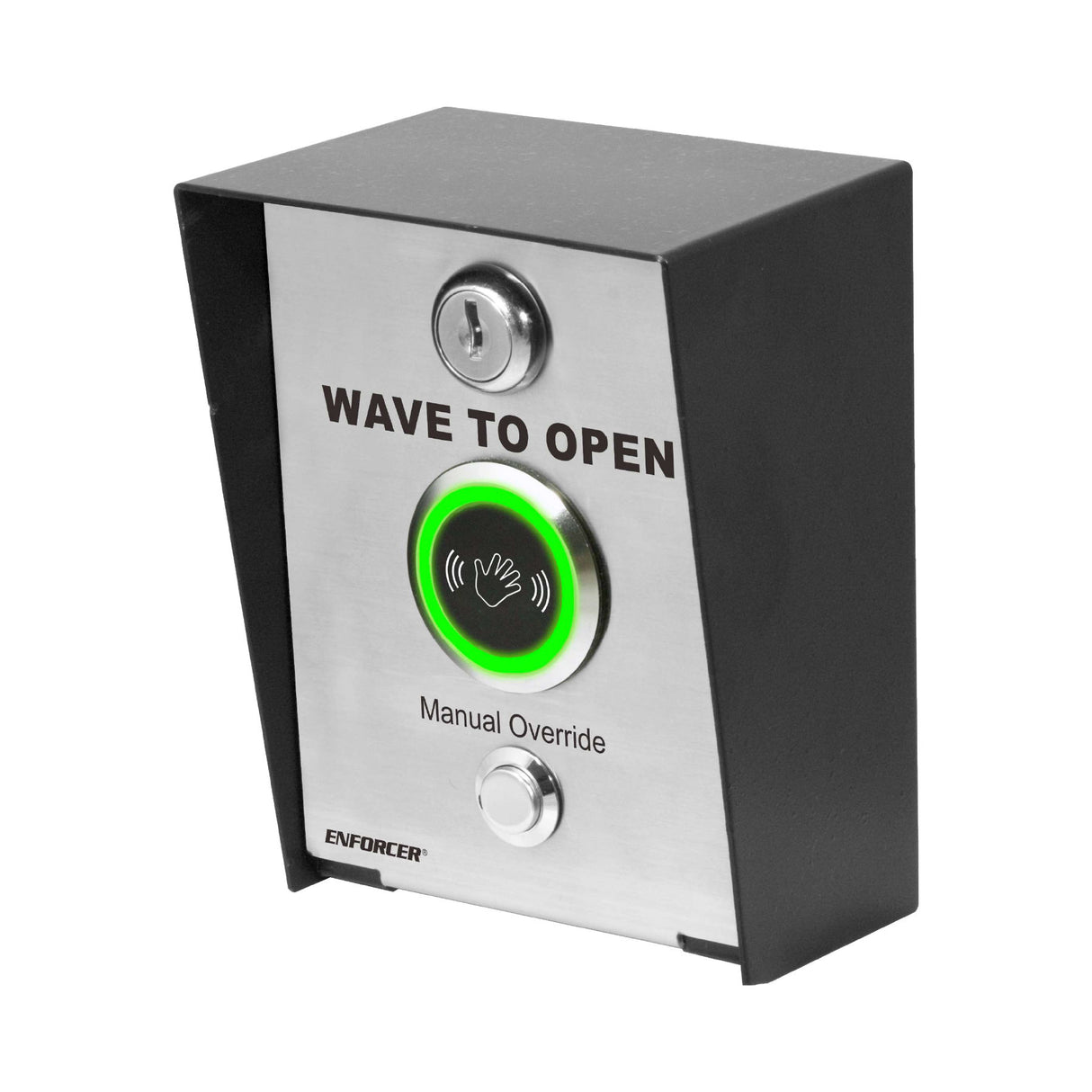

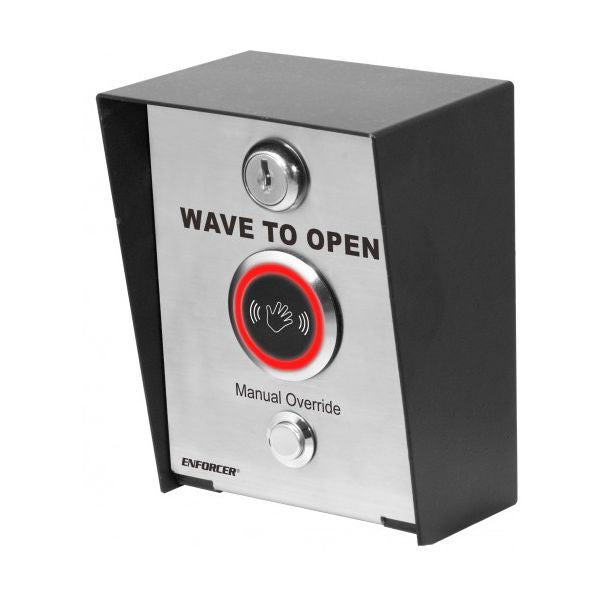

Seco-Larm SD-9963-KSGQ Wave-to-Open Exit Button

Touchless Post-Mount Exit Sensor with IR and Override Button

The Seco-Larm SD-9963-KSGQ is a weather-resistant, post-mount wave-to-open sensor with manual override, designed for touchless gate and door egress. Ideal for security and hygiene-sensitive environments, this unit provides controlled, contactless activation using IR sensing while offering a fail-safe mechanical button for manual use. Built into a vandal-resistant enclosure, it's suitable for both interior and exterior installations in gated entries, healthcare facilities, cleanrooms, and high-traffic pedestrian areas.

Key Features

• IR Wave Activation: Adjustable range from 2 to 7 inches for responsive, hands-free operation
• Manual Override: Integrated pushbutton allows reliable mechanical triggering
• Visual Feedback: Dual-color LED reverses (green/red) on activation
• Heavy-Duty Construction: Stainless steel faceplate with steel access box
• Flexible Mounting: Gooseneck post or wall installation compatible
• Relay Settings: Toggle or timed output (0.8–30 seconds)
• Weatherproof Design: IP65 rated for outdoor environments

Technical Specifications

• Operating Voltage: 12–24 VDC
• Sensor Range: 2" to 7" adjustable
• Relay Output: Form C, 1A @ 30VDC
• Current Draw: 16–32 mA (standby/triggered)
• Temperature Range: -4°F to 131°F
• Housing Dimensions: 4" × 5.5" × 3"
• Mounting Options: Surface or post
• Weight: 1.9 lbs
• Enclosure: Lockable steel box
• Weather Rating: IP65

Conclusion

With its durable housing, dual-mode activation, and adjustable settings, the SD-9963-KSGQ is an ideal solution for applications requiring secure, sanitary, and reliable exit control.
