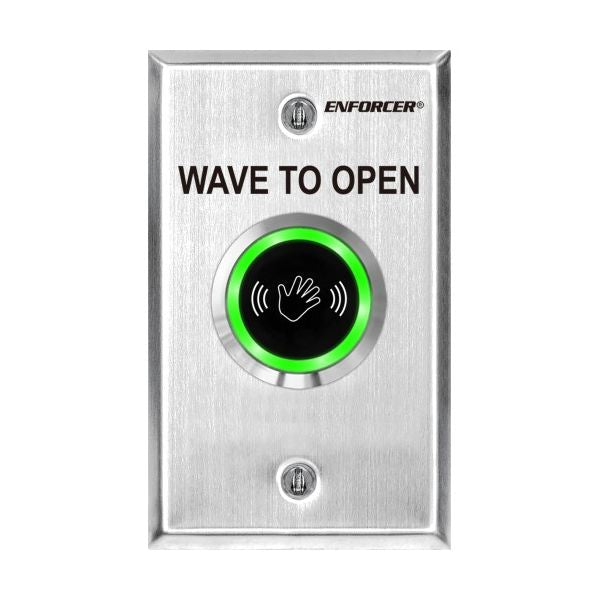

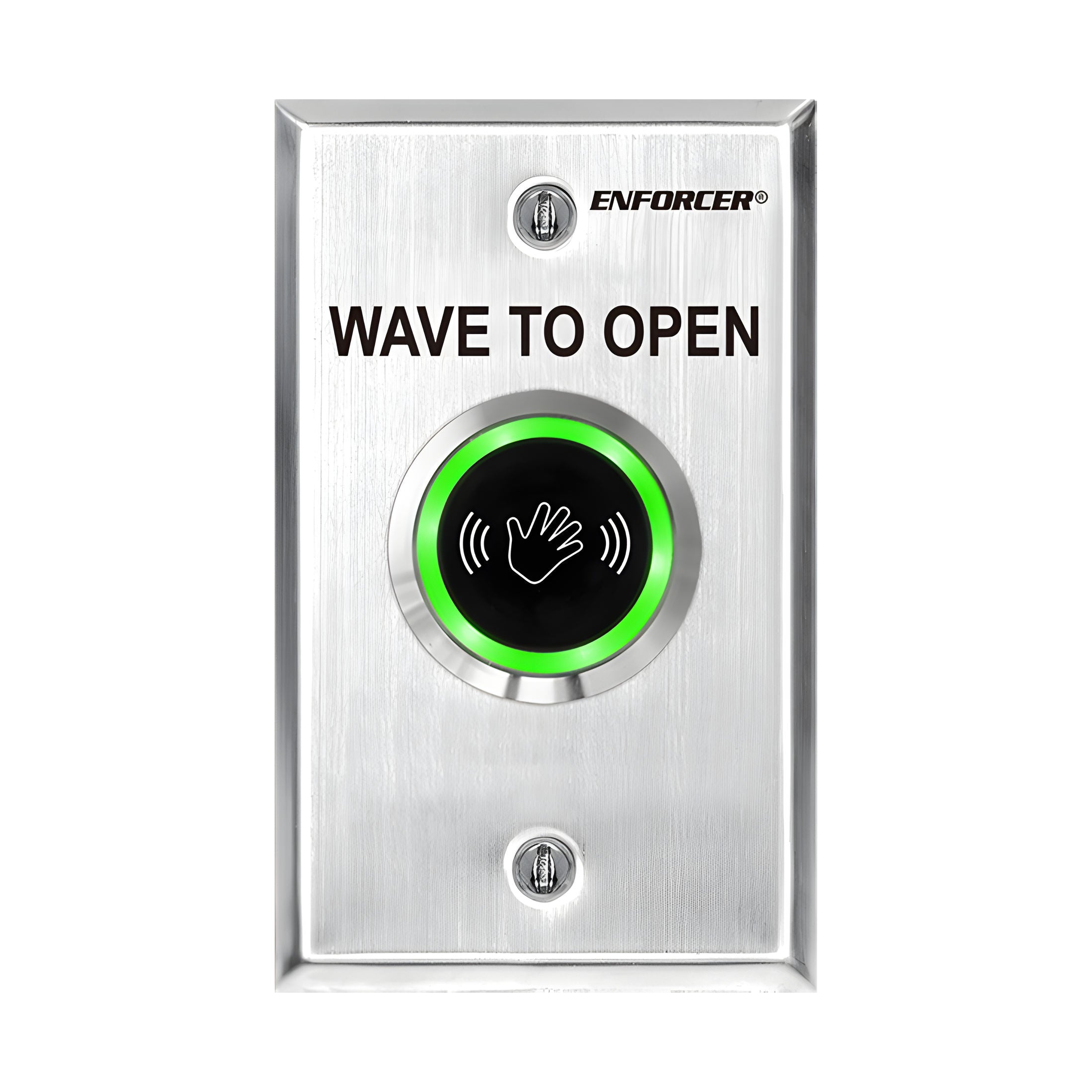

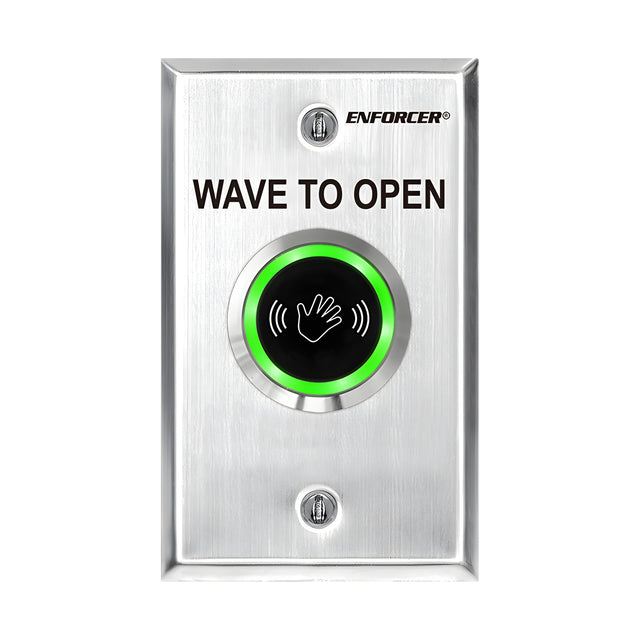

Seco-Larm SD-9263-KSQ Wave-to-Open Exit Button - Outdoor Rated

Outdoor Wave-to-Open Exit Sensor with Stainless Steel Plate

The Enforcer SD-9263-KSQ Wave-To-Exit Button is a UL294-listed, outdoor-rated sensor that allows hands-free egress with a simple wave of the hand. Using infrared (IR) technology, it eliminates the need for physical contact, making it ideal for cleanrooms, hospitals, offices, and other sanitary or high-traffic environments. Designed with a stainless steel single-gang faceplate, it provides reliable activation and visual feedback through adjustable LED colors.

Key Features

• No-touch IR activation reduces cross-contamination risks
• Weather-resistant (IP65) for indoor or outdoor installations
• Adjustable sensor range from 2" to 7" (5–18 cm)
• Selectable LED indicators switch from red-to-green or green-to-red on activation
• Adjustable relay output 0.5–30 seconds or toggle mode
• UL294 listed for access control system compliance
• Stainless steel single-gang plate for durability and clean appearance

Technical Specifications

• Model: SD-9263-KSQ
• Operating Voltage: 12–24 VDC
• Current Draw: 18mA (standby) / 23mA (triggered)
• Relay Type: Form C dry contact, 1.2A @ 24VDC
• Response Time: 10ms
• Sensor Range: 2"–7" (5–18 cm) adjustable
• Trigger Duration: 0.5–30s or toggle
• Operating Temperature: -4° to 131°F (-20° to 55°C)
• IP Rating: IP65 (weather resistant)
• Dimensions: 2.75" x 4.5" x 1.5" (70 x 115 x 39 mm)
• Compliance: UL294

Conclusion

The Enforcer SD-9263-KSQ Wave-To-Exit Button offers hygienic, reliable, and code-compliant exit activation for access-controlled environments. With adjustable sensing range, LED feedback, and durable stainless construction, it provides professional-grade performance for both indoor and outdoor security applications.
