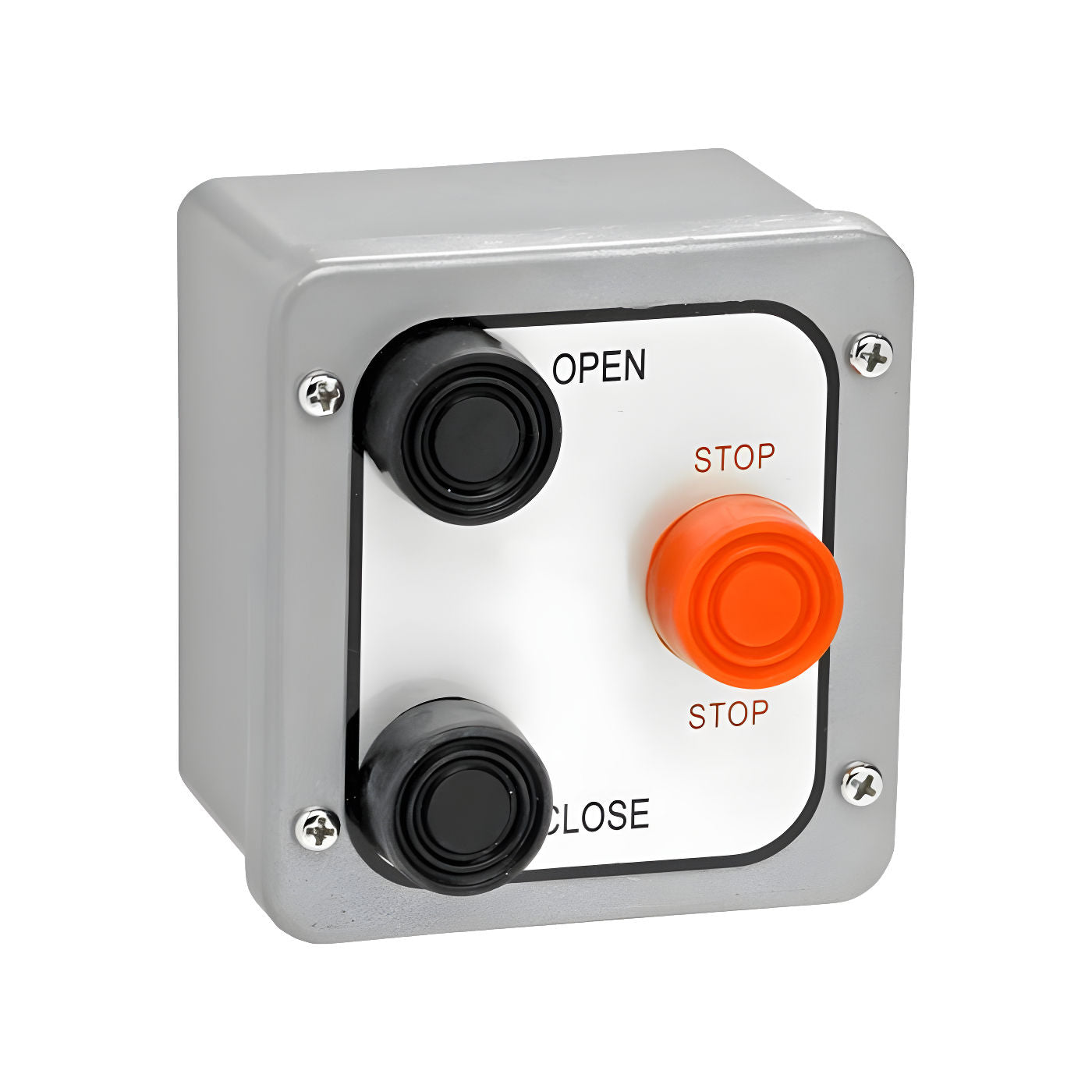

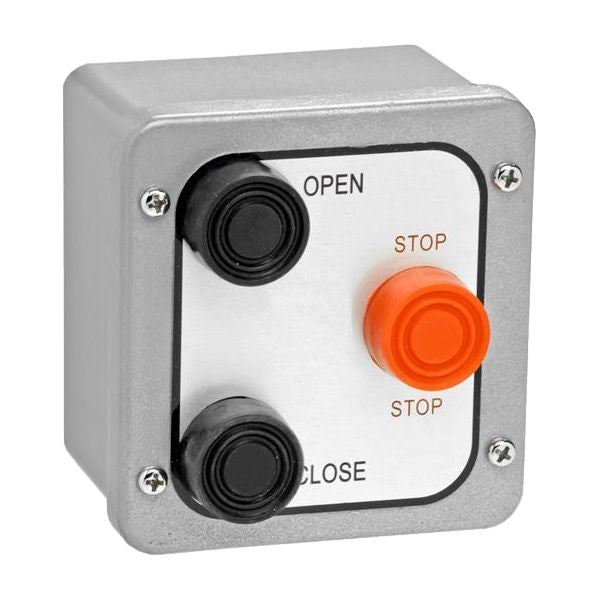

MMTC 3BX Three Button Station (Exterior)

Industrial-Grade, Weatherproof Control for Outdoor Applications

The 3BX Exterior Control Station is engineered for secure control of gates, machinery, and other industrial systems, offering Open, Close, and Stop functionality in a weather-resistant, die-cast aluminum enclosure. Rated NEMA 3R, 4, and 12, this control station is ideal for outdoor installations, providing reliable operation in various environments. With a robust three-button configuration and surface mount design, the 3BX ensures long-lasting durability and seamless integration into industrial setups.

Key Features

• Heavy-Duty Construction: Die-cast aluminum enclosure with NEMA 3R, 4, and 12 ratings, ideal for weather and industrial conditions
• Button Configuration: Open and Close are Normally Open (N.O.), and Stop is Normally Closed (N.C.)
• Electrical Rating: Buttons rated for 6 amps at 125/250 VAC, providing compatibility with industrial power requirements
• Compact Surface Mount Design: Measures 4-3/8” x 4-1/8” x 3-3/4” for secure, space-saving installation
• Three-Button Control: User-friendly Open, Close, and Stop commands tailored for seamless operation in demanding environments

Technical Specifications

• Model: 3BX
• Enclosure: Die-cast aluminum, NEMA 3R, 4, 12 rated for industrial and outdoor use
• Button Rating: 6 amps at 125/250 VAC
• Button Configuration: Open and Close are Normally Open; Stop is Normally Closed
• Mounting Type: Surface mount
• Dimensions: 4-3/8” height x 4-1/8” width x 3-3/4” depth

Conclusion

The 3BX Control Station combines rugged durability with straightforward operation, making it the ideal solution for outdoor and high-demand industrial applications. Its NEMA-rated enclosure provides weather and dust resistance, ensuring reliable performance in challenging conditions, while the three-button setup simplifies gate and machinery control.
