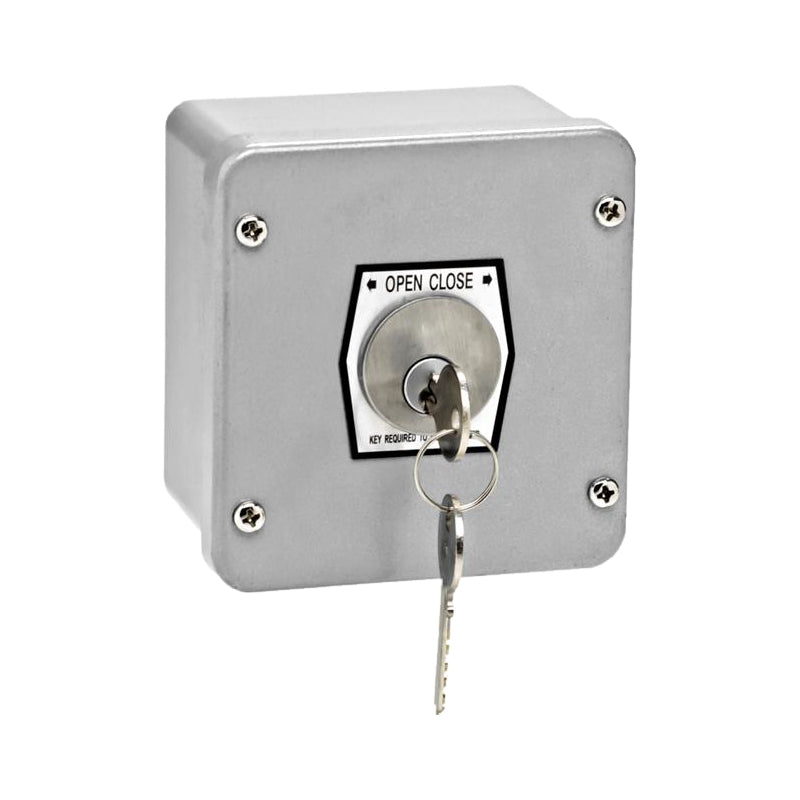

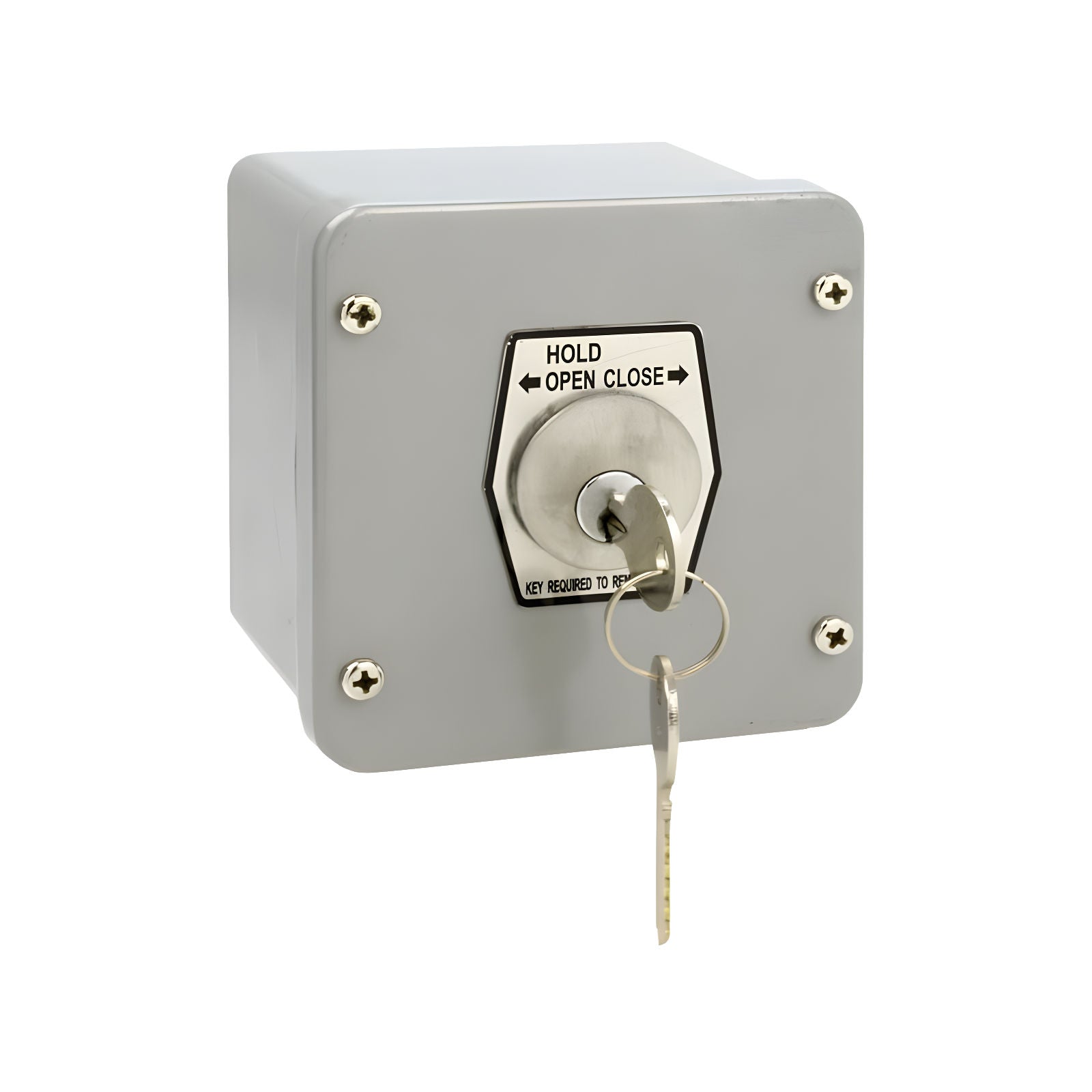

MMTC 1KXL-O Exterior Hold-Open Key-Switch
MMTC 1KXL-O Exterior Hold-Open Key-Switch is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Control Station |
| Application Type | Gate | Barrier | Roll-Up Door | Overhead | Garage |
| Installation Type | Residential | Commercial | Industrial | HOA |
| Mounting Type | Surface Mounted |
| Weatherproof Rating | Rated for Outdoor Usage |
MMTC 1KXL-O Exterior Hold-Open Key-Switch
Description
Description
Weatherproof Keyed Access Control for Outdoor Applications
The 1KXL-O Keyed Control Station offers secure two-position Hold Open and Close functionality, ideal for industrial gates, automation systems, and secure access points. Featuring a tamper-proof, aluminum die-cast enclosure, this control station is rated NEMA 3R, 4, and 12, ensuring reliable performance in harsh environments. With a high-amperage keyswitch and compatibility with multiple cylinder types, the 1KXL-O provides both durability and flexibility for high-demand applications.
Key Features
- Two-Position Keyed Control: Activates in the Hold Open position and deactivates in the Close, providing secure control over gate or system access
- Weatherproof Construction: Die-cast aluminum housing with NEMA 3R, 4, and 12 ratings, ideal for outdoor and industrial environments
- Flexible Cylinder Options: Mortise type (5-pin) available in Best Core, SLF large format, and CC changeable cylinder options for customized access control
- High Electrical Rating: Keyswitch rated at 20 amps at 125 VAC and 15 amps at 250 VAC, suitable for industrial power needs
- Compact Surface Mount Design: Dimensions of 4-3/8” x 4-1/8” x 3-3/4” for secure, space-saving installation
Technical Specifications
- Model: 1KXL-O
- Enclosure: Die-cast aluminum, NEMA 3R, 4, 12 rated for industrial and outdoor use
- Electrical Rating: 20 amps at 125 VAC, 15 amps at 250 VAC
- Cylinder Options: Compatible with Best Core, SLF large format, or CC changeable cylinders
- Mounting Type: Surface mount, tamper-proof design
- Dimensions: 4-3/8” height x 4-1/8” width x 3-3/4” depth
Conclusion
The 1KXL-O Control Station is designed for secure, weatherproof access control with industrial-grade durability. Featuring a two-position keyed switch, it allows for straightforward control over access systems with a tamper-proof and flexible cylinder design. Built to withstand outdoor conditions and ensure restricted access, the 1KXL-O is an excellent choice for secure industrial applications.
