DoorKing 2112 eVolve Smart Intercom System

Smart Video Intercom with App & Cloud Control

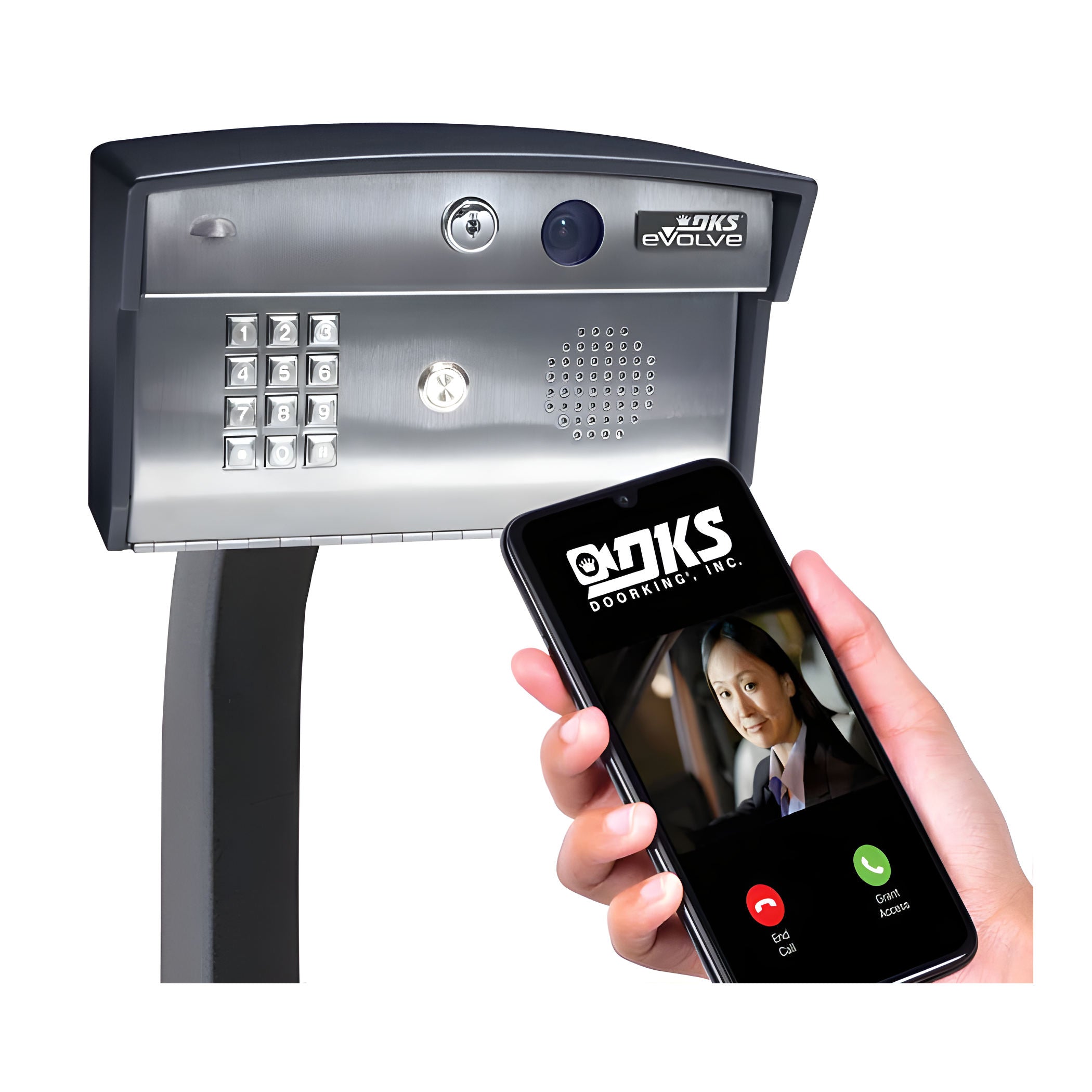

The DoorKing 2112 eVolve is a professional-grade smart video intercom system designed for gated residences, small communities, and light-commercial sites. Built on DoorKing’s secure cloud platform, it supports two-way video and voice calls, browser-based programming, and remote gate/door operation from any smartphone. With the ability to control up to three access points, the 2112 eVolve combines field-proven durability with modern, app-enabled functionality - all accessible via the DKS Resident App and browser portal.

Monthly subscription required for cloud features, including video calls and remote management.

Key Features

• Smart video intercom – Built-in IP camera with enhanced ISO sensitivity for clear video, day or night
• Remote access management – Control gates and doors from any browser or smartphone
• Controls up to 3 access points – Independent relays with customizable strike times
• Broadcast calling – Rings up to 4 phone numbers simultaneously for faster response
• Supports up to 24 residents – Each with 4 programmable phone numbers
• 500 programmable codes – 4- or 5-digit PINs with “Do Not Call,” hold open, and timed access scheduling
• Mobile app required for video – Compatible with iOS and Android
• Soft-glow backlit keypad and call button – Night-visible, vandal-resistant design
• DKS eVolve browser portal – Real-time remote programming and system monitoring
• Optional cellular connectivity – Internal and external kits available (sold separately)
• Made in the USA – Trusted DoorKing hardware with secure cloud infrastructure

Technical Specifications

• Power Input: 16VAC (20 VA transformer included) or 12–24VDC
• Resident Capacity: Up to 24 residents × 4 phone numbers
• Entry Codes: 500 (4- or 5-digit), schedule-controlled
• Relays: Three Form C relays (1A max), independently programmable
• Connectivity: Ethernet standard, cellular optional
• App Compatibility: DKS Resident App (iOS/Android)
• Programming Access: DKS eVolve web portal
• Construction: Stainless steel faceplate, galvanized sub-plate
• Operating Temperature: 10°F to 145°F (-12°C to 62°C)

Available Models

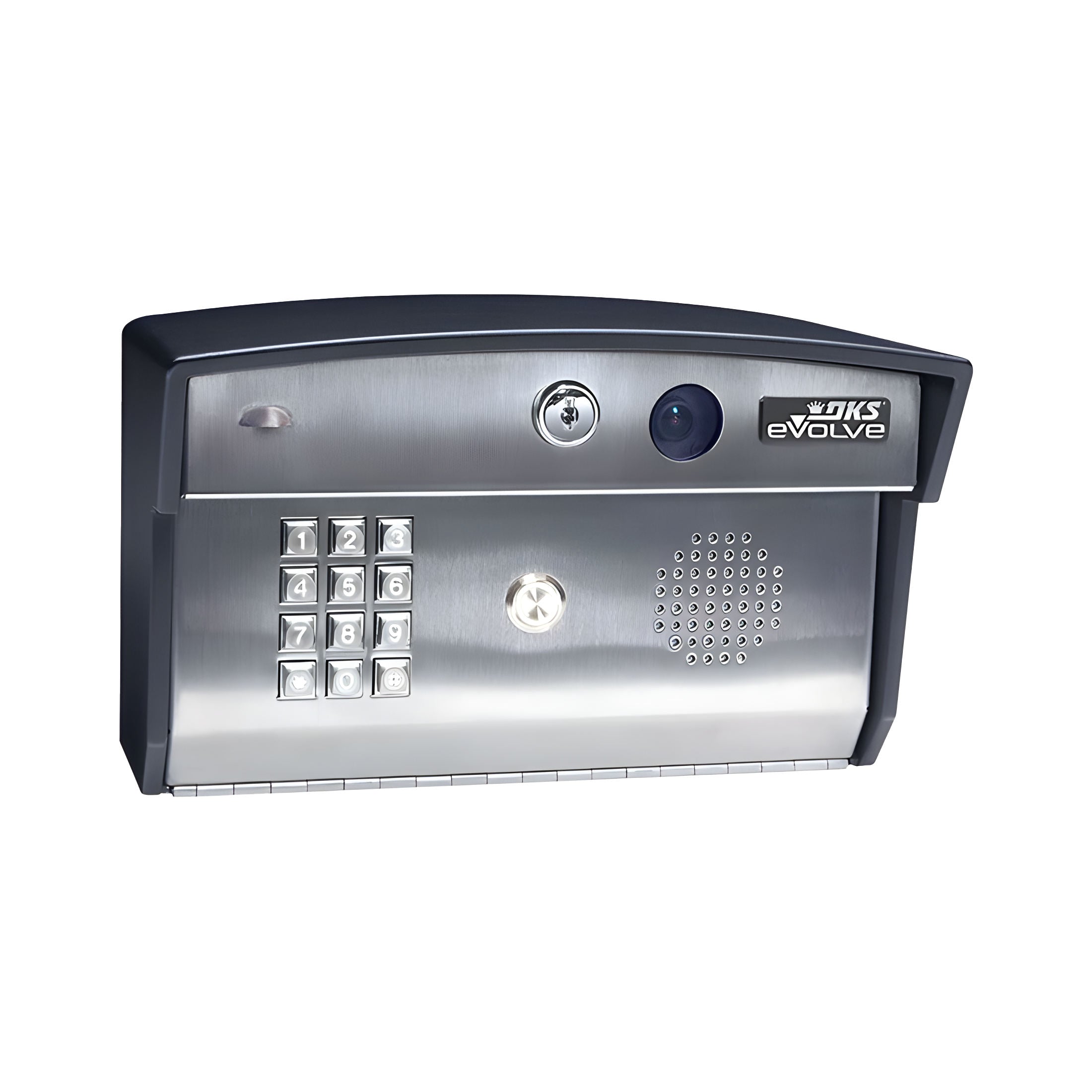

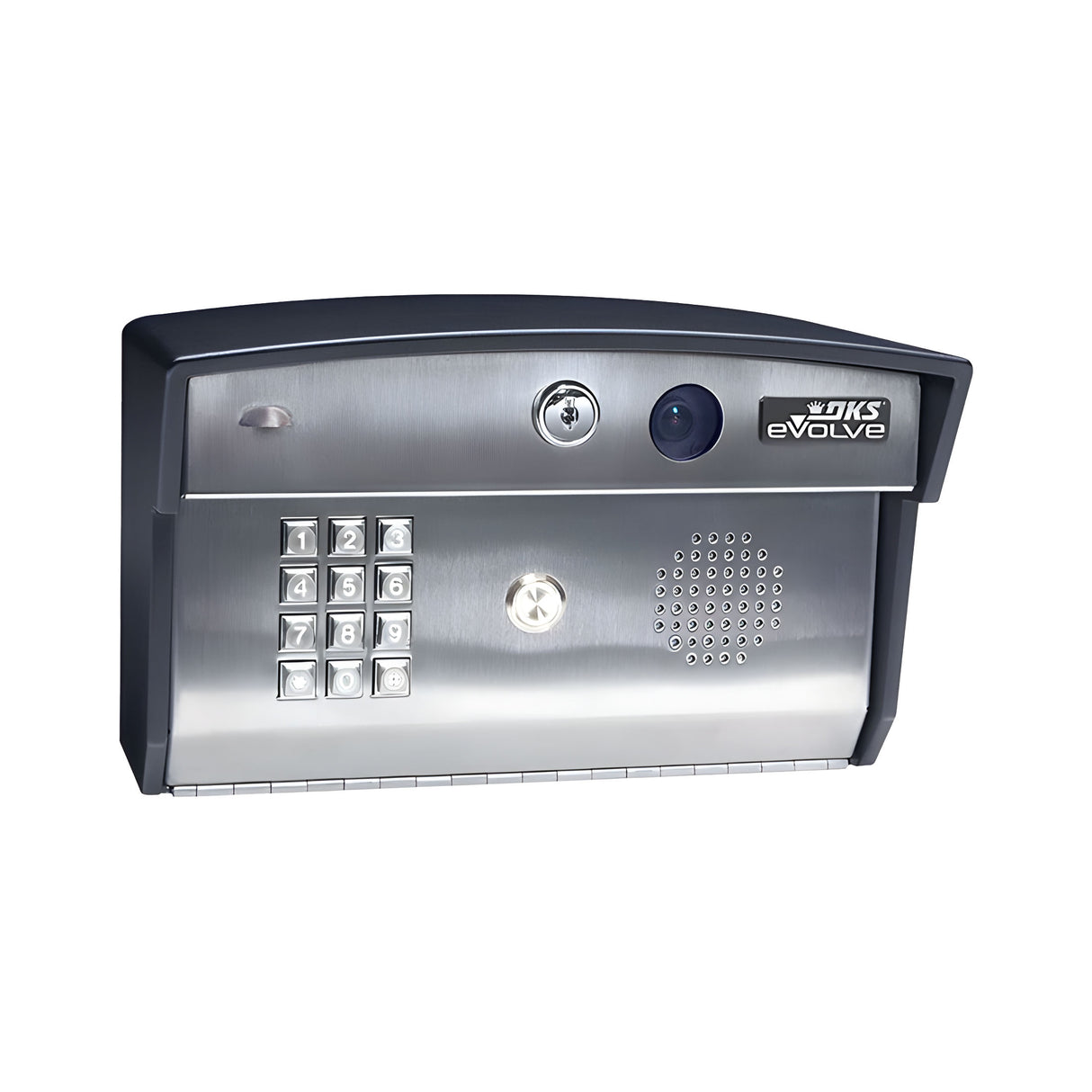

• 2112-082 – Surface Mount (Curved Front): Sleek, architectural design; cellular module mounts inside

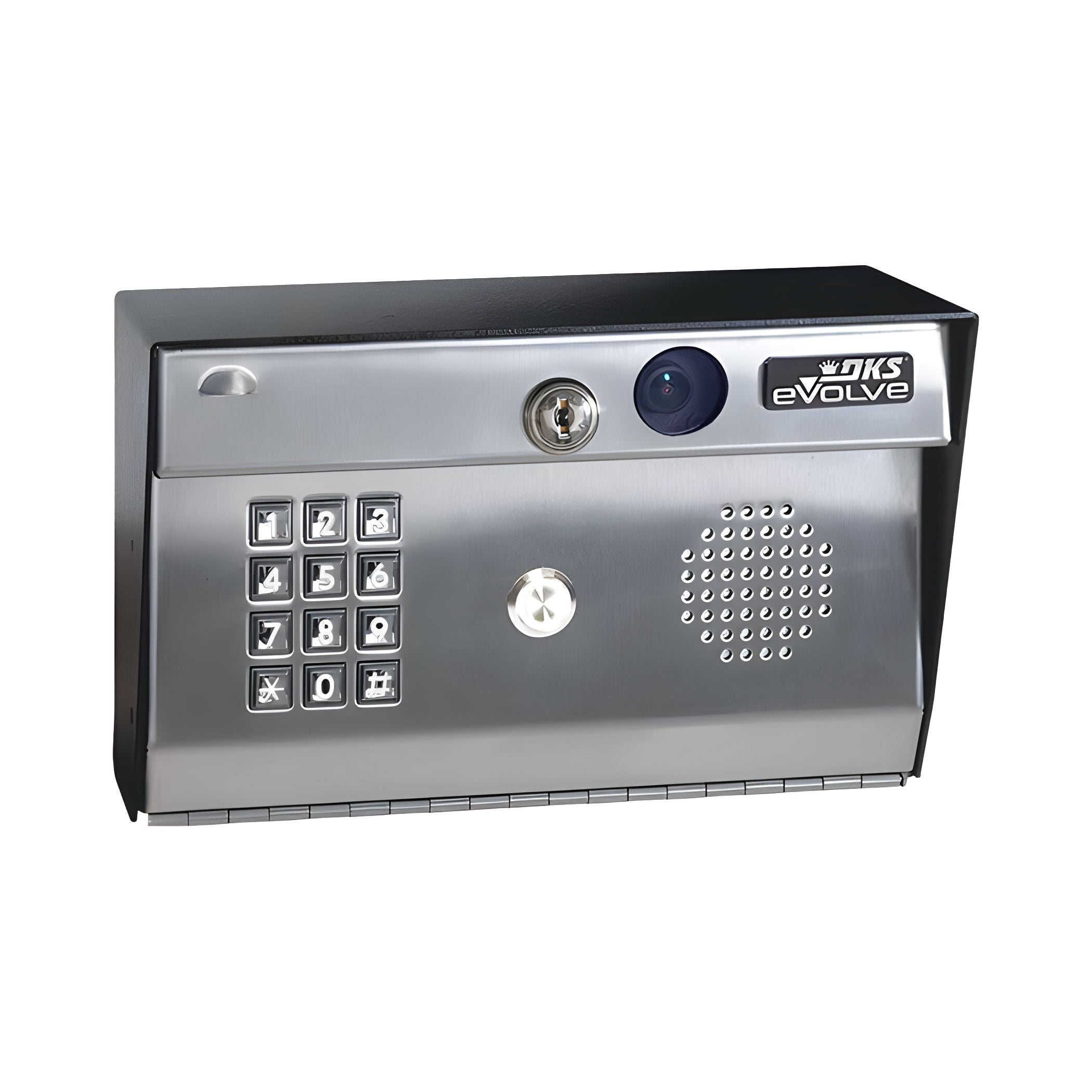

• 2112-081 – Surface Mount (Flat Front): Low-profile rectangular housing; cellular module mounts externally

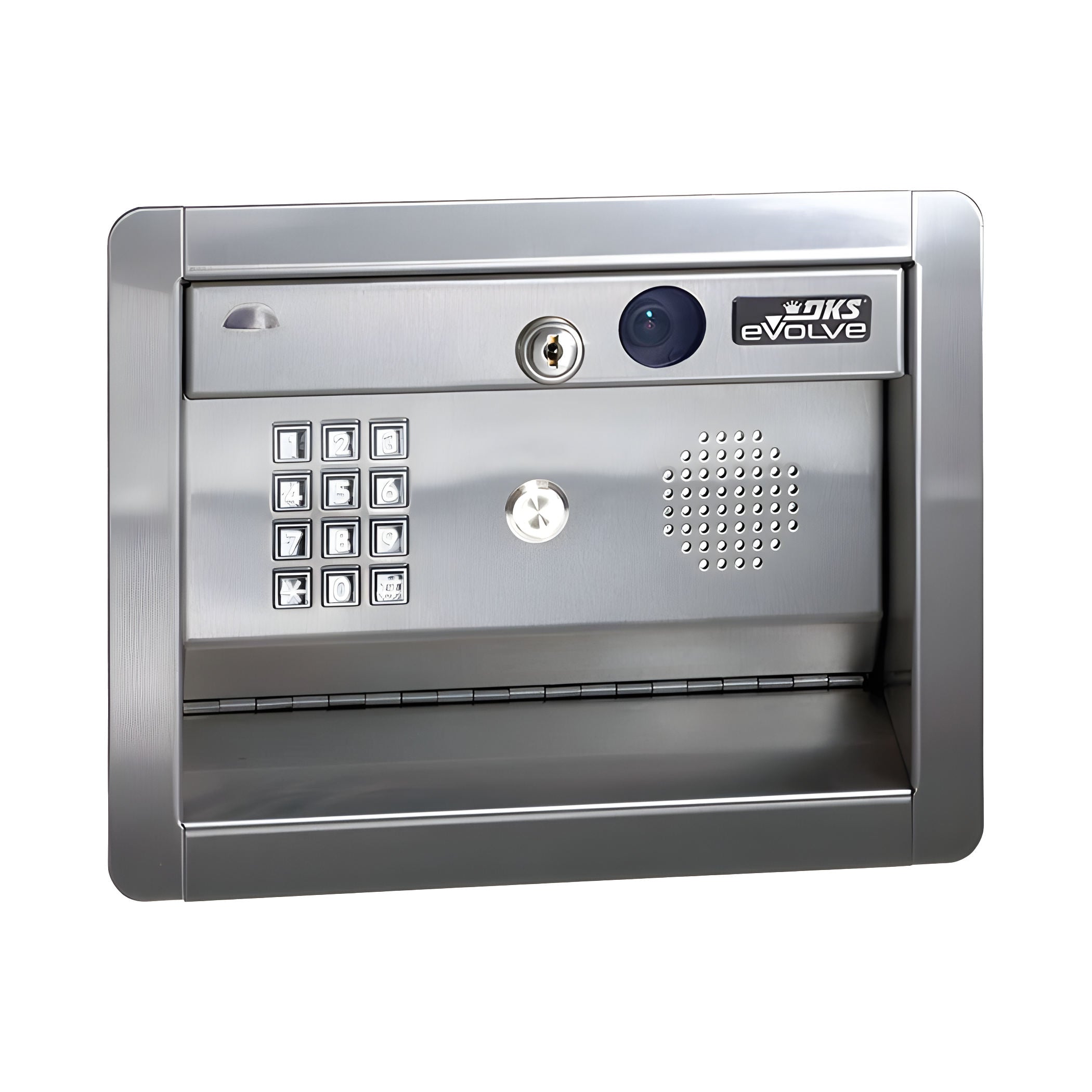

• 2112-083 – Flush Mount: Designed for recessed wall or kiosk installations; compatible with DKS 1200-175 enclosure

Conclusion

The DoorKing 2112 eVolve is a smart, scalable access solution that bridges perimeter security with modern app-based control. With integrated video, multi-door management, and secure cloud connectivity, it gives property owners and managers complete control from anywhere - backed by the reliability of DoorKing. Whether deployed at a secure home or multi-gate facility, the 2112 eVolve stands at the intersection of visibility, access, and control.
