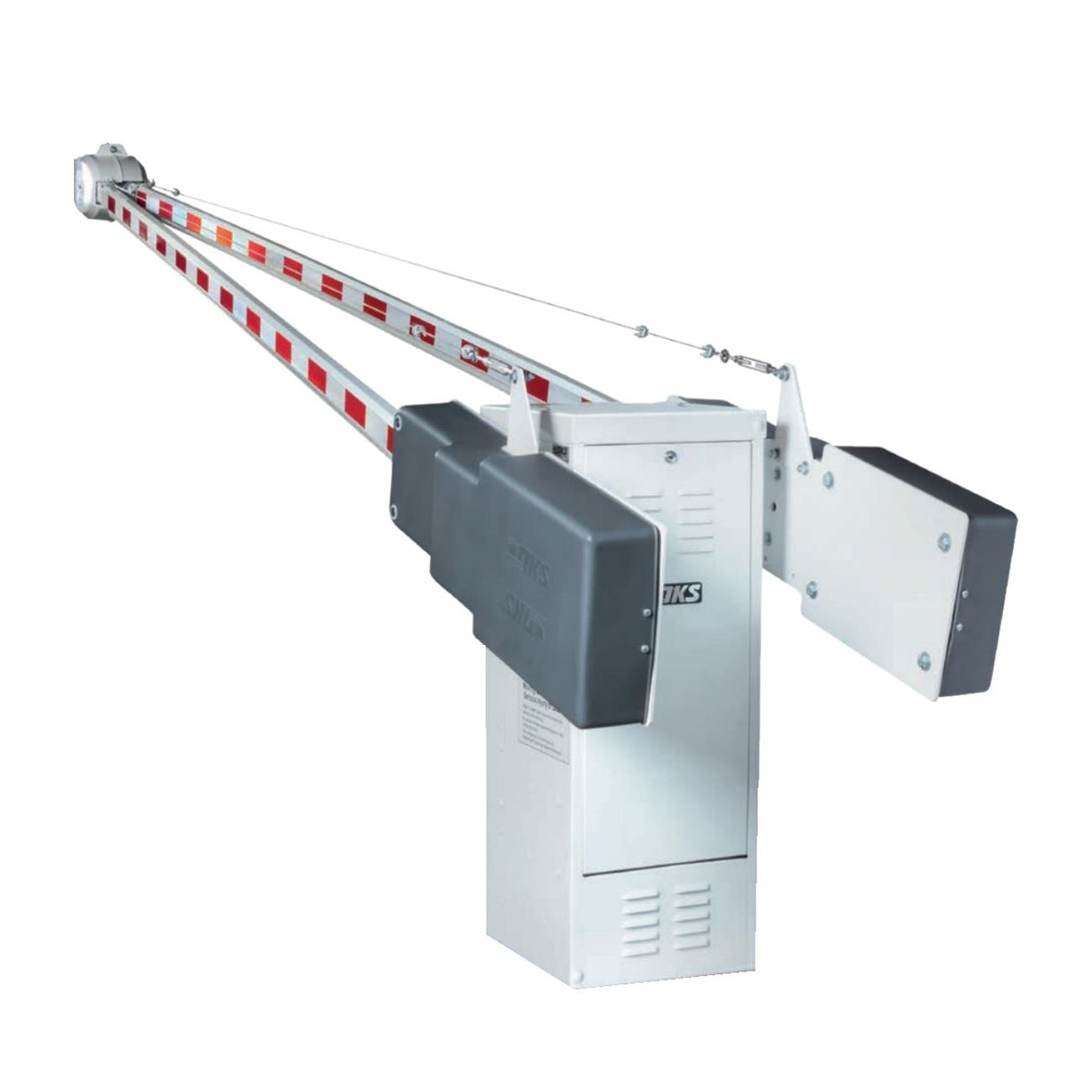

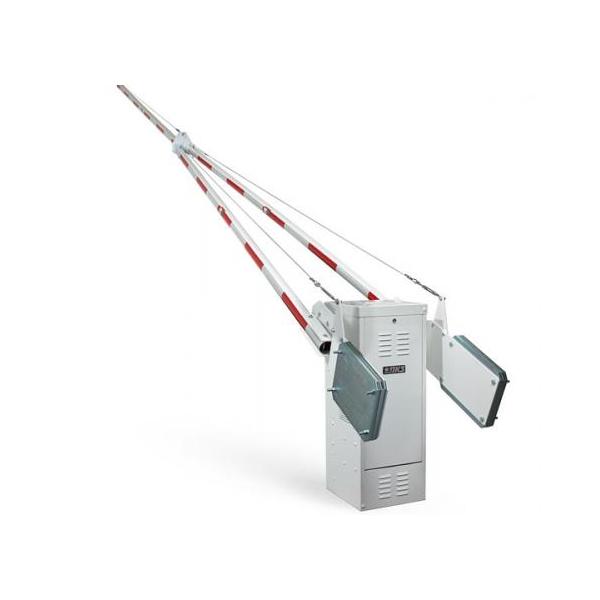

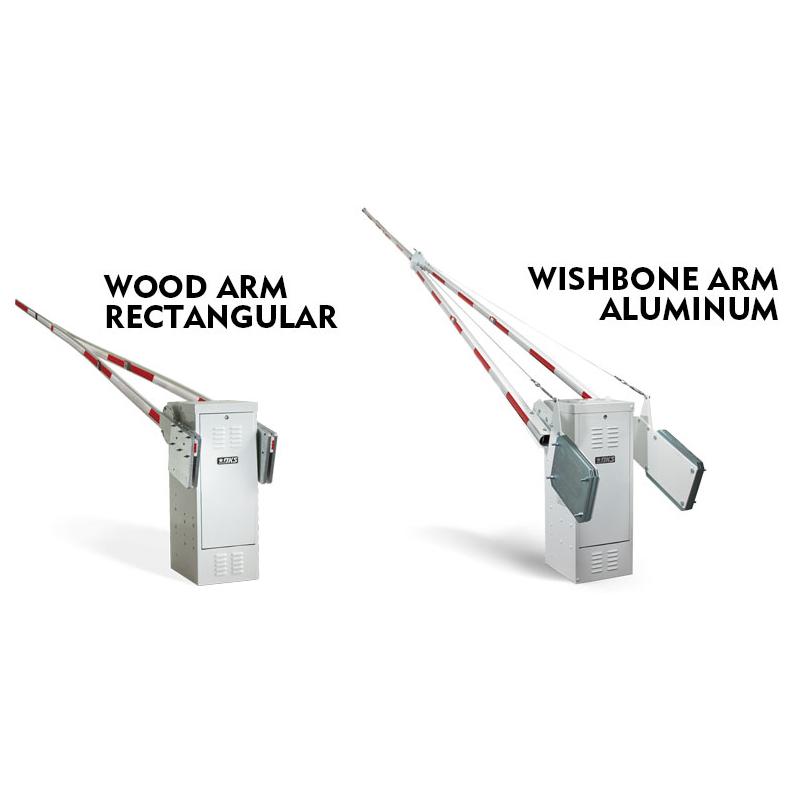

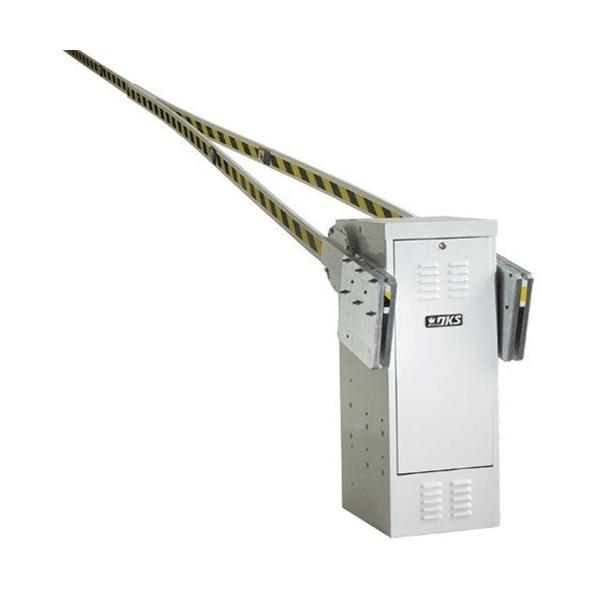

Doorking 1602-091 Barrier Gate Operator With Convenient Open (1 Hp)

Efficient Traffic Control for Wide Lanes with Automatic Backup Power

The Doorking 1602-091 Barrier Gate Operator is designed for managing wide traffic lanes in high-security environments such as airports, prisons, and industrial facilities. Featuring a Convenience Open Feature, this operator automatically raises the barrier arm during power outages, ensuring continuous traffic flow. It supports barrier arms up to 27 feet, making it a durable and efficient solution for vehicle access control.

Key Features

• Wide Lane Coverage – Compatible with barrier arms up to 27 feet, ideal for large vehicle entry points.
• Fast & Efficient Operation – Rotates 90° in just 5.5 seconds for smooth traffic control.
• Automatic Power Backup – The Convenience Open Feature raises the barrier arm automatically during power failures.
• Enhanced Safety Compliance – UL325-compliant with reverse edge sensors and photocell compatibility for safe operation.
• Durable Construction – Built with G90 galvanized steel housing, providing long-lasting protection in harsh environments.
• Battery Backup: Two 12V, 3Amp batteries for a single opening upon power failure

Technical Specifications

• Motor Power: 1 HP continuous duty
• Battery Backup: Two 12V, 3Amp batteries
• Input Voltage: 115, 230, or 460 VAC
• Barrier Arm Length: Up to 27 feet
• Rotation Speed: 90° in 5.5 seconds
• Safety Features: UL325-compliant reverse edge sensors, photocell compatibility
• Operating Temperature: 10°F to 140°F (-12°C to 62°C)
• Housing: G90 galvanized steel, NEMA 4x rated

Compatible Round Aluminum Arms

• 1602-162: 20 ft Round Aluminum Barrier Arm Kit
• 1602-164: 24 ft Round Aluminum Barrier Arm Kit
• 1602-166: 27 ft Round Aluminum Barrier Arm Kit

Compatible Octagonal Aluminum Arms

• 1602-282: 20 ft Octagon Aluminum Barrier Arm Kit
• 1602-284: 24 ft Octagon Aluminum Barrier Arm Kit
• 1602-287: 27 ft Octagon Aluminum Barrier Arm Kit
• Note: Arms and mounting kits are sold separately.

Conclusion

The Doorking 1602-091 is perfect for high-security applications where continuous access is crucial, even during power failures. Its combination of fast performance, UL325 safety compliance, and robust construction ensures reliable traffic control in industrial and security-sensitive environments.
