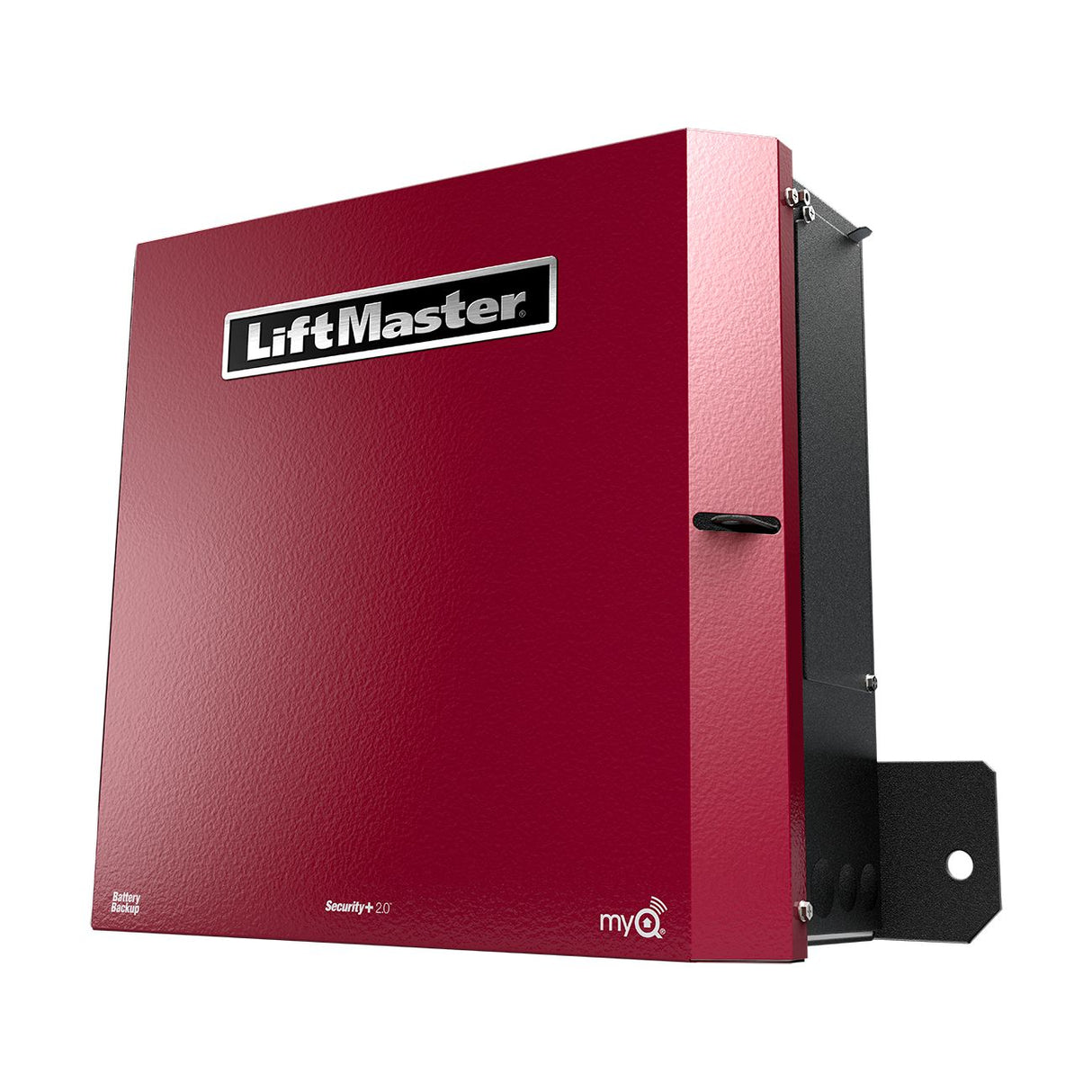

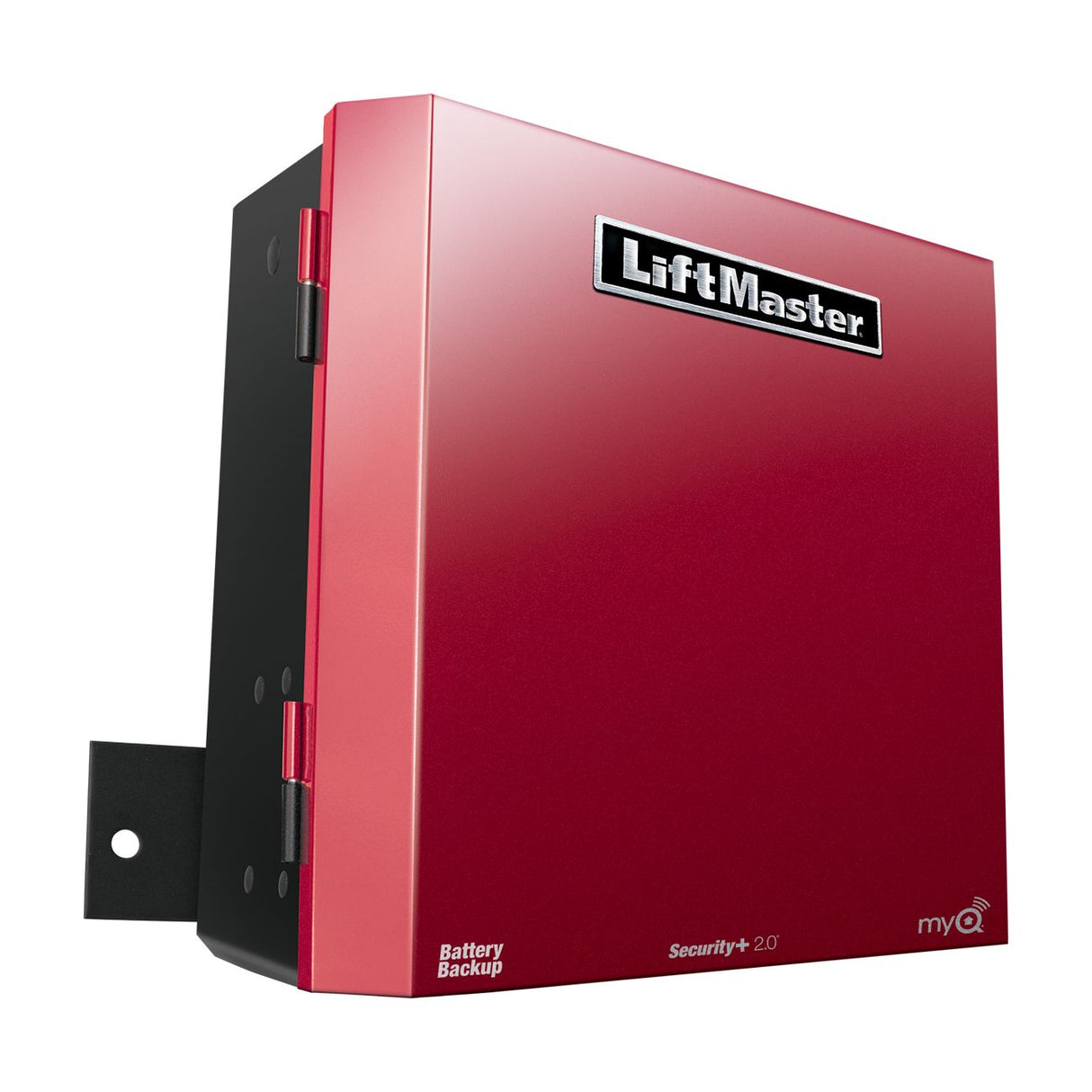

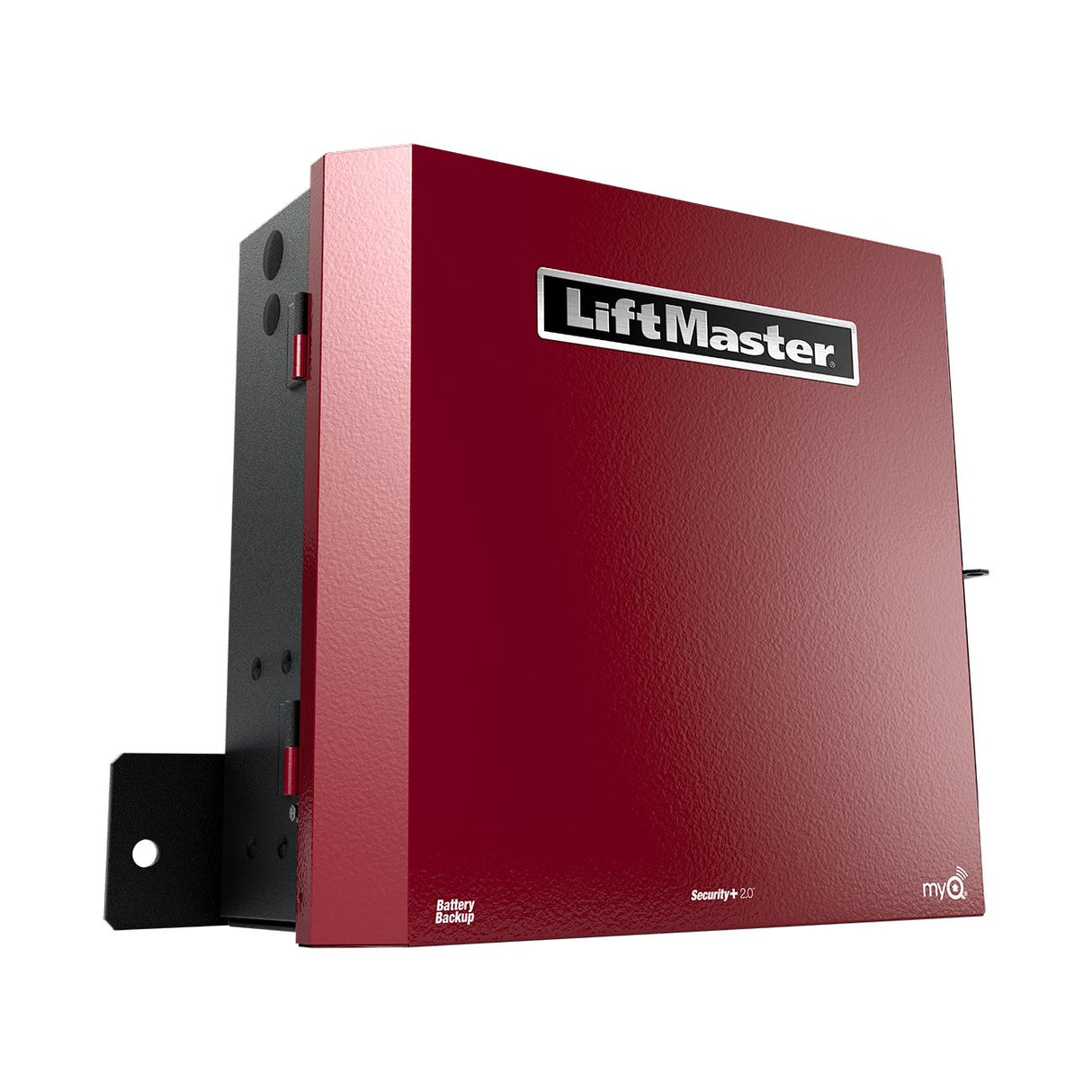

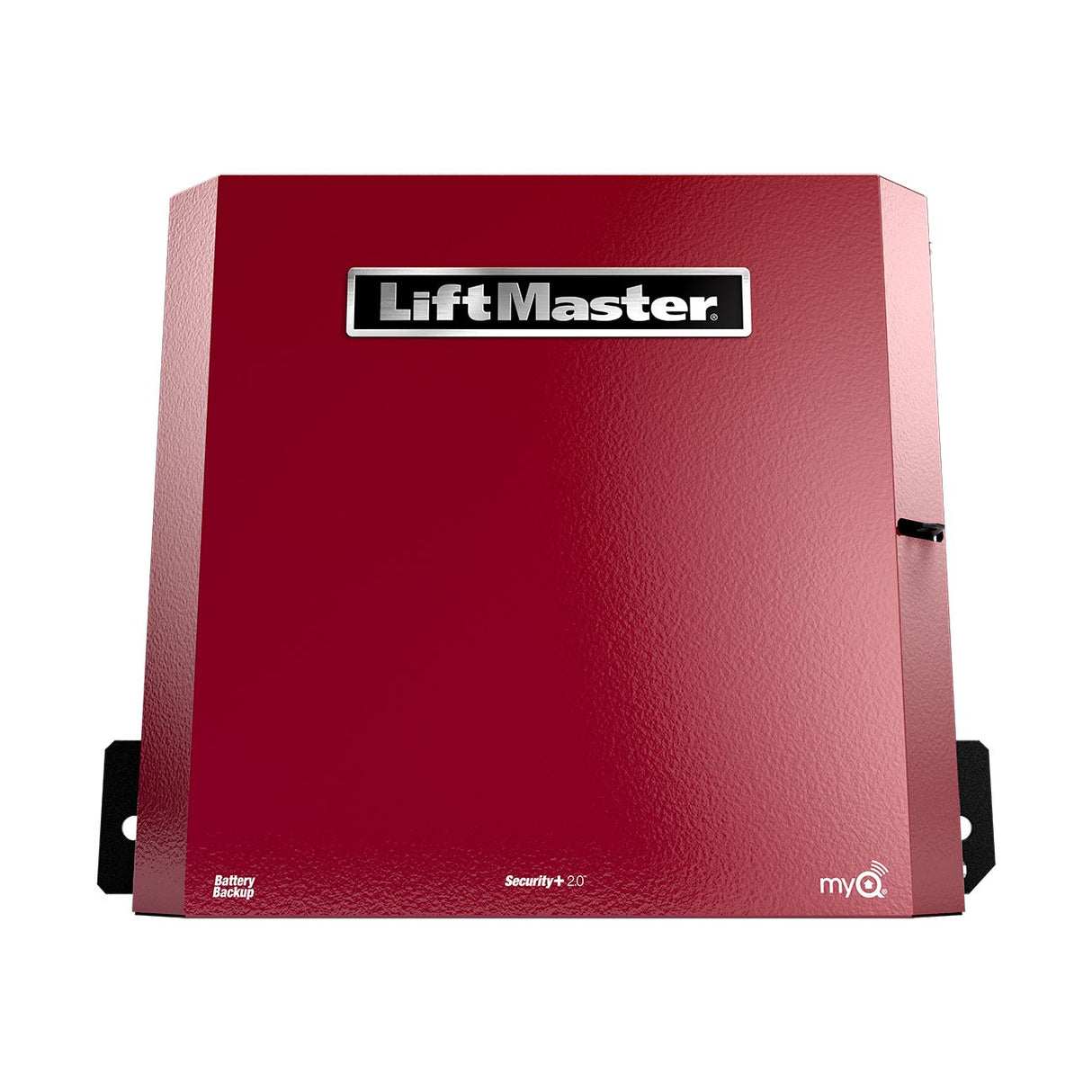

LiftMaster HCTDCUL High-Cycle Overhead Gate Opener

High-Cycle Overhead Gate Operator with Smart Control & Battery Backup

The LiftMaster HCTDCUL is a high-performance, continuous-duty DC overhead gate operator purpose-built for perimeter access control in parking structures, commercial garages, and multi-tenant vehicle entry lanes. Engineered for demanding applications with limited overhead clearance, this compact powerhouse delivers ultra-quiet, gear-driven operation, a low 8" profile, and smooth start/stop sequencing that minimizes wear while enhancing security. Built to integrate into mission-critical security environments, the HCTDCUL includes myQ® connectivity, battery backup, and Security+ 2.0® encryption, ensuring uninterrupted control and surveillance even during power outages.

Key Features

• Continuous-duty DC motor with smooth start/stop and mid-travel reversal
• Selectable open speed up to 11 in/sec - 25% faster than standard overhead operators
• Battery backup included for uninterrupted security during power loss
• myQ® smart technology for remote control, monitoring, and alerts
• Anti-tailgate and quick-close logic to secure perimeter after authorized entry
• Fire department compliance with auto-open on AC or battery failure
• Noise-isolated chassis and UHMW trolley rollers for ultra-quiet operation
• Corrosion-resistant 12-gauge rail with yellow zinc finish
• Fully preassembled system - compatible with 8ft, 10ft, 12ft rails (sold separately)

Technical Specifications

• Model: HCTDCUL
• Motor: 24VDC continuous-duty
• Power Input: 120/230V single-phase
• Gearbox: 28:1 worm gear in oil-bath
• Max Gate Weight: 1,000 lbs
• Max Gate Width: 22 ft
• Speed Settings: 8 or 11 in/sec selectable
• Battery Backup: (2) 7Ah batteries (included)
• Duty Cycle: Continuous
• Chassis Construction: 1/4" zinc-plated steel

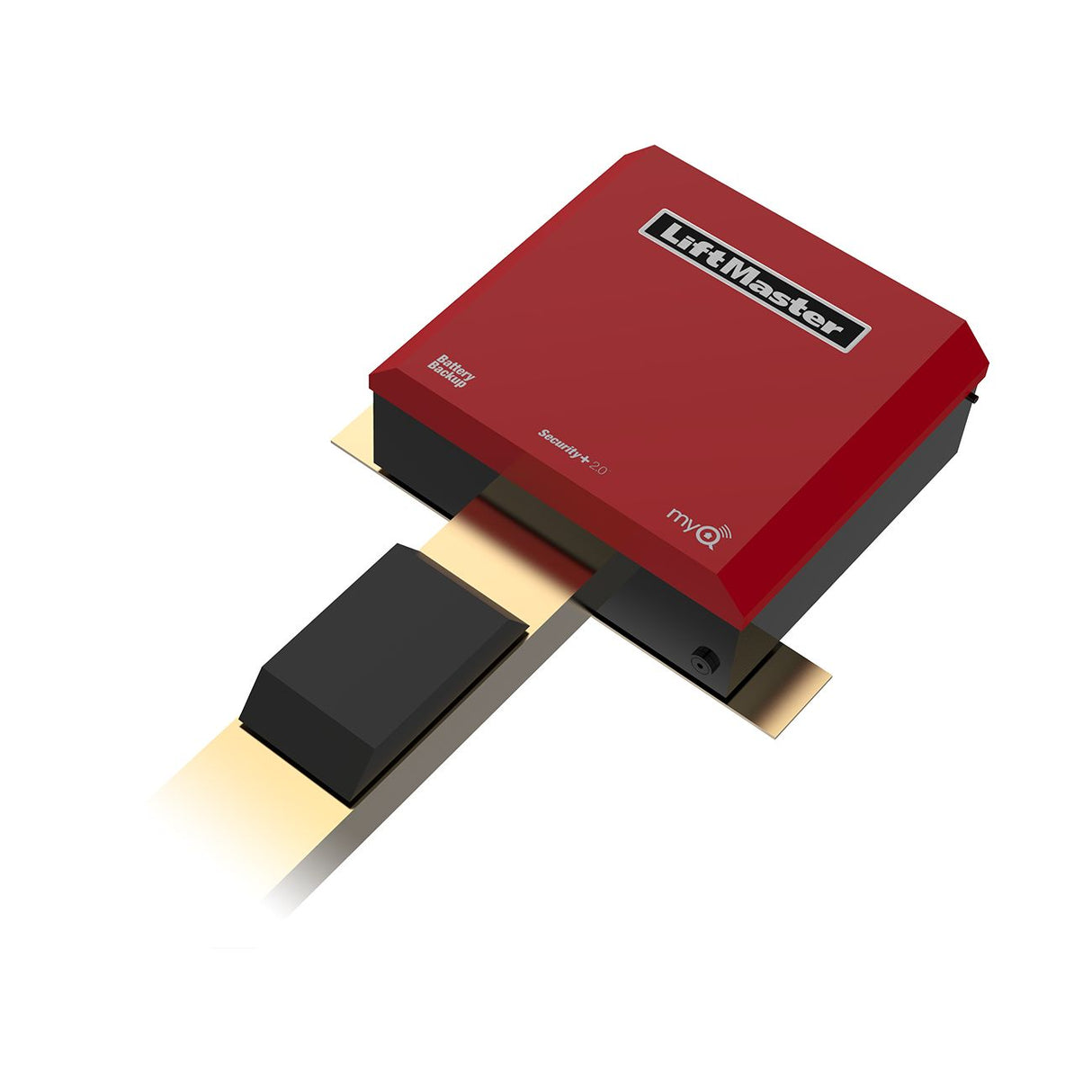

• Trolley Rail: 12-gauge steel with UHMW 6-roller trolley
• Certifications: UL 325 Class II, III, IV
• Temperature Rating: -4°F to 140°F
• Accessory Output: 24VDC, 500mA
• Smart Features: myQ®, Security+ 2.0®, LED diagnostics
• Included Safety: CPSUN4G Monitored Through-Beam Photo Eyes

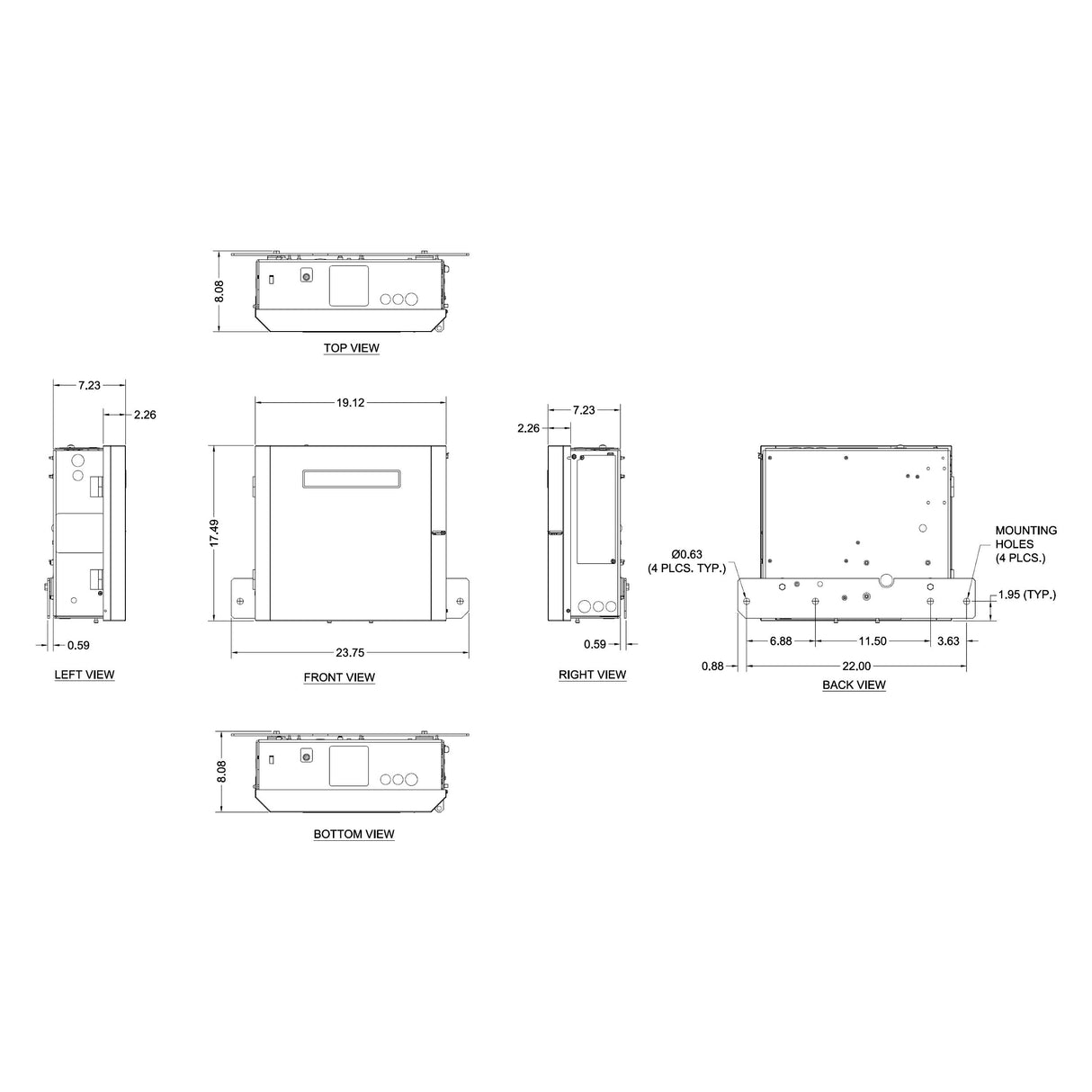

• Dimensions: 14.49" H × 23.75" W × 8.08" D
• Warranty: 5 years

Conclusion

The LiftMaster HCTDCUL delivers a secure, smart, and silent overhead access solution for environments where gate uptime and perimeter integrity are non-negotiable. With high-speed actuation, battery failover, and integrated smart access control, it's ideal for parking garages, gated facilities, and restricted commercial entrances that demand reliable automation without compromise.
