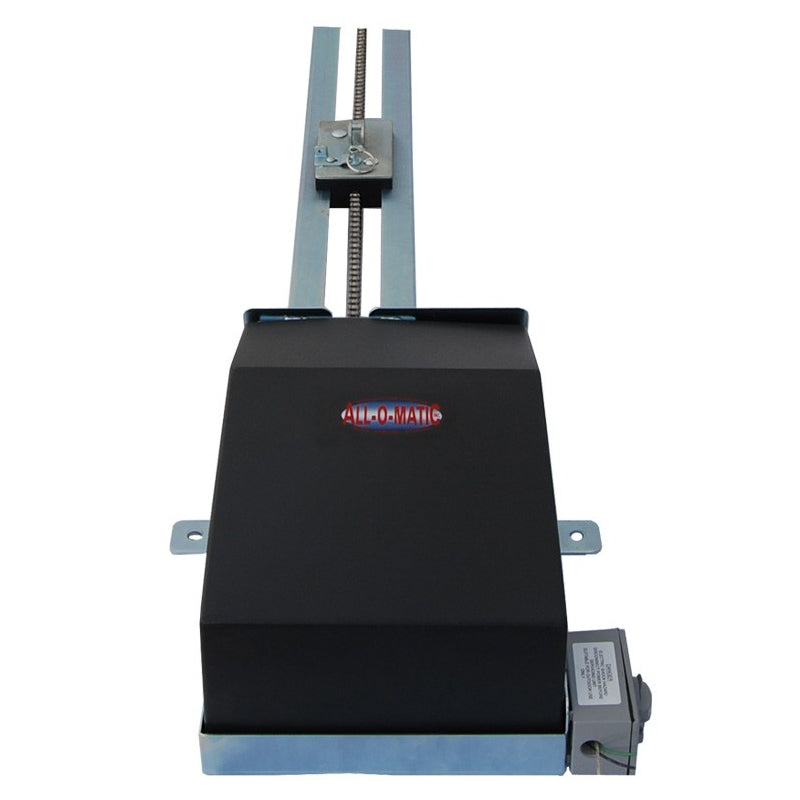

All-O-Matic OH-200-DC Pro Overhead Gate Opener - 10ft Rail
All-O-Matic OH-200-DC Pro Overhead Gate Opener - 10ft Rail is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Overhead Gate Operator |
| Application Type | Garage | Overhead |
| Installation Type | HOA | Apartment | Commercial | Industrial |
| Voltage | 115V | 230V |
| Power Type | AC | Solar |
| Mounting Type | Ceiling Mounted |
| Mechanism Type | Chain Drive |
| Motor Type | Brushless DC Motor |
| Horsepower (HP) | 0.5 HP |
| Battery Backup | Included |
| UL/ETL Certification | Yes |
| Smart Features | Universal Controller Compatible (Doorking 1800-500) |
| Max Gate Weight | 800 lbs |
| Max Gate Length | 20 ft |
| Chain Size | #41 |
| Solar Ready | Solar Ready |
| Weatherproof Rating | Rated for Indoor Usage |
| Operating Temperature | -40°F to 160°F |

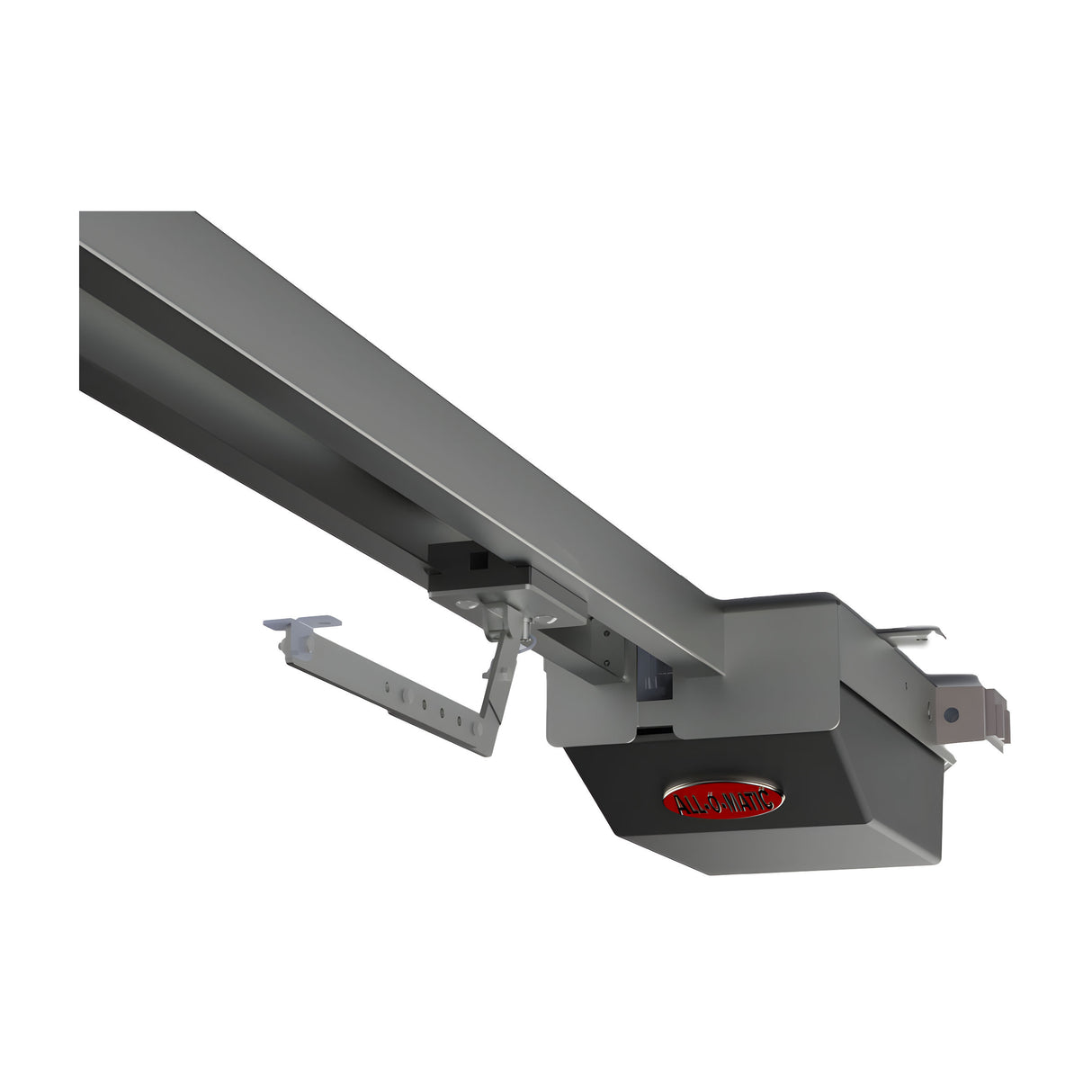

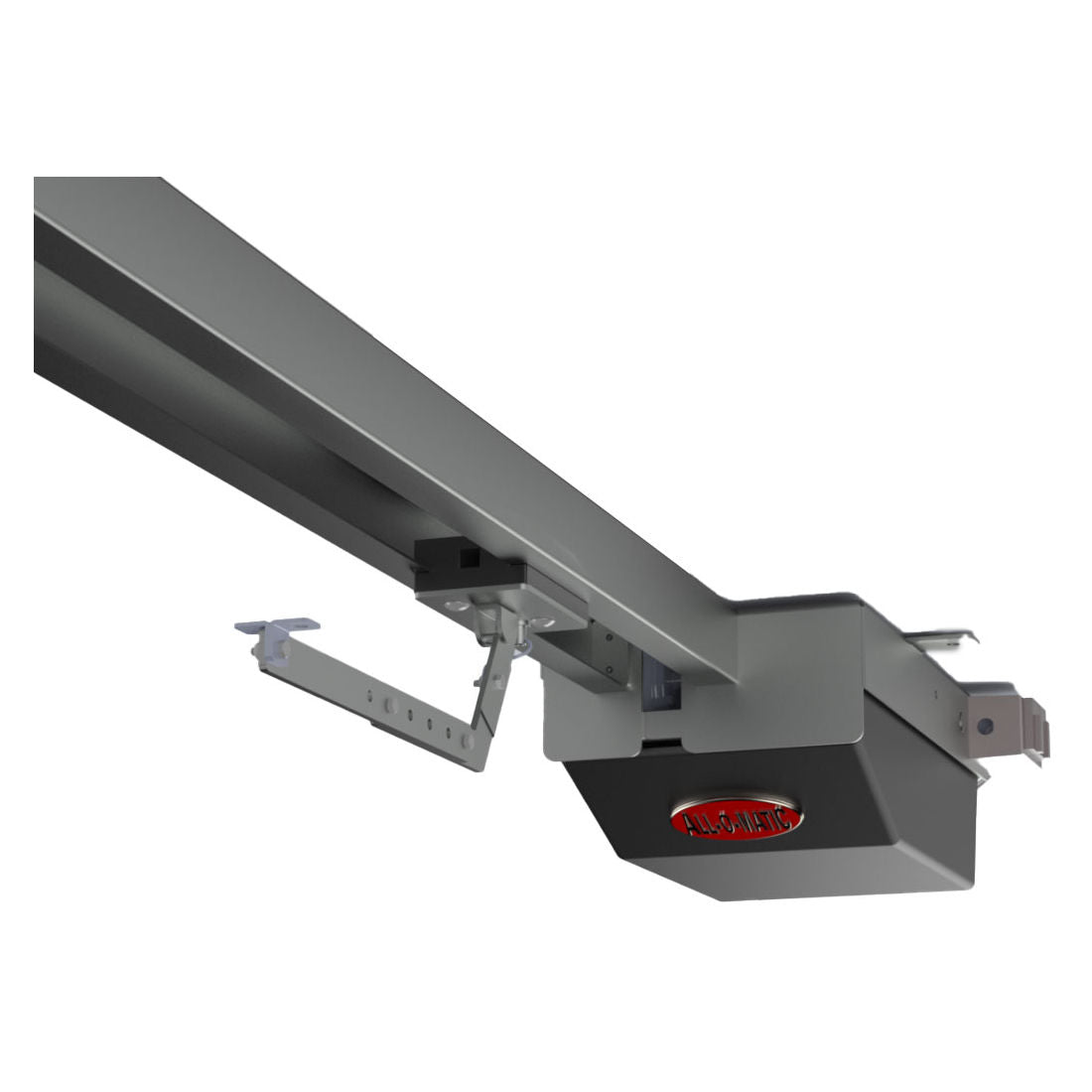

All-O-Matic OH-200-DC Pro Overhead Gate Opener - 10ft Rail
Description
Description
DC Overhead Gate Operator with Battery Backup & 10 ft Rail
The All-O-Matic OH-200-DC Pro is a heavy-duty overhead gate operator built for high-cycle commercial and industrial applications requiring quiet, reliable, and secure overhead access. Powered by a 24VDC brushless motor with integrated battery backup, the OH-200-DC Pro ensures uninterrupted operation during power loss and offers programmable speed, auto-close, and safety logic via its advanced ALL-BLDC Pro control board. Ideal for parking garages, restricted access zones, and tight-clearance overhead gates, this operator includes a 10 ft rail and features onboard diagnostics, loop detector support, and solar compatibility.
Key Features
- Includes 10 ft track (custom lengths available up to 16 ft)
- 800 lb / 20 ft gate capacity
- 24VDC brushless motor with continuous-duty rating
- Integrated battery backup provides up to 100 cycles on loss of power
- Soft start/stop motion and programmable gate speed
- Onboard diagnostics with LCD display and firmware updates via USB
- Advanced ERD system for obstruction detection with adjustable force settings
- Pre-wired loop rack for plug-in detectors
- Solar-ready with MPPT charge controller
- UL325 compliant for Classes I–IV
- Lockable quick-release carriage for manual operation
Technical Specifications
- Model: OH-200-DC Pro
- Motor: 24VDC brushless (½ HP equivalent)
- Power: 115VAC or 230VAC (selectable); solar-ready (24VDC, up to 80W)
- Max Gate Weight: 800 lbs
- Max Gate Length: 20 ft
- Gate Speed: 14–26 seconds (6.5'–8' gate)
- Duty Cycle: Continuous
- Battery Backup: (2) 7Ah 12V batteries included
- Backup Capacity: ~100 cycles on fully charged batteries
- Gearbox Ratio: 40:1
- Dimensions: 13” W × 144” L × 8” H
- Temperature Rating: -40°F to 160°F
- Chain Size: #41NP
- Sprockets: 41B15 (5/8” bore), 2.5” gearbox pulley, 2” motor pulley
- Breakers Required: 20A dedicated
- UL Classification: UL 325 Class I–IV
- Warranty: 5 years commercial
Conclusion
The All-O-Matic OH-200-DC Pro delivers efficient, smart overhead automation with built-in power redundancy, LCD-based diagnostics, and flexible configuration options. With its included 10 ft rail and high-capacity performance, it’s ideal for facilities demanding quiet, secure, and uninterrupted gate access - even during outages.
