LiftMaster SWG606 Uphill Gate Hinges for Sloped Driveways

Heavy-Duty Weld-On Hinges for Swing Gates up to 2,000 lbs

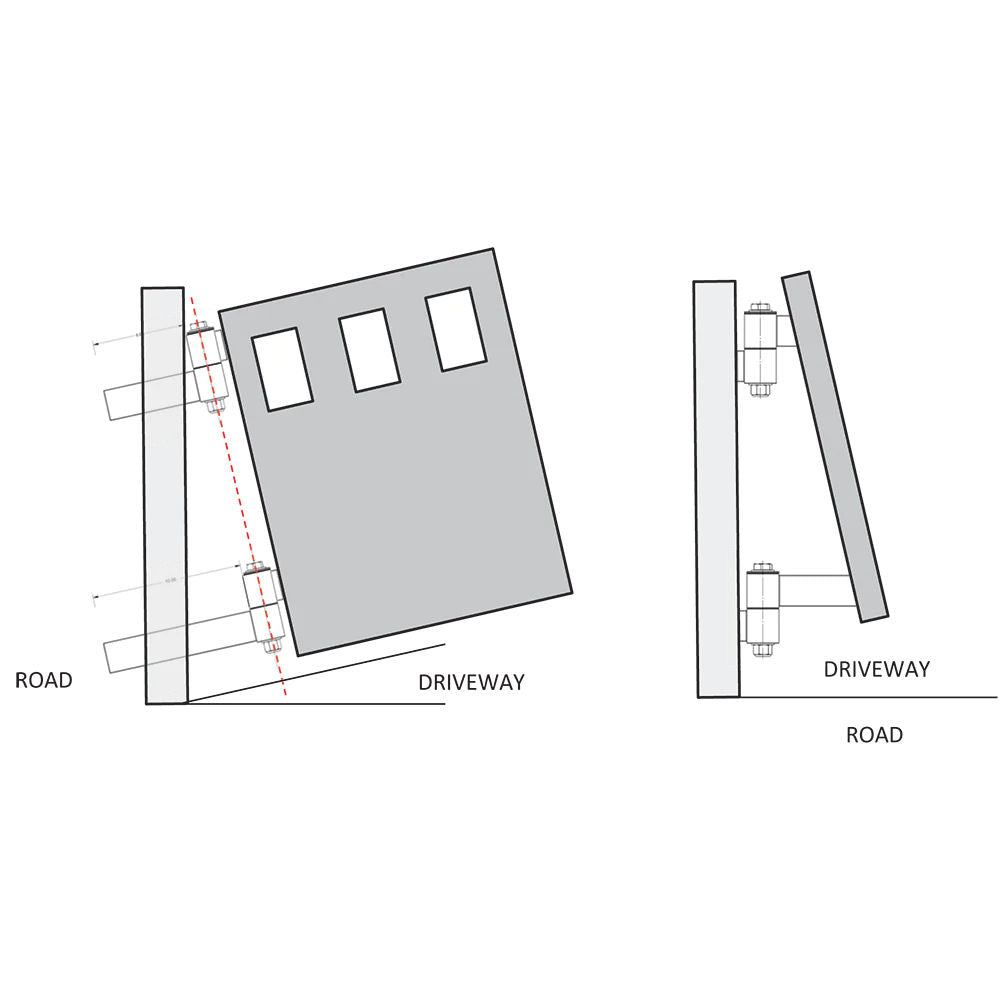

The LiftMaster SWG606 Uphill Gate Hinges are a heavy-duty hinge solution designed to support gates that swing uphill or on level terrain. Ideal for sloped driveways, these self-aligning steel hinges offer up to 15 degrees of lift, making them perfect for challenging installations where terrain interferes with standard gate swing. Each set includes a top and bottom hinge, supporting gates up to 2,000 lbs with smooth, controlled operation.

Key Features

• Rated for gates up to 2,000 lbs
• Supports up to 15 degrees of uphill lift
• Steel construction with bronze bearings for strength and longevity
• Self-aligning bearing case ensures proper gate movement
• Designed for weld-on installation with 1/2" thick steel mounting plates
• Includes two hinge sets (top and bottom) for one complete gate leaf
• Suitable for residential, commercial, and industrial gate systems

Technical Specifications

• Part Number: SWG606
• Finish: Black
• Material: Steel with bronze bearing
• Mounting Plates: 1/2" thick weldable steel
• Hinge Bolt Diameter: 3/4"
• Lift Capacity: Up to 15° slope
• Gate Weight Rating: Up to 2,000 lbs
• Application Type: Swing gates on sloped or level surfaces

Conclusion

The LiftMaster SWG606 hinge set provides powerful uphill lifting capability for gates installed on sloped terrain. With a robust build, smooth bearing function, and easy welding process, it's the go-to solution for heavy-duty swing gate alignment and support.
