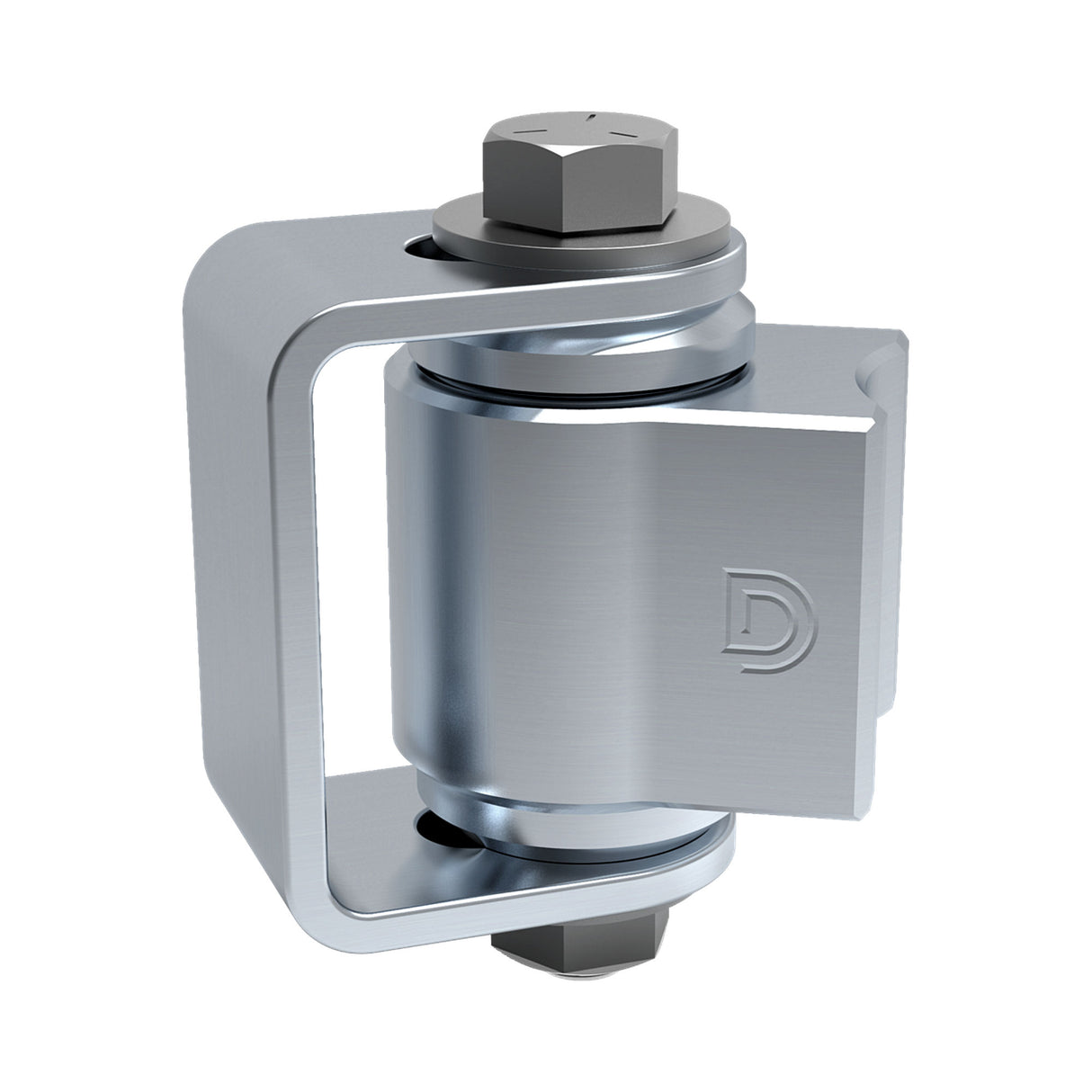

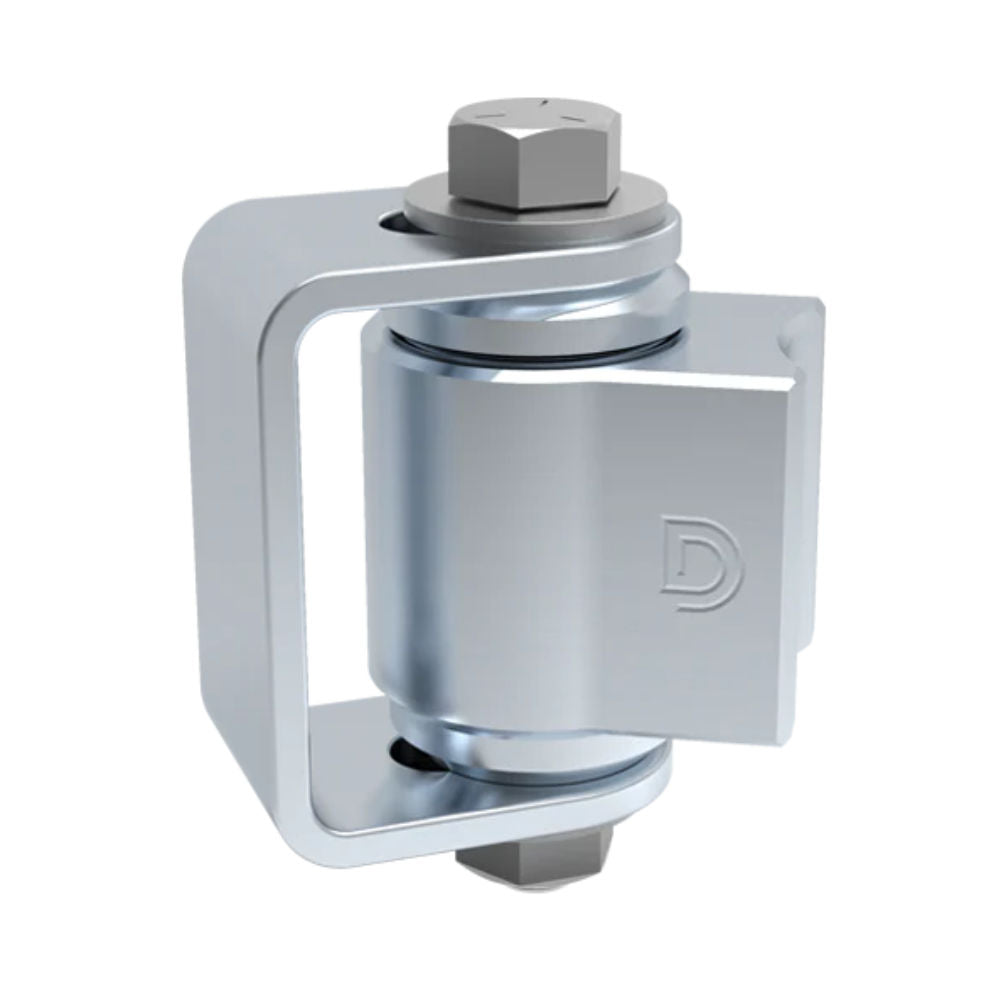

D&D CI3500 Heavy-Duty Hinge for 1,500 lb Gates

Heavy-Duty Gate Hinge for Industrial and Residential Gates

The D&D CI3500 Heavy-Duty BadAss Gate Hinge is engineered to support robust gate installations, offering unmatched load capacity and durability for high-performance gates. Designed for gates up to 1,500 lbs with a load rating of 3,000 lbs per gate, this hinge is ideal for heavy-duty applications such as driveway, security, and commercial gates. Featuring precision CNC machining, sealed bearings, and horizontal adjustability, the CI3500 ensures smooth, maintenance-free operation in any environment.

Key Features

• Unmatched Load Capacity: Supports gates up to 1,500 lbs with a load rating of 3,000 lbs per gate, 50% more than standard hinges.
• Maintenance-Free Bearings: High-temperature sealed radial bearings eliminate the need for greasing.
• Horizontal Adjustability: Adjustable brackets allow precise installations for optimal gate alignment.
• CNC Machined Precision: Tightest tolerances ensure smooth, near-frictionless movement.
• Corrosion Resistance: Zinc-plated components provide long-lasting protection against rust and harsh elements.
• Versatile Applications: Suitable for a wide range of gate types, including automated and privacy gates.

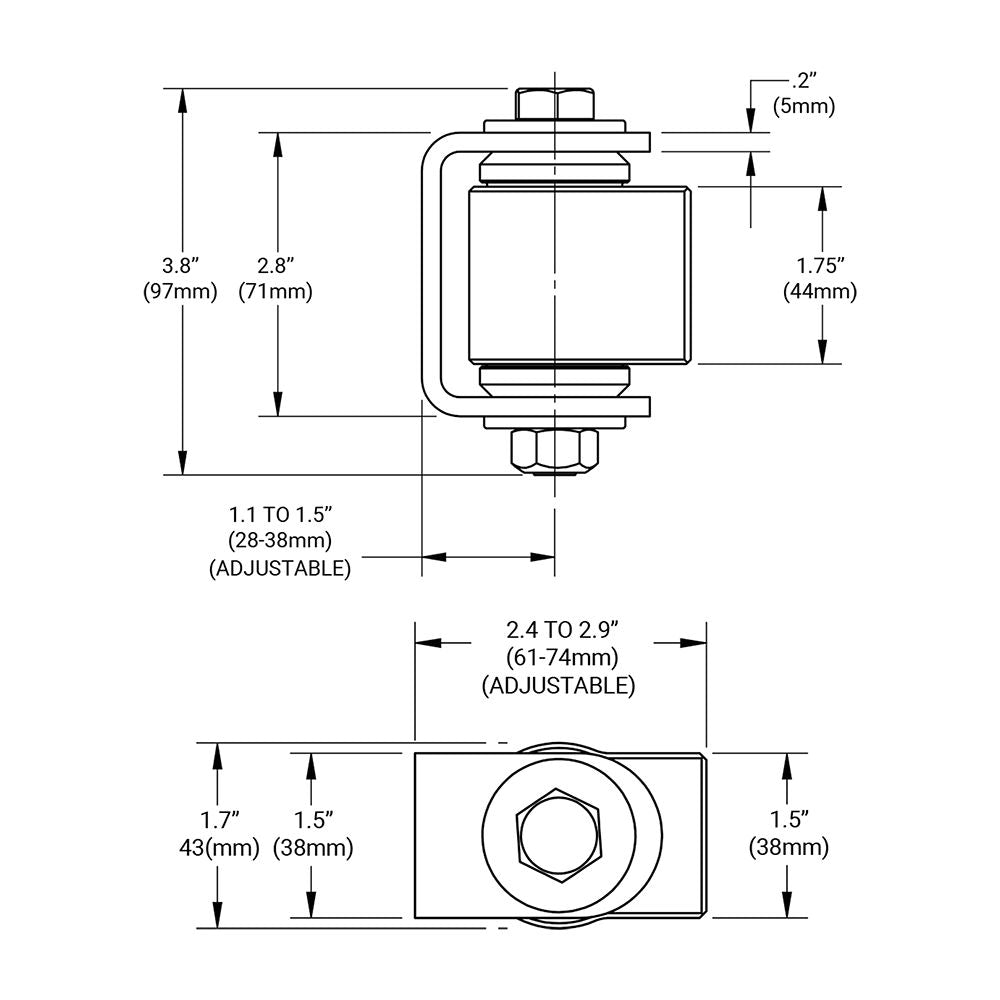

Technical Specifications

• Gate Load Rating: 3,000 lbs
• Maximum Gate Weight: 1,500 lbs
• Gate Frame/Post Shape: Square-to-Square or Square-to-Round
• Material: Steel with Zinc Plating
• Ideal Gate Gap: 2½" to 3" (61-74 mm)
• Installation Method: Weld-On
• Dimensions: Designed to fit gates approximately 6 ft W x 8 ft H (1.5 m x 2 m)

Applications

• Driveway gates (single or double)
• Security gates
• Public and commercial gates
• Playground gates
• Automated and privacy gates

Conclusion

The D&D CI3500 Heavy-Duty BadAss Hinge sets a new standard for industrial gate hardware, delivering unparalleled strength, reliability, and ease of installation. Whether for automated gates or high-traffic installations, this hinge offers exceptional performance and long-lasting durability. Upgrade your gate system today with this heavy-duty, maintenance-free hinge solution.
