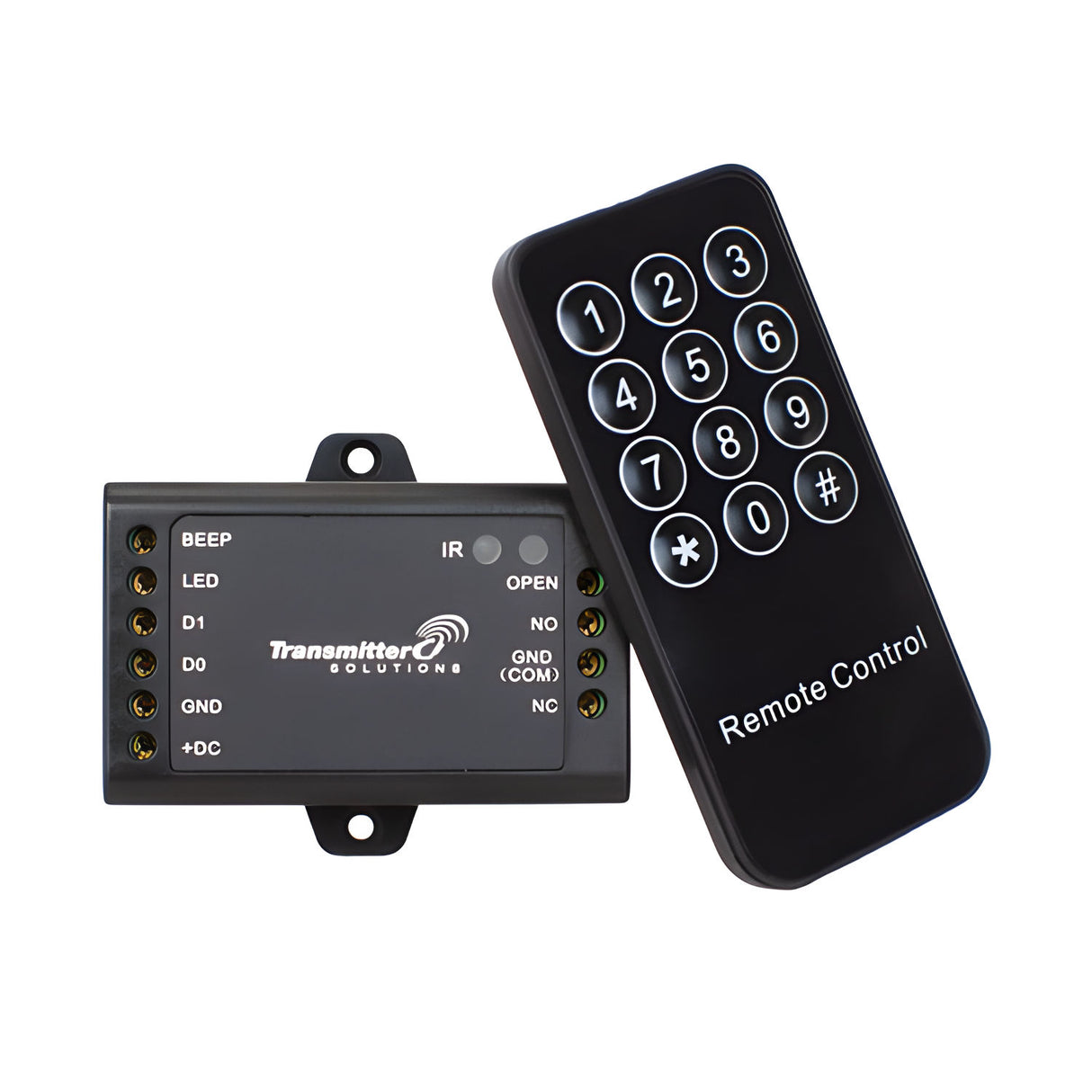

Transmitter Solutions RECPULMINI Wiegand Standalone Access Controller

Compact & Versatile Standalone Access Controller for 1000 Users

The Transmitter Solutions RECPULMINI is a compact standalone access control panel designed to support up to 1,000 users with multiple credential options. Engineered for flexibility and ease of installation, this mini controller supports Wiegand 26–37 bit input/output and works with virtually any compatible card or keypad reader. Ideal for secure access points in commercial, residential, or light industrial environments.

With a rugged ABS housing and temperature resistance down to -40°F, the RECPULMINI is suitable for both indoor and outdoor applications. It supports Card, PIN, Card + PIN, and multi-card/PIN authentication modes. The master card function simplifies administration, while the built-in relay supports timed or toggle operation up to 2A.

Key Features

• 1000-User Capacity – Easily manage access for large groups.
• Multiple Authentication Modes – Card only, PIN only, Card + PIN, or Multi-Card/PIN.
• Wide Compatibility – Works with any 26–37 bit Wiegand reader.
• Weather & Temperature Resilient – Operates in extreme conditions down to -40°F.
• Flexible Relay Configuration – Supports both pulse and toggle output modes.
• User Data Transfer – Easily clone credentials across units.
• Master Card Support – Simple add/remove functionality using master cards.
• Infrared Remote Programming – Intuitive setup without software.
• Compact Design – Discreet form factor for single-door control applications.

Technical Specifications

• Part Number: RECPULMINI
• User Capacity: 1,000
• Operating Voltage: 9–24VDC
• Idle Current: <20mA
• Relay Output: NO/NC/COM, 1–99 seconds (5 sec default), 2A max
• Wiegand Input: 26–37 bits
• Wiegand Output: 26–37 bits (for user transfer)
• Operating Temperature: -40°F to 140°F
• Operating Humidity: 0–90% RH
• Housing Material: ABS
• Dimensions: 2½" L x 1¾" W x ½" D
• Installation: Wall mount; includes mounting hardware and diode

Conclusion

The RECPULMINI from Transmitter Solutions is an ideal access control solution for secure single-door applications. Its broad reader compatibility, flexible authentication options, and intuitive remote setup make it a go-to choice for reliable, standalone security control - even in extreme conditions.
