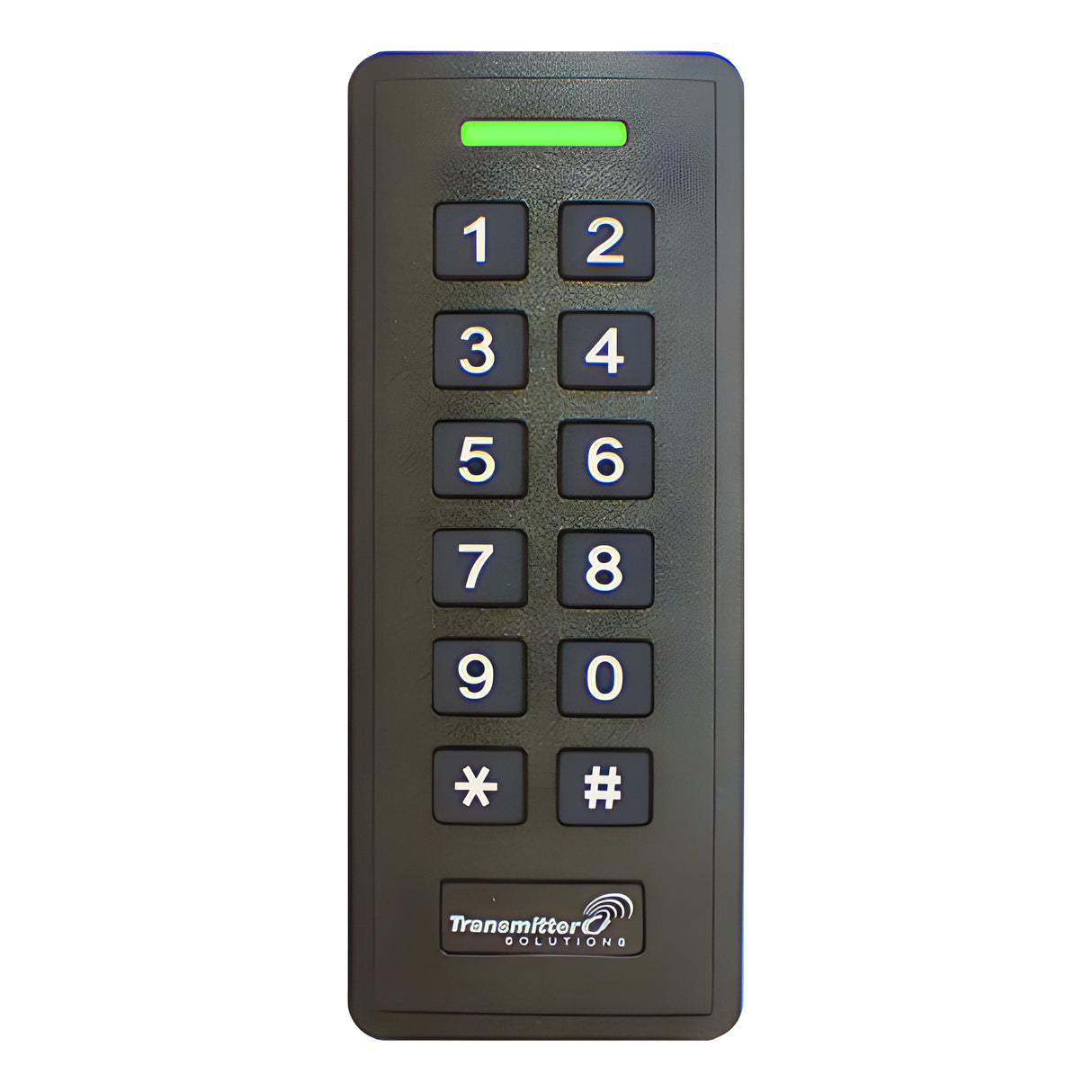

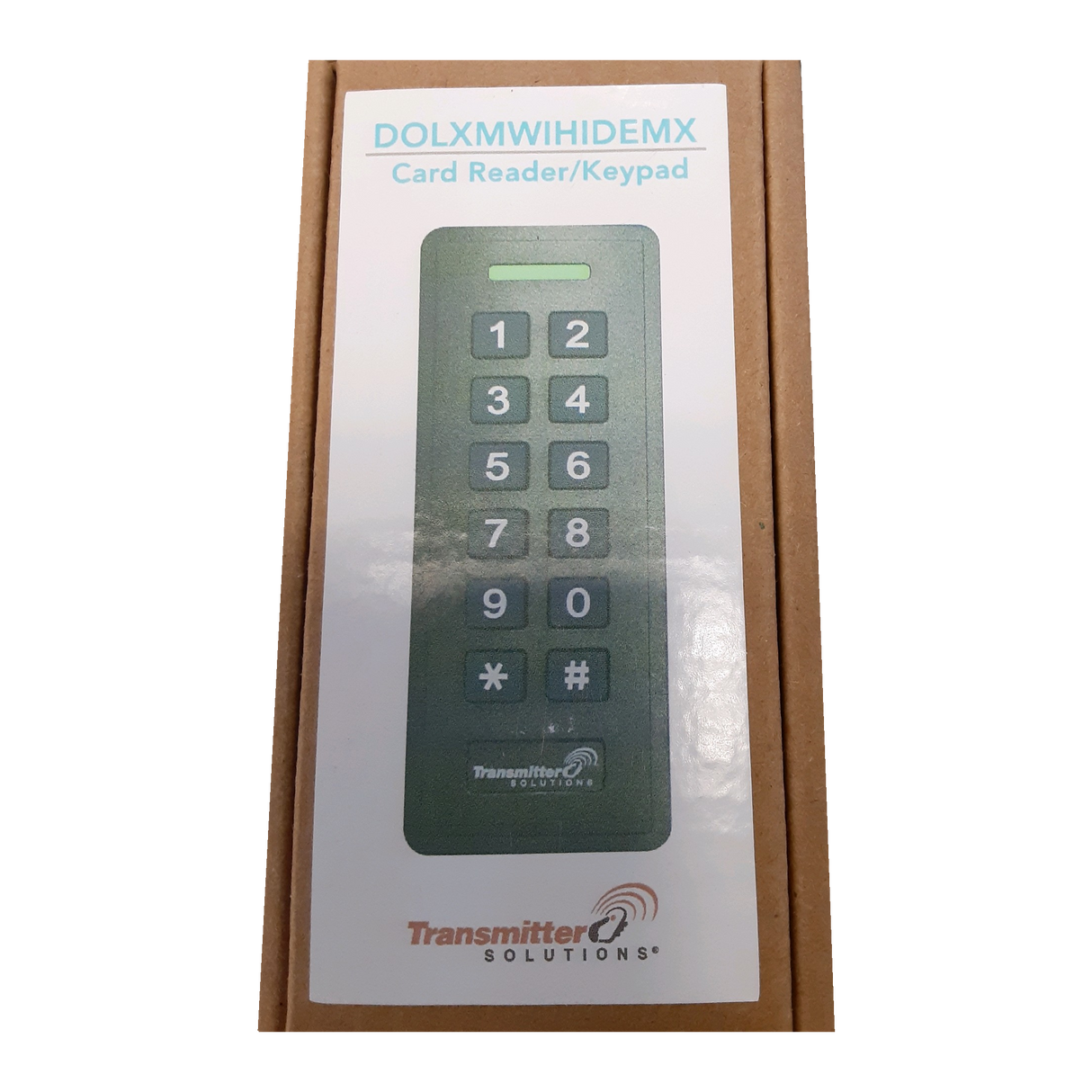

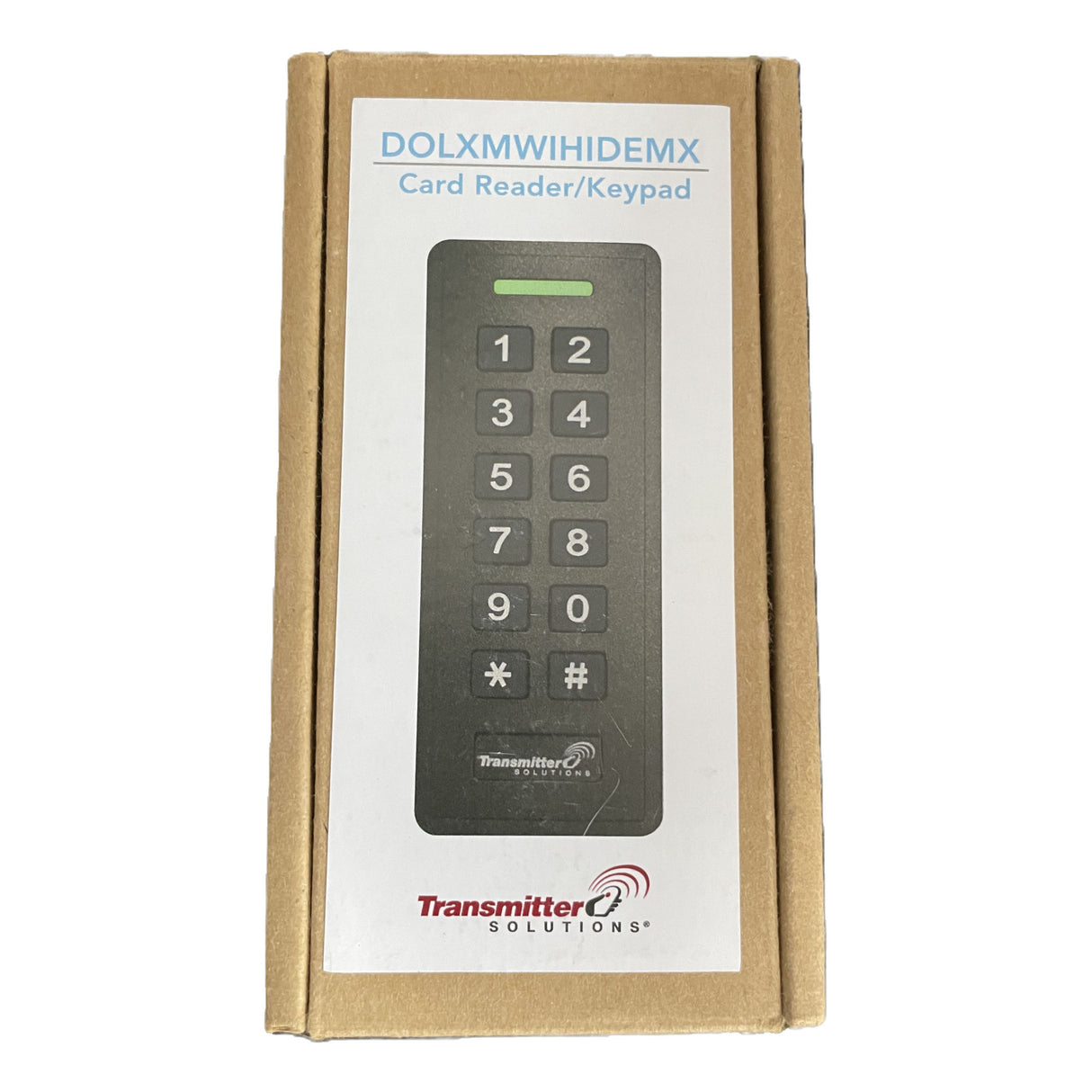

Transmitter Solutions DOLXMWIHIDEMX Wiegand Keypad w/ Card Reader

Wiegand Mullion Keypad with Card Reader for Secure Access Control

The Transmitter Solutions DOLXMWIHIDEMX is a cutting-edge Wiegand output keypad with an integrated proximity card reader, tailored for seamless integration into Wiegand-compatible access control systems. This IP66-rated keypad is engineered for durability and high performance, making it ideal for both indoor and outdoor environments, even under harsh weather conditions. While it cannot function as a standalone device, this keypad excels as a critical input component for advanced security systems. Equipped with a built-in anti-tamper LDR sensor, it ensures reliable and secure access control for a variety of applications.

Key Features

• Not Standalone – Requires a Wiegand-compatible access control panel for operation.
• Integrated Proximity Card Reader – Supports HID 26-Bit, Mifare, and EM cards, providing versatile access control options.
• Wiegand Compatibility – Requires a Wiegand-compatible access control panel for operation, supporting 4-bit, 8-bit, or 10-bit programmable formats.
• IP66 Waterproof Design – Ensures reliable performance in temperatures from -40°F to 140°F, perfect for outdoor and industrial use.
• Anti-Tamper Technology – Built-in LDR sensor provides enhanced protection against tampering or unauthorized access.
• Compact Mullion Design – Streamlined construction ensures easy installation on narrow surfaces.
• Wide Read Range – Detects proximity cards within a 4-8 cm range for efficient user interaction.

Technical Specifications

• Frequency: 125KHz (HID, EM) & 13.56MHz (Mifare)
• Voltage: 9-18V DC
• Current: Standby <35mA
• Dimensions: 4-3/4” (L) x 2” (W) x 13/16” (D)
• Material: Black/Ivory options available
• IP Rating: IP66 (NEMA 4)

Supported Cards

• HID 1386 ISOProx II
• HID 1346 ProxKey III (key fob)
• HID 1326 ProxCard II (clamshell style)
• EM4100 Standard EM-compatible card
• EM4200 Enhanced version with additional memory
• NXP Mifare Classic 1K (MF1ICS50)
• NXP Mifare Classic 4K (MF1ICS70)
• NXP Mifare DESFire EV2 – Advanced security features

Conclusion

The Transmitter Solutions DOLXMWIHIDEMX Wiegand Mullion Keypad with Card Reader is a high-performance, durable solution for secure access control needs. Its anti-tamper technology, dual-frequency compatibility, and IP66 waterproof rating make it a versatile choice for any environment. By supporting a range of industry-standard cards, including HID, Mifare, and EM, this keypad ensures flexibility and ease of use for advanced security systems. Consult your manual for installation and compatibility details to ensure seamless integration.
