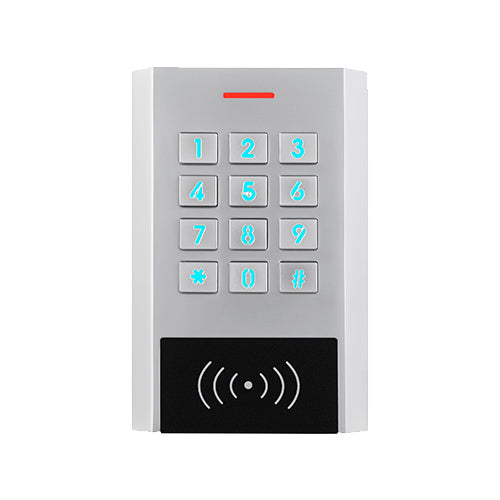

Transmitter Solutions DOLXFD1000BS Card Reader With Keypad

Secure Standalone Access Keypad with Card Reader

The Transmitter Solutions DOLXFD1000BS is a single-gang, all-metal keypad with built-in 125 kHz proximity card reader engineered for reliable standalone or Wiegand-integrated operation. Ideal for indoor or outdoor installations, it supports up to 1,000 users with programmable PIN and card credentials. Its IP66-rated zinc-alloy construction, backlit keys, and multiple access modes make it a versatile choice for commercial and perimeter security applications.

Key Features

• Single-gang mount design for compact installations
• Supports standalone or Wiegand 26–37 bit operation
• 1,000 user capacity (998 common + 2 panic)
• Adjustable PIN length (4–6 digits)
• Built-in relay with latch or pulse mode (0–99 s adjustable)
• HID 26-bit & EM card compatibility
• Wide-range power input: 12–28 VAC/DC
• Operating temperature: –40 °F to 140 °F
• Rugged zinc-alloy housing, IP66 weather rating
• Backlit keypad for nighttime visibility

Technical Specifications

• Model: DOLXFD1000BS
• User Capacity: 1,000 (998 common + 2 panic)
• Voltage: 12–28 VAC/DC
• Card Frequency: 125 kHz Proximity
• Read Range: 2–6 cm
• Relay Output: NO/NC/Common, adjustable 0–99 s
• Interface: Wiegand 26–37 bit
• Material: Zinc-alloy
• Operating Temperature: –40 °F to 140 °F (–40 °C to +60 °C)
• Dimensions: 4.5 in × 3 in × 0.875 in (114 × 76 × 22 mm)
• Weight: 360 g (0.79 lb)
• Ingress Rating: IP66

Conclusion

The Transmitter Solutions DOLXFD1000BS Standalone Card Reader with Keypad delivers a durable, weather-resistant access control solution for secure single-door entry points. With multi-mode operation, HID/EM support, and a solid metal housing, it ensures dependable performance in demanding perimeter and facility environments trusted by Elite.
