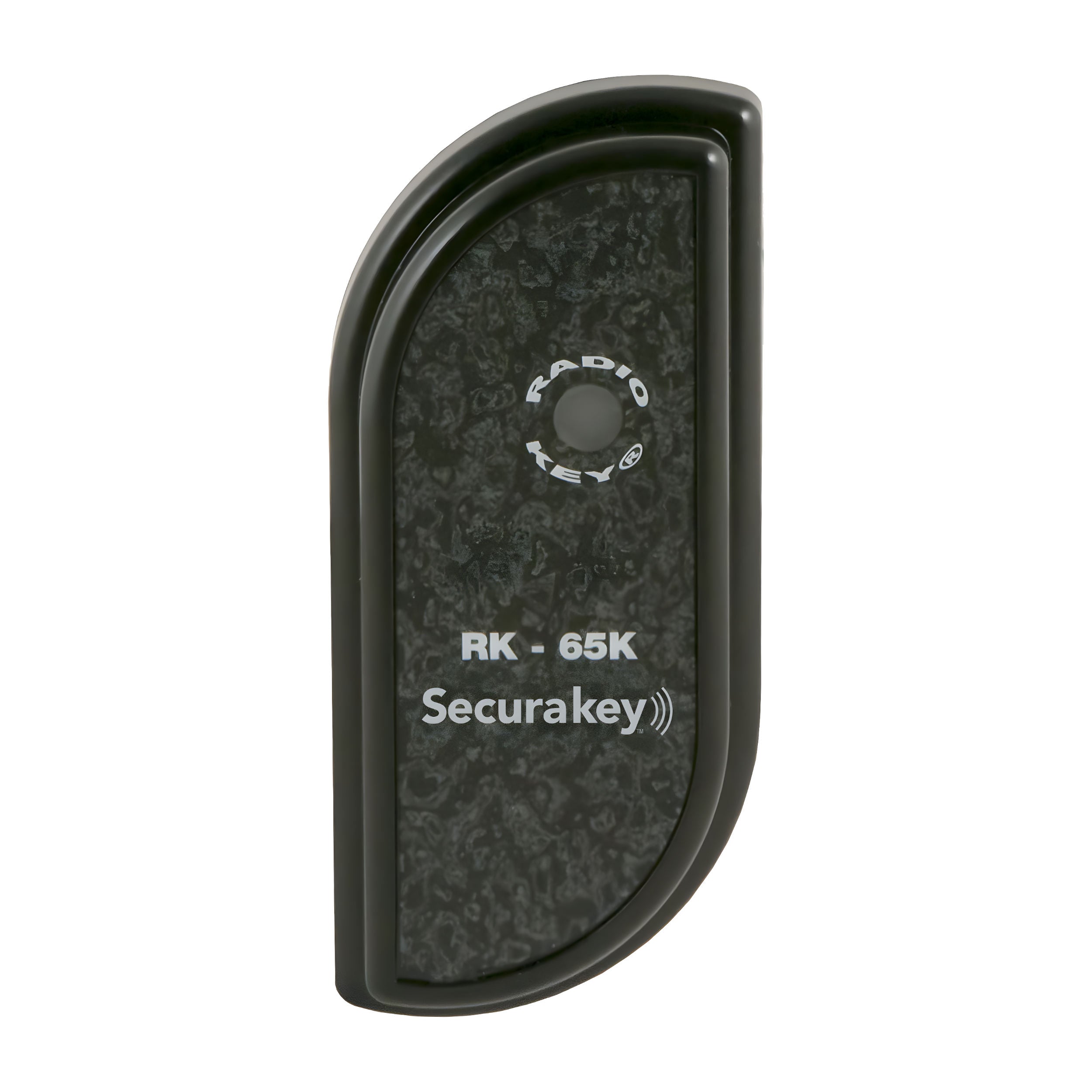

Secura Key RK65K Mullion Proximity Card Reader

Standalone Proximity Reader for High-Capacity Access Control

The Secura Key RK65K is a standalone proximity card reader designed for single-door access control in outdoor or indoor environments. With support for up to 65,000 sequentially numbered users and epoxy-potted electronics for weather resistance, it’s ideal for pedestrian gates, entry doors, and security enclosures. This compact mullion-mount unit offers secure operation without the need for a control panel and includes Wiegand output for optional system expansion.

Key Features

• Stores up to 65,000 sequentially numbered cards or tags
• Epoxy-potted for full outdoor weather resistance
• No control panel required for standalone operation
• Reads 125 kHz Secura Key cards and key tags up to 6 inches
• Wiegand output for integration with telephone entry or networked systems
• Programmable latch time from 0.25 seconds to 18 hours or toggle mode
• Supports RK-HHP handheld programmer and RK-PD1 programming card deck
• Compatible with optional SecuRelay™ module for tamper protection

Technical Specifications

• Model: RK65K
• User Capacity: 65,000
• Operating Frequency: 125 kHz
• Read Range: Up to 6 in (clamshell), 5 in (ISO cards/key tags)
• Output: Wiegand (any format up to 40 bits)
• Relay: Solid-state SPST, 1A max at 60V AC/DC
• Power Requirements: 5 to 14 VDC, 40 mA average, 90 mA peak
• Latch Timer: 0.25 sec to 18 hrs or toggle mode
• Programming Method: RK-HHP handheld or RK-PD1 programming deck
• Mounting: Mullion, wall, post, or pedestal
• Material: ABS
• Color: Black
• Dimensions: 3.50 in x 1.60 in x 0.60 in
• Temperature Range: -40°F to 158°F
• Humidity: 0 to 100% non-condensing
• Certifications: UL 294, FCC, CE

Conclusion

The Secura Key RK65K offers high-capacity, secure access control in a rugged, mullion-size reader. Ideal for standalone entry points or Wiegand-integrated systems, it delivers reliable performance in any environment with no control panel required.
