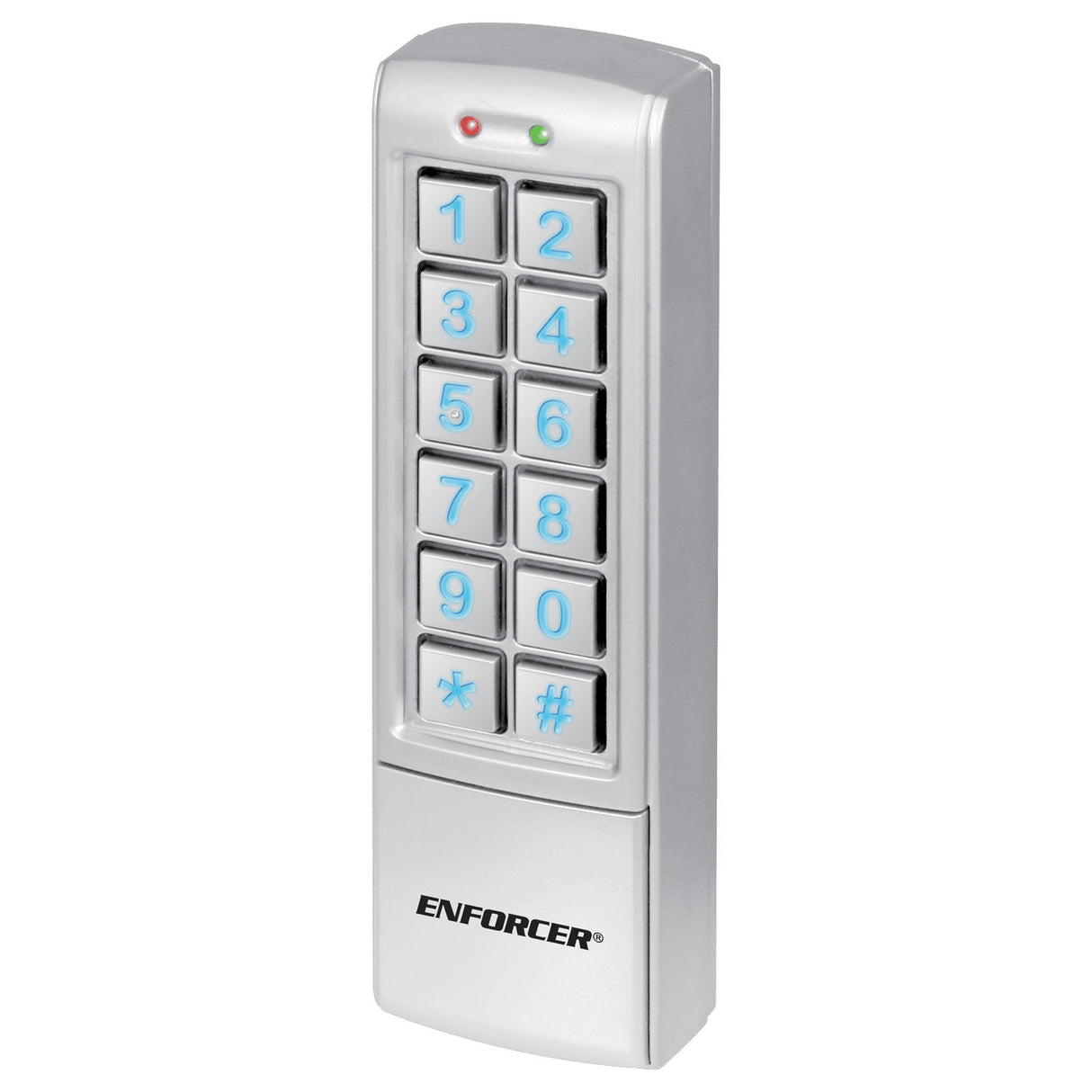

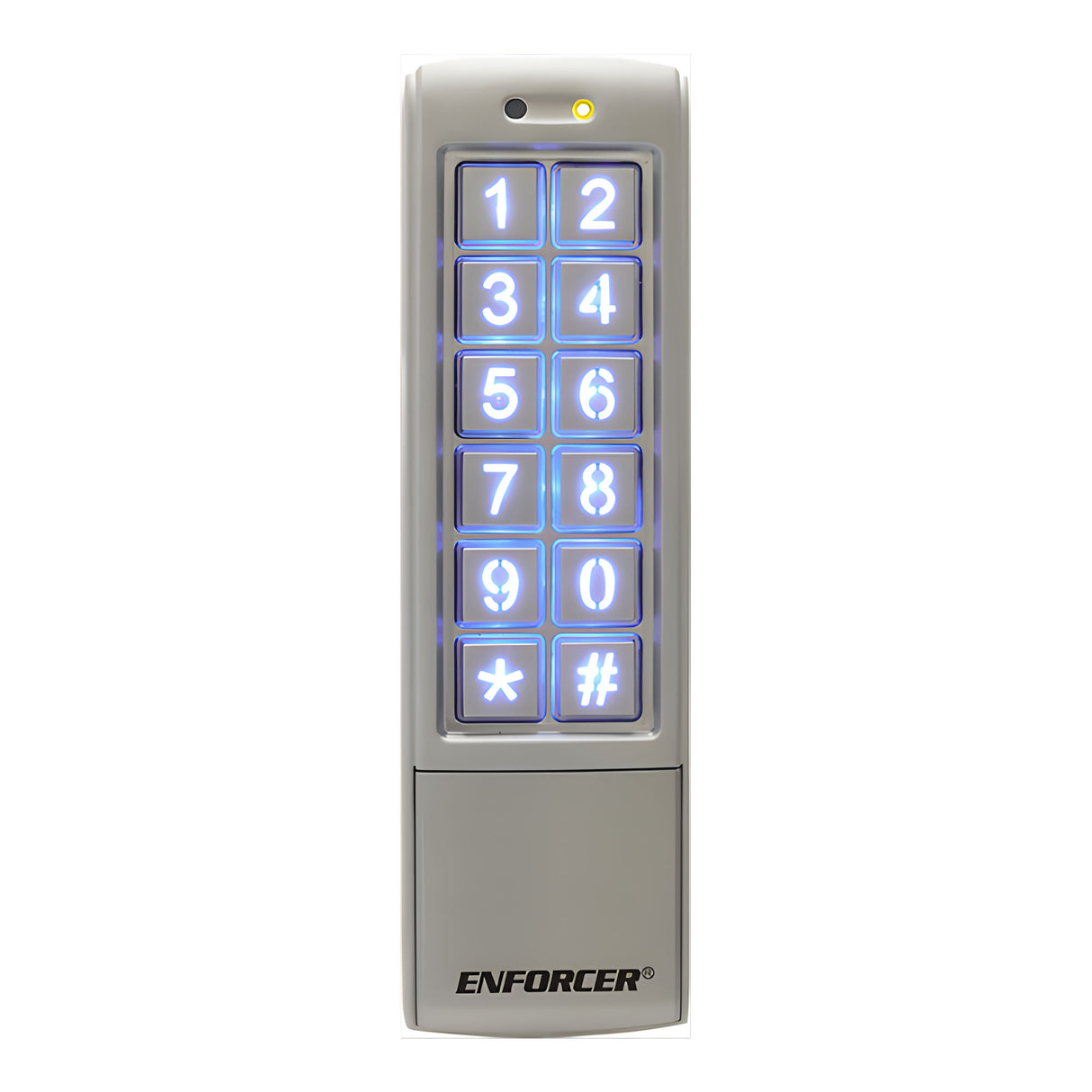

Enforcer SK-2323-SPQ Standalone Keypad with Proximity Reader (Slim)

Modern, Versatile Access Control in a Slim, Durable Design

The SECO-LARM Enforcer SK-2323-SPQ is a powerful and versatile access control solution designed for residential and commercial applications. This standalone keypad with a built-in proximity reader combines advanced security, durability, and user-friendly functionality to meet the needs of various access control systems. With its robust construction and customizable programming, the SK-2323-SPQ is perfect for securing entrances in offices, residential complexes, warehouses, and more.

Key Features

• Generous User Capacity: Supports up to 1,010 users - 1,000 for Output #1 and 10 for Output #2.
• Dual Relay Outputs: Two Form C relays (1A@30VDC) with programmable output times from 1 to 99 seconds or toggle mode.
• Flexible Access Modes: Three modes for Output #1: Card Only, Card or Code, and Card with Code. Output #2 allows for a card or code per user.
• Integrated Proximity Reader: Built-in 125kHz proximity reader with a range of up to 2 inches (5 cm).
• Weatherproof Design: IP65-rated housing made from rugged aluminum with epoxy-potted circuitry for reliable outdoor use.
• Convenient Backlit Keypad: Illuminated keys for easy nighttime operation.
• Enhanced Security: Optical tamper sensor for added protection against unauthorized access.
• Data Retention: EEPROM memory safeguards settings even during power loss.

Technical Specifications

• Operating Voltage: 12~24 VAC/VDC
• Relay Outputs: 1A@30VDC, Form C (NO/NC/COM)
• Egress Inputs: 2 N.O. ground inputs
• Door Sensor Input: N.C. ground input
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Keypad LED Life: Over 60,000 hours (approximately 6.8 years)
• Proximity Reader Frequency: 125kHz
• Proximity Reader Range: Up to 2 inches (5 cm)
• Dimensions: 6 inches (152 mm) height x 1 3/4 inches (44 mm) width x 15/16 inches (24 mm) depth

Conclusion

The SECO-LARM SK-2323-SPQ is a durable and reliable access control solution, combining advanced features with ease of use. Whether securing residential or commercial properties, its weatherproof design, flexible programming, and built-in proximity reader provide a comprehensive security solution. With support for up to 1,010 users and multiple access modes, it’s an excellent choice for managing controlled access in diverse environments.
