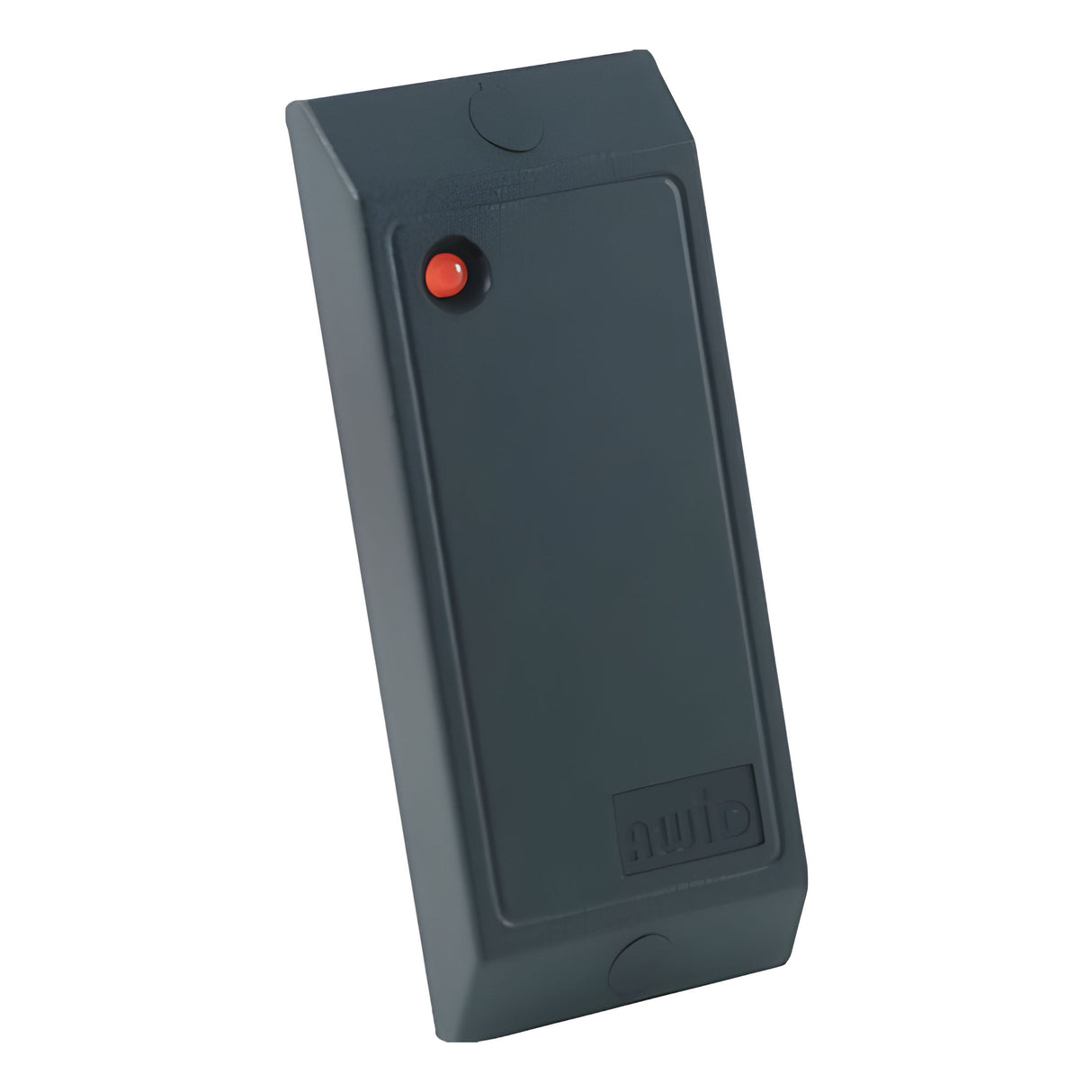

Doorking 1815-282 AWID Mullion Proximity Reader
Doorking 1815-282 AWID Mullion Proximity Reader is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Card Reader |
| Application Type | Gate | Barrier | Door | Garage | Perimeter |
| Installation Type | Residential | Commercial | Industrial | HOA |
| Voltage | 12V |
| Mounting Type | Mullion |
| Protocol | Wiegand |
| Credential Type | Card |
| UL/ETL Certification | Yes |
| Frequency | 125 kHz |
| Weatherproof Rating | Rated for Indoor/Outdoor Usage |
| Operating Temperature | -31˚F to 150˚F |
| Range | 8" |
Doorking 1815-282 AWID Mullion Proximity Reader
Description
Description
125 kHz AWID Mullion Reader for Doorking Access Control Systems
The Doorking 1815-282 is a 125 kHz AWID-compatible mullion mount reader designed for secure, contactless access control. Built on the AWID MM-6800 platform, this reader supports Wiegand and RS-232 output formats and is compatible with a full range of AWID 125 kHz credentials, including clamshell cards, keytags, and wafers. Featuring a rugged, fully potted epoxy enclosure, the 1815-282 is ideal for indoor or outdoor installation in perimeter security environments.
Key Features
- Reads all AWID 125 kHz proximity credentials
- Mullion-mount design fits standard door frames and tight spaces
- Up to 8-inch read range with AWID clamshell cards
- Supports Wiegand and RS-232 outputs for versatile integration
- Built-in metal compensation for reliable performance on metal surfaces
- Bi-color LED (Red/Green) and 4 kHz beeper for visual and audible feedback
- Self-testing and self-diagnostic functions built into the reader
- Fully potted epoxy enclosure for vandal resistance and weatherproofing
- 12VDC operation with low power draw (200 mA max)
- Genuine DoorKing® secure access component
Technical Specifications
- Model: 1815-282
- Platform: AWID MM-6800
- Frequency: 125 kHz
- Output Format: Wiegand 26-bit (standard) and RS-232 serial
- Read Range: Up to 8 inches (varies by credential and environment)
- LED/Beeper: Red, amber, green LED; 4 kHz tone
- Power Supply: 5–12 VDC (200 mA max at 12 V)
- Housing: ABS enclosure, epoxy potted, dark gray
- Dimensions: 6.0" H x 1.75" W x 1.0" D
- Mounting: Mullion, wall, or flat surface
- Operating Temperature: -31°F to 150°F
- Humidity: 0–95% non-condensing
- Certifications: FCC Part 15, UL, ISO 9001
Conclusion
The Doorking 1815-282 AWID Reader offers reliable proximity credential reading in a weather-resistant, mullion-mounted form factor—ideal for gate systems, secure building entry points, and outdoor access control. With broad AWID credential support and Wiegand/RS-232 compatibility, it's a versatile component for modern perimeter security systems.
