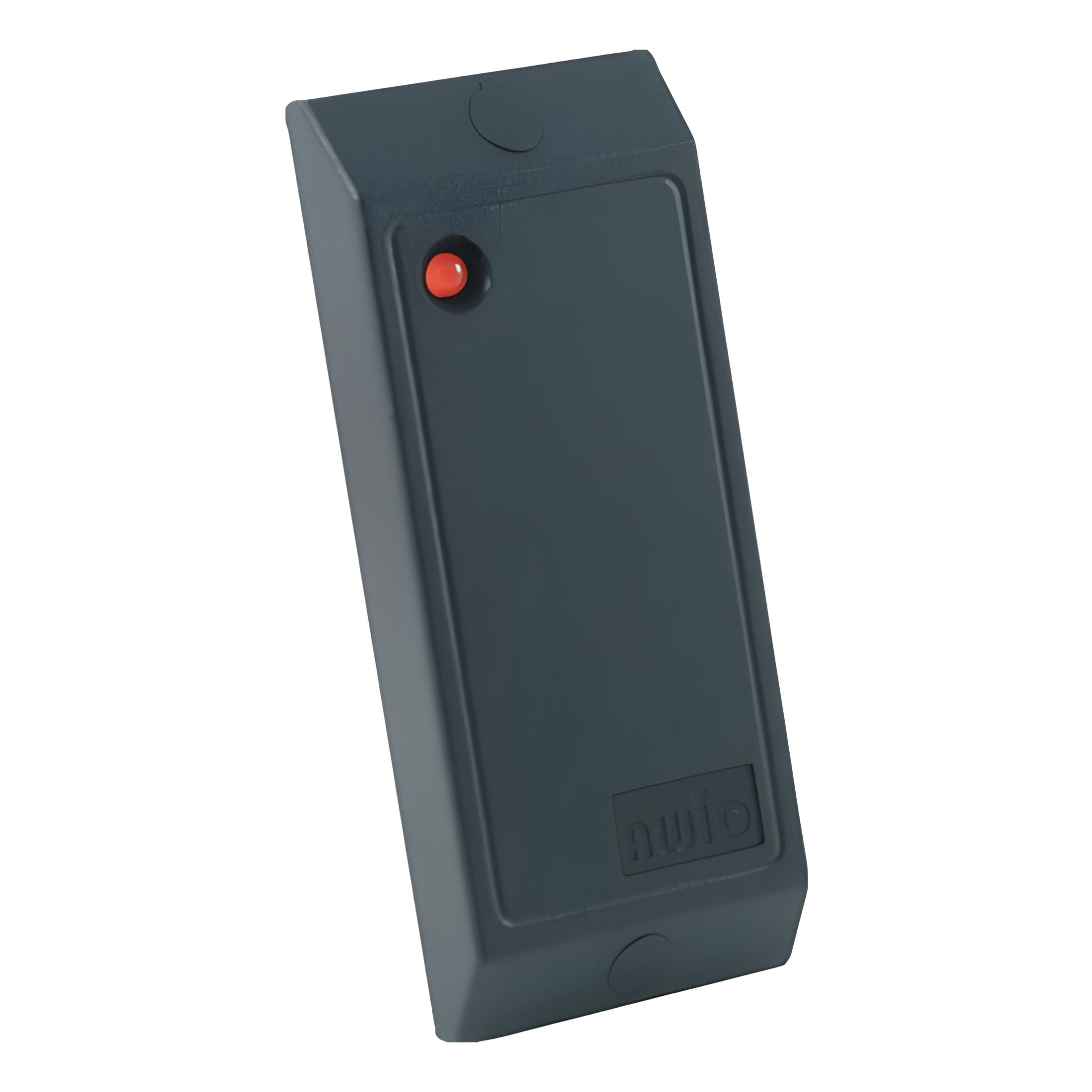

Doorking 1815-280 Proximity Card Reader Awid

AWID-Based Proximity Reader for Doorking Access Panels

The Doorking 1815-280 is a high-performance proximity card reader designed for use with DoorKing access control systems. Manufactured by AWID (model SR-2400), this reader provides consistent credential recognition and integrates seamlessly with DKS access controllers. It is not a standalone reader and must be connected to a compatible DoorKing system for full operation. Ideal for pedestrian gates, vehicle entrances, or commercial door access, the 1815-280 delivers reliability and simplicity in a compact enclosure.

Key Features

• Proximity card reader based on the AWID SR-2400 platform
• Requires connection to a compatible DoorKing access controller
• Reads standard 125 kHz AWID-compatible proximity cards and tags
• Designed for indoor or outdoor use with weather-resistant housing
• Compact form factor for wall, post, or pedestal mounting

Technical Specifications

• Model: 1815-280
• Reader Type: 125 kHz AWID-compatible proximity
• Operating Voltage: 5–14 VDC
• Current Draw: 100 mA typical
• Read Range: Up to 6 inches (depends on card type and installation)
• Interface: Wiegand (26-bit standard, other formats optional)
• Mounting: Surface mount to wall, pedestal, or enclosure
• Color: Black
• Weather Resistance: Suitable for outdoor use
• Compatibility: Works with DoorKing access control panels; not standalone

Conclusion

The Doorking 1815-280 proximity reader offers fast, accurate card reading in a durable, compact format. Designed for integration with DKS control systems, it is ideal for applications requiring secure, touch-free access without standalone functionality.
