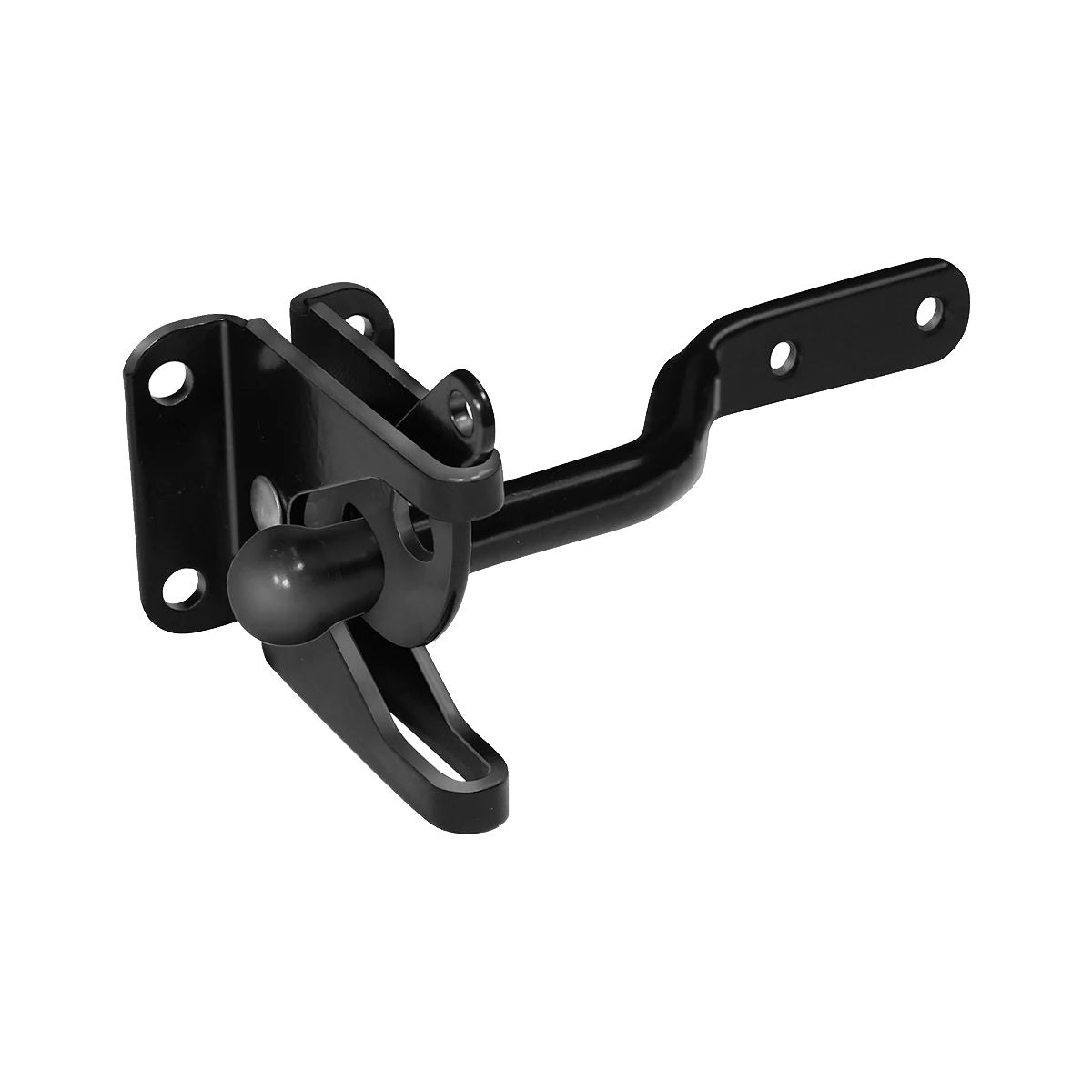

D&D 210001 Standard Gravity Latch for Pedestrian Gates

Heavy Duty Self-Latching Gravity Latch for Pedestrian Gates

The D&D 210001 is a heavy duty gravity latch designed for larger wood pedestrian gates in residential, side gate, privacy, and commercial applications. The gravity-actuated mechanism self-latches automatically when the gate closes, eliminating the need for manual latching. The latch is reversible for left hand or right hand gate applications and accommodates both in-swing and out-swing configurations. A padlock point is integrated into the latch body for added security when required. Both the latching mechanism and striker bar carry a powder-coat finish with full corrosion resistant coverage, and all fasteners are fully treated with a proprietary corrosion resistant finish with powder-coated heads for additional weatherproofing. No rough edges from the stamping process and debris is removed before finishing.

Key Features

• Heavy duty mild steel gravity latch with powder-coat finish for wood pedestrian gates
• Self-latching on gate close, no manual latching required
• Reversible for left hand or right hand and in-swing or out-swing gate applications
• Integrated padlock point for added security when required
• Corrosion resistant finish on latch body and striker bar, fully treated fasteners with powder-coated heads
• Screw-on fixing method for square-to-square post and frame installations
• Backed by D&D Technologies 10-year limited warranty

Technical Specifications

• Product Code: 210001
• Brand Line: Wood Hardware by D&D Technologies
• Material: Mild steel
• Finish: Black powder-coat with corrosion resistant treatment
• Fixing Method: Screw-on
• Gate Material: Wood
• Gate Application: Front, side, privacy, single driveway, double driveway, public and commercial gates
• Approx Gate Size: 4 ft W x 6 ft H (1.2m x 1.8m)
• Post Shape: Square-to-square
• Minimum Post Size: 1.5 in (38mm)
• Latch Operation: Gravity self-latching
• Lock Type: Padlockable
• Handed: Reversible, left or right hand
• Swing: In-swing or out-swing
• Color: Black
• Warranty: 10-year limited
• Manufacturer: D&D Technologies

Conclusion

The D&D 210001 gravity latch is a reliable self-latching solution for wood pedestrian gates where automatic latching, padlock capability, and corrosion resistant construction are required. Confirm gate size, post dimensions, and swing direction against your specific installation before ordering.
