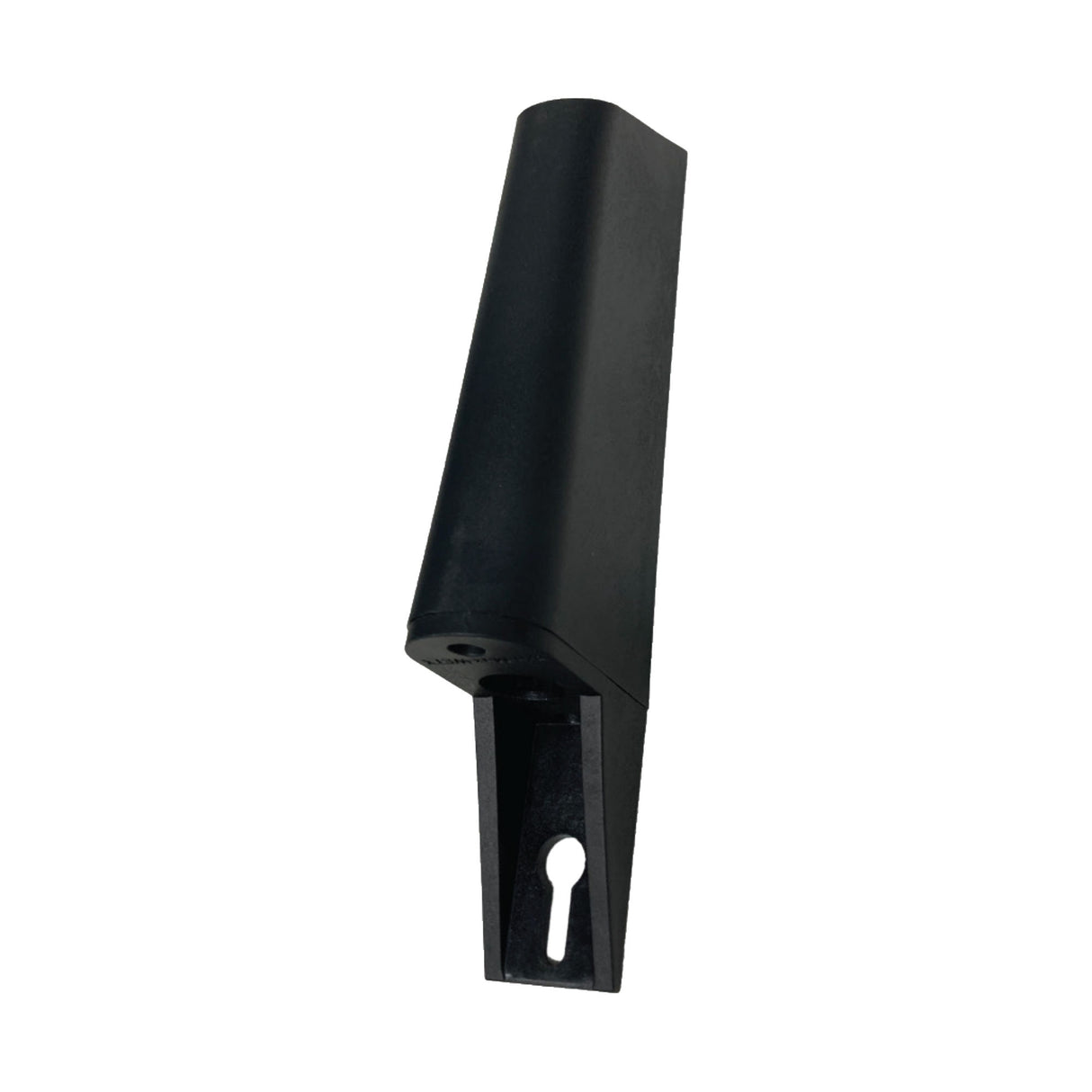

Maximum Controls - Max-WETX Wireless Edge 900 Transmitter

UL 325 Wireless Safety Edge Transmitter for Maximum Controls Gate Operators

The Maximum Controls Max-WETX is the Wi Edge 900 transmitter module for the Max Wireless Edge 900 safety system. Each Max-WETX connects up to two monitored 10K safety edges and transmits their status wirelessly to the Max-WERX receiver at 915 MHz with a 100ms response time, covering one entrapment zone per transmitter. Up to two Max-WETX transmitters can be paired to a single Max-WERX receiver, allowing both the opening and closing edges to be monitored from one receiver. Operating range is up to 200 ft line of sight. Three selectable frequency channels on the receiver prevent cross-talk with neighboring operators. The Max-WETX is pre-wired and ships with a mounting bracket for installation. Power is supplied by eight AA Lithium batteries using Energizer Ultimate Lithium (L91) cells, with an approximate battery life of two years. No other battery type is supported.

Key Features

• Transmits monitored 10K safety edge signals to Max-WERX receiver at 915 MHz
• Supports up to 2 monitored 10K edges per transmitter
• Compatible with up to 2 transmitters per Max-WERX receiver, covering opening and closing zones
• 100ms response time; up to 200 ft range (line of sight)
• Pre-wired with mounting bracket included
• Powered by 8x AA Energizer Ultimate Lithium (L91) batteries; approximately 2-year battery life
• UL 325 compliant (UL E528271)
• Compatible exclusively with Maximum Controls gate operators
• 2-year warranty (battery not covered)

Technical Specifications

• Part Number: Max-WETX
• Component: Wi Edge 900 Transmitter
• Operating Frequency: 915 MHz
• Operating Range: Up to 200 ft (line of sight)
• Response Time: 100ms
• Edge Inputs: Up to 2 monitored 10K edges per transmitter
• Battery Type: 8x AA Energizer Ultimate Lithium (L91, 3500 mAh) — required battery type
• Battery Life: Approximately 2 years
• Operating Temperature: -10°F to 156°F
• Dimensions: 2.25 in D x 1 in W x 7.125 in H
• Weight: 0.3 lbs
• Environmental Rating: UL 325 Compliant
• Compatibility: Maximum Controls gate operators only
• Warranty: 2 years (battery not covered)
• Manufacturer: Maximum Controls LLC
• Condition: New

Conclusion

The Max-WETX is the transmitter only. The Max-WERX receiver is required and sold separately. The Max-WETX-BRKT mounting bracket is included. For a single-zone starter configuration, the Max-WEKit bundles one Max-WERX receiver, one Max-WETX transmitter, and one mounting bracket. The 10K safety edges are sold separately and are required for operation. Only Energizer Ultimate Lithium L91 batteries are supported — no substitutions are specified by the manufacturer.
