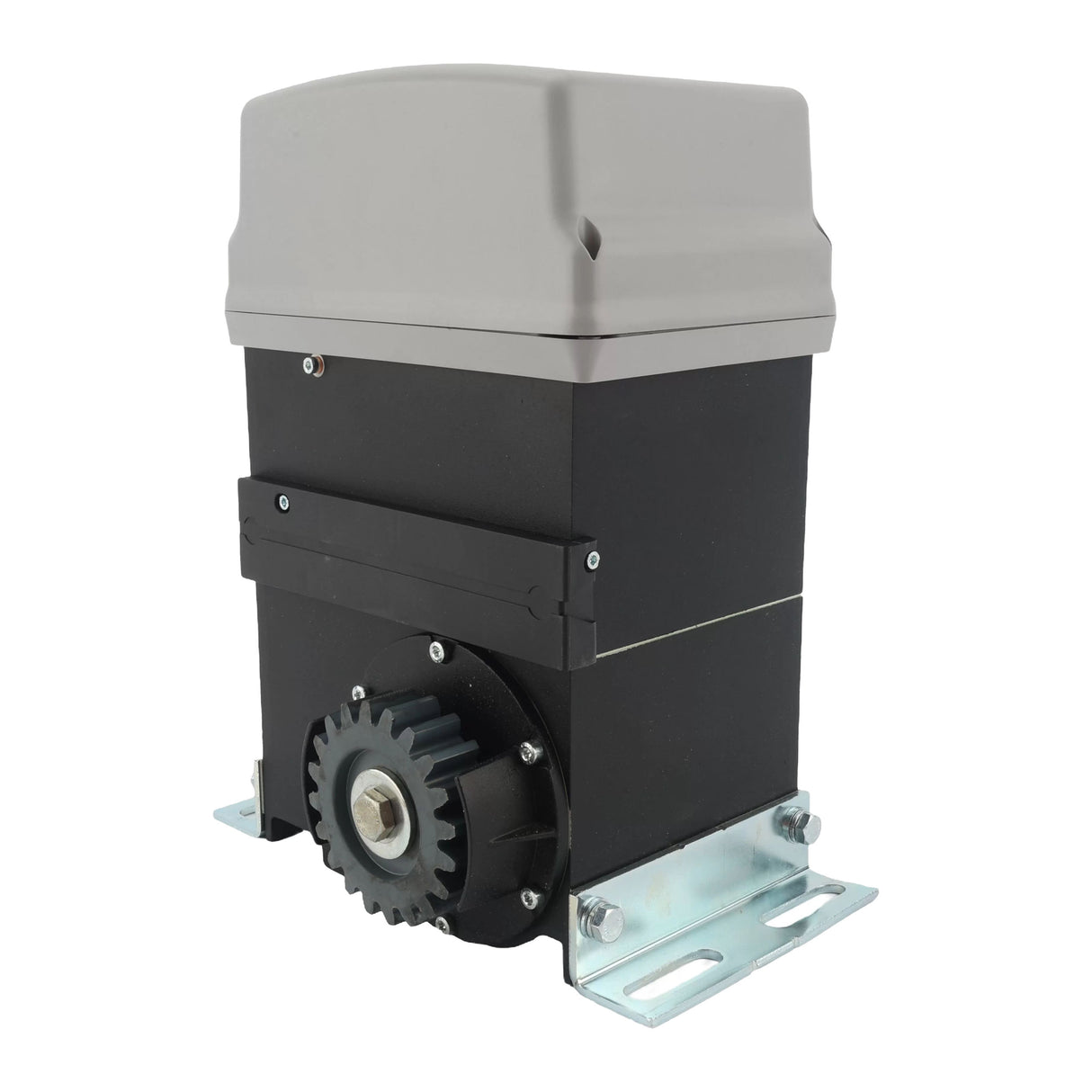

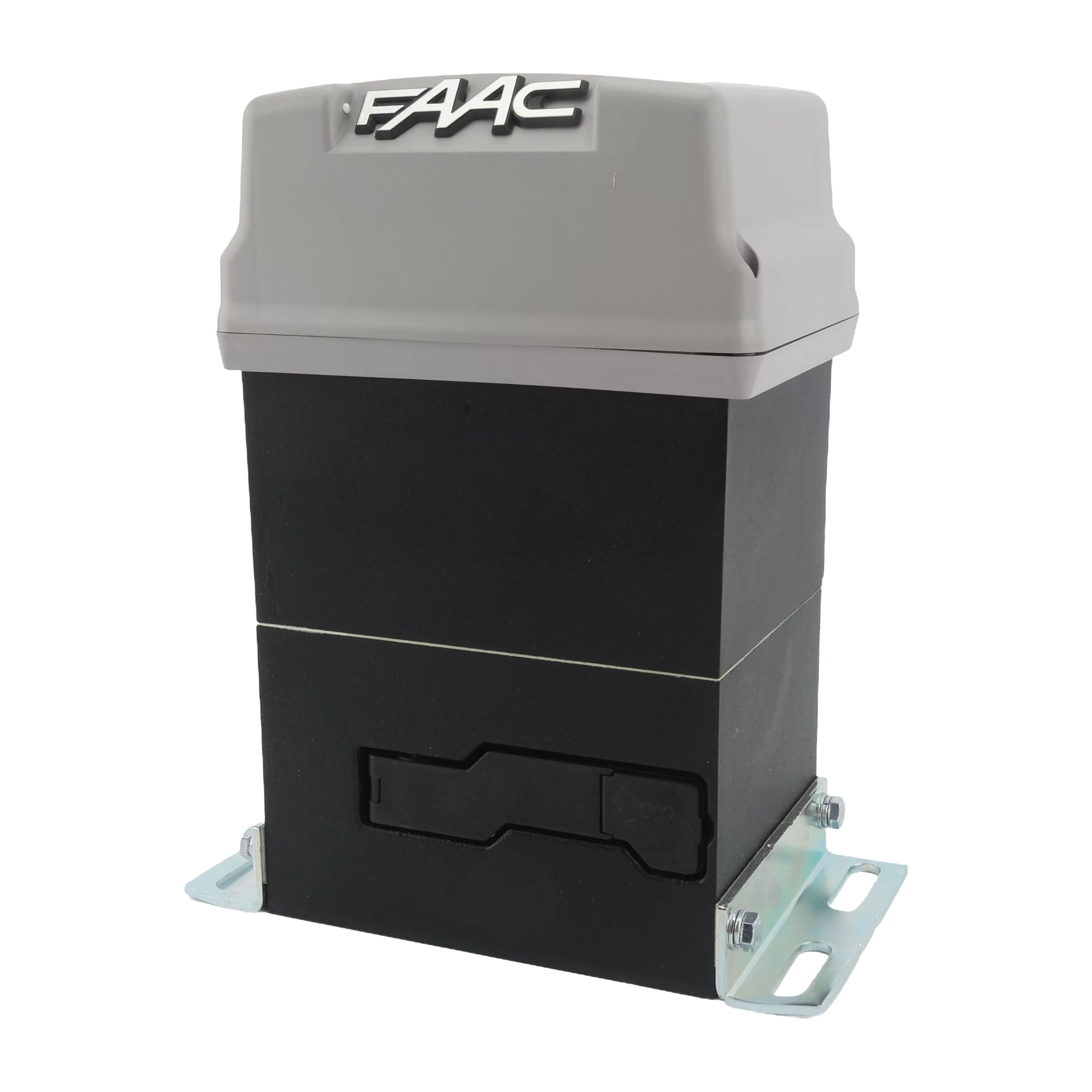

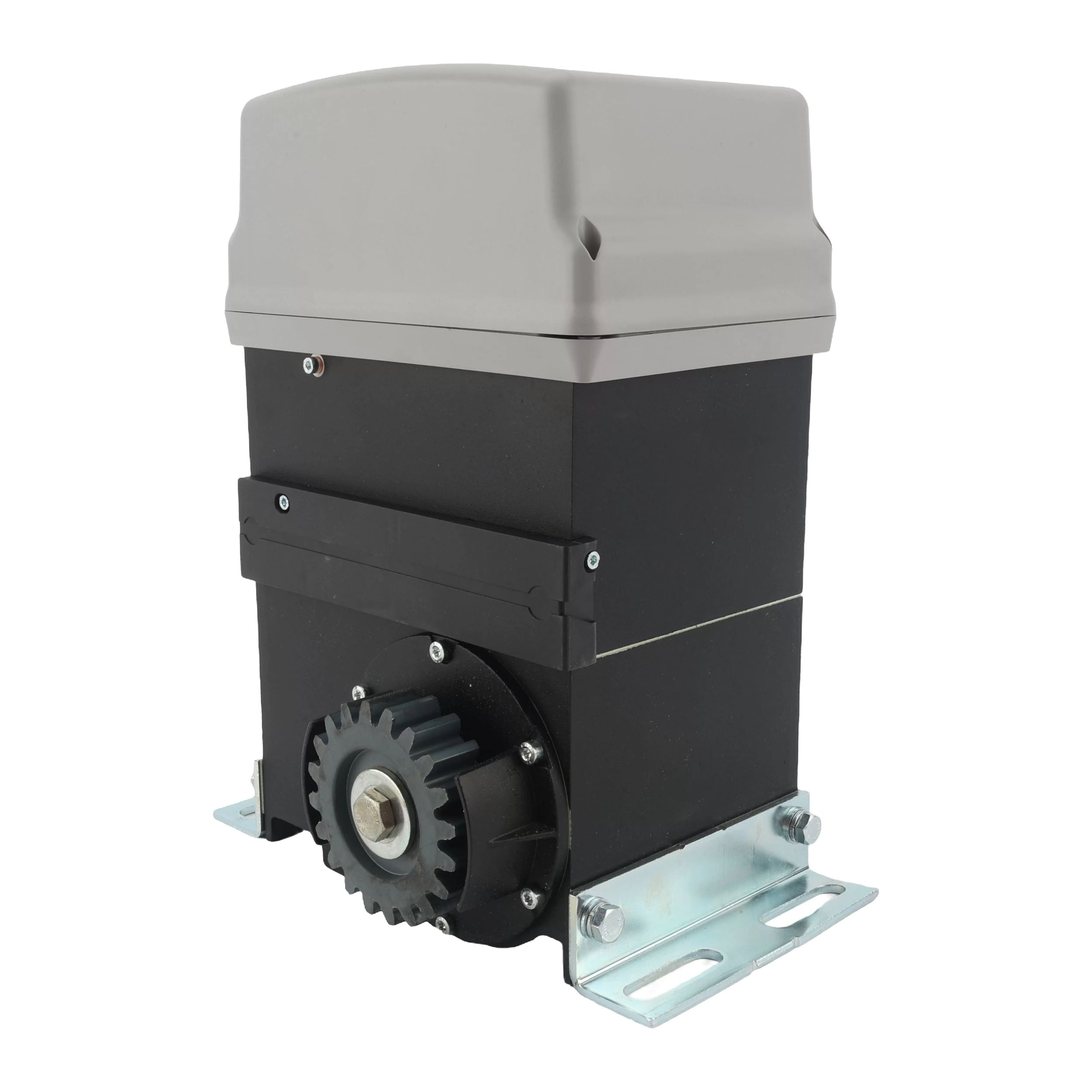

FAAC 746ER Slide Gate Operator Rack & Pinion - 230V
FAAC 746ER Slide Gate Operator Rack & Pinion - 230V está agotado y se enviará tan pronto como vuelva a estar disponible.
Core Details
| Product Type | Slide Gate Operator |
| Application Type | Gate |
| Installation Type | Residential | Commercial |
| Voltage | 230V |
| Power Type | AC |
| Mounting Type | Pad Mounted |
| Mechanism Type | Rack & Pinion |
| Motor Type | AC Motor |
| Horsepower (HP) | < 0.5 HP |
| UL/ETL Certification | Yes |
| Max Gate Weight | 1,400 Lbs |
| Max Gate Length | 40 Ft |
| Phase | Single-Phase |
| Weatherproof Rating | Rated for Outdoor Usage |
| Operating Temperature | -4°F to 131°F |
FAAC 746ER Slide Gate Operator Rack & Pinion - 230V
Descripción
Descripción
Slide Gate Operator with Rack & Pinion Drive
The FAAC 746ER Z16 Slide Gate Operator is a durable rack-and-pinion system engineered for residential and multi-unit properties requiring dependable performance and security. Designed to move gates weighing up to 1,400 lbs, this operator combines robust mechanical engineering with safety-focused electronics. The Z16 pinion gear enables smooth motion along standard steel rack (sold separately), while the integrated twin-disk oil-bath clutch and encoder provide maximum anti-crush protection. With its prewired 780D control board, adjustable mounting bracket, and compact footprint, the 746ER simplifies installation and delivers consistent results in demanding gate automation environments.
Key Features
- For Gates up to 1,400 lbs - Supports residential and light-commercial sliding gates
- Z16 Pinion Gear - Designed for rack-driven automation (rack sold separately)
- Integrated 780D Controller - Prewired for fast setup and programming
- Twin-Disk Oil-Bath Clutch - Enhances safety with smooth, controlled motion
- Non-Reversing Gearmotor - Eliminates need for external electric locks
- Manual Release Key - Provides secure access during power loss
- Adjustable Mounting Bracket - Allows flexible installation positioning
- Compatible with Inductive or Magnetic Limits - Ensures precise stopping points
Technical Specifications
- Model: 746ER Z16
- Motor Type: AC
- Horsepower: 0.4 HP (0.3 kW)
- Power Supply: 230 VAC
- Max Gate Weight: 1,400 lbs
- Max Gate Length: 40 ft
- Gate Speed: 38 ft/min
- Use Frequency: 70%
- Thrust Force: 140 lbf
- Reduction Ratio: 1:30
- Motor Speed: 1,700 RPM
- Operating Temp: -4°F to 131°F
- Dimensions: 10.8 x 7.5 x 13.2 in
- Protection Rating: IP44
Conclusion
The FAAC 746ER Z16 provides a reliable, high-performance solution for residential and condominium slide gates. Built for security and longevity, this operator is ideal for installations requiring robust automation and precise control. Rack must be purchased separately.
