LiftMaster PBG24DC Barrier Arms – Straight and Articulating

Straight / Articulating Barrier Arms for the LiftMaster TECHNA PBG24DC Parking Operator

LiftMaster TECHNA barrier arms for the PBG24DC are available in straight and articulating configurations across 10 ft and 12 ft functional lengths. All arms are aluminum extrusion construction with reinforced male/female joining sections, secure fasteners throughout, and a bottom channel designed to accept BGARMFOAM padding to minimize vehicle contact damage. Straight arms ship in 6-foot modular sections for transport and on-site assembly; a 10 ft arm ships as an arm mount section plus one 6 ft section, while a 12 ft arm adds a 2 ft section. Articulating arms ship fully assembled in a single carton box, with the arm joint reinforced by a torsion bar and secured with bolts, nuts, and washers at the pivot point. Only LiftMaster arms are UL listed with this operator.

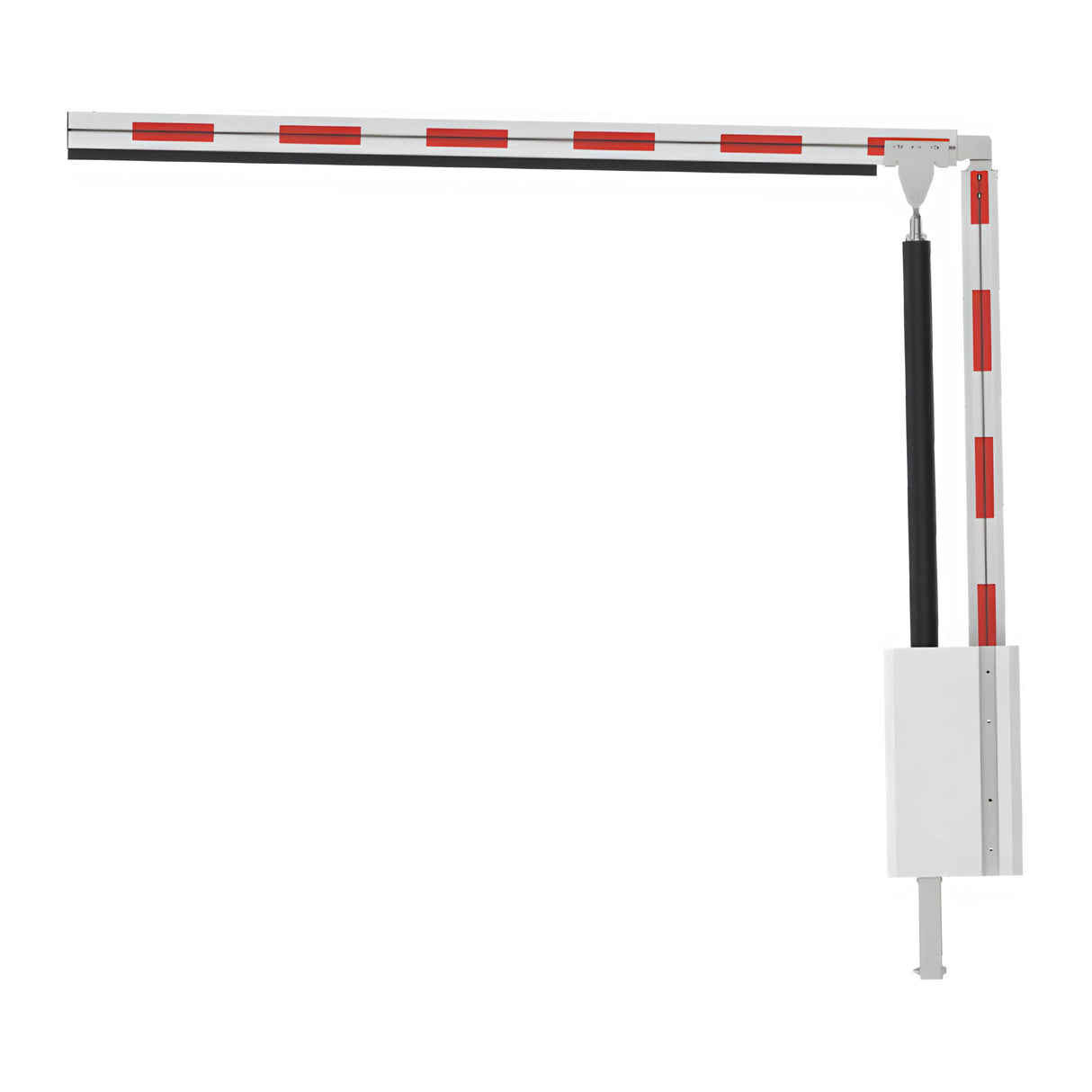

Articulating arms pivot upward on vehicle strike, allowing the vehicle to pass without operator damage. Two clearance heights are available per length: 84 inches and 98 inches. Clearance height is measured from the base of the operator to the bottom of the arm in the open position, not from grade. Confirm site clearance requirements before selecting.

Key Features

• Aluminum extrusion construction with reinforced male/female joining sections and secure fasteners throughout all straight arm lengths.
• Straight arms ship in 6-foot modular sections; field-cuttable to match required lane width.
• Bottom channel on straight arms accepts BGARMFOAM padding; compatible with the S50L wireless edge safety device.
• Articulating arms pivot upward on vehicle strike; arm joint reinforced by torsion bar with bolts, nuts, and washers at pivot point.
• Articulating arms available in 84 in and 98 in clearance heights per functional length; clearance measured from operator base.
• LED variants available for 10 ft and 12 ft straight arms; integrated red/green LED lighting strips included.
• Compatible exclusively with LiftMaster TECHNA PBG24DC parking barrier gate operator.
• Operating temperature: -13°F to 140°F (-25°C to 60°C) for all arm variants.

Technical Specifications

• Material: Aluminum extrusion
• Compatible Operator: LiftMaster TECHNA PBG24DCW, PBG24DCG (Parking operator only)
• Operating Temperature: -13°F to 140°F (-25°C to 60°C)
• Straight Arm Assembly: Modular 6-foot sections; ships disassembled in multiple sections
• Articulating Arm Assembly: Ships fully assembled in single carton box
• Clearance Height Reference: Measured from base of operator, not from grade
• Manufacturer: LiftMaster / The Chamberlain Group LLC
• Condition: New

Available Models

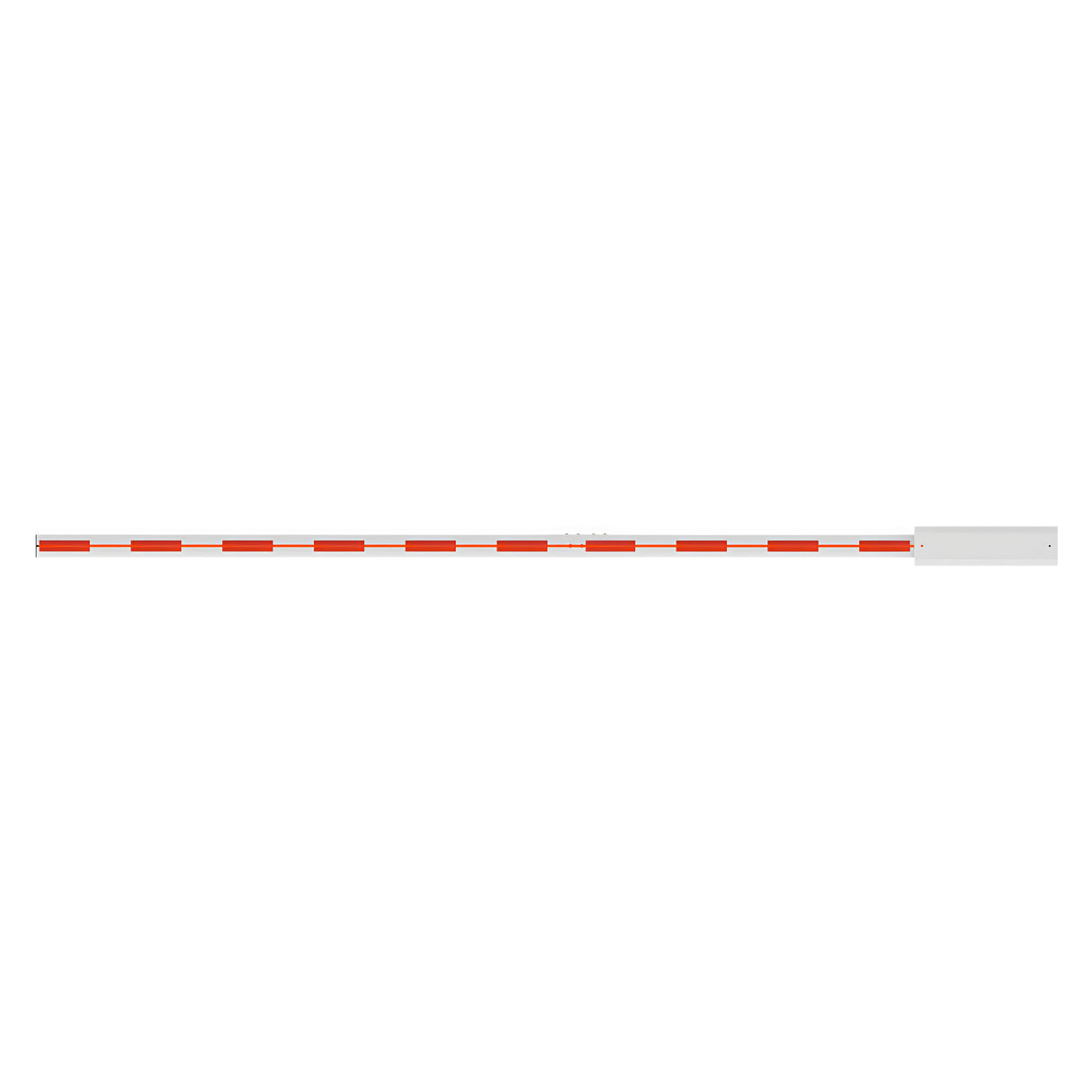

Straight Arms

Straight arms support breakaway and swingaway installation types. LED variants include one integrated LED strip per arm.

• PBGARM10 – 10 ft functional length, without LED
• PBGARM10LED – 10 ft functional length, with integrated LED lighting
• PBGARM12 – 12 ft functional length, without LED
• PBGARM12LED – 12 ft functional length, with integrated LED lighting

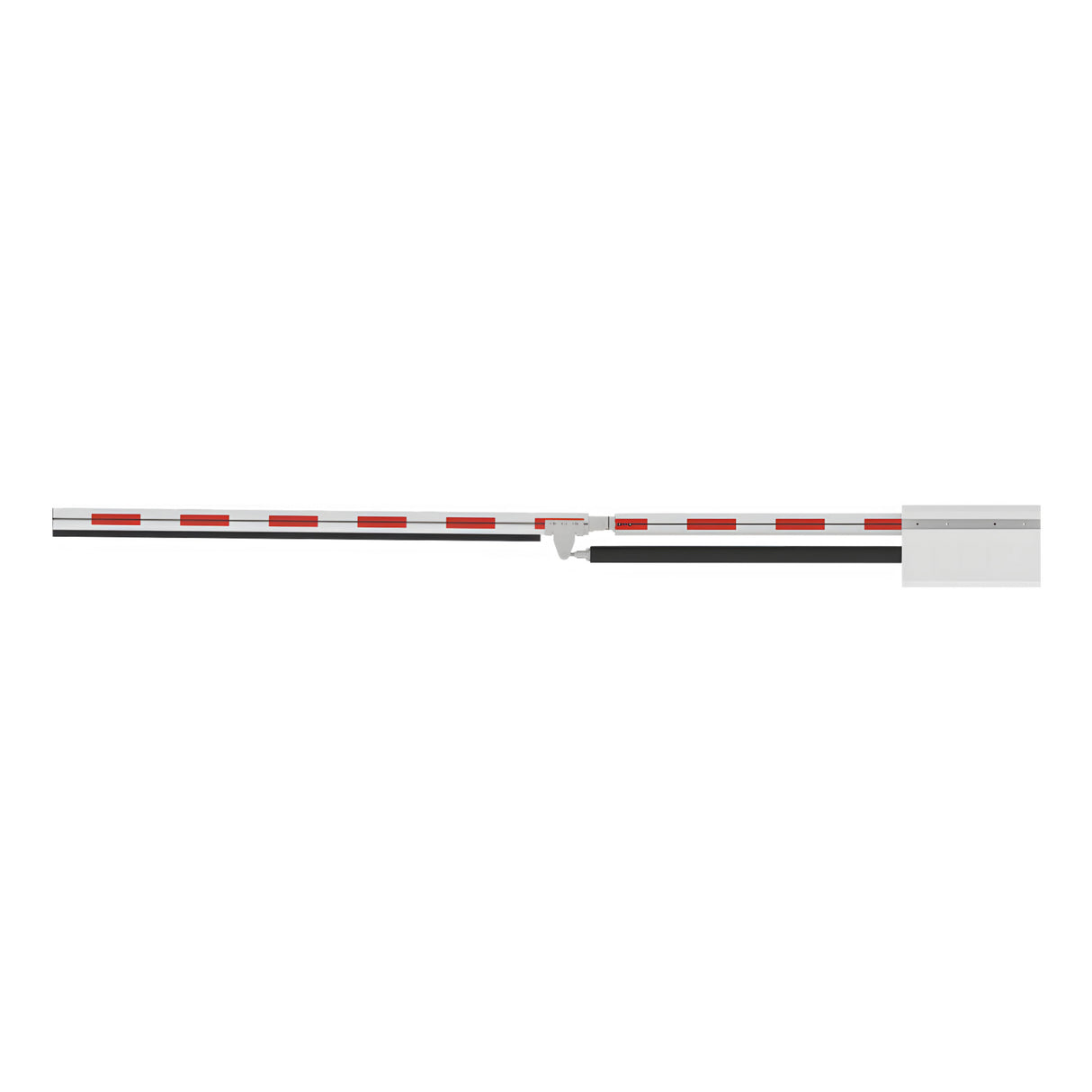

Articulating Arms

Articulating arms are compatible with PBG models only and do not include LED lighting. Clearance height is measured from the base of the operator.

• BGARM10ART84 – 10 ft functional length, 84 in clearance height, without LED
• BGARM10ART98 – 10 ft functional length, 98 in clearance height, without LED
• BGARM12ART84 – 12 ft functional length, 84 in clearance height, without LED
• BGARM12ART98 – 12 ft functional length, 98 in clearance height, without LED

Conclusion

All arms are sold separately from the PBG24DC operator. Straight arms require the TECHNA Parking arm bracket. Articulating arms are not compatible with the CBG or IBG operator series. If the swingaway installation type is selected for straight arms, confirm a minimum of 7 ft clearance from the outer edge of the operator to any pedestrian walkway parallel to the roadway; if that clearance is not available, use breakaway or fixed installation instead.
