All-O-Matic MQ-LED - LED Strip Kit for Magna Q Arms

LED Strip Kit for 15 ft and 19 ft MAGNA Q Barrier Gate Arms

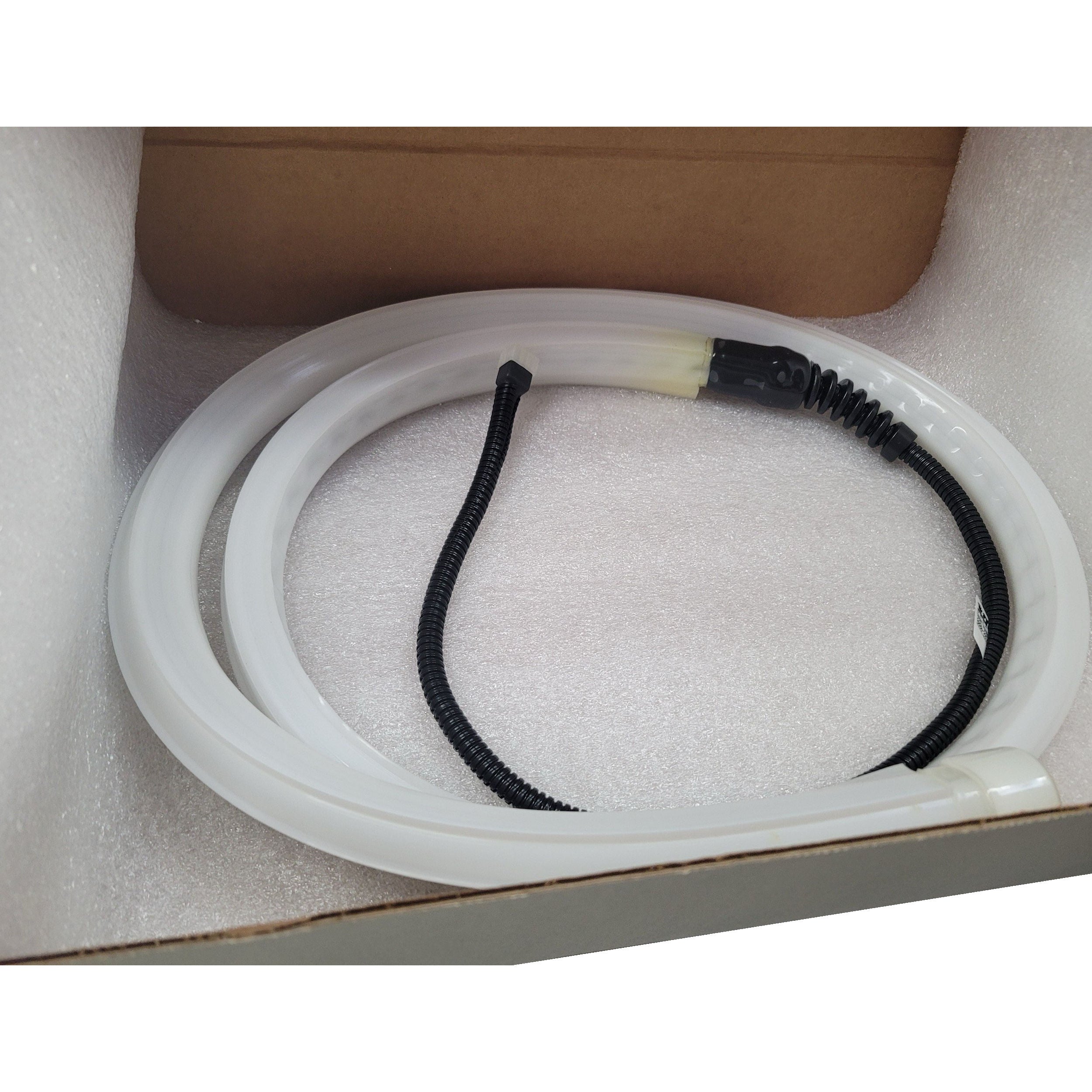

The All-O-Matic MQ-LED15 and MQ-LED19 LED strip kits are designed to enhance visibility and safety on MAGNA Q barrier arms during gate operation. These strips install along the bottom channel of the arm and illuminate when triggered by the operator’s logic board. The MQ-LED15 is sized for the standard 15 ft 7 in arm, while the MQ-LED19 is used for the extended 19 ft 8 in arm configuration. Each kit includes a 12VDC power supply that plugs directly into the operator’s built-in 120VAC outlet and integrates with the system’s AUX Relay 2 settings for precise control.

Key Features

• Designed for MAGNA Q barrier arms
• MQ-LED15 fits 15 ft 7 in arms
• MQ-LED19 fits 19 ft 8 in arms

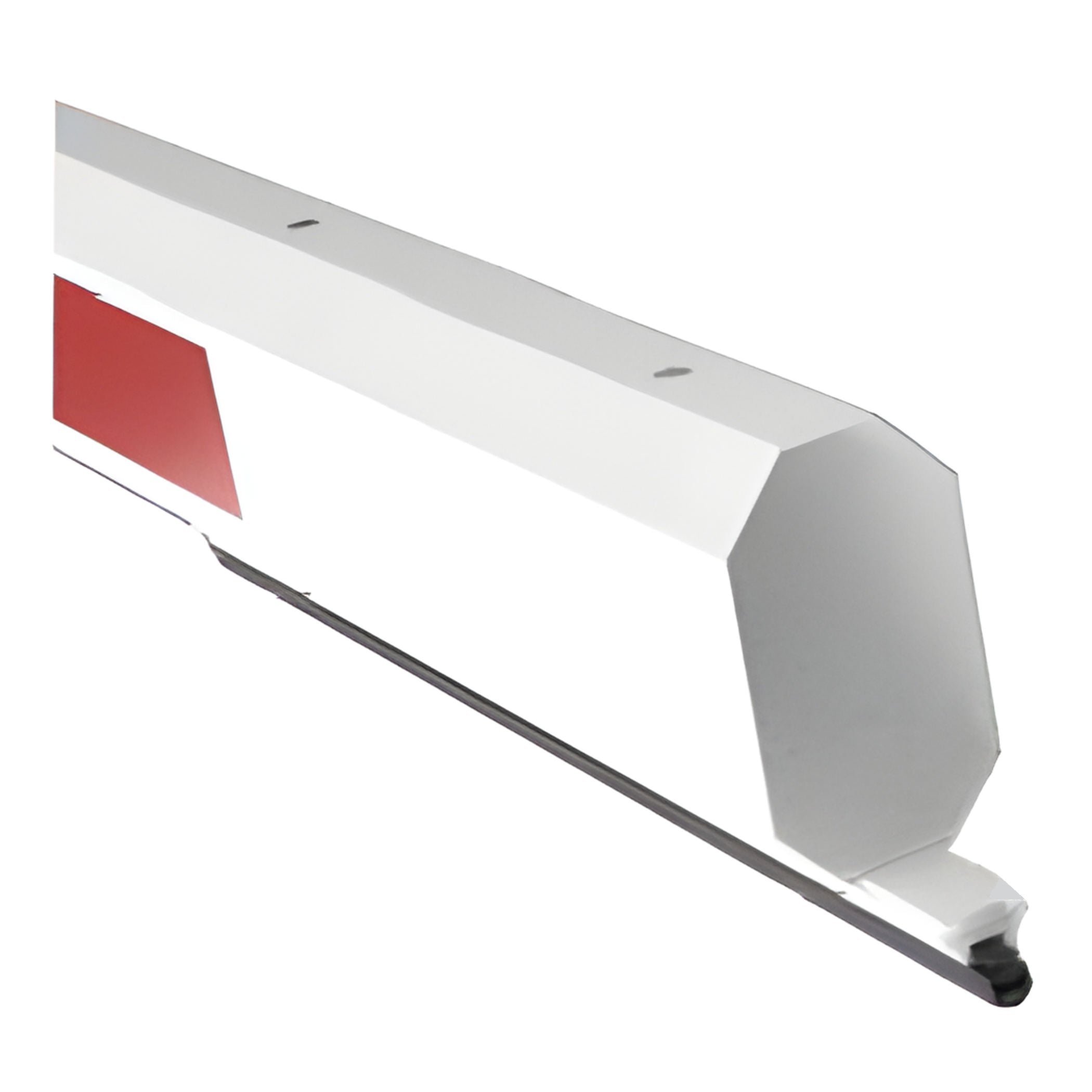

• Installs into the bottom channel of the aluminum arm
• Includes 12VDC power supply for use with the operator’s 120VAC outlet
• Improves nighttime visibility and perimeter safety
• Compatible with MAGNA Q’s safety edge sensors
• Requires AUX Relay 2 configuration through LCD settings
• Pre-wired for clean routing into the operator cabinet

Technical Specifications

• Models: MQ-LED15, MQ-LED19
• Input Voltage: 12VDC (via included adapter)
• Mounting Location: Bottom channel of MAGNA Q barrier arm
• Connection Points: Red to 12VDC positive, black to 12VDC negative, white to MAGLOCK (Relay 2), yellow to SOLENOID (Relay 2)
• Operator Compatibility: All MAGNA Q MQ-19 systems
• Installation Note: Use a small amount of soapy water to ease LED strip insertion

Available Models

• MQ-LED15 for 15ft arms
• MQ-LED19 for 19ft arms

Conclusion

The MQ-LED15 and MQ-LED19 LED strip kits are purpose-built for the MAGNA Q series, offering clean integration, enhanced driver awareness, and fully programmable illumination using the operator’s onboard logic.
