All-O-Matic MQ-EDGE LED & Safety Edge Kit for Magna Q

LED and Safety Edge Kit for 15 ft and 19 ft Barrier Arms

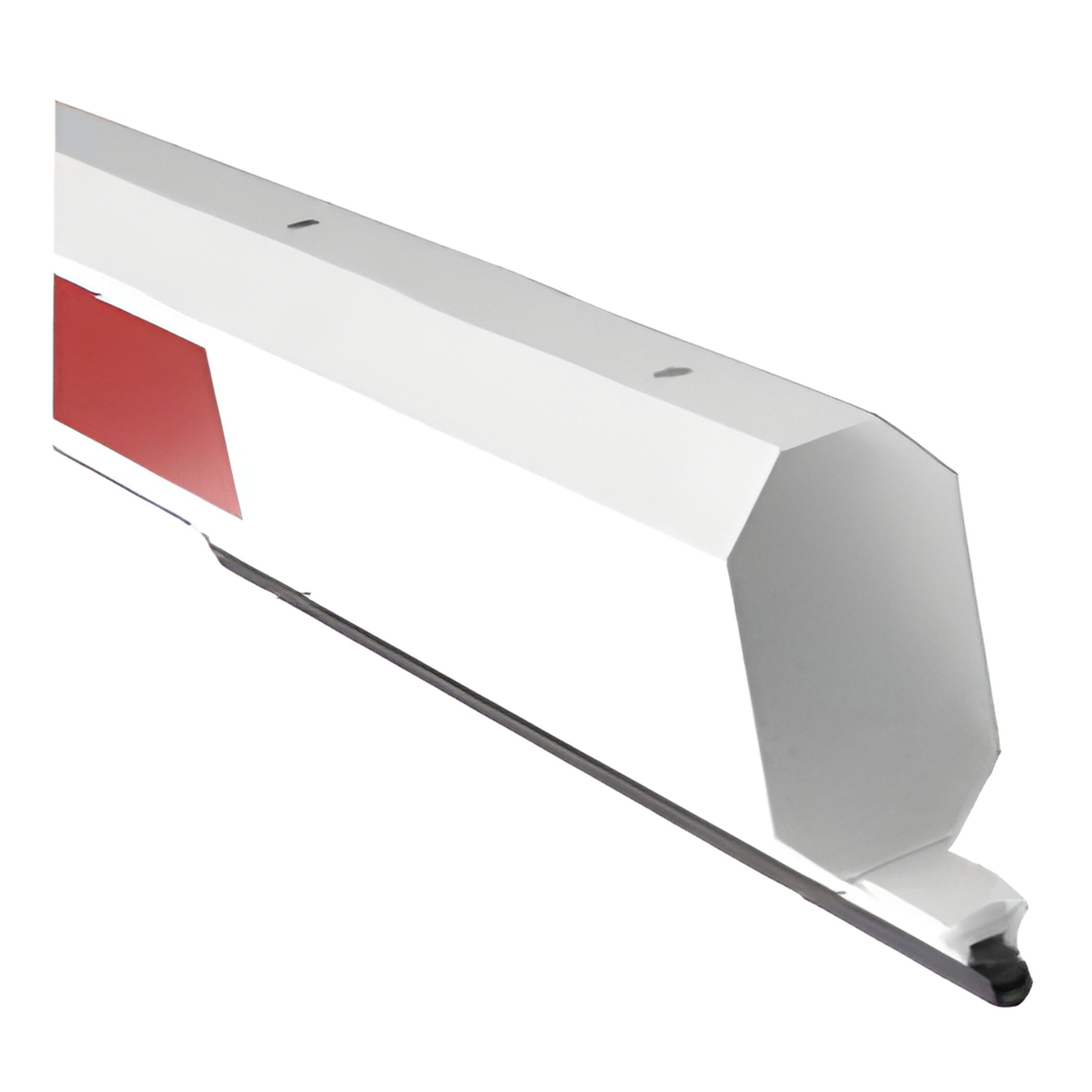

The All-O-Matic MQ-EDGE15 and MQ-EDGE19 kits combine a low-voltage LED light strip with an integrated safety edge sensor, delivering both enhanced visibility and entrapment protection for MAGNA Q barrier gate systems. Designed specifically for installation into the bottom channel of the MQ-15A or extended arm assembly, these kits seamlessly integrate with the operator’s logic via AUX Relay 2. The MQ-EDGE15 is designed for the standard 15 ft 7 in arm, while the MQ-EDGE19 is intended for arms extended to 19 ft 8 in using the MQ-4AE accessory.

Key Features

• Combination of LED illumination and edge sensor for safety and visibility
• MQ-EDGE15 fits 15 ft 7 in arm
• MQ-EDGE19 fits 19 ft 8 in arm
• Installs in bottom channel of barrier arm
• Includes 12VDC adapter that plugs into the operator’s 120VAC outlet
• Provides visual gate status and physical obstruction detection
• Compatible with MAGNA Q AUX Relay 2 logic functions
• Pre-wired for clean integration through factory grommets
• Designed for MAGNA Q MQ-19 barrier operators only

Technical Specifications

• Models: MQ-EDGE15, MQ-EDGE19
• Application: Safety edge and LED illumination for MAGNA Q barrier arms
• Power Input: 12VDC via included transformer
• Mounting Position: Bottom of aluminum arm (MQ-15A or extended)
• Wiring Connections: Red to 12VDC (+), black to 12VDC (-), white to MAGLOCK, yellow to SOLENOID
• Relay Programming: AUX Relay 2 (Selectable trigger modes)
• Compatibility: MAGNA Q MQ-19 with aluminum arms only

Conclusion

The MQ-EDGE15 and MQ-EDGE19 kits offer an all-in-one solution for perimeter safety and night visibility. Purpose-built for MAGNA Q systems, they simplify wiring, meet UL325 safety standards, and provide drivers with clear visual cues at access points.

Available Models

• MQ-EDGE15 for 15ft arms
• MQ-EDGE19 for 19ft arms

Conclusion

The MQ-LED15 and MQ-LED19 LED strip kits are purpose-built for the MAGNA Q series, offering clean integration, enhanced driver awareness, and fully programmable illumination using the operator’s onboard logic.
