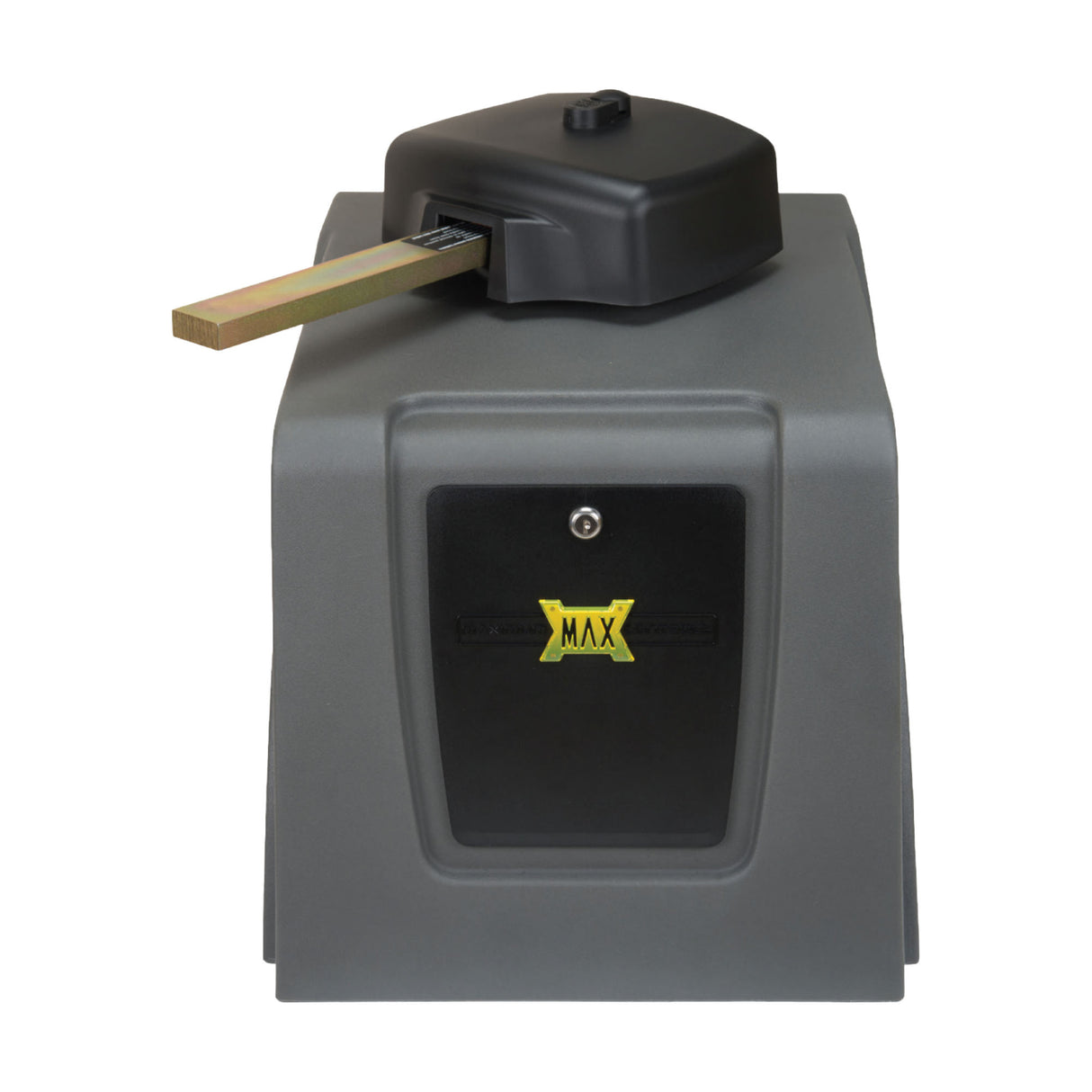

Maximum Controls - MAX MEGATRON 2200 PRO Swing Gate Operator

High-Traffic Commercial Brushless DC Swing Gate Operator

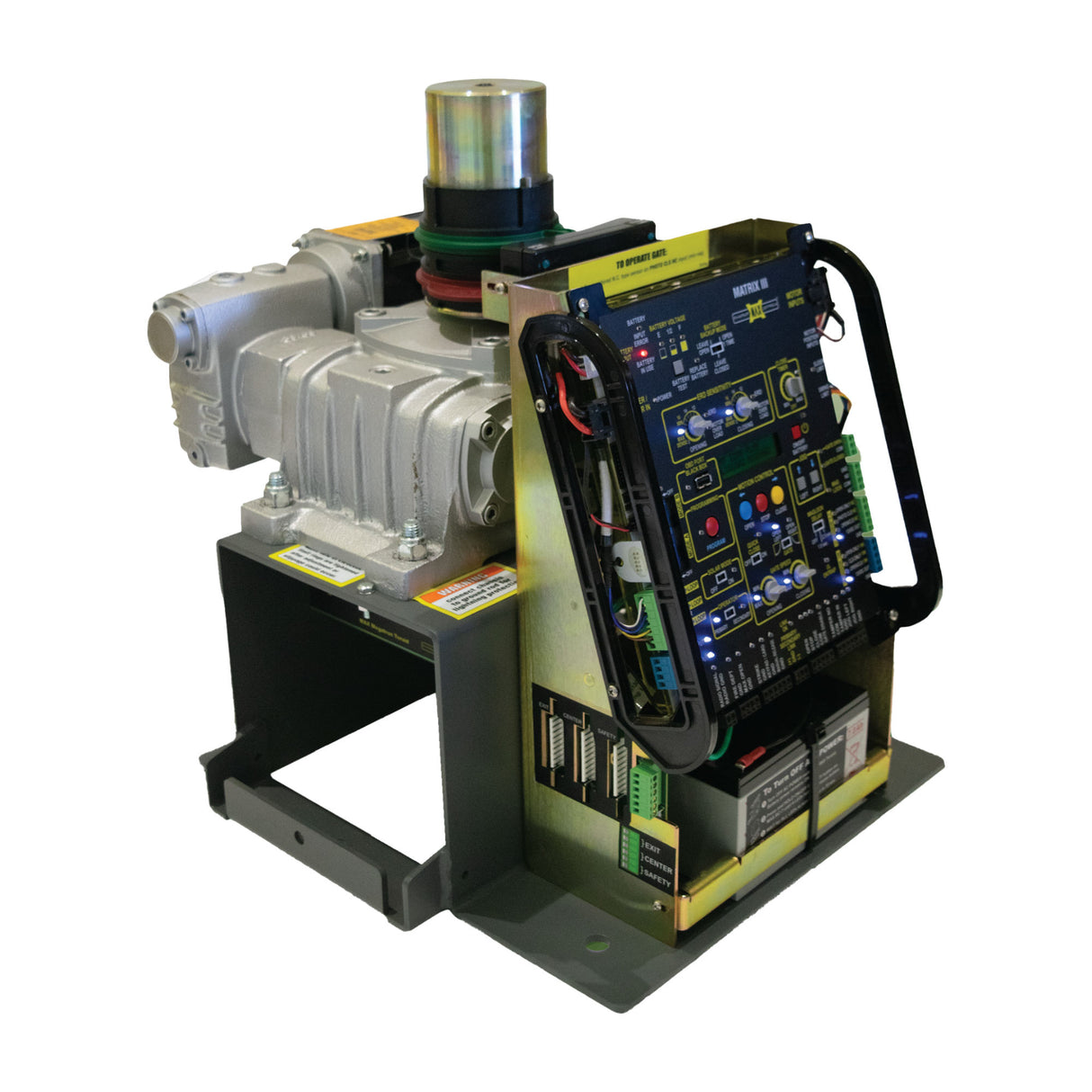

The Maximum Controls Megatron 2200 PRO is a continuous-duty brushless DC swing gate operator for high-traffic residential, commercial, industrial, and restricted-access applications. It handles gates up to 2,200 lbs at 15 feet or 1,800 lbs at 20 feet, with gate travel from 11.5 to 18 seconds depending on the motor speed setting selected. The frame is constructed from 1/4-inch cold rolled steel, fully welded and gold zinc plated. The output shaft is a 3-1/4-inch diameter solid steel shaft with a cast iron clamping system that allows controlled slippage if the gate is struck by a vehicle, preventing damage to the operator and preserving limit switch positions. There are no chains, belts, or pulleys in the drive system.

The brushless DC motor carries a 6-million-cycle life expectancy at approximately 35,000 hours of operation and uses Hall Effect magnetic sensing to capture over 5,000 precise rotational positions during 90 degrees of gate travel. That positional data drives intelligent DSP-controlled ramp-up and ramp-down on every cycle, minimizing mechanical stress and eliminating overcoasting. The 900:1 dual gear reduction, size 80 cast iron gearbox runs in a synthetic oil bath with high-speed ball bearings and bronze gears, producing maximum torque at low amperage draw. A built-in 12V, 7.0Ah AGM battery provides a minimum of 400 cycles in the event of a power failure, with three selectable backup modes. The power supply accepts 115V or 230V AC via a selection switch and draws 3.5 to 4.5 amps depending on gate weight. The operator is solar ready with a built-in solar regulator; a compatible solar panel is required and sold separately.

Key Features

• Brushless DC motor rated for 6 million cycles and 35,000 hours; Hall Effect sensing with 50 positional samples per degree of gate travel driving DSP precision motion control
• 900:1 dual gear reduction, size 80 cast iron gearbox with bronze gears and synthetic oil bath; no chains, belts, or pulleys
• 3-1/4-inch solid steel output shaft with cast iron clamping; vehicle impact slippage protects operator and preserves limit positions
• 44-channel lightning protection on all inputs, outputs, and communication lines; guaranteed to withstand any strike more than 50 feet away
• USB OBD port black box stores the last 1,000 events as a downloadable diagnostic file for field and factory remote diagnosis
• Built-in anti-tailgate loop management; tamper alert relay triggers on unauthorized gate movement; gate disable locks all inputs except fire department input
• Solar ready with built-in solar regulator; compatible solar panel sold separately
• UL 325/991 compliant, ETL listed, Class I through Class IV; CSA approved; 5-year warranty on all components

Technical Specifications

• Model: MEGATRON-2200-PRO
• Gate Type: Single swing gate
• Gate Capacity: 2,200 lbs at 15 ft; 1,800 lbs at 20 ft
• Gate Opening Speed: 11.5 to 18 seconds; 16 programmable speed settings
• Motor: Brushless 24V DC; equivalent to 1-1/4 HP AC output torque; 6 million cycle life; 35,000 hours; Hall Effect encoder
• Gearbox: Size 80, 900:1 dual gear reduction; cast iron housing; bronze gears; synthetic oil bath
• Frame: 1/4-in cold rolled steel, fully welded, gold zinc plated
• Battery Backup: 12V 7.0Ah AGM; minimum 400 cycles; three selectable backup modes; 1-year battery warranty
• Power Input: Switchable 115VAC / 6A or 230VAC / 2A single phase
• Solar: Solar ready; built-in solar regulator; compatible solar panel sold separately
• Magic Box: Optional accessory for low-voltage power delivery up to 1,000 ft from AC source; sold separately
• Lightning Protection: 44 channels; up to 20K volts and 10K amps; guaranteed to 50 ft strike distance
• Diagnostics: USB OBD port; 1,000-event black box log; LCD display
• Operating Temperature: -4°F to 165°F (-20°C to +74°C) including battery performance without a heater

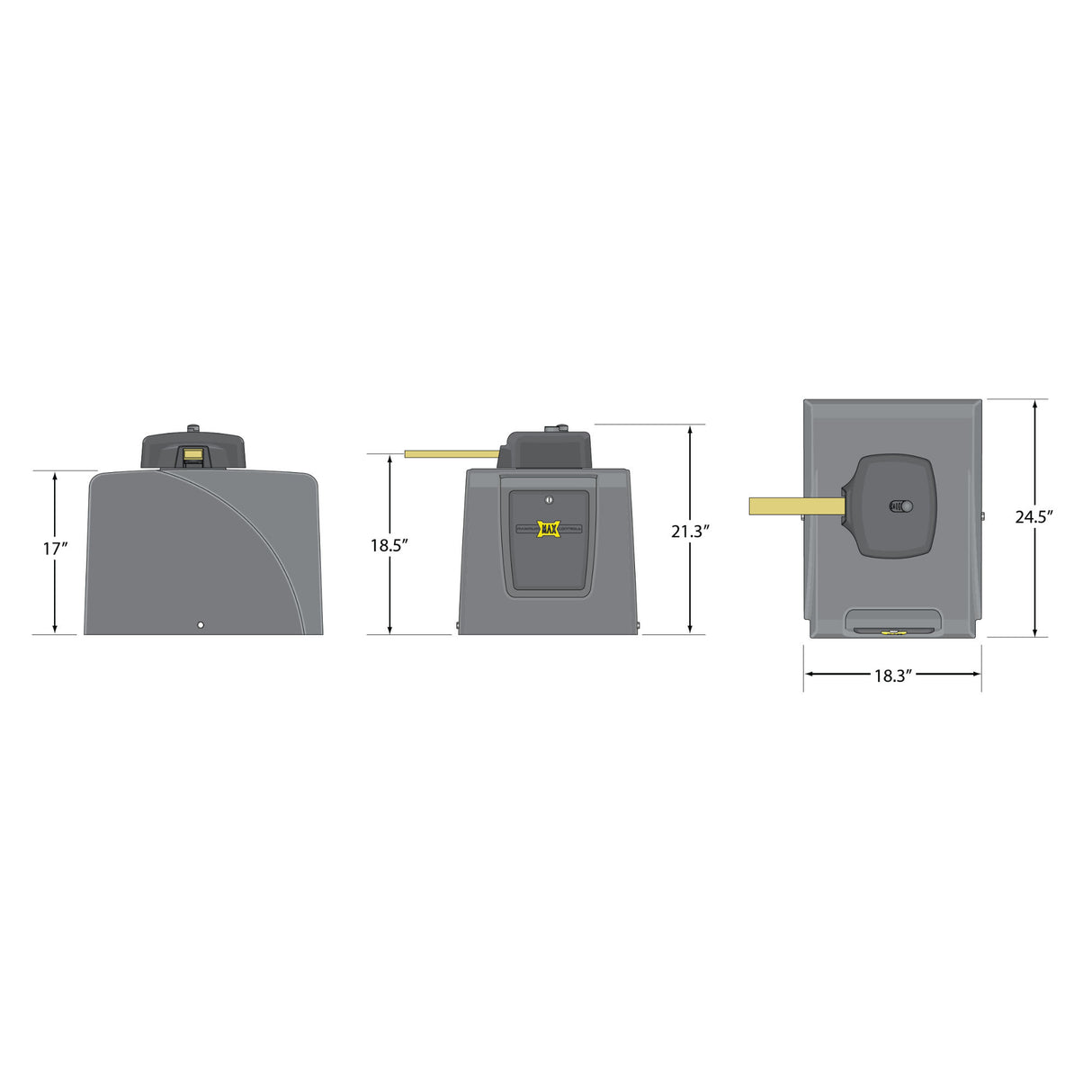

• Dimensions: 18.3 in W x 24.5 in D x 21.3 in H; arm height 18.5 in
• Shipping Weight: 220 lbs
• UL Classification: Class I, II, III, IV; UL 325/991 compliant; ETL listed; CSA approved
• Safety Sensors: Required for UL 325 2018 compliance; sold separately
• App Control: Optional via Max Cloud App and Max Cell Hub; sold separately
• Warranty: 5 years on all components; 1 year on battery
• Manufacturer: Maximum Controls LLC, Fountain Valley, CA
• Country of Origin: Made in the USA
• Condition: New

Installation Notes

Safety sensors are required for UL 325 2018 compliance and are not included with this operator. Confirm sensor compatibility with the Megatron 2200 PRO before ordering. The operator accepts single-phase 115V or 230V AC via an onboard selection switch; confirm your available power supply before installation. The optional Magic Box accessory allows the AC power source to be located up to 1,000 feet from the gate using a low-voltage two-wire run, avoiding the permitting and trenching costs associated with running line voltage to the gate location. For solar installations, the operator includes a built-in solar regulator; a compatible 24V solar panel is required and sold separately. For remote operation and multi-user management, the optional Max Cell Hub and Max Cloud App add cellular-based control independent of Wi-Fi range limitations.

Conclusion

The Megatron 2200 PRO is sized and rated for sustained high-cycle commercial and industrial duty. Property managers and HOAs with high-traffic entries, government facilities, and dealers specifying for Class III or Class IV installations will find the combination of 44-channel lightning protection, USB black box diagnostics, vehicle hit protection, and a 5-year warranty addresses requirements that lighter residential operators cannot meet. Safety sensors are required for UL 325 2018 compliance and are sold separately.
